Page 1

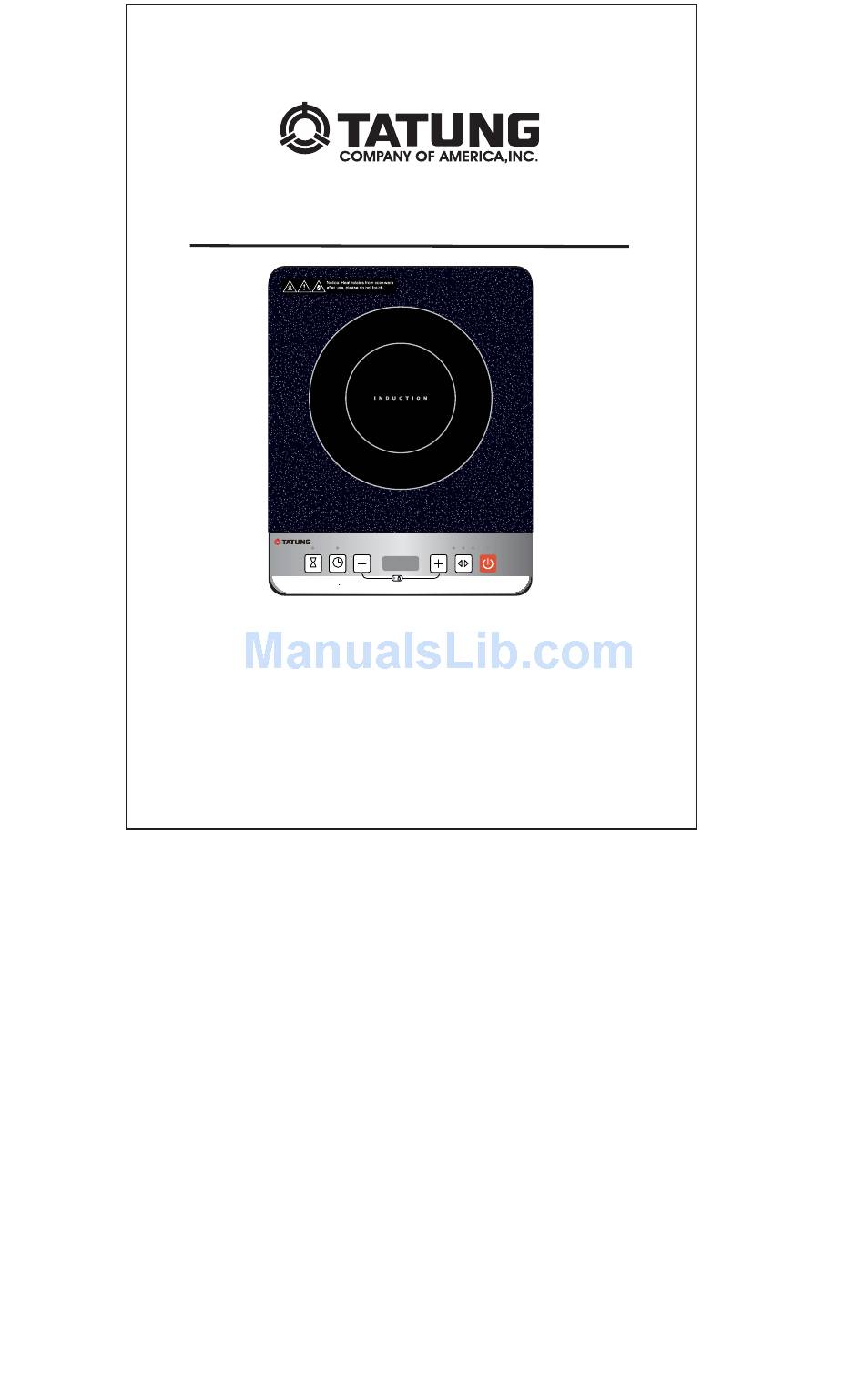

Owner’ s Induction Cooktop Manual Power Temp. warm Pre-set Timer Function Model: TICT-1506MW This manual contains important safety instructions. Please read the manual thoroughly before use.
Never operate the unit with a damaged cord or plug or after the unit has malfunctioned or have been damaged in any manner. Return appliance to Tatung’s service facility for examination, repair or adjustments. The use of accessories or cooking pans which are not recommended by Tatung may cause fires or injuries.
Page 4
SAFEGUARDS & SAFETY INSTRUCTIONS OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the product.
Page 5
SAFEGUARDS & SAFETY INSTRUCTIONS For safety reasons and to avoid damage to the appliance or injuries to people, please abide by all the safety instructions presented in the manual. Ignoring safety warnings may result in injuries or fires. The appliance should never be operated by children and special care should be taken when the unit is in their presence.
Page 6
If damaged, please stop using it and articles onto the induction cooker heating contact Tatung’s Service Department plate for indirect heating. When using the induction cooker, do not Allow at least 5” of sufficient space around...
Page 7
Tatung. The cooker cannot be overloaded. Metal objects, such as knives, forks, spoons Overloading the plate may damage the and lids, should not be put on the surface of plastic cover and cooker plate.
Page 8
When operating the appliance or after Clean after each use. Wipe down the unit with a damp cloth. moving the pot, the cooking area will remain Danger of scalding hot for a period of time. Do not touch it. Be careful of scalding caused by the high temperature.
Specifications Applied Rated Dimension Weight Model voltage/frequency power (Inches) (lbs) 120Vac,60Hz 1500W 14x11.4x2.4 TICT-1506MW Identifying Parts Air vent Ceramic plate Cooking zo Power cord indicator Power Temp. warm Pre-set Timer Function Control panel Air entry...
Page 10
Control Panel Power Temp. warm Pre-set Timer Function 1. ON/STANDBY 2. Power regulating 3. Timer 4. Function select 5. Pre-set Before using New Induction cooker Read this guide, and taking special note of the “Safeguards and Safety Instructions” section. Remove any protective film that may still be on your ceramic plate.
III. OPERA TING INSTRUCTION Installation Select a safe location to use the induction cooker. Make sure it is 5” away from other appliances, walls, or other objects. Make sure that the pot is placed in the center of the ceramic plate.
Page 12
III. OPERAT INSTRUCTIONS Function Temperature Mode Press the “Function” button, choose “Temp.”mode, the buzzer will sound and “Temp.” indicator lamp will light up. When in temperature mode, the default temperature level shall be level 5, you can adjust the temperature level by pressing the “+”...
Page 13
III. OPERAT INSTRUCTIONS Default time of function The default time of each function is two hours, which is irrelevant to the function mode. Level Default time of function(Hour) How To Lock Press the “+” and “-” button at the same time to enable the “Lock function.
IV. COMPATIBLE COOKWARE Iron oil frying Stainless steel Iron pan Iron kettle Enamel stainless Enamel cooking Iron plate steel kettle utensil Induction-compatible cookware contains ferromagnetic materials – in other words, it contains iron, or has a layer with magnetic properties. Cookware must have a flat smooth bottom with the diameter more than and less than...
V. CLEANING AND MAINTENANCE clean oil spots on the cooker plate, use a soft moist c loth with a little toothpaste or mild detergent. When product is not in use for a long period of time, disconnect the power plug from the power outlet and store the induction cooker away from any dust or bugs VI.
VII.WARRANTY Tatung USA One Year Limited Warranty 1. One year carry in waranty from day of purchase. 2. During the warranty, Tatung USA will not be responsible for any of the following conditions: a. Improper use or self-disassembly. b. Improper maintenance.
Page 17
電 磁 爐 使 用 說 明 書 Power Temp. warm Pre-set Timer Function 型號:TICT-1506MW 本說明書包含重要安全說明。在使用之前請先詳細閱讀本使用說明書。...
