GEO CRUISER Geo DX Owner's Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Owner's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Geo DX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GEO CRUISER Geo DX

Summary of Contents for GEO CRUISER Geo DX

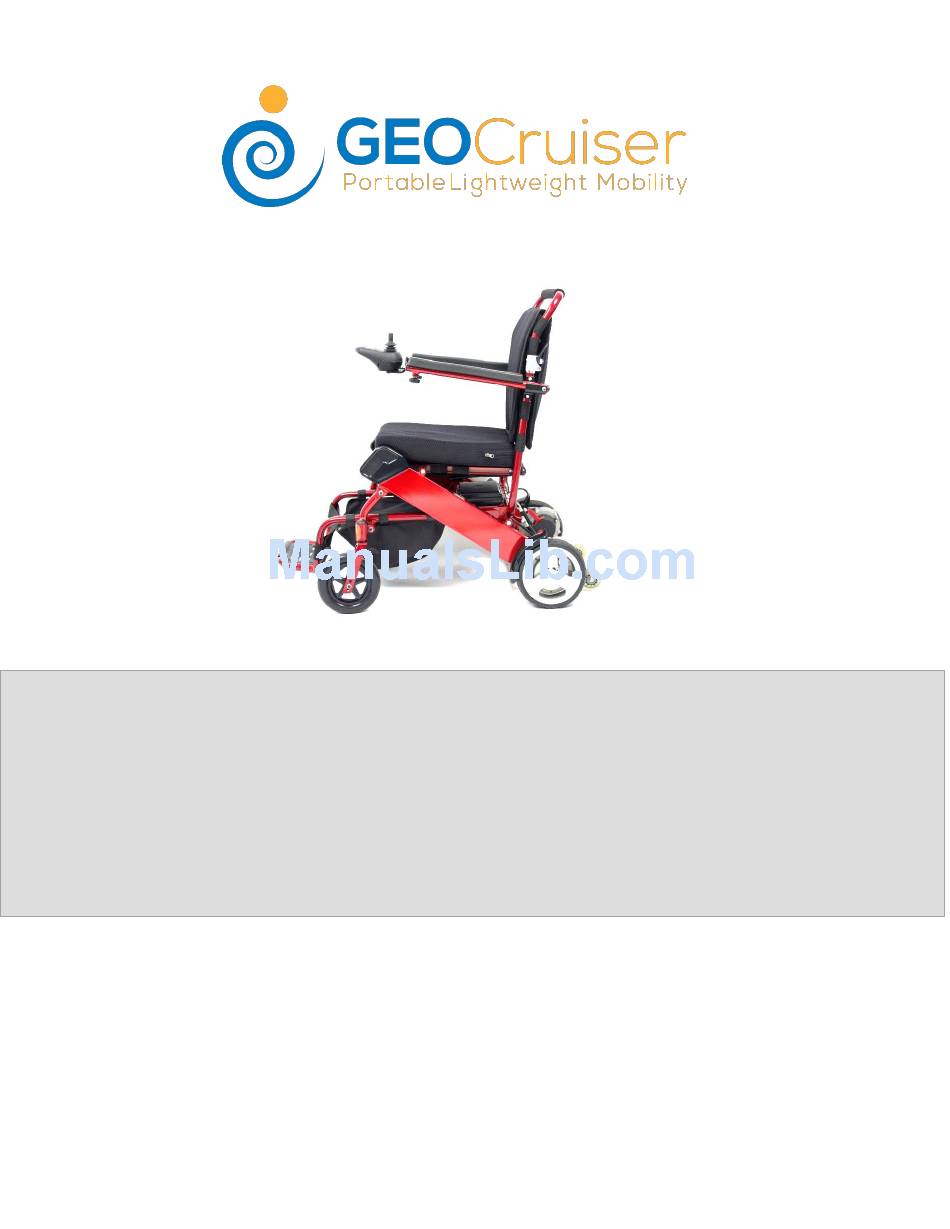

  • Page 1 Owner’s Manual...
  • Page 2 Geo Cruiser™ Owner’s Manual 1590 Oakland Road Unit B109 San Jose, CA 95131 1-877-653-3659 ©Geo Cruiser 2015-2016 Reprinted on 12-20-15 Geo Cruiser Owner’s Manual V1.3 Page 1...

  • Page 3: Table Of Contents

    Table of Contents I. INTRODUCTION II. SAFETY III. FOLDING AND UNFOLING YOUR GEO CRUISER IV. INSTALLING THE JOYSTICK CONTROLLER V. BATTERY SETUP AND MAINTENANCE VI. RIDING YOUR GEO CRUISER VII. TRANSPORTING YOUR GEO CRUISER VIII. BASIC TROUBLESHOOTING IX. CARE MAINTENANCE X.

  • Page 4: Introduction

    It is ideal for travel and on the go lifestyle. What makes the Geo Cruiser unique is its ability to fold and unfold in less than a minute, while not compromising comfort and functionality. It is designed to provide years of dependable operation, while enabling you to enhance the quality of your life allowing you to experience an active daily lifestyle.

  • Page 5: Product Specifications

    8" X 2" Rear Wheel Material: Solid, Polyurethane Rear Wheel Material: Polyurethane/Rubber Incline/Slope Capability 12 Degrees Motor: (2) 180W Brushless Motors Brakes: Electromagnetic Battery: (1) Lithium Ion/24V 10aH Battery Weight 4 lbs. Optional Battery Back-up Geo Cruiser Owner’s Manual V1.3 Page 2...
  • Page 6 Note: The “Free-wheel” levers need to be pushed outward to the unlock position to enable the Geo Cruiser to be pushed like a wheelchair. The unit must also be powered down. Geo Cruiser Owner’s Manual V1.3 Page 3...

  • Page 7: Ii. Safety

    IMPORATANT SAFTEY TIPS MOTOR VEHICLE SAFETY 1. Never sit in the Geo Cruiser while traveling in a van, train, bus or other vehicle that accommodates a power chair unless the Geo Cruiser is properly secured to the vehicle. This will allow you to avoid being thrown due to sudden braking, or an accident.
  • Page 8 1. The Geo Cruiser should be adjusted to fit your needs and/or disability 2. Make sure to always fasten yourself to the Geo Cruiser using the provided seat belt. 3. Every power chair is different. Take the time to learn the feel of the Geo Cruiser before you begin riding.
  • Page 9 Unintended brake release or movement from EMI sources. 2. Make sure that persons who help you (for example, store clerks) are aware of the joystick and do not touch it. If they do, your Geo Cruiser may move suddenly when you do not expect REACHING OR LEANING Reaching or leaning could affect the center of balance of your power chair.
  • Page 10 Move your Geo Cruiser as close as you can to the object you wish to reach. b. Turn off all power to the Geo Cruiser. If you fail to do so, you may touch the joystick and cause your power chair to move when you do not expect it.
  • Page 11 Beware Of: 1. Steep slopes. Do not use your Geo Cruiser on a slope steeper than 10°. (A 10° slope means: One foot in elevation for every ten feet of slope length). 2. Wet or slippery surfaces (such as when ice, snow, water or oil film is present).A loss of traction may cause a fall or tip-over.
  • Page 12 II. SAFETY CURBS & SINGLE STEPS 1. Your Geo Cruiser is not designed to drive up or down a curb or step more than 1/2 inch high. Doing so may: a. Result in a fall or tip-over. b. Damage the frame, wheels, axles or other Power chair parts, or loosen fasteners.
  • Page 13 II. SAFETY To reduce the risk of a fall, tip over or loss of control: 1. Never use your Geo Cruiser on a slope unless you are sure you can do so without losing traction. 2. Go as straight up and as straight down as you can.
  • Page 14 The controller which receives the signal from the joystick control panel and transfers it to the motor and brakes is located in the rear section under the seat of the Geo Cruiser and must not be exposed to moisture at any time as it may cause permanent damage. If exposed to heavy moisture, your Geo Cruiser must not be used until it has been thoroughly dried out.
  • Page 15 (Doing so will void the warranty and may create a safety hazard). 1. If you modify or adjust the Geo Cruiser it may increase the risk of a fall or tip-over. 2. Modifications unauthorized by our company constitute remanufacturing of the Geo Cruiser.
  • Page 16 One of our customer care representatives can help you find and correct the problem. 2. Make sure the battery is fully charged before operating your Geo Cruiser for the first time. A green light on charge indicator will light up (or charge indicator will indicate a full charge) when charge is full.
  • Page 17 This can affect powered vehicle movement and braking. Therefore, the warnings listed below are recommended to prevent possible interference with the control system of the powered vehicle. Geo Cruiser Owner’s Manual V1.3 Page 14...
  • Page 18 5. Report all incidents of unintended movement or brake release to the powered vehicle manufacturer, and note whether there is a source of EMI nearby. Geo Cruiser Owner’s Manual V1.3 Page 15...
  • Page 19 III. Folding/Unfolding the Geo Cruiser In this section you are going to learn how to unfold and fold the Geo Cruiser. Although there are a few ways to do this, we are going to demonstrate one particular way. Before we move “Release”...
  • Page 20 III. Unfolding the Geo Cruiser Pull the footrest forward while pulling the back of Pull the “Lock/Unlock” cable under seat to lock the chair outward. Continue until the chair fully the unit into place. folds out. Position the seat cushion into place with the...
  • Page 21 Cruiser is fully vertical. on each side to unlock the backrest. Fold down the top part of the backrest as shown The Geo Cruiser is now ready to be rolled below to make it more compact. away. Geo Cruiser Owner’s Manual V1.3...

  • Page 22: Installing The Joystick Controller

    There is a notch on the male clockwise until the cables are locked connector as a guide to fit in the female together. connector. The cable should be connected as shown below. Geo Cruiser Owner’s Manual V1.3 Page 19...
  • Page 23 Horn Be careful to turn at a safe speed to avoid potential tilting of the Geo Cruiser. You can use the speed control buttons to adjust the speed to a speed that you feel comfortable with. The maximum speed is between 3.75-4 miles per hour.

  • Page 24: Battery Setup And Maintenance

    V. Battery Setup and Maintenance The Geo Cruiser comes with one (1) 24V 10 Ah lithium Ion battery. It is pre-installed and cable connector ready. For safety reasons, the lithium battery does not ship with the battery cable connected. It does come with an “empty battery cartridge” that is used as a placeholder, and is designed to be replaced by a second optional battery, which acts as a battery back-up system designed to allow you to go twice the distance.
  • Page 25 (8) hour cycle. • If at all possible, ride the Geo Cruiser until the charge is as low as possible. This way you can maximize the life cycle of the battery, since the battery is good for five-hundred charge cycles.
  • Page 26 V. Battery Setup and Maintenance Your Geo Cruiser is designed to use one (1) maintenance free 24V/10AH Lithium battery. The Geo Cruiser comes with an easy use 24V/10mA charger. As stated earlier, the battery must be fully charged before first time use.
  • Page 27 The life-cycle of a lithium battery is measured in “Charge Cycles” Lithium batteries last longer when they are not charged every day. Remember that the Geo Cruiser will go up to 12.5 miles with one battery, so keep an eye on the charge. •...
  • Page 28 • Avoid temperature variation. Note: • Do not attempt to charge your battery if the Geo Cruiser and battery have been frozen. • Do not use any third-party battery chargers unless certified by our company. Battery Maintenance Do a periodic check of the battery casing for damage and corrosion to the Red (Positive) and Black (Negative) battery connectors.
  • Page 29 Make sure the rear battery cable is properly connected • Make sure the Geo Cruiser is powered “OFF” before boarding the unit. If it is “ON” you may accidently touch the throttle when boarding leading to the Geo Cruising moving while boarding.
  • Page 30 Do not operate the Geo Cruiser in sand, loose soil or over rough terrain. Doing so may damage wheels, bearings, axles or motors, or loosen fasteners. DRIVING IN REVERSE Use extra care when you drive the Geo Cruiser in reverse. You may lose control or fall if one of the rear wheels hits an object. •...
  • Page 31 These documents can also be mailed to you upon request. It is also possible to ride the Geo Cruiser all the way to the boarding terminal, once there, the unit can be folded and rolled away like luggage by the baggage attendant.

  • Page 32: Basic Troubleshooting

    However, if the light is flickering, it is an indication that there is a problem with the Geo Cruiser. We recommend you turn the unit off, then power back on in 1 minute. If the green light continues to flicker, we recommend that you review the Geo Cruiser Diagnostic Code table to get a diagnosis of the problem, and a recommended resolution.
  • Page 33 Problem Flickers four Over current of times quickly left motor Releasing the rocker can eliminate the malfunction. Flickers five Over current of times quickly right motor Releasing the rocker can eliminate the malfunction. Geo Cruiser Owner’s Manual V1.3 Page 30...

  • Page 34: Care Maintenance

    • To wash and clean the Geo Cruiser, take a non-abrasive lint free cloth like a micro fiber cloth and lightly dampen it with water, then proceed to softly clean the surfaces. Do not wash the Geo Cruiser with a water hose as this may create an electrical short and cause damage to the electrical.
  • Page 35 • Make sure that electronic components such as the control panel, battery charger, and other electric controlled components avoid moisture. If these components come into contact with moisture, dry before use. Geo Cruiser Owner’s Manual V1.3 Page 32...
  • Page 36 Is there any corrosion? • Cables Are the cables properly connected? • Is there any damage to the cables? • Ant-Tip Wheels Are the wheels worn down? • Armrests Are the armrests tightened? Geo Cruiser Owner’s Manual V1.3 Page 33...

  • Page 37: Warranty

    This limited warranty does not cover normal maintenance service or periodic adjustments required for normal use. • This warranty applies only to the original purchaser of the Geo Cruiser and is not transferable. Geo Cruiser Owner’s Manual V1.3 Page 34...

  • Page 38: Product Registration

    XI. PRODUCT REGISTRATION We strongly recommend that you register your Geo Cruiser as soon as possible. This is the only way that you will be able to have the unit warranted. You have two ways to do this: • Register your Geo Cruiser online. You can do this by going to the support section at www.thegeocruiser.com;...

  • Page 39: Technical Support

    It is for your benefit as all your technical support history and resolutions will be stored for you to retrieve and view. If your Geo Cruiser is no longer covered under the warranty coverage period, you have the following options: •...
  • Page 40 1590 Oakland Road, Unit B109, San Jose CA 95131 Phone: 877-653-3659 Geo Cruiser Owner’s Manual V1.3 Page 37...
