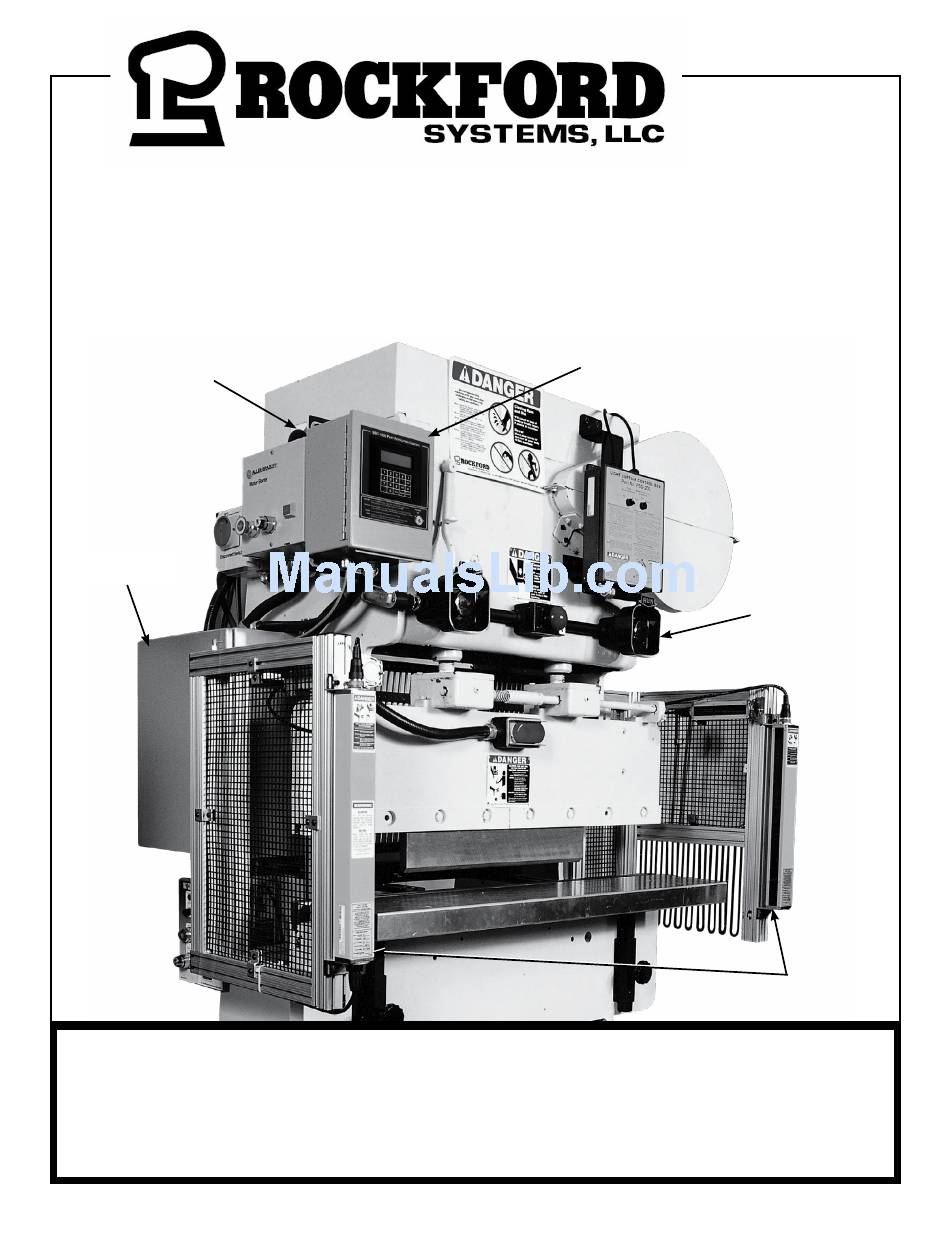

INSTALLATION MANUAL FOR
SSC-1500 GEN II CONTROL SYSTEMS ON
PART-REVOLUTION-CLUTCH PRESS BRAKES
Resolver/Pulser
Assembly
(Not Shown)
Plain-Door
Control Box
IMPORTANT:
BEFORE INSTALLING, OPERATING, OR MAINTAINING THE
SOLID-STATE CLUTCH/BRAKE CONTROL SYSTEM.
4620 Hydraulic Road • Rockford, Illinois 61109 • Toll-Free 1-800-922-7533 • Phone (815) 874-7891
Fax (815) 874-6144 • Web Site www.rockfordsystems.com • E-Mail sales@rockfordsystems.com
PLEASE REVIEW THIS ENTIRE PUBLICATION
Manual No. KSL-277
Remote Operator
Station
Palm Button
Assembly
Light Curtain
