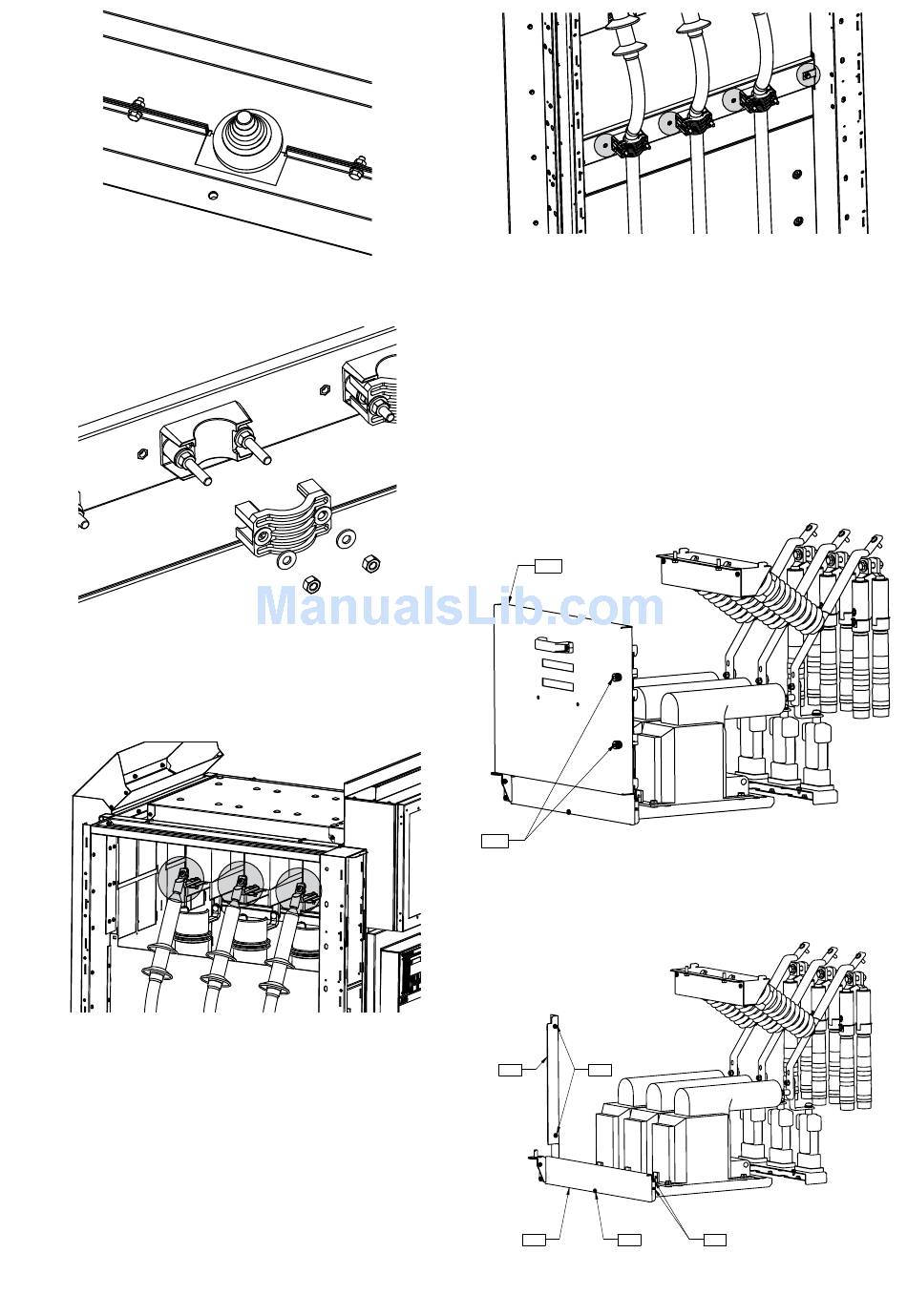

Figure 115. Cable glands on the bottom of the RLC unit
Figure 116. Exploded drawing of the cable locking parts
on the bottom of the RLC unit
2) Connect the cables to the circuit busbar.
Figure 117. RLC unit cable terminal connections
3) Connect the cable earthing screen beside the plastic locking
devices.
Figure 118. RLC unit earthing cable terminals
Close the RLC unit cable compartment.
Carry out the same operations in reverse order to open the
RLC unit cable compartment.
5.1.3 Installing the WBC unit cables
a) Open cable door A by unscrewing knurled screws A1.
A
A1
b) If necessary, remove the lower front cover by unscrewing
screws C1 and C2.
B B1
C C1
Figure 119.
C2 (on both sides)
Figure 120.
