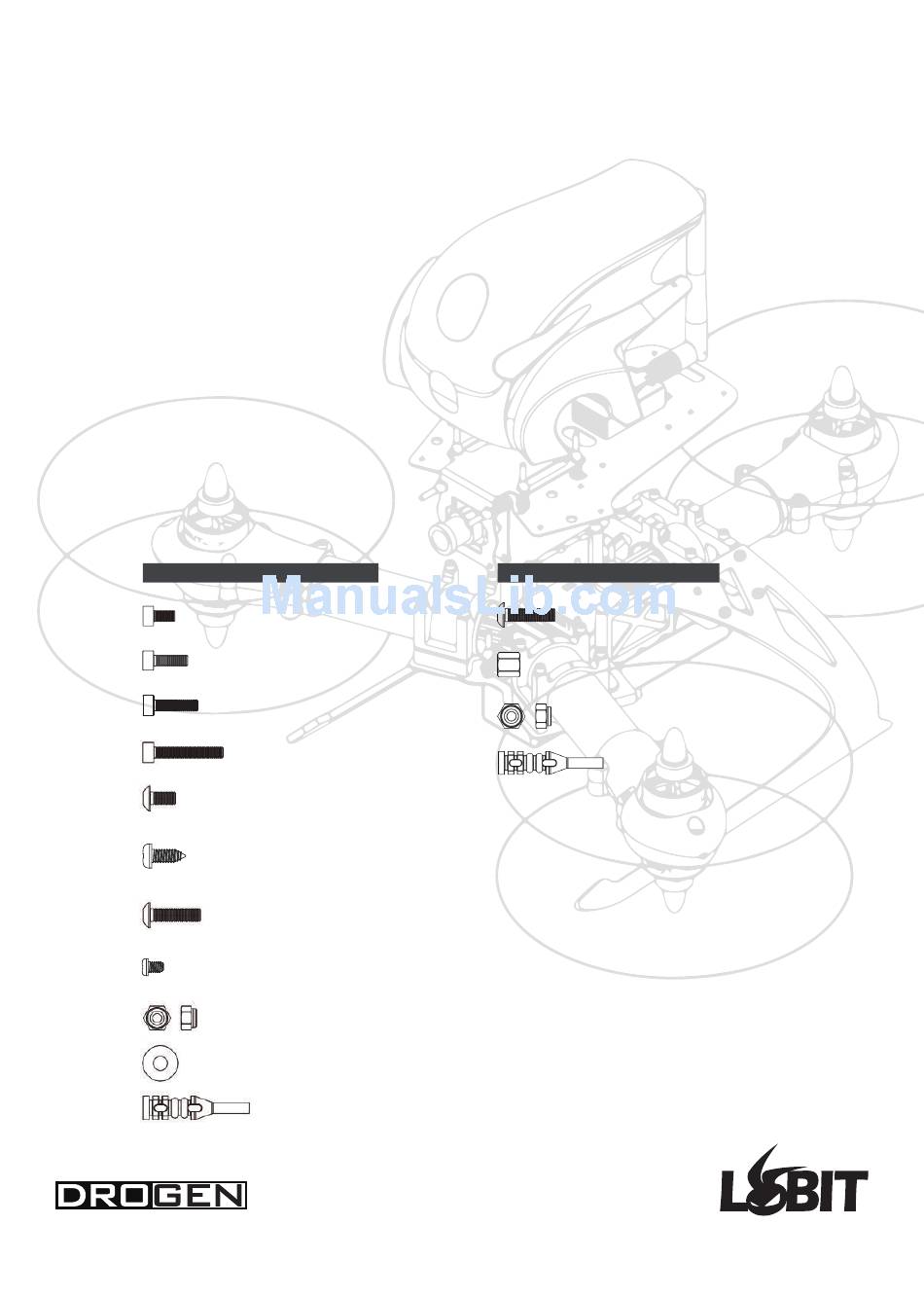

LOBIT320R Y6
ASSEMBLY MANUAL
List of Screws and Nuts
320R Frame Kit
M2.5 x 5mm
- - - - - - - - - - - - - - - - - - - - -
M2.5 x 8mm
- - - - - - - - - - - - - - - - - -
M2.5 x 10mm
- - - - - - - - - - - - - - -
M2.5 x 15mm
- - - - - - - - -
M3 x 6mm
- - - - - - - - - - - - - - - - - - - - -
M3 x 8mm
Tapping
- - - - - - - - - - - - - - - - - -
(Side cover)
M3 x 12mm
- - - - - - - - - - - - - - -
M2 x 3mm
- - - - - - - - - - - - - - - - - - - - - - - - -
Tapping
M3 Nut
- - - - - - - - - - - - - - - -
M3 Washers
- - - - - - - - - - - - - - - - - - - - -
Damper
- - -
1:1 Scale
320R Main PCB Board
x 24 ea
x 8 ea
x 2 ea
x 6 ea
x 24 ea
x 8 ea
x 15 ea
x 4 ea
x 15 ea
x 24 ea
x 8 ea
- 1 -
M3 x 12mm
x 4 ea
- - - - - - - - - - - - - - -
M3 x 5mm
x 4 ea
- - - - - - - - - - - - - - - - - - - - - - - -
Spacer
M3 Nut
x 4 ea
- - - - - - - - - - - - - - - -
Damper
x 4 ea
- - -
Vol 1.0
Advertisement
Table of Contents
Related Manuals for Drogen LOBIT320R Y6
Summary of Contents for Drogen LOBIT320R Y6
- Page 1 Vol 1.0 LOBIT320R Y6 ASSEMBLY MANUAL List of Screws and Nuts 1:1 Scale 320R Frame Kit 320R Main PCB Board M2.5 x 5mm x 24 ea M3 x 12mm x 4 ea - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - M2.5 x 8mm...
-
Page 2: Part List
Part List 320R Frame Kit Name Part Code 320 Main Upper Panel 32CB41 Motor Type CCW Motor Type CCW 320 Main Lower Panel 32CB42 320 Front Arm 32CB43 320 Rear Arm 32CB44 Arm Clamp LOAL43 Rear Arm Clamp 32AL41 Canopy Assembly LOPL31 Motor Mount Set No. - Page 3 Motor Arm & Camera Assembly Assembly of two motors in front. Prop Nut 6x45 Prop Prop Washer Propeller Rotation Direction. M3x12mm Connect 3 cables of motor to ESC. Then, motor rotates. Hex Locknuts M3 You can reverse its direction of rotation by swopping over any 2 of the 3 wires.
- Page 4 Main PCB Board & Motor Arm Assembly Side view of Main PCB Board < > Hex M3 Nuts M3 x 5mm Spacer Main PCB Board Spacers Main PCB Board Set 32PC41 320 Main Lower Panel 32CB42 M3x12mm M2.5x10mm M2.5x5mm Canopy Supporter LOCB41 M2.5x15mm M2.5x5mm...
-
Page 5: Connection Diagram
Connection Diagram 320 Main PCB Board Connector wiring diagram < > < > ESC Connector J2 < > No.2 ESC No.3 ESC No.6 ESC No.5 ESC No.1 ESC USB external port No.4 ESC J4 : PPM Setup J4 : S-BUS Setup DSMx SUMD <... - Page 6 Part Assembly Drawing M3x8mm M2.5x5mm Tapping Bolts Bonding M2x3mm M2x3mm Attach Attach Velcro tape Velcro tape Bonding Canopy Assembly LOPL31 Make sure that they fit into the holes. Laniding Skid Assembly < > M2.5x8mm Put front part of canopy on front arm as the picture shows. Please do not over-tighten them.
- Page 7 Recommend 2.4Ghz 6ch Receiver VTX installation position (installed inside) < > < > Fix it on position 1 or 2 using double-sided tape. Fix it on position 1 or 2 At least 6 channels are needed. for easier frequency channel change. PWM not supported.
-
Page 8: Customer Support
Customer support Contact information Tel. (+82)070-5066-1232 E-mail. drogen@drogen.co.kr Please visit www.drogen.co.kr to find out more about us. - 8 -...
