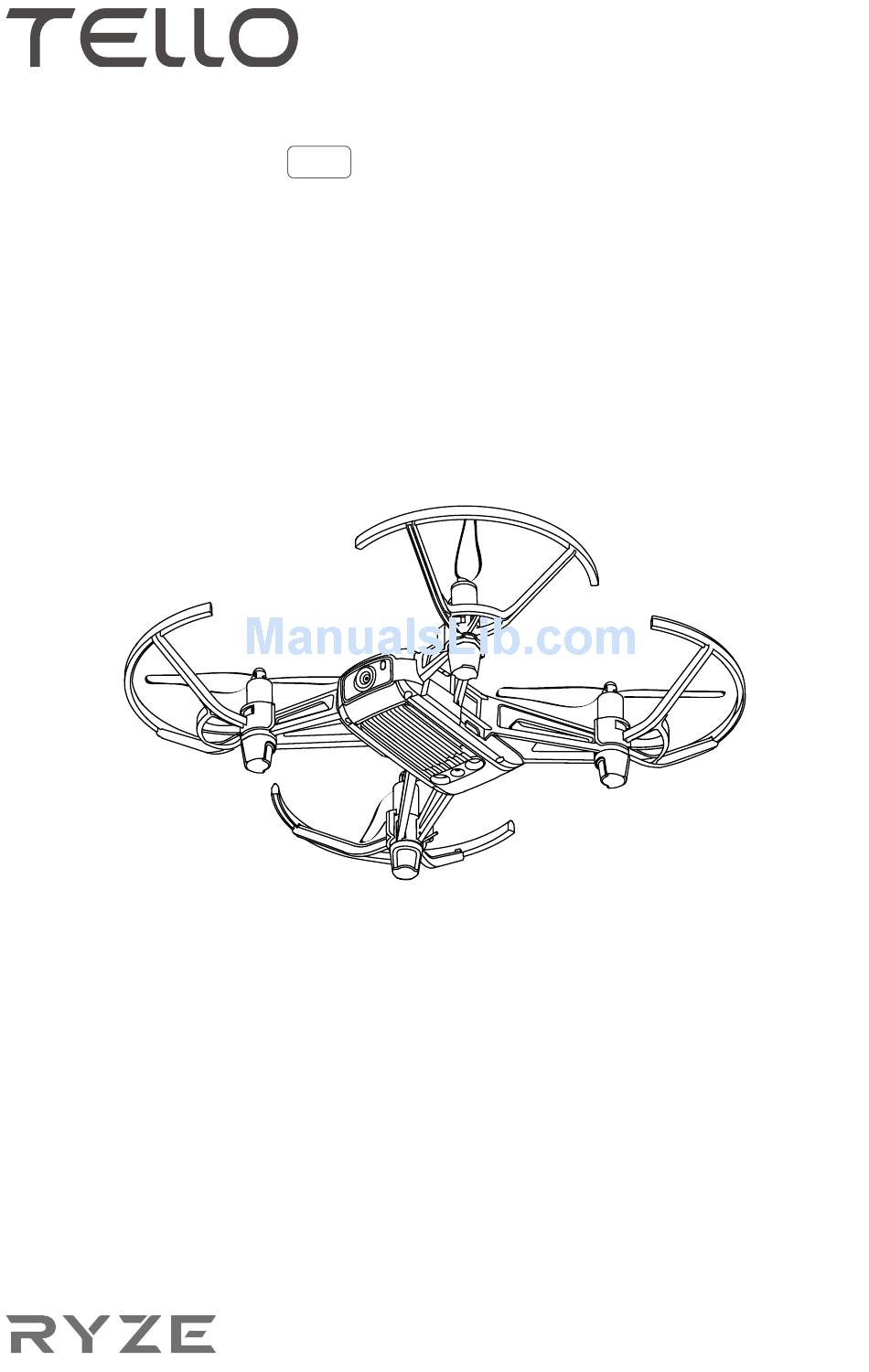

  • Page 1 User Manual v1.0 2018.02...

  • Page 2: Using This Manual

    We recommend that you watch all tutorial videos on the official RYZE Tech website https://www. ryzerobotics.com/tello and read the Tello Disclaimer and Safety Guidelines before you fly. Prepare for your first flight by reviewing the Tello Quick Start Guide and refer to this Tello User Manual for more details.

  • Page 3: Table Of Contents

    Intelligent Flight Modes Propellers Propeller Guards Flight Battery Camera Tello App Connecting to the Aircraft Camera View Controlling the Aircraft Flight Flight Environment Requirements Compliance with Regulations Test Flight Firmware Updates Specifications After-Sales Information © 2018 Ryze Tech. All Rights Reserved.

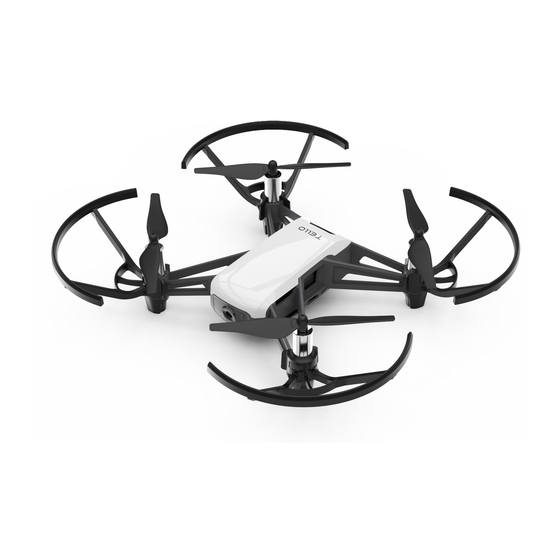

  • Page 4: Product Profile

    Advanced features like Bounce mode, 8D Flips, and EZ Shots make using Tello fun. Tello captures 5 megapixel photos and streams 720p live video to the Tello app on a mobile device. Its maximum flight time is approximately 13 minutes*, and its maximum flight distance is 328 ft (100 m).

  • Page 5: Aircraft

    Flight Battery. Refer to the aircraft diagram in the Product Profile section. Flight Modes The Tello can be controlled manually using the virtual joysticks in the Tello app or using a compatible remote controller. It also has various Intelligent Flight Modes that be used to make Tello perform maneuvers automatically.

  • Page 6: Aircraft Status Indicator

    User Manual Aircraft Status Indicator The Tello’s Aircraft Status Indicator communicates the statuses of the aircraft’s flight control system and Flight Battery. The Aircraft Status Indicator is located on the aircraft’s nose, next to the camera, as shown in the figure below. Refer to the table below for more information about the aircraft states indicated by the Aircraft Status Indicator.

  • Page 7: Vision Positioning System

    The Vision Positioning System helps the aircraft maintain its current position. With the help of the Vision Positioning System, the Tello can hover in place more precisely and fly indoors or outdoors in windless conditions. The main components of the Vision Positioning System are a camera and a 3D infrared module located on the underside of the aircraft.

  • Page 8: Intelligent Flight Modes

    Intelligent Flight Modes The Tello features Bounce mode, 8D Flips, Throw & Go, Up & Away, and EZ Shots. To use an intelligent flight mode, ensure that the aircraft’s battery level is at least 50%, tap in the Tello app, then select a mode.
  • Page 9 8D Flips In 8D Flips the aircraft automatically flips in one of eight different directions. Using 8D Flips 1. Press the power button once to turn the aircraft on. Launch the Tello app and tap to take off. 2. Tap and then select 8D Flips.
  • Page 10 EZ Shots Using 360 In 360, the aircraft records a short video while rotating 360 degrees. 1. Press the power button once to turn the aircraft on. Launch the Tello app and tap to take off. 2. Tap and then select 360. Read the information prompt and then select Start.
  • Page 11 User Manual Using Circle In Circle the aircraft records a short video while flying in a circle. 1. Press the power button once to turn the aircraft on. Launch the Tello app and tap to take off. 2. Tap and then select Circle. Read the information prompt and then select Start.

  • Page 12: Propellers

    • Be extra cautious when flying in dark (< 300 lux) or bright (> 10,000 lux) environments. Propellers The Tello uses model 3044P propellers. There are two varieties of 3044P propellers, which are designed to spin in different directions. The presence or absence of marks on the propellers indicates which type they are and therefore which motors they should be attached to.

  • Page 13: Propeller Guards

    • Ensure that all propellers are in good condition before each flight. DO NOT use aged, chipped, or broken propellers. Propeller Guards The Tello Propeller Guards can be used to reduce the risk of harm or damage to people or objects resulting from accidental collisions with Tello aircraft. Mounting the Propeller Guards Mount each of the propeller guards to the aircraft landing gear beneath the motors.

  • Page 14: Flight Battery

    DO NOT use excessive force when removing propeller guards as doing so may damage the aircraft’s arms and you may get hurt. Flight Battery The Tello Flight Battery is a 3.8 V, 1100 mAh battery with charging/discharging protection. Fully charge the Flight Battery before each flight. Battery Features 1.

  • Page 15: Camera

    Before carrying the Flight Battery on an airline flight, it must be discharged to 30% or lower. To discharge the Flight Battery, fly the aircraft. Checking Battery Level Press the power button once to turn the aircraft on. Launch the Tello app and check the battery level in the app. Camera The Tello camera captures 5 megapixel photos and 720p videos.

  • Page 16: Tello App

    Wi-Fi settings here. By default the Tello does not have a Wi-Fi password. You can set a password and you can also change the Wi-Fi SSID. (To reset the Wi-Fi SSID and password to the default settings, power on the aircraft and then press and hold the power button for 5 seconds.

  • Page 17: Controlling The Aircraft

    Mode 2) are available. The default mode is Mode 2. In each of the two modes the Tello hovers in place at a constant orientation when both virtual joysticks are centered. Pushing a virtual joystick away from the center position performs the functions show in the figure below.
  • Page 18 TELLO User Manual Mode 1 Left Stick Forward Right Stick Down Backward Left Right Turn Left Turn Right Mode 2 Left Stick Right Stick Forward Down Backward Turn Left Turn Right Left Right © 2018 Ryze Tech. All Rights Reserved.
  • Page 19 • The area beyond the white circles is also responsive to control commands. • The Tello is currently compatible with the Gamesir remote controller and Apple MFi Certified remote controllers. The virtual joysticks are disabled when connected to a remote controller via Bluetooth.

  • Page 20: Flight

    1. Place the aircraft in a flat area with the Flight Battery facing towards you. 2. Turn on the aircraft. 3. Launch the Tello app and enter the camera view. 4. Use auto takeoff. 5. Use the virtual joysticks to control the aircraft.

  • Page 21: Firmware Updates

    Firmware Updates When you connect the aircraft to the Tello app you will be notified if a new firmware update is available. To start updating, connect your mobile device to the Internet and follow the on-screen instructions. • Firmware updates take around 5 minutes.
  • Page 22 Ryze Tech Support http://www.ryzerobotics.com/support This content is subject to change. Download the latest version from http://www.ryzerobotics.com Copyright © 2018 Ryze Tech. All Rights Reserved.
