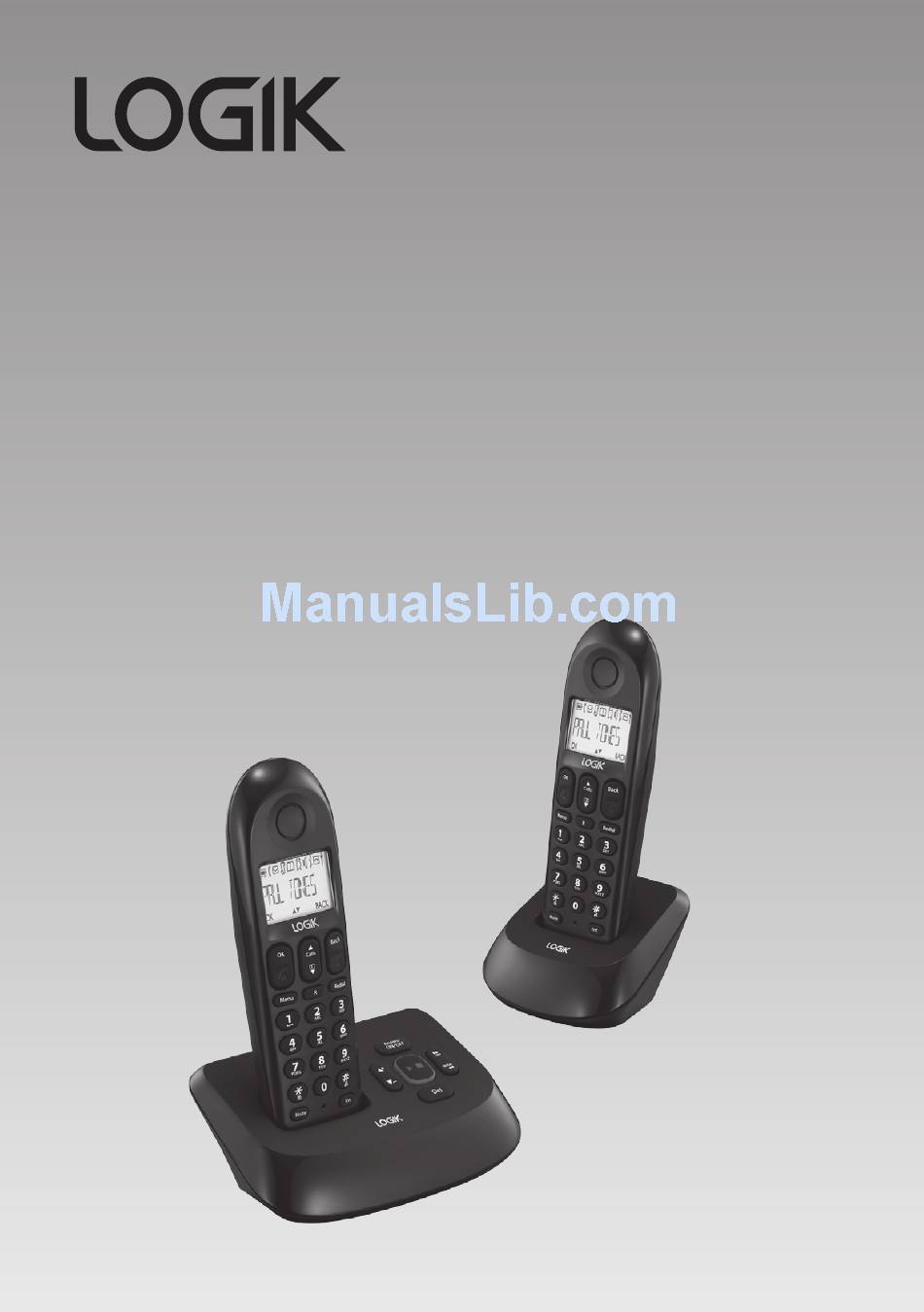

  • Page 1 Cordless Telephone with Answer Machine Instruction Manual L1DTAM11 L2DTAM11 (with additional handset) For L2DTAM11 only...

  • Page 3: Table Of Contents

    Contents Unpacking .......................5 Installing Your Phone ..................6 Connecting the Base Unit ...................6 Installing and Charging the Batteries ..............6 Handling the Batteries ....................7 Getting to Know Your Phone .................8 Handset Overview ......................8 Base Unit Overview .......................9 Display Icons and Symbols ..................10 Menu Structure ......................11 Operations ....................
  • Page 4 Answer Machine Operation By Handset ............ 23 Turn the Answering Machine On or Off ...............23 The Outgoing Message .....................23 Set the Answer Mode ....................24 Record a Personalized Outgoing Message ............24 Playback and delete messages ................24 Playback recorded messages ..................25 Using the Intercom......................25 Intercom another Handset ..................25 Transfer an External Call to another Handset ............25 Answer an External Call during Intercom ............26...

  • Page 5: Unpacking

    Thank you for purchasing your new Logik Cordless Telephone with Answer Machine. We recommend that you spend some time to read this instruction manual in order to fully understand how to install and operate it. Read all the safety instructions carefully before use and keep this instruction manual for future reference.

  • Page 6: Installing Your Phone

    Installing Your Phone Connecting the Base Unit Plug the mains adaptor & telephone line cable into the base unit. Plug the mains adaptor & telephone line cord into the wall socket. Always use the cables provided in the box. Installing and Charging the Batteries Slide open the battery compartment cover.

  • Page 7: Handling The Batteries

    Handling the Batteries • Improper or incorrect use of batteries may cause corrosion or battery leakage, which could cause personal injury or damage to property. • Install the batteries correctly by following the polarity (+ and -) indications in the battery compartment. •...

  • Page 8: Getting To Know Your Phone

    Getting to Know Your Phone Handset Overview Earpiece Display (Up) / Calls Button • Press to increase volume and view CID. (Down) / (Phonebook) Button • Press to decrease volume and access Phonebook. OK Button (Talk) / (Speakerphone) Button • Press to make a call and to receive a call. • Press to activate the speakerphone.

  • Page 9: Base Unit Overview

    Base Unit Overview Handset Locator Button • Press to locate the missing handsets. Charging Cradle Control Panel Answer ON/OFF SKIP REPEAT 1. Answer ON/OFF Button • Press to switch the answering machine on/off. (Play/Stop) Button • Press to play or stop message playback. Button • Pr ess to increase speaker volume.

  • Page 10: Display Icons And Symbols

    Display Icons and Symbols Displays when the battery is fully charged. Battery Charge Level Flashes when the battery is fully discharged. Indicates that an external call is connected or held. Call Icon flashes when receiving an incoming call. Message Indicates you have a new voice mail message. Indicates you have new missed calls, or the call log Caller display is being viewed.

  • Page 11: Menu Structure

    Menu Structure In idle mode, press the Menu button to access the main menu. Refer below for the menu structure. Menu Map Press the buttons to scroll through the menu items. PHONEBOOK PERSONAL SET CLOCK&ALARM ADVANCED ANSW MACHINE NEW ENTRY HANDSET NAME DATE/TIME PLAY...

  • Page 12: Operations

    Operations Switching ON/OFF Press and hold the button for more than 2 seconds to switch on/off the handset in idle mode. When the handset is OFF, it cannot be used for making calls including emergency calls. There will be no ringing during an incoming call. To answer a call, you will need to switch it back on.

  • Page 13: Change Your Handset's Name

    Change your Handset’s Name 1. Press the Menu button to enter menu selection. 2. Press the buttons to select PERSONAL SET and then press the OK button to select. 3. Press the buttons to select HANDSET NAME and then press the OK button to select.

  • Page 14: Using Your Phone

    Using Your Phone Make a Call Pre-dialing Dial the number (maximum 24 digits) and then press the Talk button. Direct Dialing Press the Talk button to take the line and then dial the number (maximum 24 digits). Call from Redial List 1.

  • Page 15: Adjust The Earpiece Volume

    Adjust the Earpiece Volume During a call, press the buttons to select from VOLUME 1 to VOLUME 3. Mute/Unmute Microphone 1. When the microphone is muted, the handset displays MUTE ON, and your caller cannot hear you. 2. During a call, press the Mute button to turn on/off the microphone. Paging 1.

  • Page 16: Private Phonebook

    Private Phonebook Your phone can store up to 50 phonebook memories. Each phonebook entry can have a maximum of 24 digits for the phone number and 12 characters for the name. Enter Characters When you select a field in which you can enter text, you can enter the letters that are printed on the keys by pressing the relevant key once or several times.

  • Page 17: Access Phonebook

    Access Phonebook 1. Press the button in idle mode to browse the phonebook entries. Alternatively, you can press the Menu button, to display PHONEBOOK and then press the OK button to select. buttons to select LIST and then press the OK button to 2.

  • Page 18: Delete All Entries From The Phonebook List

    Delete all Entries from the Phonebook List 1. Press the Menu button to enter menu selection. 2. Press the buttons to select PHONEBOOK and then press the OK button to select. buttons to select DELETE ALL and then press the OK 3.

  • Page 19: Delete Direct Access Memory

    Delete Direct Access Memory 1. Press the Menu button to enter menu selection. 2. Press the buttons to select PHONEBOOK and then press the OK button to select. buttons to select DIRECT MEM. and then press the OK 3. Press the button to select.

  • Page 20: Delete A Redial Number

    Delete a Redial Number 1. Press the Redial button in idle mode to go to the redial list. 2. Press the buttons to select an entry and then press the Menu button. buttons to select DELETE and then press the OK button 3.

  • Page 21: Caller Display (Network Dependent)

    Caller Display (Network Dependent) To receive Caller ID you may need to contact your telephone service provider, and they will inform you also of any charges for it. Caller ID lets you see the phone numbers of your callers on the handset display, before you answer and in your Call Log afterwards.

  • Page 22: Delete All Entries In The Call Log

    Delete All Entries in the Call Log 1. Press the Calls button in idle mode to go to the call list. 2. Press the Menu button. buttons to select DELETE ALL and then press the OK 3. Press the button to select.

  • Page 23: Answer Machine Operation By Handset

    Answer Machine Operation By Handset You can use the answer machine menu on the handset to access and change the settings for all the answering machine functions. Turn the Answering Machine On or Off 1. Press the Menu button to enter menu selection. 2.

  • Page 24: Set The Answer Mode

    Set the Answer Mode 1. Press the Menu button to enter menu selection. 2. Press the buttons to select ANSW MACHINE and then press the OK button to select. buttons to select ANSWER MODE and then press the OK 3. Press the button to select.

  • Page 25: Playback Recorded Messages

    Playback recorded messages 1. Press the Menu button to enter menu selection. 2. Press the buttons to select ANSW MACHINE and then press the OK button to select. buttons to select DELETE ALL and then press the OK 3. Press the button to confirm.

  • Page 26: Answer An External Call During Intercom

    Answer an External Call during Intercom 1. During intercom, a new call tone is emitted when there is an incoming external call. Press the button to answer the external call and end the intercom. 2. Connection with the external call is established. To put the internal call on hold and answer the incoming external call, press the Int button.

  • Page 27: Phone Settings (Handset Tone)

    Phone Settings (Handset Tone) Set the Ring Volume There are 5 ringer volume options (OFF, LEVEL 1, LEVEL 2, LEVEL 3 and LEVEL 4). The default level is LEVEL 2. 1. Press the Menu button to enter menu selection. buttons to select PERSONAL SET and then press the OK 2.

  • Page 28: Activate/Deactivate Auto Hang-Up

    Activate/Deactivate Auto Hang-up This function enables you to end a call automatically by simply placing the handset on the base unit. By default, the Auto Hang up feature is ON. 1. Press the Menu button to enter menu selection. buttons to select PERSONAL SET and then press the OK 2.

  • Page 29: Set Alarm

    Set Alarm The handset has an alarm clock feature, and when the alarm is set, it is shown on the handset display. When the alarm time is reached, the display flashes --ALARM-- and the alarm melody is played for 1 minute or until any handset key is pressed. If the alarm is set for ON DAILY, the alarm will sound again on the next day.
  • Page 30 1. Press the Menu button to enter menu selection. buttons to select ADVANCED SET and then press the OK 2. Press the button to select. buttons to select CHANGE PIN and then press the OK 3. Press the button to select. 4.
  • Page 31 Un-register your Handset 1. Press the Menu button to enter menu selection. buttons to select ADVANCED SET and then press the OK 2. Press the button to select. buttons to select UNREGISTER and then press the OK 3. Press the button to select.
  • Page 32 Change recall time You may need the R (Flash) button to send a Recall signal (also called Timed Break Recall) if you are connected to a PBX. You should normally leave the Recall Time at its default setting of Short (100ms), as this is the standard recall required in the telephone network, but it can be changed to Medium (270ms) or Long (600ms) if your telephone is connected to a PBX that requires a different recall time.
  • Page 33 Set First Ring When this function is set to Off, the first ring from an incoming call will not sound. This is useful on exchanges where calling line identity is sent after the first ring. 1. Press the Menu button to enter menu selection. 2.

  • Page 34: Answering Machine Settings

    Answering Machine Settings Set Ring Delay 1. Press the Menu button to enter menu selection. 2. Press the buttons to select ANSW MACHINE and then press the OK button to select. buttons to select SETTINGS and then press the OK 3.

  • Page 35: To Check Messages Remotely

    To Check Messages Remotely 1. When you are away from home, dial your home phone number from another phone. The answering machine answers and starts playing your greeting message. 2. While the OGM is playing, press the button on the phone you are using to dial your home telephone and enter the remote access code (which is the same as your master PIN code).

  • Page 36: Set The Ogm Voice Language (Optional)

    Set the OGM Voice Language (optional) 1. Press the Menu button to enter menu selection. 2. Press the buttons to select ANSW MACHINE and then press the OK button to select. buttons to select SETTINGS and then press the OK 3.

  • Page 37: Text And Digit Entry Table

    Text and Digit Entry Table The following tables show you where each letter and punctuation character can be found. Respective character table will be used when the corresponding menu language is selected. This will be helpful when storing a name in the contacts and renaming your handset. In editing mode, a cursor is displayed to indicate the current text entry position.

  • Page 38: Hints And Tips

    Hints and Tips ALWAYS check first that: • You have followed all the steps listed in the user manual to install and set up your telephone. • All connectors are firmly inserted in their sockets. • Mains power to the base unit and charging cradle are switched on at the mains socket.
  • Page 39 When I key in a number, it appears on the display, but I cannot make an outside call Try a different position for the base unit – somewhere higher if possible, or further from other electrical equipment. The phone does not ring •...

  • Page 40: Intercom And Transfer

    Intercom and transfer I can’t transfer a call • Make sure the other handset is in range of the base unit. • Make sure you are dialing the correct number for the other handset. Batteries The handset’s battery cells are running low within an hour or two •...

  • Page 41: Specification

    Specification Frequency range 1.88 to 1.9 GHz (bandwidth = 20 MHz) Channel bandwidth 1.728 MHz Operating range Up to 300m outdoors; up to 50m indoors Operating time Standby: 100 hours Talking: 10 hours Battery charge time: 15 hours Temperature range 0 °C to 40 °C Operating Storage -20 °C to 60 °C...

  • Page 42: Safety First

    Safety First For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below. • Read all instructions carefully before using the telephone and keep them for future reference. • Retain the manual.
  • Page 43 • Otherwise a short circuit may cause the battery(ies) and/or the conductive material to overheat and cause burns. • Environment - Place the unit in a room where the temperature is between 0°C and 40°C. Allow 5cm clearance around the unit for proper ventilation. •...
  • Page 44 If you require a replacement for any of the items listed below, please quote their corresponding part numbers: Replacement Part Part Number For L1DTAM11 and L2DTAM11 Handset L1DHS Base Unit L1DBS Mains Adaptor L1DMPA Telephone Linecord L1DTL AAA Battery X 2...
