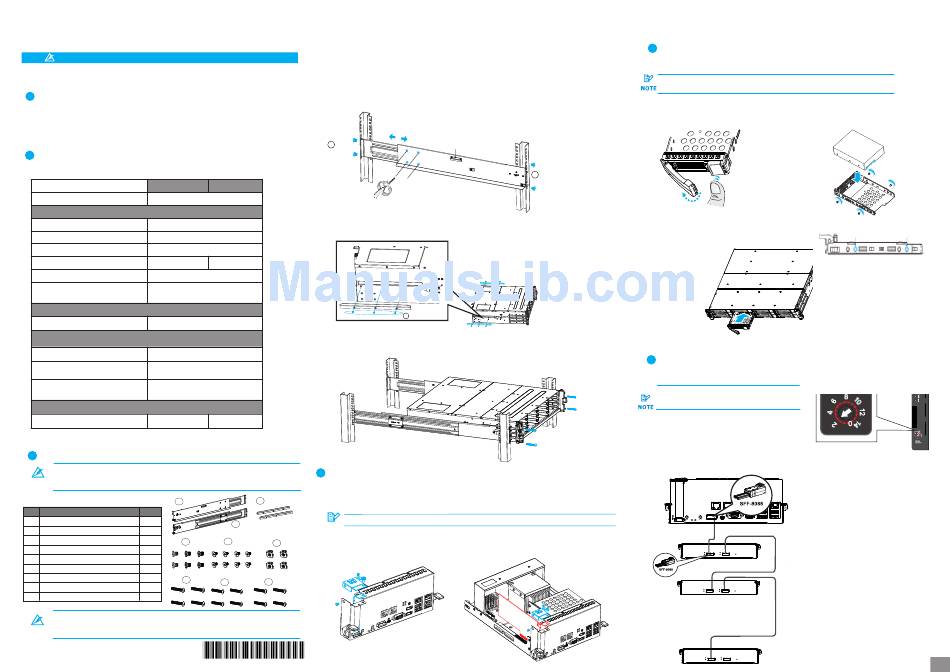

Surveon NVR7812 Quick Installation Manual

NVR7800 Series
Quick Installation Guide
Warning
• Only qualified service personnel should install and service this product to avoid injury.
• Observe all ESD procedures during installation to avoid damaging the equipment.
1 Preparing Tools
Unpack the equipment and make sure the following tools are available before installation.
• Phillips screwdriver (mid-size)
• Flat blade screwdriver (small-size)
• Anti-static wrist wrap
Materials Checking List
2
2
Refer to the following table for the exact amount of items included in the package.
.
NVR7812
Quantity
Box contents
.
Accessory box
1
Quick Installation Guide
Product DVD 1
RS 232 Serial cable(mini USB to DB-9)
Screws for securing 3.5'' HDDs 50
Power clamp set
Screws for mounting enclosure:
16
M5*4/M5 NUT*4/M6*4/310-32*4
Power cord box
Power cord
Enclosure chassis
Pre-installed modules include:
Controller module with OS hard drives
1
Power supply unit (PSU) w/embedded
2
FAN module
Tray EPE5
HDD Tray 12
Above box contents and quantities are standard shipment, and may vary base on order requests
.
Rackmount Installation
3
Due to the weight of the enclosure and installation procedure requirements, DO NOT
install HDDs before rackmounting and at least one other personnel should assist with
Warning
the installation.
3-1. Slide Rail Kit Contents
1
Item
Description Quantity
01 Mounting bracket assembly, left-side 1
1
02 Mounting bracket assembly, right-side
03 Inner glides 2
4
Flathead screws #6-32 L4 6
04
05 Truss head screws M5 x 9.0mm 8
M5 cage nuts
06 4
07 M5 x 25mm 4
7
08 M6 x 25mm
4
09 #10-32 x 25.4mm 4
In the 3-1 Slide Rail Kit Contents Table, items 3~5 are placed with the item 2
(Mounting bracket assembly, right-side) as a package. Items 6~9 are put into the
NOTE
Accessory box as Material Checking List shows. (please refer to Point 2 AS ABOVE) .
3-2. Installation
1. Determine the exact position for enclosure installation (front and rear rack posts).
2. Refer to the illustration below to insert cage nuts into the front rack post and truss head screws to secure
the slide rail.
Positions for chassis / M5 cage nut: Please refer to Rack Ear Mount Kit's section.
3. Adjust the length by loosening the four screws on the slide rail. Secure the slide rails to front and rear
posts using truss head screws and tighten the four screws on the slide to fix the length.
M5 x 9.0mm
05
NVR7816
4. Attach the inner glides to BOTH sides of the enclosure using flathead screws #6-32.
1
70
2
2
5. With the assistance of another person, lift and insert the enclosure onto the slide rail. Make sure the inner glides
on both sides of the enclosure meets the inner glide rail. Secure the enclosure using M5 or M6 screws from the front.
16
PCIe Card Installation(Optional)
4
To install the PCI-E card, you need to remove the controller, please refer to the previous section on how to remove 3
the controller from the enclosure.
3
Please confirm with support personnel on PCI-E card qualification before purchase / installation!
2
NOTE
5
6
1. Loosen the screws and remove the
covers shown in the illustration below.
8 9
5
4
Q MN R 7 8 X 0 0 1 1 0
Inner glide rail
05
M5 x 9.0mm
08 #6-32
2. Install the PCI-E card into PCI-E slot, secure it with
the cover and screws.
5
3. Insert the controller back into the enclosure, secure the screws underneath both levers .
Installing HDD
5
5-1. Standard form factor HDD(3.5'')
At least four (4) hard drives must be installed for RAID 5 or five (5) hard drives
must be installed for RAID 6 to create an initial volume!
a.Removing the HDD tray
b. Attaching the HDD
Press the release button to open the bezel
1. The interface connector should face the open side of
and gently pull the HDD tray out of the enclosure.
5-2. Inserting and Securing HDD tray
Insert with tray bezel open.
4
4
6 JBOD Connections
EonServ is assigned with ID "0" by default.
2U system connects only to 2U JBODs.
3U systems connect only to 3U JBODs.
6-1. Setting JBOD IDs
Use a small flat blade screwdriver to set the
7
JBOD enclosure ID(s). A different ID number
must be allocated for each JBOD.
6-2. Making connections
3 3 3
3
1st JBOD
2nd JBOD
.
.
4
.
.
.
.
.
Last JBOD
the tray, while the label side should face up.
2. Secure the drive by fastening four (4) of the supplied
screws.
2
• EonServ SAS exp. – 1st JBOD SAS-IN
• 1st JBOD SAS-OUT– 2nd JBOD SAS-IN
1/4
