Wireless door/window detector

Advertisement

Quick Links

http://www.conrad.com
Imprint
These operating instructions are published by Conrad Electronic SE, Klaus-Conrad-
Str. 1, D-92240 Hirschau/Germany.
All rights reserved.
No reproduction (including translation) is permitted in whole or part e.g. photocopying,
microfilming or storage in electronic data processing equipment, without the express
100%
written consent of the publisher.
recycled
paper.
The operating instructions reflect the current technical specifications at the time of
Bleached
print. We reserve the right to change the technical or physical specifications.
without
chlorine.
© Copyright 2007 by Conrad Electronic SE. Printed in Germany.

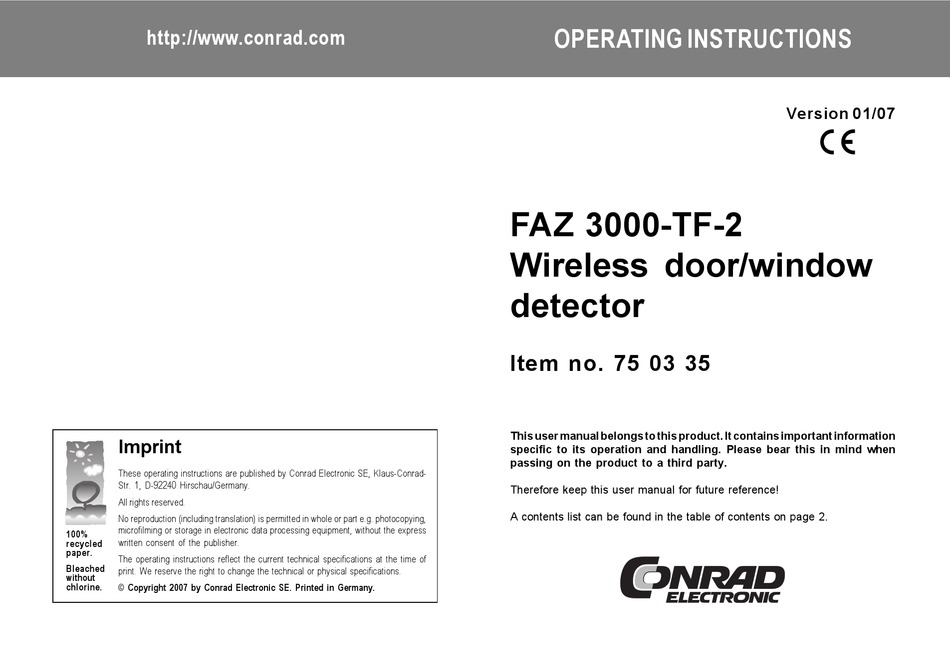

OPERATING INSTRUCTIONS
FAZ 3000-TF-2
Wireless door/window
detector
Item no. 75 03 35
This user manual belongs to this product. It contains important information
specific to its operation and handling. Please bear this in mind when
passing on the product to a third party.
Therefore keep this user manual for future reference!
A contents list can be found in the table of contents on page 2.
Version 01/07

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FAZ 3000-TF-2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Conrad FAZ 3000-TF-2

  • Page 1 Please bear this in mind when passing on the product to a third party. These operating instructions are published by Conrad Electronic SE, Klaus-Conrad- Str. 1, D-92240 Hirschau/Germany. Therefore keep this user manual for future reference! All rights reserved.
  • Page 2: Table Of Contents

    Table of contents Page 1. Introduction ..................3 2. Prescribed use ..................4 3. Scope of delivery ................4 4. Explanation of icons ................5 5. Safety instructions ................5 a) General information ............... 5 b) Batteries and rechargeable batteries ..........6 6.
  • Page 3: Introduction

    Should you have any further questions, please contact our technical service: Germany: Tel. no.: +49 9604 / 40 88 80 Fax. no.: +49 9604 / 40 88 48 Email: tkb@conrad.de Mon. to Thur. 8.00am to 4.30pm Fri. 8.00am to 2.00pm...
  • Page 4: Prescribed Use

    2. Prescribed use The wireless door/window detector ‘FAZ 3000-TF-2’ is only suitable for use with the ‘FAZ 3000’ wireless alarm system. The door/window detector has a magnet contact. A signal is transmitted to the alarm base station when it is triggered.
  • Page 5: Explanation Of Icons

    4. Explanation of icons The icon with a lightning flash in a triangle is used to alert you to potential personal injury hazards such as electric shock. The icon with an exclamation mark in a triangle points to important information in this user manual that must be observed. ...
  • Page 6: B) Batteries And Rechargeable Batteries

    • The product is only approved for installation and operation in dry and closed indoor rooms. Make sure that the product does not get damp or wet. • This product is not a toy and should be kept out of the reach of children. •...
  • Page 7: Features And Functions

    6. Features and functions • Monitoring of doors and windows via the supplied magnets (can be mounted to the left or to the right of the detector) • Can be mounted to a door or window, for example • Monitoring of objects that need to be protected against unauthorised removal (pictures, works of art and so on) •...
  • Page 8: Installation

    7. Installation a) Installation notes • Magnetic sensors (reed switch) are located inside the ‘FAZ 3000-TF-2’ door/ window detector on the left and on the right side. This means that you can mount the supplied magnet either on the left or on the right side.
  • Page 9 • Make absolutely sure that the lower edge of the magnet is 20mm away from the lower edge of the door/window detector. Mounting the magnet higher or lower reduces the magnetic range; the magnet must be installed closer to the door/window detector! The horizontal distance between the magnet and the door/window detector should not exceed 25mm.
  • Page 10 • NO contacts on the door/window detector may also be used to complete the monitoring, (use connection ‘KL1’, see page 12, figure 5). They must have a potential-free/currentless switching output. When connecting several NO con- NO contacts tacts, they must be connected in NO-Kontakte parallel (figure 3).
  • Page 11: B) Installing The Door/Window Detector

    b) Installing the door/window detector • Open the casing; the two casing halves are secured by two catches (‘A’ in figure 4 below). Using a fingernail or a flat screwdriver carefully push the two catches approx. 1 millimetre inwards until the casing opens. First press one catch inwards and pull the casing approx.
  • Page 12 In the door/window detector itself, the cables are fed under the battery com- partment for the LR44 button cells to the screw terminal strips (otherwise the LR44 button cells cannot be inserted properly), see figure 5. KL1: The connection for external NO con- tacts is always active, irrespective as to whether ‘disarmed’, ‘internally armed’...
  • Page 13 • If you use the supplied magnet, attach it using the enclosed double-sided tape (please note the recommended distances, see figure 1 on page 8). Alternatively, you can use 2 screws to attach the magnet. Remove the magnet’s casing using a flat screwdriver and screw in suitable screws. Afterwards, replace the casing.
  • Page 14: Registering The Door/Window Detector With The Alarm Base Station

    8. Registering the door/window detector ‘FAZ 3000-TF-2’ with the base station  To register the sensors the alarm base station must first be set to receive radio signals. Make sure that you also read the user manual of the ‘FAZ 3000-Z’ alarm base station.
  • Page 15  After installing of the door/window detector as described in section 7. b) on pages 11 to 13, the casing of the device is still open and the batteries are not yet inserted. • If you want to connect additional NC contacts to the ‘KL2’ connector, first remove the jumper from the KL2 connector.
  • Page 16 • If you have connected additional NO contacts to the ‘KL1’ connector (see figure 3 on page 10), please insert 3 type ‘LR44’ button cells observing correct polarity into the battery compartment, see figure 7. The 3 button cells must be positioned such that each ‘plus’ (‘+’) points upwards (please note the ‘+’...
  • Page 17 • Return to the alarm base station. The LCD’s dis- contact play has changed. See the figure on the right. The number ‘3 3 3 3 3 ’ is the continuous sensor number (and not ‘the third door/window detector’). The appro- priate number is displayed, depending on the number of sensors you already have registered with the alarm base station.
  • Page 18 • Use the ‘ ’ button to set the door/window detector close : as an internal sensor (‘intern: Y intern: Y’) or an exter- intern: Y intern: Y intern: Y intern: nal sensor (‘intern:N intern:N intern:N intern:N intern:N’). ‘intern: N External sensor;...
  • Page 19: Open The Door/Window Detector's Casing, Replacing The Batteries

    9. Opening the door/window detector’s casing, replacing the batteries  Before the casing of the door/window detector may be opened, the alarm base station must be set to maintenance mode. Oth- erwise the alarm base station immediately sets off the sabotage alarm when the casing is opened.
  • Page 20 Once the new batteries have been inserted the sensor’s LED briefly blinks once. The radio con- nection to the alarm base station has been estab- lished and checked. For instance, instead of replacing batteries, the wiring of the door/window detector can be changed, to connect additional external sensors, for exam- ple.
  • Page 21: Explanation Of 'Internal/External Sensor' And 'Closure Group

    10. Explanation of ‘Internal/external sensor’ and ‘closure group’ a) Internal/external sensor  By assigning a sensor as an internal or an external sensor, you can determine how each sensor responds: External sensor; alarm is set off for Intern: N Intern: N Intern: N Intern: N Intern: N...
  • Page 22: B) Closure Group

    b) Closure group  All sensors that directly protect external doors such as door/win- dow detectors and PIR motion detectors that are mounted outside should be assigned to the so-called ‘closure group’. When the alarm system is activated and in the case of an alarm the sensors in the ‘closure group’...
  • Page 23: Maintenance And Cleaning

    11. Maintenance and cleaning The product requires no servicing except for battery replacement. Any repairs should be carried out by a skilled technician or a professional workshop. Clean the product with a soft, clean, dry and lint-free cloth. To remove heavier dirt, use a cloth which is slightly moistened with lukewarm water.
  • Page 24: Information On The Range

    13. Information on the range Ranges and interference • The door/window detector operates in the 868MHz range, which is also used by other radio services. Therefore devices that operate on the same or neighbouring frequencies may restrict both its operation and its range. •...
  • Page 25: Technical Specifications

    14. Technical specifications • Option to connect additional external NC and NO contacts • Installation with supplied magnets possible on left or right • Batteries: ........3 x AAA batteries (additionally 3 x button cells LR44, when NO contacts are connected, for example for NO model glass break sensors) •...
  • Page 26: Brief Instructions

    15. Brief instructions a) Registering the door/window detector with the alarm base station • Install the door/window detector, but do not insert batteries yet • Set the alarm base station to the sensor search mode • Insert batteries into the door/window detector •...
  • Page 27: C) Opening The Casing, Replacing The Batteries

    1 time, in order to activate the internal magnet sensor 16. Declaration of conformity (DOC) We, Conrad Electronic, Klaus-Conrad-Straße 1, 92240 Hirschau (Germany), hereby declare that this product complies with the fundamental requirements and other relevant regulations of directive 1999/5/EC.
