Infrared reflection radar
MANUFACTURER'S STATEMENT
Read this Operation Manual carefully before use, to ensure proper operation of this sensor.
Failure to read this Operation Manual may cause improper sensor operation and may result in serious injury or death.
This product is a non-contact activating switch intended for mounting on the header of an automatic door.
Do not use it for any other applications; otherwise proper operation and safety cannot be guaranteed.
Cautions:
1. Follow the instructions (especially
2. When setting the sensor's area pattern, make sure there is no traffic around the installation site.
3. Before turning the power on, check the wiring to prevent damage or malfunction of equipment that is connected to the sensor.
4. Do not wash, disassemble, rebuild or repair the sensor by yourself; otherwise it may cause electric shock or breakdown of the
sensor.
5. Only use the sensor as specified in the supplied instructions.
6. Be sure to install the sensor in accordance with the local laws and standards of your country.
7. Before leaving the jobsite, be sure that this sensor is operating properly and instruct the building owner/operator on proper
operation of the door and this sensor.
SPECIFICATIONS
Model
: MR8003
Cover color type
: Silver
Mounting Height
: 3.0m (9'10") Max.
Detection Area
: See "Detection Area"
Detection Method
: Active Infrared Reflection Method
Detection Angle
: ±4° adjustable by 1° every one click
Adjustments
(Deep / Shallow)
Detection Width
: ±7° adjustable by 3.5° every one click
Adjustments
(Right / Left)
Power Supply
: 12 to 30V AC / DC
Current Draw
: 160mA Max. (at 12V AC)
Operation Indicator
: Green / Stand-by
Red
/ 1st Row Detection Active
Orange / Other Row Detection Active

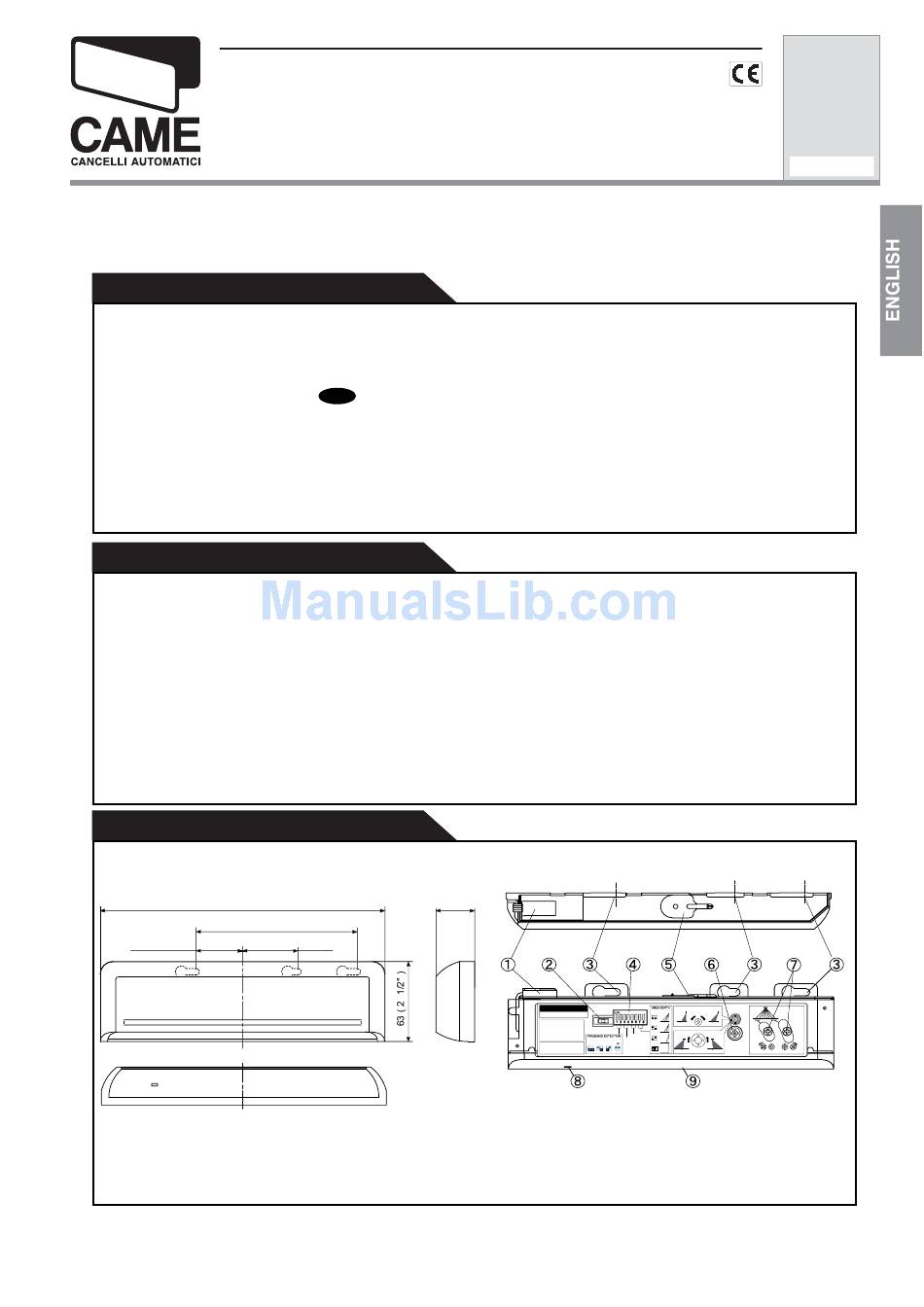

OUTER DIMENSIONS
221 ( 8 11/16" )
125 ( 4 15/16" )
43 ( 1 11/16" )
36 ( 1 7/16" )
D
A
OORS
CCESSORIES
Note
) in this Operation Manual when installing and adjusting the sensor.
29.9 ( 1 3/16" )
mm (inch)
MR8003
Output
: "Form C" relay 50V 0.3A Max.
(Resistance Load)
Relay Hold Time
: 0.5 sec.
Response Time
: < 0.3 sec.
Operating Temperature
: -20°C to +55°C (-4°F to +131°F)
Weight
: 200g (7.1oz)
Accessories
: 1 Cable 3m (9'10")
2 Mounting Screws
1 Operation Manual
1 Mounting Template
1 Area Adjustment Tool
*The specifications herein are subject to change without
prior notice due to improvements.
SENSITIVITY
SWITCH
ADJUSTMENT
M
H
ON
L L
4ROW
7 8
GREY
: POWER 12to30V AC/DC
WHITE
: OUTPUT
COM.
3ROW
YELLOW : OUTPUT
N.O.
GREEN : OUTPUT
N.C.
7 8
CURRENT DRAW :XXXmA Max
SNOW MODE
OUTPUT : Form C 50V0.3A Max
2ROW
(RESISTANCE LOAD)
FREQUENCY
TIMER
SWITCH
7 8
2sec
15se
180sec.
OPERATION INDICATOR
GREEN
: STAND-BY
1ROW
RED
: 1st ROW DETECTION
7 8
ORANGE : OTHER AREA DETECTION
1 2
1 2
1 2
1 2
1 : Connector
2 : Sensitivity Switch
3 : Mounting holes
4 : Dipswitches
5 : Area Adjustment Tool
Documentazione
Tecnica
T99
rev. 0.5
03/2007
©
CAME
CANCELLI
AUTOMATICI
119PT99-EN
SHALLOW
DEEP
ADJUSTMENT
AREA WIDTH
A
SCREW
ADJUSTMENT
S
(1 x 4)
(1 x 4)
LEFT
RIGHT
LEFT
RIGHT
(3.5 x 2)
(3.5 x 2)
ELIMINAT
ELIMINAT
5726130
6 : Area Adjustment Screw
7 : Width Adjustment Shutters
8 : Operation Indicator
9 : Detection Window
