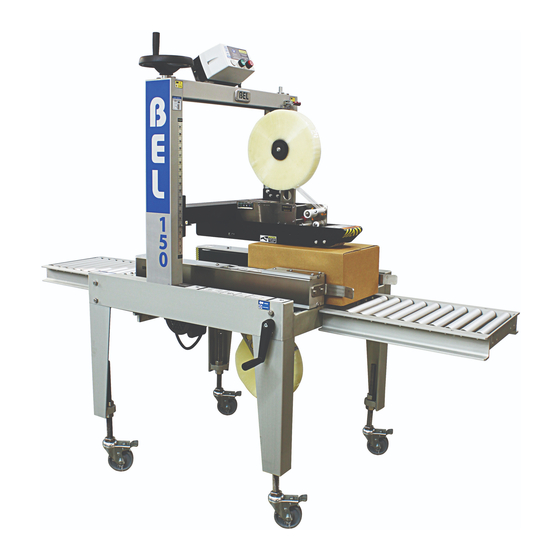

Wexxar BEL 150 Operation & Service Manual

Semi-automatic uniform case tape sealer v.02 series
Hide thumbs
Table of Contents

Advertisement

Quick Links

Operation & Service Manual
65-43-2 Effective: December 20, 2011
Replaces: August 29, 2011
150 / 150X
BEL
V.02 SERIES
Semi-Automatic Uniform Case Tape Sealer
Wexxar Packaging Inc.
Phone (604) 270-0811 • Fax (604) 270-7897
E-mail: sales@wexxar.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BEL 150 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Wexxar BEL 150

Summary of Contents for Wexxar BEL 150

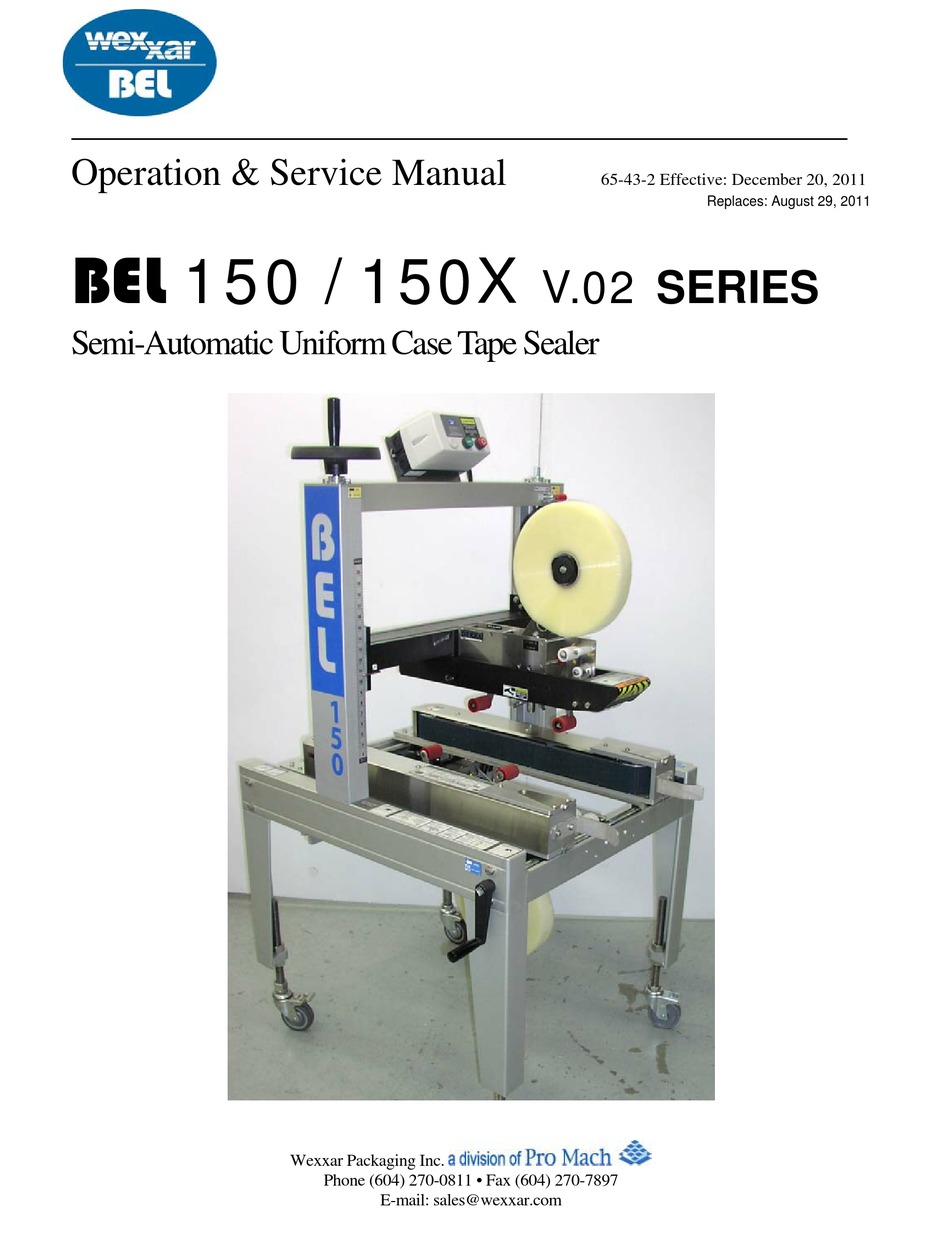

  • Page 1 Operation & Service Manual 65-43-2 Effective: December 20, 2011 Replaces: August 29, 2011 150 / 150X V.02 SERIES Semi-Automatic Uniform Case Tape Sealer Wexxar Packaging Inc. Phone (604) 270-0811 • Fax (604) 270-7897 E-mail: sales@wexxar.com...
  • Page 2 150 V . 0 2 Series of Semi-Automatic Uniform Case Tape Sealers V.02 The BEL 150 accepts uniform case sizes with the top flaps pre-folded by an operator before top and bottom tape sealing with either 2” or 3” wide tape. The power required is 120V single-phase for the conveyor drive, and it connects to an electrical outlet by a conventional cord and plug.
  • Page 3 150 V . 0 2 Series of Semi-Automatic Uniform Case Tape Sealers 150X V.02 The BEL 150X can handle uniform cases of a larger maximum size than a standard BEL 150. DEKKA Standard Machine Specifications: Length Width Height Case Size Range Minimum 8”...
  • Page 4 150 V . 0 2 Series of Semi-Automatic Uniform Case Tape Sealers V.02 The BEL 151 accepts uniform case sizes for bottom-only tape sealing with either 2” or 3” wide tape. Standard Machine Specifications: Length Width Height Case Size Range Minimum 8”...

  • Page 5: Table Of Contents

    150 V . 0 2 Series of Semi-Automatic Uniform Case Tape Sealers ABLE OF ONTENTS INSTALLING THE BEL 150 Transportation and Storage Leveling the Machine Power Connection Installing the Tape Heads CASE SIZE ADJUSTMENTS Width Adjustment Height Adjustment STARTING THE MACHINE...
  • Page 6 150 V . 0 2 Series of Semi-Automatic Uniform Case Tape Sealers BEL 150 V.02 Semi-Automatic Case Taper START / STOP Switch [Magnetic Motor Starter and Thermal Overload Protection] Case Height Adjustment Lock Top Tape Head and Mounting Bracket Case Height Adjustment (both sides).

  • Page 7: Installing The Bel 150

    Power Connection The BEL 150 is equipped with single-phase 115 VAC / 60 HZ electrics and manufactured to NEMA 12 specifications. The drive system is powered by a 1/2 horsepower TEFC motor that draws eight amps. A 14 gauge (AWG) power extension cord with standard three pin connection must be used to connect the machine to the power source.

  • Page 8: Installing The Tape Heads

    150 V . 0 2 Series of Semi-Automatic Uniform Case Tape Sealers Installing the Tape Heads Tape heads are mounted with pins on the sides of the heads that fit into corresponding slots in the tape head mounting bracket. Lower the tape head into the bracket aligning the pins with the slots.

  • Page 9: Case Size Adjustments

    150 V . 0 2 Series of Semi-Automatic Uniform Case Tape Sealers SAFETY CAUTION Make sure machine is disconnected from electrical power source before undertaking any adjustment or service procedures. Case Size Adjustments Width Adjustment Use a sample case to adjust the width.

  • Page 10: Height Adjustment

    150 V . 0 2 Series of Semi-Automatic Uniform Case Tape Sealers Height Adjustment Top tapehead holder rollers should contact the fully closed top flaps of the case. Note: Depending on case fill, some minor adjustment may be further required in order to firmly tape down the top flaps.

  • Page 11: Starting The Machine

    Note: If the case sides are bulged by the product inside, the use of an optional side compression roller (Kit # 70-007 for the BEL 150, 70-185 for the BEL 150X) is recommended to draw the top major flaps together to effect a tighter seal. This option is also recommended when the case being sealed has a sealed length that is less than half of the case height.

  • Page 12: Service And Maintenance Procedures

    150 V . 0 2 Series of Semi-Automatic Uniform Case Tape Sealers Service and Maintenance Procedures Conveyor Side-Belt Replacement 1. Loosen the top and bottom belt tensioning bolts so that the belt is completely slack. Loosen top belt Make belt tensioning bolt completely slack Loosen bottom belt...

  • Page 13: Belt Tensioning And Tracking Adjustment

    150 V . 0 2 Series of Semi-Automatic Uniform Case Tape Sealers Belt Tensioning and Tracking Adjustment Tension the belt by tightening the top and bottom tensioning bolts. The tension of the belt should be just enough to prevent belt slippage or so that approximately one inch of play is available when the belt is pulled sideways by hand in the center of the machine.
  • Page 14 150 V . 0 2 Series of Semi-Automatic Uniform Case Tape Sealers Chain tension is preset at the factory but if the drive becomes noisy or needs adjustment then adjust as shown below. Proper tension is achieved when the horizontal sag in the chain measures between 1/8 inch and 1/4 inch with drive belts in a fully opened position.
  • Page 15 SAFETY: The safety covers must be replaced before operating the machine. The optional BEL 150 Spare Parts Maintenance Kit contains all of the parts necessary for maintaining the Uni-Drive conveyor. See the Technical Reference manual 66- for details, and contact the factory or your local Belcor distributor for the kit’s price and availability.

  • Page 16: Arch Cross -Member Vertical Slide Adjustment

    LIDE DJUSTMENT The machine arch cross-member supports the upper tape head holder on the BEL 150. It mounts to the arch assembly with vertical slide bar bearings that ride inside the arch columns, allowing the cross member to move smoothly up and down for case height adjustment.

  • Page 17: Troubleshooting Guide

    150 V . 0 2 Series of Semi-Automatic Uniform Case Tape Sealers Troubleshooting Guide Section 1 - Corrugated Case Quality & Specifications Corrugated case quality is a major factor in smooth running and quality sealing. The following points will help determine if you have a case size or quality problem: 1.
  • Page 18 150 V . 0 2 Series of Semi-Automatic Uniform Case Tape Sealers Section 2 - Conveyor Belt System The Uni-drive side-belt conveyor system is designed to keep the case square during sealing to produce a technically stronger seal and a better looking appearance. Problem: Case Is Not Sealing Squarely.
  • Page 19 150 V . 0 2 Series of Semi-Automatic Uniform Case Tape Sealers Problem: Frequent Belt Breakage. Belt life will depend on the conditions of machine use, but frequent breakage may be due to one or more of the following conditions: •...

  • Page 20: Section 3 - General Taping Conditions

    150 V . 0 2 Series of Semi-Automatic Uniform Case Tape Sealers Section 3 - General Taping Conditions Problem: Tape Does Not Stick To Case Surface. The tape is not bonding to the corrugated board of the flaps or ends of the case to provide a secure seal. Look for the following conditions: •...
  • Page 21 150 V . 0 2 Series of Semi-Automatic Uniform Case Tape Sealers Problem: Tape tail does not stick down properly. The end of the tape on the back side of the case as it leaves the machine has not adhered well to the case. Check these conditions: •...

This manual is also suitable for:

Bel 150x
