- Page 1 HDMI over Single Cat5e/6 Cable With 2 Way IR Extender – AC1732 User manual...

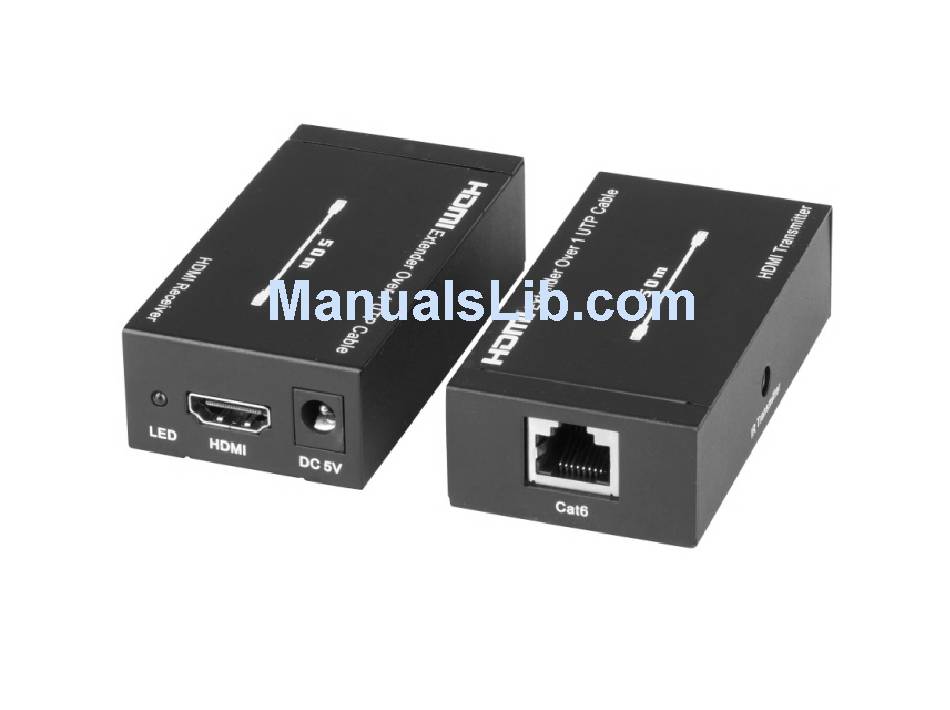

- Page 2 Introduction The HDMI extender over a single Cat5e/6 cable with IR control, allows you to use your existing Cat5e/6 cables to transfer 1080P HD video and new lossless compressed digital audio with a bandwidth up to 165MHz. It also allows you to use your existing remote to control your device through an IR emitter at the receiver end of the signal (where the display device is, such as a TV).
- Page 3 Package 1. HDMI Transmitter 1pcs 2. HDMI Receiver 1pcs 3. IR Emitter cable 1pcs 4. IR Receiver cable 1pcs 5. 5V DC 1Amp Power Supply Adaptors 2 Pcs 6. Product Manual 1pcs...
- Page 4 Specifications Support Resolution 480i /480P/720P/1080i/1080p 50/60Hz HDMI Transmitter ports 1 x HDMI, 1x IR TX, 1x IR Rx, 1xCat5e/6 HDMI Receiver ports 1 x HDMI, 1x IR TX, 1x IR Rx, 1xCat5e/6 Power Supply 5VDC 1Amp ESD Protection Human body model ±8kV (air-gap discharge), ±4kV (contact discharge) Dimension...
- Page 5 Connect and Operate Connect the signal source such as Blu-ray players, Gaming consoles, Pay TVs, cable or satellite receivers and computers that have a HDMI output with a short HDMI cable no longer than 5m to the HDMI socket on the transmitter unit. Connect the transmitter to the receiver by using a single Cat5E or Cat6 UTP (Unshielded Twisted Pair)
- Page 6 Select the EDID (Extended display identification data) switch on the transmitter unit to 2D for normal application regardless of the resolution and only switch it to 3D when the signal source is using 3D formats. Select the EQ (Equalisation) switch on the receiver to: LOW when the Cat5E/Cat6 cable that used to link in between the transmitter/sender and receiver is 0-20 meters long HIGH when the Cat5E/Cat6 cable that used to link in between the...
- Page 7 Set up guide for IR/Remote control extension.
- Page 8 ■ Set up guide for HDMI transmitter/sender and receiver...
