Chapter 1: Overview 7

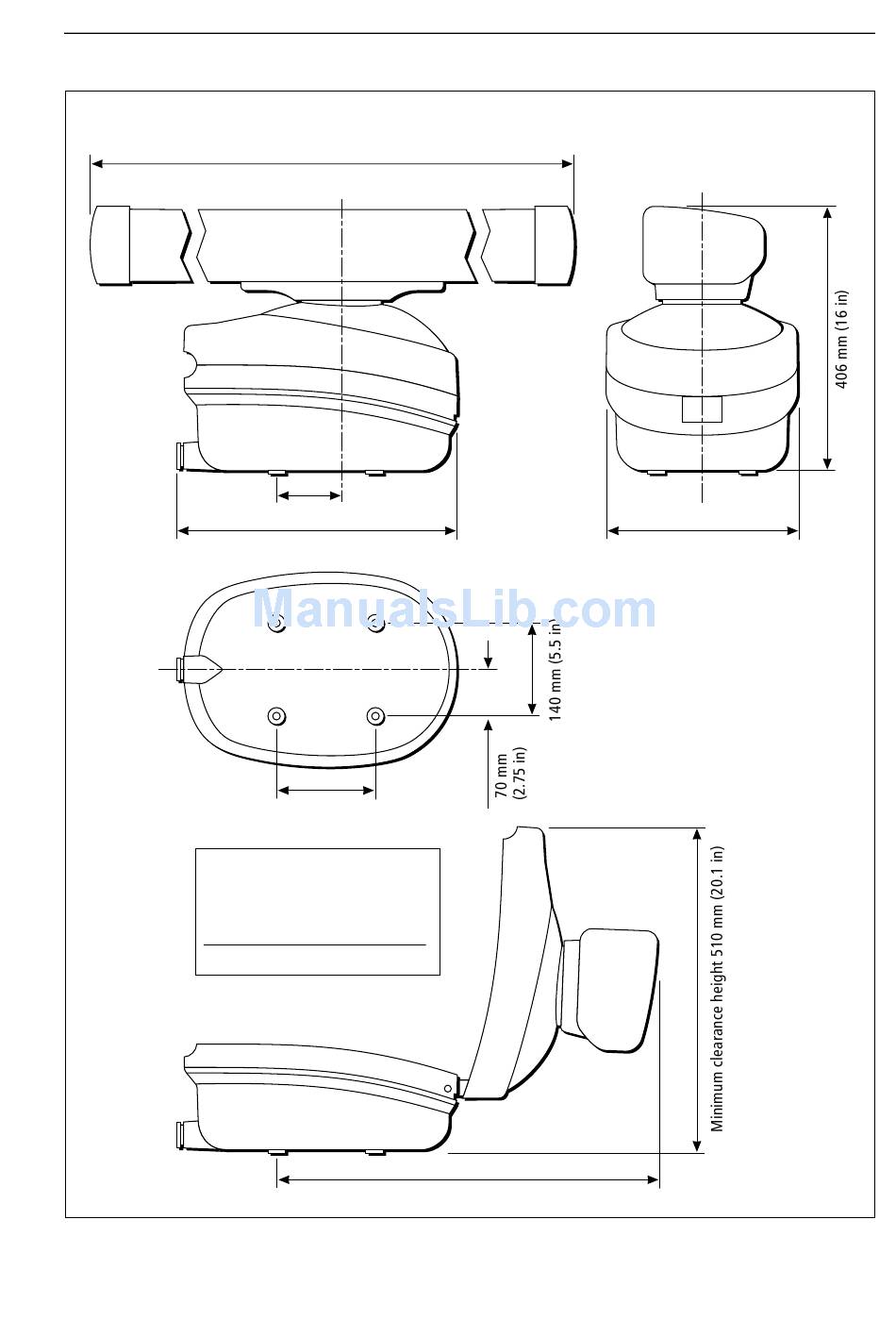

Open Array Scanners
48"- 1306 mm (51.4 in), 72"- 1918 mm (75.5 in)
Centre of rotation
Centre of rotation
100 mm (4 in)
427 mm (16.8 in) 296 mm (11.65 in)
150 mm (6 in)
Weight
Pedestal: 24 kg (53.0 lb)
48" Open Array: 6 kg (13.2 lb)
72" Open Array: 9.4 kg (20.7 lb)
Compass Safe Distance: 1 m (33 in)
Minimum clearance 630 mm (24.8 in)
D4572-3
