Amit KS-111E Operation Manual

Camera system
Hide thumbs
Table of Contents

Advertisement

Quick Links

KS-111E
Camera system
Operation manual
Version 1.00
ks-111e_g_en_100

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KS-111E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Amit KS-111E

Summary of Contents for Amit KS-111E

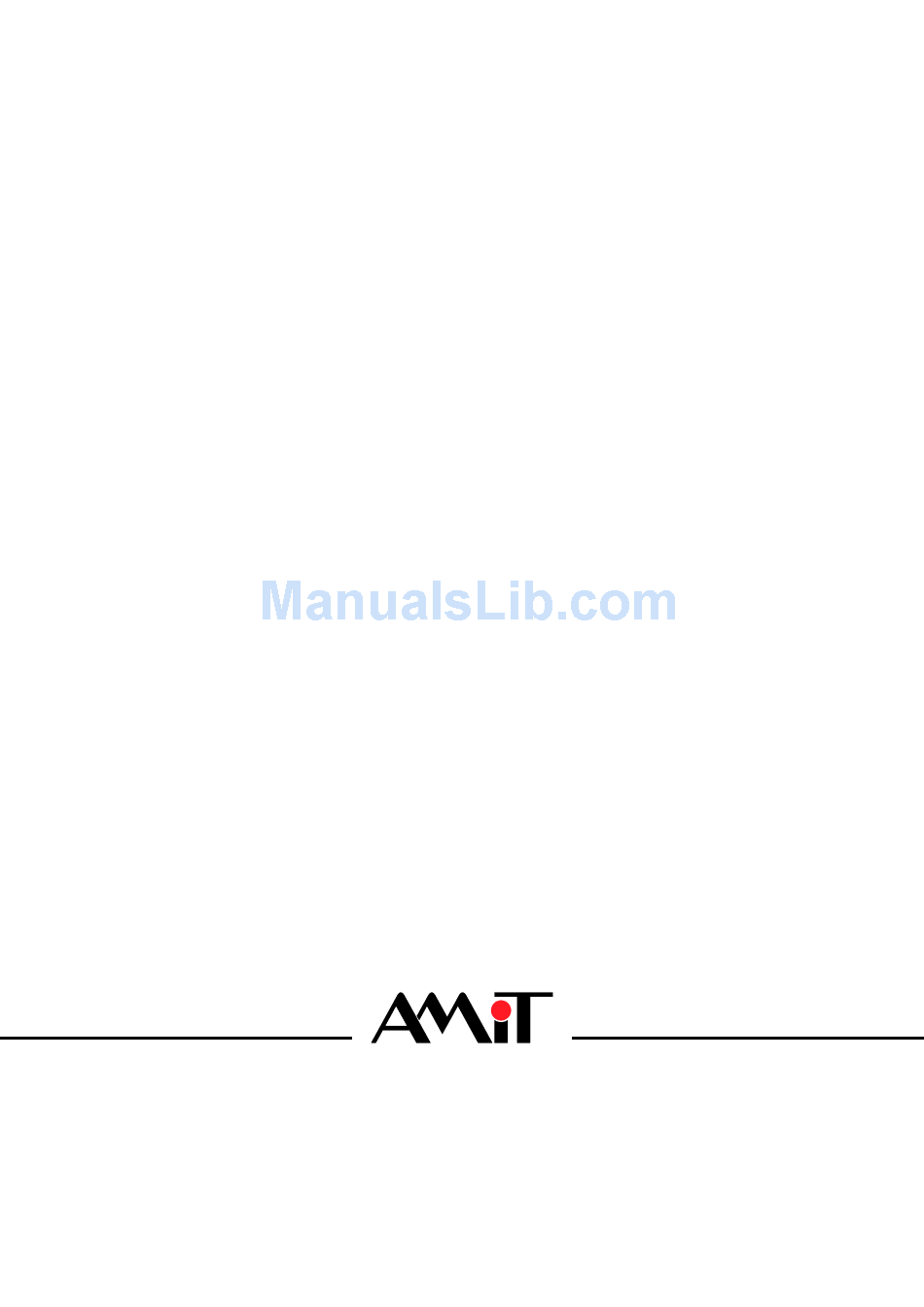

  • Page 1 KS-111E Camera system Operation manual Version 1.00 ks-111e_g_en_100...
  • Page 2 KS-111E AMiT, spol. s r.o. does not provide any warranty concerning the contents of this publication and reserves the right to change the documentation without obliga- tion to inform anybody or authority about it. This document can be copied and redistributed under following conditions: 1.

  • Page 3: Table Of Contents

    KS-111E Contents History of revisions ..................4 Related documentation ................... 4 Definition of used terms ..............5 Introduction ..................6 Technical parameters ................7 3.1. System description ..................7 3.2. System functions .................... 7 3.3. System technical parameters ................. 8 3.4.

  • Page 4: History Of Revisions

    KS-111E Login data ..................... 37 9.3. IP monitor ..................... 37 9.4. Recording unit ....................38 Appendix F – Axis Camera Management (ACM) ......39 Installation ....................39 First launching – password setup ..............39 Appendix G – IP cameras ..............41 Operace přes webové...

  • Page 5: Definition Of Used Terms

    KS-111E 1. Definition of used terms Recording unit Performs recording of image from cameras on hard disk. IP monitor Displays the live image from one or more cameras (maximum four). When more than camera is displayed, quadruple (4Q) mode is used, where monitor screen is splitted into 4 equal rectangulars, into which are directed video streams from cameras.

  • Page 6: Introduction

    KS-111E 2. Introduction This document describes putting into operation and setting the 111E (KS-111e) engine camera system from software point of view. Document does not care about mechanical assembly, which is solved in Opera- tion manuals of individual components (see Related documentation).

  • Page 7: Technical Parameters

    Layout of components in vehicle you can find in APPENDIX A – Location of components.. 3.2. System functions KS-111E has following functions:  Viewing of image from cameras on left and right IP monitor.  Archiving of images from all twelve cameras with 640 x 480 pixels resolu- tion with data flow 5 fps (frames per second).

  • Page 8: System Technical Parameters

    KS-111E 3.3. System technical parameters IP monitors Quantity Monitor type AIPM1010/A Address configuration Viewed data format. MJPEG Image resolution 640 x 480 Viewing frame rate 20 fps Image delay Max 200 ms Viewing type Max 4 pictures per screen Cameras...
  • Page 9 KS-111E Situation Description of viewing Application is not loaded Black screen without camera number. Wrongly loaded application Black screen without camera number. Different version of applications Black screen without camera number. in IP monitors Video stream blackout Symbol see Fig. 1 - Video stream blackout...

  • Page 10: Putting System Into Operation

    KS-111E 4. Putting system into operation When putting system into operation we suppose, that all system components are properly mounted and capable of operating and that power supply is cor- rectly attached to all units. The Ethernet infrastructure must be properly installed and all powering and communication cables attached to units.
  • Page 11 KS-111E Fig. 2 - Total Commander – Main Menu Click on button New attachment.. in dialog box Connect to FTP server Fig. 3 - TC – Attaching monitor to FTP server Enter the parameters for attaching to first monitor (APPENDIX E – Configura-...
  • Page 12 KS-111E „APM_ A_IP“ Host (Port): „APM_Login“ User name: „APM_Password“ Password: Fig. 4 - TC – Monitor_A – parameters Press the button Connect. Fig. 5 - TC – Connection to Monitor_A ks-111e_g_en_100 12/52...

  • Page 13: Deleting Previous Application Files

    KS-111E Deleting previous application files Identify, in which the files from connected monitor have been displayed (from heading bar - see figure), and delete them. Fig. 6 - TC – Identification of FTP contents Copying of new application files Copy the new version of application according to APPENDIX D – Program set...

  • Page 14: Camera System Restart

    KS-111E Camera system restart Until restart of camera system has been done (power supply off and on) the new version of application does not manifest itself. When no image appears on monitors after restart, loading of files was not per- formed properly.

  • Page 15: Camera Identification

    KS-111E Before start of camera installation is necessary to set camera system into fol- lowing state:  Powering of all components is switched off  All cameras are disconnected from Ethernet  Service PC with installed ACM is connected  The database in ACM does not involve cameras connected before (oth- erwise they must be deleted –...

  • Page 16: Firmware Upgrade

    KS-111E Fig. 9 - ACM – Network search dialog If the search is unsuccessful and no camera is found, repeat this procedure. Camera which has been found is shown in ACM Main window. Fig. 10 - ACM – New camera is found 4.2.2...
  • Page 17 KS-111E In next dialog box click on <Select> and select M3114-R_5_40_9_2.bin file from actual Program set Kamery_vvv/Firmware. Fig. 12 - Selection of file with firmware By checking the „Upgrade device in:“ radio button we can affect the upgrade process, when a bulk upgrading of more cameras is made.

  • Page 18: Loading Of Configuration Template

    KS-111E Wait for upgrade completion. Fig. 14 - Upgrade recapitulation Finally, a recapitulation window is shown, which presents a list of upgraded cameras and result of upgrade. 4.2.3 Loading of configuration template Select the camera in ACM Main window by left mouse button click. Click on icon Apply Template on Toolbar and menu for selection of configuration tem- plate is displayed.
  • Page 19 KS-111E Fig. 15 - ACM – Looking for template Through item Browse open a next window with list of configuration templates. Fig. 16 - Selection of configuration template Choose the configuration template, which is determined for attached camera. 19/52 ks-111e_g_en_100...
  • Page 20 KS-111E Fig. 17 - Templates After opening the configuration template a dialog box appears, that contains set of camera parameters which can be changed. Confirm this dialog by OK button and changes in setting the camera are applied. ks-111e_g_en_100 20/52...
  • Page 21 KS-111E Fig. 18 - Modified parameters After applying of configuration template a recapitulation window is shown which contains result of loading and overview of all recently set parameters. 21/52 ks-111e_g_en_100...

  • Page 22: Camera Lens Setup (Positioning And Focusing)

    KS-111E Fig. 19 - Recapitulation of changes performed in parameters After pressing the Close button is configuration of camera parameters com- pleted. 4.2.4 Camera lens setup (positioning and focusing) The whole process of setting the camera lens is realized in following steps: ...

  • Page 23: Viewing The Image From Camera On Service Notebook

    KS-111E  Focusing the camera lens.  Position setting of head with lens. Viewing the image from camera on service notebook Setting of service notebook network adapter: IP Address: 172.16.5.33 Subnetwork mask: 255.255.255.0 Outgoing gateway: do not fill Launch the internet browser on service netbook and enter into address field the IP address of camera, which will be focused/ positioned.

  • Page 24: Taking Off The Camera Cover

    KS-111E Taking off the camera cover To remove the camera cover, two bolts which holds the cover must be released. Fig. 24 - The bolts which holds the camera cover Then, use a special plastic tool or flat screwdriver for lifting up and releasing the camera cover.

  • Page 25: Camera Lens Position Setup

    KS-111E Fig. 26 - Legend to camera body Camera lens position setup Position of camera lens affects the image, which is captured by camera. Posi- tioning is realized by turning the head with lens while the captured image is viewed over Live View on computer screen. Range of positioning is mechani- cally limited a bit..

  • Page 26: Focusing The Camera Lens

    KS-111E After adjusting the required lens position you can focus the camera image. Focusing the camera lens Camera is delivered with lens set by manufacturer. Therefore it is necessary to check the image quality and when needed, the lens must be focused as best as possible.

  • Page 27: Recording Unit Commissioning

    KS-111E After confirming the previous dialog, in the left window side, section Groups will be displayed: All Devices (0) 4.3. Recording unit commissioning Commissioning of recording unit consists of following steps:  Check of power supply connector wiring  Loading of actual version of an application ...

  • Page 28: Loading Of Actual Version Of An Application

    KS-111E Disconnecting of supplying conductors is done only after previous Recording Unit switching-off through SB signal. If not, you may lose data. 4.3.2 Loading of actual version of an application An actual version of application is listed in Appendix D of this document.
  • Page 29 KS-111E 5. As response to sent request the browser displays a xml file. 6. Version number is available between two tags <version>..</version> Fig. 31 - Identification of application version 29/52 ks-111e_g_en_100...

  • Page 30: Appendix A - Location Of Components

    KS-111E 5. APPENDIX A – Location of components. ks-111e_g_en_100 30/52...

  • Page 31: Appendix B - Scees

    KS-111E 6. APPENDIX B – Scees Scene ID Stream from camera Symbol none – black screen no stream KCZ1 KCZ1 KSP1 KSP1 KCZ2 KCZ2 KSP2 KSP2 KL1, KP1 KL1, KP1 KL2, KP2 KL2, KP2 KCZ1, KCZ2 KCZ1, KCZ2 KSP1, KSP2...
  • Page 32 KS-111E Fig. 33 - Scene ID 10 Fig. 34 - Scene ID 11 ks-111e_g_en_100 32/52...
  • Page 33 KS-111E Fig. 35 - Scene ID 12 Fig. 36 - Scene ID 13 33/52 ks-111e_g_en_100...
  • Page 34 KS-111E Fig. 37 - Scene ID 14 ks-111e_g_en_100 34/52...

  • Page 35: Appendix C - Block Diagram

    KS-111E 7. APPENDIX C – Block diagram 35/52 ks-111e_g_en_100...

  • Page 36: Appendix D - Program Set Contents

    KS-111E 8. APPENDIX D – Program set contents Actual program set: 121019_KS-111e Download link: http://imp.amit.cz/www/kamerove_systemy/pesa/111e/ Directory File Description app_apm.conf Configuration file app_apm.sh Starting script AIPM1010_200 app_apm.txt Version number app_apm.tar.gz Application ALBDConfig.exe Confiruration tool ALBDConfig_102 albdconfig.xml Configuration file 111e_58_200.cmt Config. template Camera KL1 111e_57_200.cmt...

  • Page 37: Appendix E - Configuration Parameters

    KS-111E 9. APPENDIX E – Configuration parameters In following tables are presented parameters, which serves for working with camera system or which are used for configuration and service operations. For several parameters is used a Symbolic name system. The symbolic name is in previous chapters represented as „Symbolic name“.

  • Page 38: Recording Unit

    KS-111E 9.4. Recording unit Overview of parameters referring to Recording unit adjusting. Symbolic name Value PPM_IP 172.16.5.54 PPM_Login service PPM_Password service ks-111e_g_en_100 38/52...

  • Page 39: Appendix F - Axis Camera Management (Acm)

    KS-111E 10. Appendix F – Axis Camera Management (ACM) For detection of cameras and configuration of their parameters is used an effec- tive installation and management tool for IP cameras - Axis Camera Manage- ment verze 2.00 (in this document referred as ACM).
  • Page 40 KS-111E User name and Password will be used afterwards for accessing cameras, there- fore they need to be set in accordance with APPENDIX E – Configuration pa- rameters, Login data: „Axis_Login“ User name: „Axis_Password“ Password: Access: checked ks-111e_g_en_100 40/52...

  • Page 41: Appendix G - Ip Cameras

    KS-111E 11. Appendix G – IP cameras Operace přes webové rozhraní kamery Besides automatic configuration via ACM can be camera parameters changed also through web configuration interface, which each Axis camera contains. Warning: Any intervention to camera configuration (except for actions described be- low) are not recommended.

  • Page 42: Web Interface Login

    KS-111E Web interface login All operations described in following chapters require previous separate web interface login. Launch the internet browser (Internet Explorer is recommended) and enter into address field an IP address of camera, web interface of which you want to view.

  • Page 43: Live View - Live Image From Camera

    KS-111E After login, an entry site of web interface is displayed. Click on Setup item in web interface Heading. Fig. 44 - Displaying of parameters setting Live View – live image from camera Image from camera is displayed after click on Live View item, located in web interface Heading.
  • Page 44 KS-111E Fig. 47 - Navigation in System Options section Generate the Server Report by click on appropriate button. Then it will be available in right - Parametrization - window part. Fig. 48 - Generating of Server Report Finally, new dialog window appears, where is shown the Server Report, which can be copied into text file and sent for analysis..

  • Page 45: Restoring The Factory Setting

    KS-111E Fig. 49 - View on Server Report 11.1. Restoring the factory setting You can restore the original factory setting. It can be done by two ways:  By software way – restores the factory setting of parameters including/ with exception of (optionally) Ethernet interface.
  • Page 46 KS-111E Fig. 50 - Factory settings through software - menu Screen with several buttons is displayed. Their meaning is evident from labels. Fig. 51 - Software way of Restoring the factory setting Restore – IP address is retained, all another parameters are reseted.

  • Page 47: Hardware Way Of Restoring The Factory Setting

    KS-111E Hardware way of Restoring the factory setting When happens that even by using the ACM the camera can not be found in network and you are 100 % sure that camera is properly connected into net- work, then the hardware reset into factory setting is recommended.

  • Page 48: Meaning Of Camera Led Indicators

    KS-111E Fig. 54 - Legend to camera body 3. Press and hold the Control button, attach the network cable. 4. Hold the Control button and wait until LED Status indicator starts light yellow (it can take up to 15 seconds).

  • Page 49: Appendix H - Usb Flash Disk Ppm2Xxx

    KS-111E 12. Appendix H – USB flash disk PPM2xxx Appendix describes how to create USB flash dics to update recording unit ap- plication. Equipment Clear USB flash disc with minimal capacity 4 GB. needed USB flash disc image (an actual version see Appendix D).
  • Page 50 KS-111E Fig. 56 - Delete partition 6. Confirm partition delete by click Yes. Fig. 57 - Disc management - warning 7. Repeat for all USB flash disc partitions. ks-111e_g_en_100 50/52...
  • Page 51 KS-111E Fig. 58 - USB flash disc without partitions 8. Open a command prompt as Administrator. Navigate to directory with USB flash disc image and img2usb.exe tool. Fig. 59 - Directory selection 9. Run img2usb tool: img2usb.exe <usb flash disc file>...
  • Page 52 KS-111E Fig. 61 - Disc selection 11. Check that you choose the right disc and confirm your selection. Fig. 62 - Disc confirmation Do not make any write operation to created USB flash disc and wait until operation is finished.
