Summary of Contents for Papago RAY

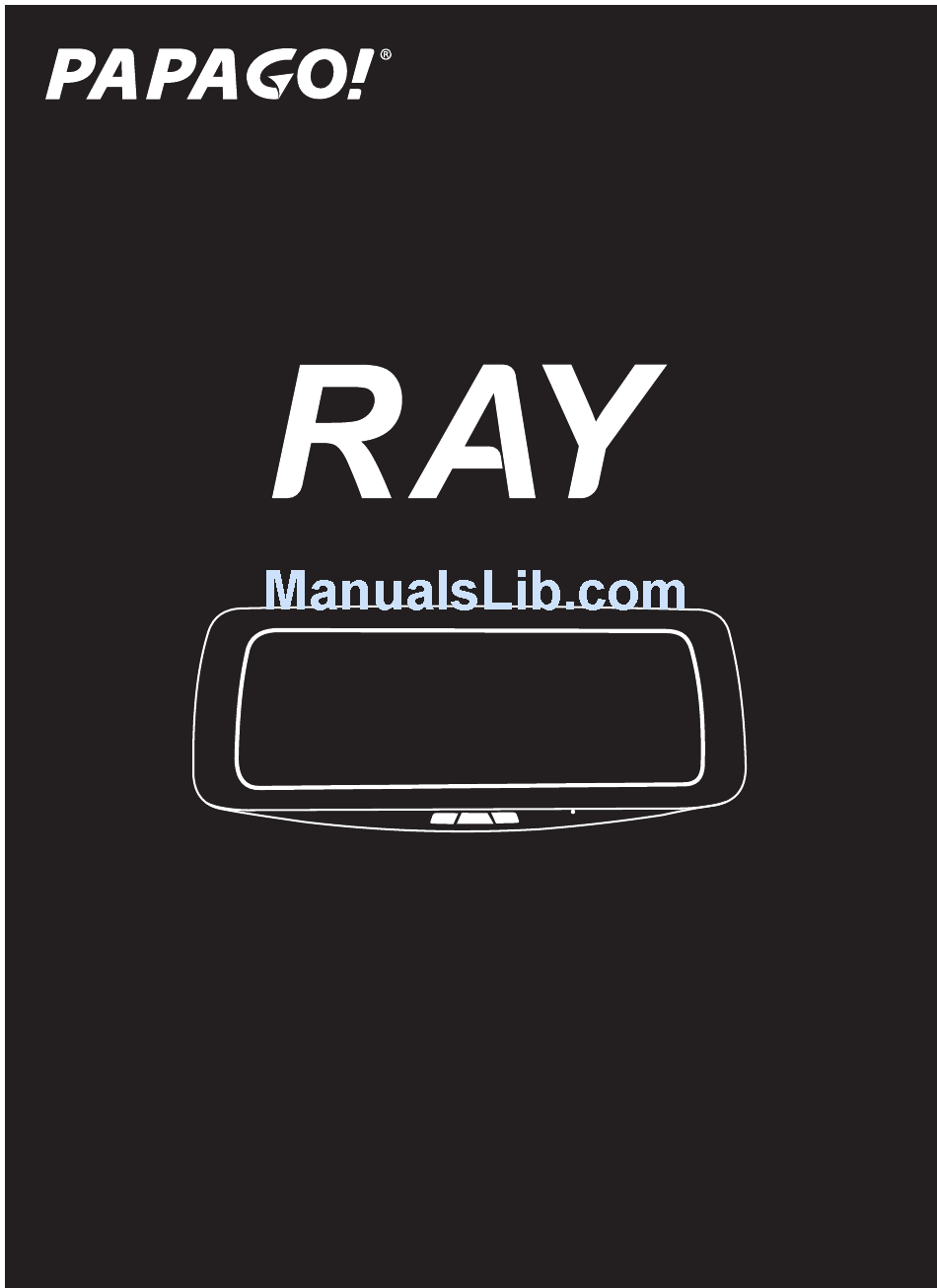

- Page 1 User Manual...
- Page 2 Caution ● Do not install or operate the device with wet hands. ● Do not expose the device to high temperature inside a sealed compartment for a long time. ● Do not disassemble the device and accessories. ● Use only the connection cable and power cable provided by the manufacturer.
- Page 3 ● Please use a Class 10 Micro SD card with at least 16GB. (Maximum 64GB) ● The functions and contents of this manual are subject to change without notice. Please follow the cable diagram for installation. Make sure to have Ray installed by a professional vehicle technician.
-
Page 4: Troubleshooting
Troubleshooting ● Device cannot boot ○ Check if the device has power. ○ Press the RESET button to reboot the device. ● SD Full ○ Delete unwanted videos from the device. ○ Format the Micro SD Card. Data is irrecoverable after deletion and formatting. Please make a backup copy of the videos before formatting the Micro SD. -
Page 5: Package Contents
Package Contents ● Electronic rearview mirror ● Rear Lens ● Connect Cable ● Power Cable ● Dedicated Bracket ● Quick Start Guide ● Warranty Card ● CLASS 10 64GB MicroSD Card ● Lens-Cleaning Cloth Product package contents may change according to region in which it is purchased without notice. -
Page 6: Device Overview

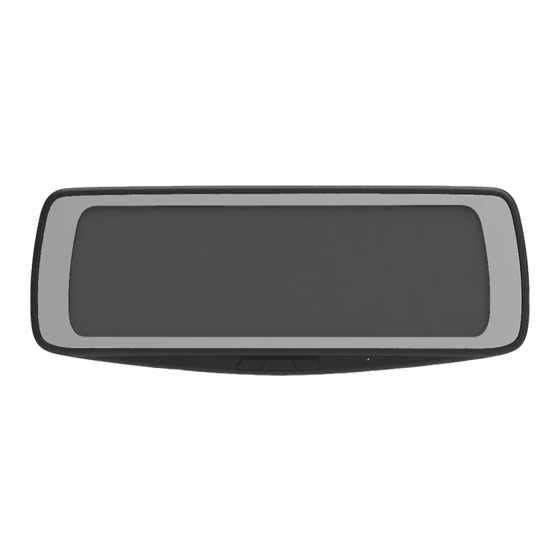

Device Overview Reset mini USB Slot Micro SD Slot Display Buttons Microphone Speaker Connect Cable Lens Mount Bracket Rear Lens Mount... -
Page 7: Screen Icons
Screen Icons Emergency Recording Start/Stop Recording Recording ： ” ” Turn On/O Screen Saver Stop Recording: ” ”Setting Mode Switch the display (Front display、Rear display、Front & Rear display) 錄影中... -
Page 8: Power Off
Power On ● Insert the Micro SD card into the Micro SD slot and switch power on, the system will start recording automatically. Before using the memory card for the first time, be sure to format the memory card on the main unit to ensure that the memory card is stable. - Page 9 Recording Videos ● ○ It will start loop recording after powering on with the Micro SD Card plugged in. ○ Each recorded le is 3 minutes long, with the old footage being replaced when the Micro SD Card is full. ●...
- Page 10 Playback Please Press to stop recording then Press button to enter“Settings”and choose Playback . Playback mode can be long pressed to return to each mode. One long press and device will be back to Recording Mode. One long press and the device will turn on/o .
- Page 11 Settings Please Press to stop recording then Press button to enter “Settings”. ● Playback：Enter playback. ● Date/Time：Set date, time, and date format. ● Microphone：Enable or disable voice recording. ● Language：Set display language. ● Bump Recording：Set the impact sensitivity of the G-Sensor. Setting the sensitivity to "high"...
- Page 12 ● Brightness：Adjust the screen's brightness. You can choose day mode or night mode. ● Format memory Card：All data on the MicroSD will be deleted. Data is irrecoverable after formatting. Please backup videos and photos before formatting the MicroSD. ● Default：Reset all values to factory default. ●...
-
Page 13: Firmware Upgrade
Firmware Upgrade ① Visit the PAPAGO o cial website at us.papagoinc.com ② Go to the“Support”page ③ Download the latest version rmware and extract it in the root directory of the Micro SD Card. ④ After copying, insert the Micro SD in the Micro SD slot. -
Page 14: Power Cable Connect
Power cable connect YELLOW：POWER B+ ---- Connect to YELLOW cable BLACK GND ----Connect to BLACK cable RED：Key ACC ----Connect to RED cable... - Page 15 V8.01.09...
