iLumin TSC-30 Installation Manual

Introduction

Welcome
The iLumin TSC-30 Color Touchscreen from Cooper
Controls delivers the smartest and most flexible room
control solution available. Operation centers upon the
3.5" color LCD screen which occupies a full two thirds
of the faceplate. All displayed graphics and touch re-
sponses are fully programmable, which means that the
TSC-30 can meet all of your current requirements and
also be easily altered at any time in the future. All control
signals are transmitted to the source controller(s) using
robust iCANnet connections.

Model numbers

The TSC-30 Color Touchscreen is available in the
following variants:
TSC-30-W-NA 3.5"Color Touchscreen, White
TSC-30-B-NA 3.5"Color Touchscreen, Black
TSC-30-G-NA 3.5"Color Touchscreen, Gray
TSC-30-V-NA 3.5"Color Touchscreen, Ivory

Ambient atmosphere requirements

Temperature 32 F to 104
0
Humidity 0 to 95% non-condensing

Dimensions

0.49 in.
(12.5 mm)
3.39 in.
(86 mm)
1.69 in.
(43 mm)
 Touchscreen main body
TSC-30 Color Touchscreen
Installation guide
F (0 C to +40 C)
0 0 0
5.75 in.
(146 mm)
0.49 in.
(12.5 mm)

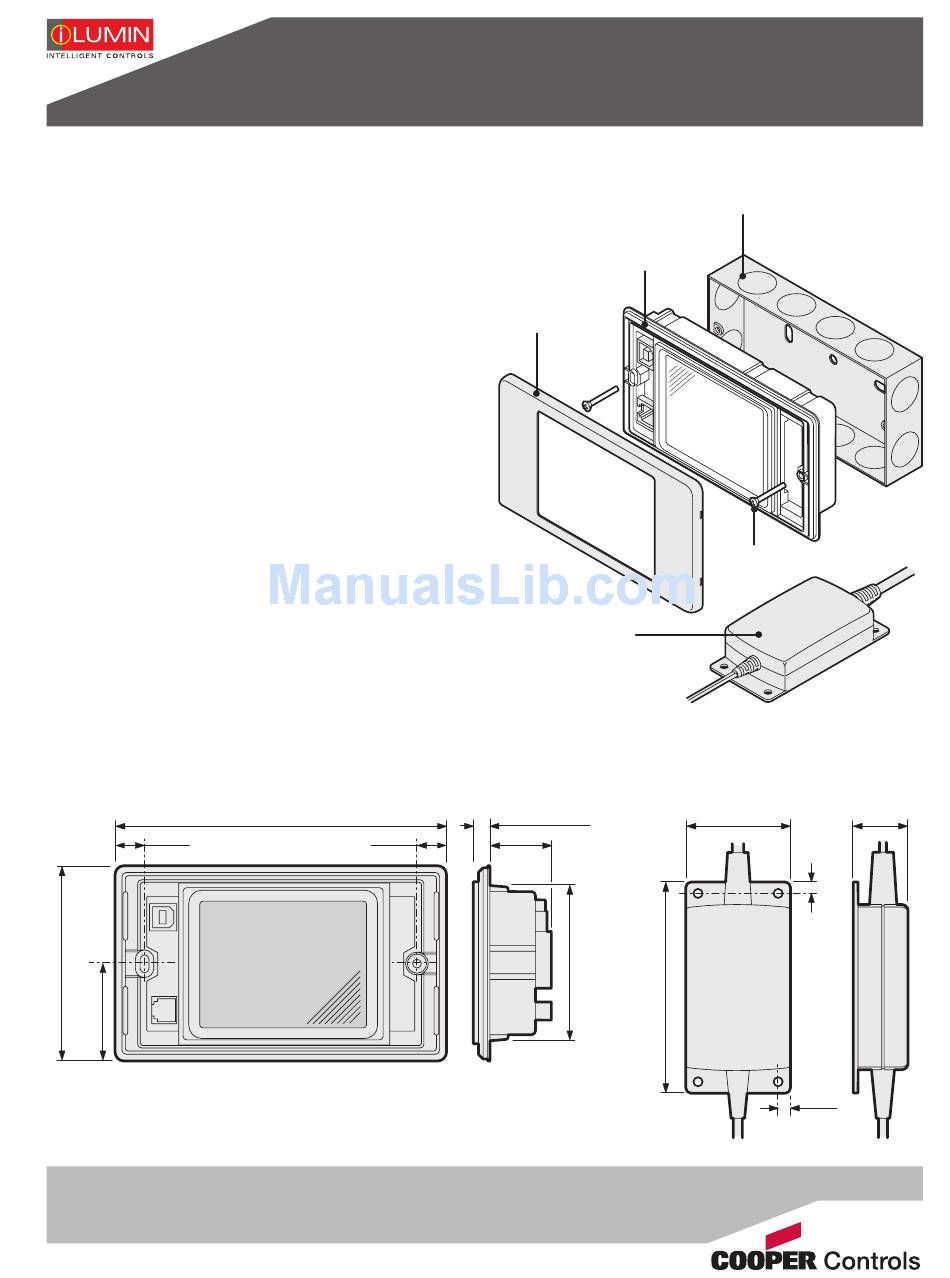

Supplied parts
Main body
Front cover
Power adapter
0.27 in.
(7 mm)
1.06 in.
(27 mm)
2.64 in.
(67 mm)
3.66 in.
(93 mm)
Power adapter Ü
Wallbox
Mounting
screw x 2
1.77 in. 0.98 in.
(45 mm) (25 mm)
0.2 in.
(5 mm)
0.21 in.
(5.5 mm)
