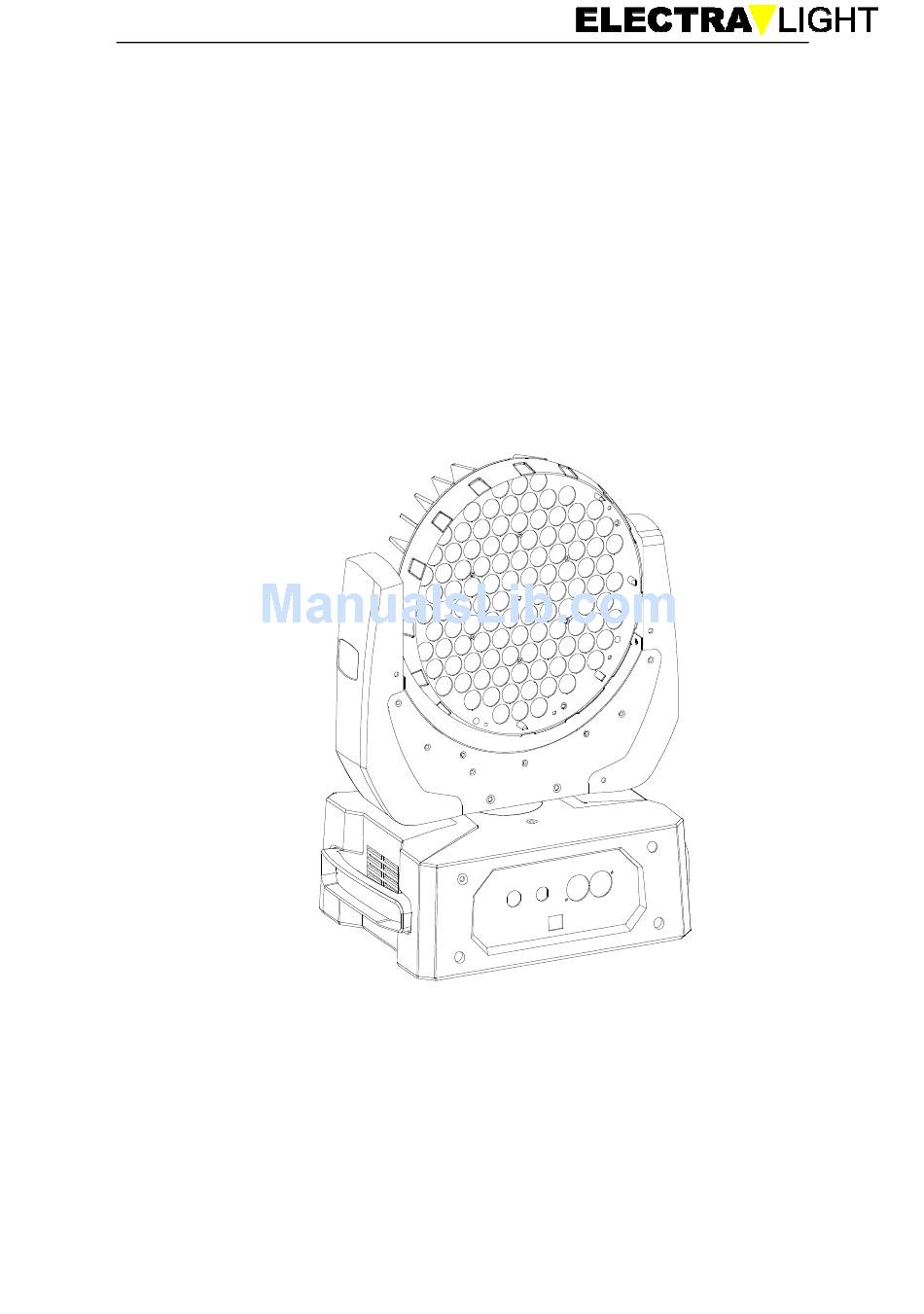

- Page 1 USER MANUAL – LED WASH PRO RGB USER MANUAL USER MANUAL USER MANUAL USER MANUAL L L L L E E E E D D D D W W W W A A A A S S S S H H H H P P P P R R R R O O O O...
- Page 2 USER MANUAL – LED WASH PRO RGB INSTRUCTION Thank you for purchasing our product. LED WASH PRO is designed for professional stage and nightclub lighting applications. With its unlimited colors and the fast movement, it is perfect for disco, bars, stage, shopping center, and TV shows, etc, owing to its quality in the color production and its versatility in use.
- Page 3 II. Technical Data Model: LED WASH PRO 3W Power Supply: AC220V±10%, 50Hz Power Consumption: 324W max Light Source: 108 high power LEDs (Red: 36×3W, Green: 36×3W, Blue: 36×3W) Beam Angle: 25°...
- Page 4 USER MANUAL – LED WASH PRO RGB Control Signal: DMX512, Auto Mode, Master/Slave Mode Input Signal: XLR 3-Pin (In & Out) Control Channels: 10/12/16 Pan 540°, Tilt: 265° Working Temperature: -20℃~40℃ Protection grade: IP20 Dimension: 338mm×235mm×433mm Net Weight: 9.8Kg Illuminance Spectrum 12200 4260 2140...
- Page 5 USER MANUAL – LED WASH PRO RGB Linear Dimmer 0～100% Linear Dimmer 0～100% Green Blue Linear Dimmer 0～100% Rainbow Mixed color control on preset turn. effects Rotating Mixed color in cycle with speed adjustable Rainbow from slow to fast Effects Strobe Strobe speed adjustable from slow to fast Pulse...
- Page 6 USER MANUAL – LED WASH PRO RGB The corresponding Sub-ID value of the tenth channel is DMX Value of the tenth channel ÷4 . For instance, if DMX value=13, 13÷4＝3…1, the corresponding sub-ID value Fixture 1: DMX Address=36, ID Address=5; Fixture 2: DMX Address=36, ID Address=8;...
- Page 7 USER MANUAL – LED WASH PRO RGB 164-1 176-1 188-1 200-2 212-2 224-2 236-2 248-2 Slow 167-1 179-1 191-1 203-2 215-2 227-2 239-2 251-2 Medi 170-1 182-1 194-1 206-2 218-2 230-2 242-2 254-2 Fast Table 2 5. LCD Display Menu Instruction 【MODE】switch the working mode 【UP】is used to increase the selected parameter value, hold the button to increase rapidly.
- Page 8 USER MANUAL – LED WASH PRO RGB In build-in programs 6-13, build-in program 1-4 is to set Strobe. 1 refers to non-strobe; Strobe speed of 2, 3, 4 is 0.3s/sec, 1s/sec, 5s/sec respectively. 7. Custom-defined White Balance In Mode 1, set the first channel to 255, through controller to adjust 2, 3,4 channel value, the other channels is 0, When it achieves the expected value, press Button 【ENTER】...
- Page 9 7. in Master/Slave mode, there can only be one Master, and signal input of controller prohibited. VI. Packing Contents Items included in the packing: An unit of LED WASH PRO 3W A 3-Pin DMX control line 1 power cord An user manual Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice.
