Page 1: User Manual

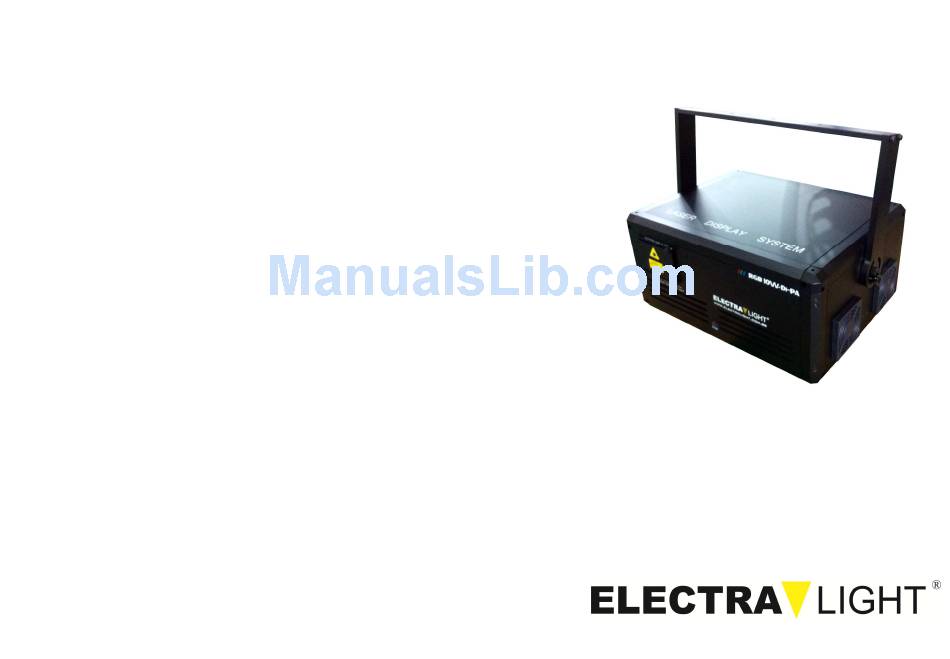

LASER SHOW SYSTEM LASER SHOW SYSTEM RGB 10w – dI-PA Model：RGB 10W – Di-PA User Manual WWW.ELECTRALIGHT.COM.BR... - Page 2 DMX Control Parameter Chart Channel No DMX512 fig. Content 0~49 Sound control Control mode 50~99 Auto- beam Channel 1 100-149 Auto-animation 150~255 manual Laser off Color select 6-255 Color selection Channel 2 Channel 1 sound and auto 128-255 will be valid only at this fig Thanks for your purchasing, please read this manual carefully Pattern select Channel 3...
- Page 3 Inspection Emergency Stop Box Check for the contents in the package refer to the following list: This emergency stop box should 1. 10WRGB laser System: 1 be connected well to the high 2. Power cable: 1 power laser projector. Keep the key switch on, for the emergency 3.
- Page 4 DMX512 Function Setting （Digital board） This laser light is controlled by the standard DMX. Please connect controlling panel with the lighting as following THE ‘MODE’ FUNCTION ‘Audi’: Sound control Before using the DMX512 controller, you should set the ‘Auto’: Auto-run control channel address in the digital display.
