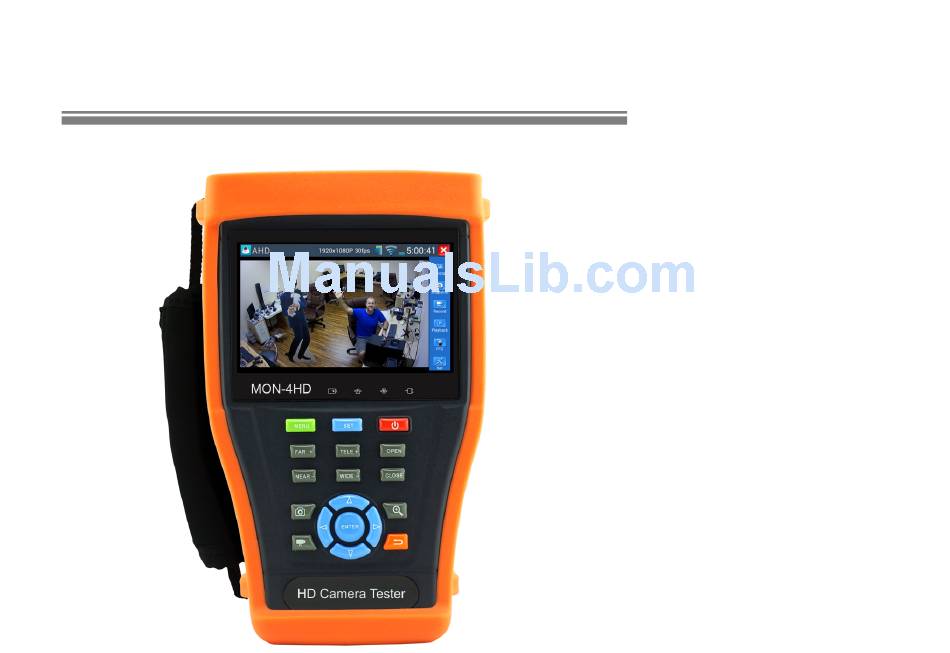

MON-4HD
CCTV Test Monitor for analog, AHD, HD-TVI, HDCVI and IP Cameras
User Manual
（IPC1.03）

Advertisement

Table of Contents
loading

Related Manuals for CCTV MON-4HD

Summary of Contents for CCTV MON-4HD

  • Page 1 MON-4HD CCTV Test Monitor for analog, AHD, HD-TVI, HDCVI and IP Cameras User Manual （IPC1.03）...
  • Page 2 tester and use properly. For using the IP camera tester safely, please first read the「Safety Information」carefully in the manual. The manual should be kept well in case of reference. Keep the S/N label for after-sale service within warranty period. Product without S/N label will be charged for repair service.

  • Page 3: Table Of Contents

    Content 1 Safety information -------------------------------------------------------------------------------------------------- 3 2 IP Camera Tester Introduction ------------------------------------------------------------------------------------ 4 2.1 General ------------------------------------------------------------------------------------------------- 4 2.2 Features ------------------------------------------------------------------------------------------------- 4 2.3 Function ------------------------------------------------------------------------------------------------- 7 2.4 Packing list ----------------------------------------------------------------------------------------------- 14 2.5 Function interface --------------------------------------------------------------------------------------- 15 3. Operation ---------------------------------------------------------------------------------------------------------- 19 3.1 Installing the Battery ------------------------------------------------------------------------------------ 19 3.2 Instrument connection ---------------------------------------------------------------------------------- 20 3.2.1 IP camera connection ------------------------------------------------------------------------- 20 3.2.2 Analog camera connection ------------------------------------------------------------------- 21...
  • Page 4 3.3.14 Data monitor --------------------------------------------------------------------------------- 61 3.3.15 Optical power meter （* Optional ） --------------------------------------------------- 61 3.3.16 Visual Fault Locator （* Optional ） --------------------------------------------------- 63 3.3.17 Digital Multi-meter （* Optional ） ---------------------------------------------------- 64 3.3.18 Media Player --------------------------------------------------------------------------------- 70 3.3.19 Audio player --------------------------------------------------------------------------------- 71 3.3.20 LED Flashlight ------------------------------------------------------------------------------- 72 3.3.21 PoE/PSE Voltage test ----------------------------------------------------------------------- 72 3.3.22 TDR cable test （* Optional ）...

  • Page 5: Safety Information

    The tester is intended to use in compliance with the local rules of the electrical usage and avoid to apply at the places which are inapplicable for the use of electrics such as hospital, gas station etc. ◆ To prevent the functional decline or failure, the product should not be sprinkled or damped. ◆...

  • Page 6: Ip Camera Tester Introduction

    resistance, capacitance, diode, continuity, otherwise it will damage the meter. ◆Never perform capacitance measurements unless the capacitor to be measured has been discharged fully. ◆Never measure any of resistance, capacitance, diode or continuity measurements on live circuits. Visual laser sources When you turn on visual laser sources, please don’t stare at it, or will damage to eyes When not using it, please turn it off and cover the protective cap 2 IP Camera Tester Introduction...
  • Page 7 ² Built in Wi-Fi ,can receive image from wireless camera, as well as ONVIF and customized IP cameras. ² SDI Digital camera image display, record and screen snapshot （ *Optional ） ² HD CVI camera image display, zoom ,video record and playback ,coaxial PTZ control and call camera OSD menu （...
  • Page 8 ² Ping test, PING is the most conventional network debugging tools; it is used for testing if the connected IP camera or other network equipment’s Ethernet port is working normally and the IP address is correct. ² In digital IP surveillance applications, if the IP camera’s IP address is not known; the device cannot be used.

  • Page 9: Function

    2.3.1 Touch screen and OSD menu The IP camera tester combines touch screen control and physical buttons. This combination makes the tester very user friendly. The test meter allows you to move the function icons from the tester’s main menu to the APPS folder or move them back to customize the main menu 2.3.2 WIFI With built in WIFI, you can view the video from a wireless camera (ONVIF or customized camera) or connect to a Wireless network.
  • Page 10 2.3.6 TVI camera test （ *Optional ） HD TVI video surveillance testing, support 720p 25,30,50,60fps / 1080p 25,30fps digital camera image test and video image zoom, record, snapshot, photo viewer, video playback, coaxial PTZ control and call up the camera OSD menu. 2.3.7 AHD camera test （...
  • Page 11 For NTSC format, the SYNC level is 40 ± 5IRE For PAL format, the SYNC level is 300 ± 35mV If the level is too low, it will cause the image to not frame out properly. If the level is too high, it will lead to a poor quality COLOR BURST level: Testing the color burst level will determine if the burst signal is sufficient to trigger the displays color producing circuit.
  • Page 12 ability to transfer data. 2.3.14 PoE power supply Supports PoE 802.3at power at 48V and up to 24W. 2.3.15 Audio testing Test the audio from mic level input devices. Connect the tester and mic level device with the audio cable. Supports audio recording and output. to monitor and / or record audio. 2.3.16 PTZ data analysis Search the Control protocol code from Multifunction keyboard or DVR by RS485 /RS232 interface, test the PTZ control command data whether received anomaly and RS485/RS232 data transmission.
  • Page 13 2.3.22 DHCP dynamic address assignment Built in DHCP server: Dynamically assign IP address for the IP camera or network device. 2.3.23 Access the dynamic IP address The IP tester can directly access a dynamic IP address assigned from its DHCP server and use it as the tester’s IP address.
  • Page 14 The tester has built in highly stable and reliable 33/4 digit (6600) digital multi-meter. It is used for the DC and AC voltage measurement, AC and DC current measurement, Resistance measurement, Continuity test, Diode measurements, Capacitance measurement, Auto/Manual measuring range switching, relative value measurement and locking.
  • Page 15 FTP Server and directly access files from the tester’s SD card. This also allows for the user to upgrade the tester firmware.

  • Page 16: Packing List

    1). Tester 2). Adaptor DC12V 2A 3) Network cable tester 4) Polymer lithium ion battery (7.4V DC 5000mAh) 5). BNC cable 6). RS485 cable 7). SC,ST connector（Only for optical power meter） 8). Multi-meter test leads one pair of red and black (only for the Multi-meter models) 9).
  • Page 18 the menu display Set key Menu key Near focus: Focus the image nearby Far focus: Focus the image faraway TELE: zoom in the image WIDE: zoom out the image Open/set ,Confirm the setting of parameters, open or enlarge the aperture Return/Close : Return or cancel while setting parameters of the menu, close or decrease the aperture Upward, set function or add parameter.
  • Page 19 transmitted The charge indicator: it lights red while the battery is being charged. As the charging is complete, the indicator turns off automatically Multimeter interface Optional) Top interface...
  • Page 20 Left interface Right interface SDI input (BNC interface) (Optional) LED lamp TDR cable test interface/ AHD,CVI and TVI input (BNC interface) (Optional) DC12V2A power output , for provisional DC power supply RS232 Interface: RS232 communication for the PTZ RS485 Interface: RS485communication for the PTZ Video image signal output（BNC interface）/cable tracer interface (Optional) Video image signal input（BNC interface）...

  • Page 21: Operation

    PoE power supply output or LAN test port (Use to test PoE or non-PoE IP camera) PSE power sourcing equipment. Tests PoE voltage DC12V2A charging interface DC12V2A power output , for provisional DC power supply 3. Operation Installing the Battery The tester has built-in lithium ion polymer rechargeable battery.

  • Page 22: Instrument Connection

    Warnings:Instrument communication port is not permitted access circuit voltage over 6V, otherwise damage the tester. Warnings:Not allow insert multi-meter pen in the current terminal to measure voltag Instrument connection 3.2.1 IP camera connection Power an IP camera with an independent power supply, then connect the IP camera to the IPC tester’s LAN port, if the link indicator of the tester’s LAN port is green and the data indicator flickers, it means the IP camera and the IPC tester are communicating.

  • Page 23: Analog Camera Connection

    The tester will supply PoE Power for the IP camera. Click on the icon labeled POE to turn the PoE Power off or on. 2)If use the tester’s menu to turn off the tester’s PoE power supply, the PoE switch and the power sourcing equipment are allowed to connect to the tester’s PSE port, and the PoE power will be supplied to the IP camera by the tester’s LAN port.

  • Page 24: Hd Coaxial Camera Connection

    tester after pushing the PTZ icon (2) IP Tester “VIDEO OUT” interface connect to the Video input of monitor and optical video transmitter and receiver, the image display on the tester and monitor (3) Connect the camera or the speed dome RS485 controller cable to the tester RS485 interface ,(Note positive and negative connection of the cable).Support RS232 PTZ controller ,connect the RS232cable to RS232 interface of the tester 3.2.3 HD Coaxial camera connection...

  • Page 25: Osd Menu

    cable to RS232 interface of the tester. 3.3 OSD menu Press the key 2 seconds to turn on n Press the key 2 seconds to turn off n short press the key to enter sleep mode,press it again to test if tester work abnormally and cannot be turned off , Press the key several seconds to turn off, the tester reset Select Icons to enter, if quit, Please click...
  • Page 26 Press function Icons seconds, tip: whether move this icon to APPS file, if some function not be often used, can move these function icons to APPS. To move an app icon to the “APPS” folder, press and hold until the “move to apps directory” appears on the screen then press OK to move it or Cancel...

  • Page 27: Video Monitor Test (Ptz Control)

    In APPS file, Select icon and press it for seconds, tip: whether move the file to the desktop? 3.3.1 Video monitor test (PTZ control) Analog camera test and PTZ control, click icon to enter...
  • Page 28 Display the input video image, click the top menu bar icon to enter video level meter, (PEAK level, SYNC level, COLOR BURST measurement) Select relative function on the right side Toolbar to operate , functions including “Photos”, “Snapshot” , “Record” , “Playback” , “PTZ” , “Set” , Click to quit, or press back to menu.
  • Page 29 Use the up and down arrow keys to move the yellow cursor to the “protocol ”, set corresponding Protocol and support more than thirty PTZ protocols. Such as Pelco-D,Samsung, Yaan, LiLin, CSR600, Panasonic, Sony-EVI etc. B. Port Click and move, to “port” Select the communication port for the PTZ camera controlling (RS232/485) C.
  • Page 30 Press the key control the PTZ direction of rotation u Press to switch on or turn off the aperture. u Press adjust the focus manually u Press manually adjust the zoom (2) Video and storage setting Click icon “set”, to enter and set analog video image brightness, contrast, color saturation, screen snapshot, recording and storage, support Auto-storage and manual storage When select manual storage, user can name and store the files.
  • Page 31 Tap left, right, upward or downward on the video image to move the PTZ camera in a desired direction. Stretch two fingers outward or inward on the touch screen to zoom the image in or out. if not use touch screen to operate ,press the key to zoom out , press the key zoom in, press upward and downward key to move the image For analog video input, as the resolution is 720*480, it is normal that the zoom in image is not...
  • Page 32 (5) Video record When you click the “Record” icon, video starts recording. A red recording icon appears on the screen and begins to flash and a timer appears indicating the time elapsed for the video. Click on the “Record” icon again to stop recording and save the video file to the SD card. if select manual storage, before recording begins ,appears dialog box “Input Name”...
  • Page 33 Click the icon “photo” to enter, click the selected thumbnail photo to display it on the screen. Double- click the photo to make it full display. Double-click again the photo to return. To rename or delete an image, click and hold on the file until this screen below appears Click to close and return to PTZ controller.
  • Page 34 Click the “Playback” icon to view your recorded videos. Tap on the video file image you want to watch. To rename or delete a video, click and hold on the file until this screen appears:...
  • Page 35 Click the icon to enter, the IP camera tester has adopted hardware high-speed sampling and processing technology, can perform both NTSC and PAL video amplitude signal measurements for PEAK to PEAK, SYNC levels and COLOR BURST chroma level,When an analog signal is fed into the meter, the tester displays the measurements on the bottom left corner of the screen While in PAL format, the unit will be mV, While in NTSC format, it will be IRE.
  • Page 36 Video signal level 140±15IRE NTSC Chroma level( COLOR BURST) 40±5IRE SYNC signal level 40±5IRE Video signal level 1000±200mV Chroma level( COLOR BURST) 300±35mV SYNC signal level 300±35mV Video signal PEAK to PEAK level: For NTSC format, the video signal level is 140±15IRE For PAL format, the video signal level is 1000±200mV If the level is too low, it will cause the image to lose quality and limit the distance it will travel over cable.

  • Page 37: Color-Bar Generator (Tv Out)

    3.3.2 Color-bar generator (TV OUT) Click to enter, the tester send the color bars from the “Video out” port ,Click the icon “PAL”, select “PAL/NTSC” output formats Click the selected color-bars, testing image or single bar ( red, green, blue, white or black). Double click to full display on the screen and output, click to return main menu.
  • Page 38 camera's video stream is H.264, use ONVIF HD (High Definition), HD mode cannot support MPEG4. While in SD mode, if the network camera resolution is 720P or higher 720P, the image display may be delayed. While in HD mode, if the network camera stream is H.264, the tester can fluently display the image up to 1080P.
  • Page 39 clicking on the “Add” button on the bottom left. The URL address should be identical to the ONVIF camera service address. (With your camera’s IP address entered into the URL). Click OK to add the manually entered camera and then click the “Refresh” button. Click the button “Refresh”, tester will scan the ONVIF camera again the new displayed ONVIF camera below “Device List“, the tester will show the IP camera relative information and settings.
  • Page 40 Maintenance, Network Set, User Set, Live Video, Video Streaming, Image Set and Profiles. Live Video: Click “Live Video” to view the live video feed from the IP camera. To make the image full screen, double tap on the video. Stretch two fingers outward or inward on the touch screen to zoom the image in or out.
  • Page 41 Make the desired changes and click “OK “to save. Image setting: Click “Imaging Set” to adjust image brightness, saturation, contrast, sharpness and backlight compensation mode. Profiles: Click “profiles”, can view video streaming current configuration files, as well as switch between Major stream and minor stream...
  • Page 42 Preview pictures: Quickly preview and zoom in or out pictures, automatically and manual refresh Network setting: Click “Network Set” to change the IP address settings. Note: Some cameras are not fully ONVIF compliant and cannot support changing their IP address, so there is no change after saving.
  • Page 43 Zoom in image: press the key key to enter the zoom mode. Press it again to exit zoom mode. When the image is enlarged tap left, right, up or down on the image to move the whole image on the screen When the image is enlarged, if not operate on touch screen, it can operate by the keyboard ,press the to zoon in , press the key to zoom out ,press upward and downward key to move...
  • Page 44 If it is network video input to the tester, as the tester supports resolution up to 1080p, the input image will be very clear after it is enlarged. This is greatly helpful for the installers to ensure the IP camera’s video coverage and decide the IP camera’s install site. Image can only be enlarged on SD mode (The icon “ONVIF”is SD mode.) IP camera video settings: Click “Video Set”...
  • Page 45 Set: Click on the “Set “icon to change Snapshot and Video recording file name settings. You can set Auto storage, which sets filenames by time or set manual storage. Click “Sure” to save file name settings. Playback: Click the “Playback” icon to view saved videos. Double click the video you want to play. Click to return to the last menu...

  • Page 46: Ip Camera Test

    To rename or delete a photo, click and hold on the file until this screen appears: Video files can play in the Video player of the main menu 3.3.4 IP camera test The “IPC Test” app is used for IP cameras that are fully integrated by name with the IPC tester device . If the IP camera's video stream is MPEG4, use the IPC Test (SD) mode.
  • Page 47 Samsung, etc. OEM service is available. Clients can send us the IP camera for our engineers to try to add the protocols to the IPC tester, or send us the mobile apps (Android version. APK files) to install in the tester. Note: Currently, the IPC Test App only supports some brands’...
  • Page 48 IP camera type: Click on the IP Camera type to select the Manufacturer and model number of the integrated IP camera 1. When IP camera type is“Manual”,Pls select type by manually. Click IP camera type, list Honeywell , Kodak,Tiandy, Aipu-waton, ACTi,WoshiDA IP camera etc. If the brand has offered official original protocols, pls select camera type, input IP camera address ,user name and password ,click”...

  • Page 49: Sdi Camera Test （* Optional

    If IP address setting has error or IP camera is not connected.. The tester prompts “Network Error” Click to quit from image display and return to IP camera test interface. Once you are viewing video on the IPC Test app, you will see the “Video Menu” icon on the top right.
  • Page 50 The tester supports resolution as follows: 1280x720P 25Hz 1280x720P 30Hz 1280x720P 50Hz 1280x720P 60Hz 1920x1080P 25Hz 1920x1080P 30Hz 1920x1080I 50Hz 1920x1080I 60Hz When SDI tester detects the camera input image resolution is 1080p 60Hz or1080p 50Hz, the tester’s screen will display “Does not support playing 1920*1080p 60Hz". If no SDI camera image input, the tester’s screen display “NO video signal input!”: IPC tester’s HDMI output port can be use as SDI to HDMI converter, output HD SDI image to HD TV monitor.

  • Page 51: Cvi Camera Test （* Optional

    3.3.6 CVI camera test （ * Optional ） HD CVI camera, CVI dome camera test and PTZ control, Click icon to enter When HD CVI signal input, tester will display the image’s resolution on the top bar. Double-taps on the screen to make the image displayed full screen. The tester supports resolution as follows: 1280x720P 25FPS / 1280x720P 30FPS / 1280x720P 50FPS / 1280x720P 60FPS 1920x1080P 25FPS / 1920x1080P 30FPS...
  • Page 52 1.1 Coaxial PTZ control Click the icon“PTZ”on the right toolbar to do the corresponding setting. “Port”: select coaxial control Enter PTZ address to perform parameters setting Operation instructions please refer to “3.3.1 PTZ (1) PTZ control parameters setting” The PTZ address in the tester must be consistent with the dome camera or decoder, then the IPC...
  • Page 53 To control PTZ by screen touch: Tap left, right, upward and downward on the touch screen to control the PTZ rotation direction, PTZ cameras will rotate accordingly. By two fingers move outward and inward on the touch screen to zoom in and out the PTZ.
  • Page 54 （2）Coaxial camera menu setting Click “Coaxitron” and select “camera menu”, can open the dome menu Input calling dome camera menu address code, click “OK”, then press key button“ ”or click screen icon “ ” Press arrow keys to set...

  • Page 55: Tvi Camera Test （* Optional

    (3)Snapshot, record, photo viewer and video playback, please refer to “3.3.1 Video monitor test” (4)Save setting Click icon “Set” on the right toolbar to enter storage setting. Support auto-storage and manual storage. When select manual storage, user can name and store the files. 3.3.7 TVI camera test （...
  • Page 56 When HD TVI signals input, tester will display the image’s resolution on the top bar. Double-taps on the screen to make the image displayed full screen. The tester supports resolution as follows: 1280x720P 25FPS / 1280x720P30FPS / 1280x720P 50FPS / 1280x720P 60FPS 1920x1080P 25FPS / 1920x1080P 30FPS / 1920x1080P 50FPS / 1920x1080P 60FPS More operation instructions (such as PTZ control, coaxial camera menu setting, snapshot, recording and playback etc), please refer to“3.3.6 CVI camera test”...

  • Page 57: Ahd Camera Test （* Optional

    AHD camera, AHD dome camera test and PTZ control, Click icon to enter When AHD signals input, tester will display the image’s resolution on the top bar. Double-taps on the screen to make the image displayed full screen. The tester supports resolution as follows: 1280x720P 25FPS / 1280x720P 30FPS / 1920x1080P 25FPS / 1920x1080P 30FPS Coaxial PTZ control Click the icon“PTZ”on the right toolbar to do the corresponding setting.

  • Page 58: Ip Address Scan

    Enter PTZ address to perform parameters setting If to coaxial PTZ control the AHD camera, no parameters setting is needed. More operation instructions, please refer to “3.3.6 CVI camera test” 3.3.9 IP address scan Connect the cable to the LAN port, click icon to enter, Set your IP address search range by changing the Start and End IP addresses.

  • Page 59: Ping Test

    3.3.10 PING Test PING is the most conventional network debugging tool; it is used for testing if the connected IP camera or other network equipment’s Ethernet port is working normally and the IP address is correct Connect a network cable to the LAN port and click the icon to open the PING tool.

  • Page 60: Cable Test

    Test LAN cable or telephone cable. Connect LAN cable or telephone cable with the CCTV tester and cable tester. And then the connecting status, cable type and the sequence of wires as well as the serial number of the cable tester kit will be displayed.
  • Page 61 Use the blue Combination cable identifier and network cable tester’s copper pointer to touch all the cables in the bundle. You are searching at the other end. The cable that gives off the loudest tone is the cable connected to the tester.
  • Page 62 3.3.13 Port finder Connect a network cable to the meter’s “LAN” port, click the icon to open the Port Flashing app. Click “Start”. The IP tester sends a unique signal to make the connected LAN port of the switch flash. If the tester and PoE switch are connected well, the LAN port of POE switch flash at special frequency, If not, no any changes on the LAN port...

  • Page 63: Data Monitor

    The tester will send special signals to make the connected LAN port flicker at special frequency, which will enable the installers to easily and quickly find the connected Ethernet cable. This function can prevent mistakenly insertion or disconnection non-corresponding cable to artificially interrupt network connection.
  • Page 64 Note: Please keep the fiber connector and the dust cap be clean, and clean the detector with the special alcohol. Data hold While testing, click “Hold” to data hold, the data will not change. It’s convenient to read. Press again to quit. Relative power value (optical link loss) measurement While testing, set the wavelength for measurement.

  • Page 65: Visual Fault Locator （* Optional

    3.3.16 Visual Fault Locator （ * Optional ） Click icon to enter VFL four status can select——“Steady mode”, “Evasive 1Hz”,“Evasive 2Hz”and“Time off”. Click button “Steady mode” to enter steady status, click button “Evasive 1Hz” and “Evasive 2Hz, to enter pulse mode, click button “Time off”, VFL be turned off. Timed turn off can select (5mins, 10mins, 30mins, 60mins and 120mins).

  • Page 66: Digital Multi-Meter （* Optional

    Click” Steady mode”, red laser sources emit steady, click again to quit. Click icons “Evasive 1Hz”or“Evasive 2Hz”to enter pulse mode, the red laser sources emitted by a certain frequency, press it again to quit 3.3.17 Digital Multi-meter （ * Optional ） 1.
  • Page 67 2) SYMBOLS: U:DC Voltage Measuring A:DC Current Measuring Ω:Resistance Measuring :Diode Testing :AC Voltage Measuring :AC Current Measuring :Continuity Testing :Capacitance Measuring AC/DC Voltage and current measurement state display Auto- range The Multimeter auto adjust the range by input signal or tested components Data hold Hold data Display the relative measurement value...
  • Page 68 a. Connect the black test lead to the “COM ” jack and the red test lead to the “V/Ω” jack. b.Select , enter the DC voltage measurement. c. the tester default Auto range status ,by click “DC auto range” , press the key can select manual range and restore auto range .
  • Page 69 00.00A à 10.00A range（use 10A socket） d. Select the range to enter current measurement Note: u When only the figure “OL” is displayed, it indicates over range situation and the higher range has to be selected. u When the value scale to be measured is unknown beforehand, set the range selector at the highest position.
  • Page 70 0.000 KΩ à 6.600KΩ range 00.00 KΩ à 66.00KΩ range 000.0 KΩ à 660.0KΩ range 0.000 MΩ à 6.600MΩ range 00.00 MΩ à 66.00MΩ rang Continuity Testing Ω a. Connect the black test lead to the “COM” jack and the red test lead to the “V/ ”...
  • Page 71 00.00nF à 66.00nF range 000.0nF à 660.0nF range 0.000uF à 6.600µF range 00.00uF à 66.00µF range 000.0uF à 660.0µF range 0.000mF à 6.600mF range 00.00mF à 66.00mF range d. Before connect test leads across two sides of the capacitor under measurement, be sure that the capacitor has been discharged fully.

  • Page 72: Media Player

    Click “Hold data” to enter, the data be hold, the value is green. Press it again to quit. Relative value measurement Click “Relative “to enter ,the tester Auto-save the data, the displayed new measurement and relative value is red color. Press it again to quit The hold function and the relative value be combined use, the display value is yellow The meter protection Ø...

  • Page 73: Audio Player

    MPEG4, and MKV. The IP tester recorded files can play directly via the Media player. The Media player will automatically display the video files from the SD card. Click on the desired file to play. Click RETURN to exit. To rename or delete an existing file, press the file name for a few seconds until the screen below appears.

  • Page 74: Led Flashlight

    It is convenient for the installation or maintenance in the evening or in the dark. Click icon enter While in the flashlight app, click the red button to turn on the LED lamp. Press it again to turn it off. If you don’t press the red button to shut off the lamp and press the button to exit the app, the lamp will stay on.

  • Page 75: Tdr Cable Test （* Optional

    other PoE using node to IP tester’s LAN port, the PoE voltage and the cable’s pin connection status show on the screen. Note:This test if for measuring the voltage being drawn by the PoE node and the IP tester must be between the PoE switch and the PoE node for this test to work.
  • Page 76 Click “cable” “type” to select cable and start testing, One tap on “Start” , do one testing,selct built in cable type for testing, click “+” and“-” to adjust cable’s wave speed . User-defined calibration:Choose the cable 100 meters to 200 meters (more than 50 meters) ,click“Cable”...
  • Page 77 select “BNC”, if testing communication cable 75-2, select SYV 75-2. 3.Click “+”or“-” to adjust wave speed ,while display length is the same with the actual Length ,click “Save”to save calibration data ,It can be used for the same cable testing next time. Application:TDR test is the use of pulse reflection method, to transmit pulse signal for tested cable, when cable is disconnected or short-circuit, reflected pulse is generated, the tester receives and deals with the reflected wave, measurement results displayed on the screen.

  • Page 78: Calculator

    Note: The TDR reflect signal could be affected by the cable quality/ cable’s not well connected etc to cause the different TDR measurement. The TDR measurement is for reference only. 3.3.23 Calculator Click icon to enter 3.3.24 Browser Click icon to enter Type in the camera’s IP address and press “Go”...

  • Page 79: Ip Camera Viewer

    camera.If they are not in the same segment, click the button or press “RETRUN” to exit. Open the “Settings” app from the main menu to change the IP tester’s network settings to match those of the IP camera. 3.3.25 IP camera viewer In addition to the ONVIF app or the IPC Test app, you can use one of the mobile apps in the IPC Viewer folder to view IP camera video.

  • Page 80: Poe Power / Dc12V 2A And Dc 5V 2A Usb Power Output

    Click desktop icon several seconds, to uninstall this application Click icon “update “ in the IPC viewer interface, to update mobile apps. 3.3.26 PoE power / DC12V 2A and DC 5V 2A USB power output When the tester is turned on, the 12VDC and 5VDC power output functions are automatically turned...
  • Page 81 The IP camera needs to be connected to the LAN port before you turn PoE Power on. If the IP camera supports PoE, the PoE power is delivered via pins 1, 2, 3, and 6 on the LAN port. The IP tester will display “48V ON”...

  • Page 82: Application Tools

    4. Before turning on the PoE power output, please make sure the IP camera supports PoE power. Otherwise it may damage the IP camera. 5 Make sure you plug in your IP camera to the LAN port prior to turning on PoE power 6.
  • Page 83 Net work test (Ethernet bandwidth test) To use the Network tester, you will need two IP testers. One is used as a Server and the other as a Client. Both devices must be on the same network segment in order to communicate. Click icon to open the Network Tester app.
  • Page 84 b).Start send packet test: Using the other IP tester, and type in the Server's IP address at the top right corner of the screen. This app is used to send packets for network speed testing. Click the “Start” button to send the packets and start testing. Network bandwidth testing can also be tested with a computer using compatible network bandwidth testing software.
  • Page 85 Or tester as a Server, computer as test Client（select Client,input tester’s IP address to test） When tester as server, shows results:...
  • Page 86 DHCP server: Click on the DHCP icon to open the DHCP server app. Select the “Start” check box at the top and make any desired changes to the network settings. Click “Save” to start assigning dynamic IP addresses for IP cameras and other networked devices. Click the “Refresh” button to check your Client list. Notepad: Notepad can be used to record the important testing results, click the key “Save”...
  • Page 87 Link monitor : Click the icon to open the Link Monitor app. This app is used to see if an IP address is occupied by other network devices. This will avoid new address conflicts Click “Add” and enter the desired IP address. To test different network segments, click the “Settings” icon on the main menu and go to IP Settings and make the desired changes.
  • Page 88 occupied, otherwise it will cause IP conflicts and stop the equipment normal working. Link monitor can check if the new setting IP address is occupied. RTSP Player : The RTSP Player app will allow you to view the RTSP video stream from an IP camera. If you were unable to view your camera via the ONVIF or IPC Test apps, it is possible your camera will have an RTSP stream and you can view live video.
  • Page 89 Note: in the event the ip tester does not auto detect the rtsp stream, refer to the specific camera manufacturer for the specific rtsp stream url. you may find this on line with a search of the camera model number and the word rtsp Trace route Trace route is used to determine path of the IP packet access target.

  • Page 90: Apps Tools Folder

    3.3.28 APPS Tools Folder Click icon to enter You can move desktop icons into the Tools Folder by pressing on the icon for a few seconds until the screen below appears: You can also move an icon back to the desktop by pressing on the icon for a few seconds until it asks you if you want to move the icon back to the desktop...

  • Page 91: System Setting

    3.3.29 System Setting Click icon to enter Language: Select your desired language: English, Chinese, Korean, Russian, Italian or Polish. Date/Time: Set the Date/time of the IP tester IP setting: Manually set the IP address, Subnet Mask, Default Gateway and DNS address or select “Dynamic allocation”...
  • Page 92 After setting an advanced IP address (refer to above photos), the tester can test two network segments (192.168.0.0) and (192.168.1.0). WLAN Net: Turn WiFi off or on by pressing the “Open the wifi” button. Once WiFi is turned on, it will scan for wireless networks in your area.
  • Page 93 Start the FTP server and then input the tester’s FTP address in the PC’s address bar. This will enable the PC to read, copy and edit the files from the SD card without the use of SD card reader. Power display: Display the battery level information Version information: This displays the version information for each application Screen display rotation: Click on “Screen Rotation”...

  • Page 94: Update

    Click the icon to open the Update menu. Select “Local Update” to update via the SD card or select “Online Update” to check for updates on the internet. If there are applications that need updating, the applications will be displayed on the screen. Click the relevant applications to update them to the latest version.
  • Page 95 Notice a. Please make sure the cable connected to the tester’s Lan port is straight-line cable and has no short circuit, otherwise will damage the tester b. Before using PoE power output, pls check the IP camera whether supports POE powered. Otherwise it will damage the IP camera.

  • Page 96: Dc12V 2A Power Output

    will enter protection mode . 3.6 DC12V 2A power output When the IP tester is turned on, the 12VDC power output ON by default. The smaller end of the supplied converter cable connects to the tester’s DC12V/2A OUTPUT and the other end connects to the camera’s power input.

  • Page 97: Usb 5V 2A Power Output

    connect the tester with power adaptor to resume the tester. e. Make sure the tester has a sufficient charge otherwise the tester will not able to provide enough output power 3.7 USB 5V 2A power output When the tester is turned on, the 12V DC and 5V DC power output functions are automatically turned on.

  • Page 98: Specifications

    4. Specifications 4.1 General Specifications Model IP Camera tester 【 * 】 models Optional Display 4.3 inch capacitive touch screen , resolution 800（RGB）x 480 Network port 10/100M auto adapt,RJ45 Built in WIFI,speeds150M, allows you to connect to a wireless network and WIFI view IP cameras ONVIF,ONVIF PTZ, Dahua IPC-HFW2100P, Hikvision DS-2CD864-E13,...
  • Page 99 Test * （ Optional ） 25,30,50,60fps/ 1080p 25,30fps AHD video Signal 1 channel AHD input（BNC interface）, support resolution:720p 25,30fps / Test * （ Optional ） 1080p 25,30fps Analog Video test 1 channel BNC Input & 1 channel BNC Output , NTSC/PAL (Auto adapt) Video level meter PEAK video signal level, SYNC signal level, COLOR BURST chroma level * (Optional)
  • Page 100 Find a connected cable from a bundle of cables using audio tones *(Optional) PoE /PSE voltage Measures PoE switch voltage and displays pin configuration test AC/DC Voltage, AC/DC current, Resistance, Capacitance, Data hold, Relative Digital Multi-meter measurement, Continuity testing . Testing speed: 3 times/ seconds, Data range - * (Optional) 6600～+6600.

  • Page 101: Multi-Meter Specifications

    Counts:-6600～+6600 Conversion rate: 3times/s Current modes for clamp meter with ZERO function Isolation: the Multi-meter connector must be isolated with the other connector. DC voltage Range Accuracy Resolution 660mV (Manual range) 0.1mV 6.600V ±（0.3%+4） 66.00V 10mV 660.0V 100mV AC voltage Range Accuracy Resolution...
  • Page 102 AC current Range Accuracy Resolution 6.600mA 66.00mA ±（0.5%+3） 10uA 660.0mA 100uA 10.00A ±（1%+5） 10mA Resistance Range Accuracy Resolution 660.0Ω 0.1Ω ±（0.8%+5） 6.600KΩ 1Ω 66.00KΩ 10Ω ±（0.8%+2） 660.0KΩ 100Ω 6.600MΩ 1KΩ 66MΩ ±（1.2%+5） 10KΩ Continuity Range Resolution Function 660.0Ω 0.1Ω The measurement value less 30Ω±3Ω,the tester will sound Diode Range...

  • Page 103: Optical Power Meter Specifications

    6.600nF ±（0.5%+20） 66.00nF 10pF 660.0nF 100pF ±（3.5%+8） 6.600µF 66.00µF 10nF 660.0µF 100nF 6.600mF 1µF ±（5%+8） 66.00mF 10µF 4.3 Optical power meter specifications -70～+10dBm Measure Range(dBm) Wavelength(nm) 850nm,1300nm,1310nm,1490nm,1550nm,1625nm Detector InGaAs ＜±3%dB(-10dBm,22℃) ＜±5%dB(full range,22℃) Uncertainly Display Resolution Linear:0.1% ; Nonlinear:0.01dBm Operating Temperature( ℃ ) -10～+50 Storage Temperature ( ℃...
  • Page 104 Output power 5mW（Optional 10mW,20mW） Modulation mode CW/1Hz/2Hz Measurement Range 5KM（Optional 10-20KM） Connector FC/PC exchangeable Working Temperature －10℃～+50℃ Operating Temperature -20℃～+70℃ The data above is only for reference and any change of them will not be informed in advance. For more detailed technical inquiries, please feel free to call the Technical Department of our company.
