Gnom Baby Operator's Manual

Underwater remotely operated vehicle

Advertisement

Quick Links

Underwater
remotely operated vehicle
GNOM BABY
Operators manual
VFTECH s.r.o.
Vapenicka 24, 971 01 Prievidza, Slovakia
Tel/Fax +421 46 54264 56
odbyt@vftech.sk
http://www.vftech.sk
2015

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Baby and is the answer not in the manual?

Questions and answers

Summary of Contents for Gnom Baby

  • Page 1 Underwater remotely operated vehicle GNOM BABY Operators manual VFTECH s.r.o. Vapenicka 24, 971 01 Prievidza, Slovakia Tel/Fax +421 46 54264 56 odbyt@vftech.sk http://www.vftech.sk 2015...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. Description 1.1 Purpose 1.2 Design 1.3 Technical specifications 2. User’s manual for operation with GNOM 3. Keys and Buttons at the control panel 4. Screen modes 5. Calibration 6. Maintenance operation 7. Safety requirements 8. Warranty statement 9.
  • Page 3: Description

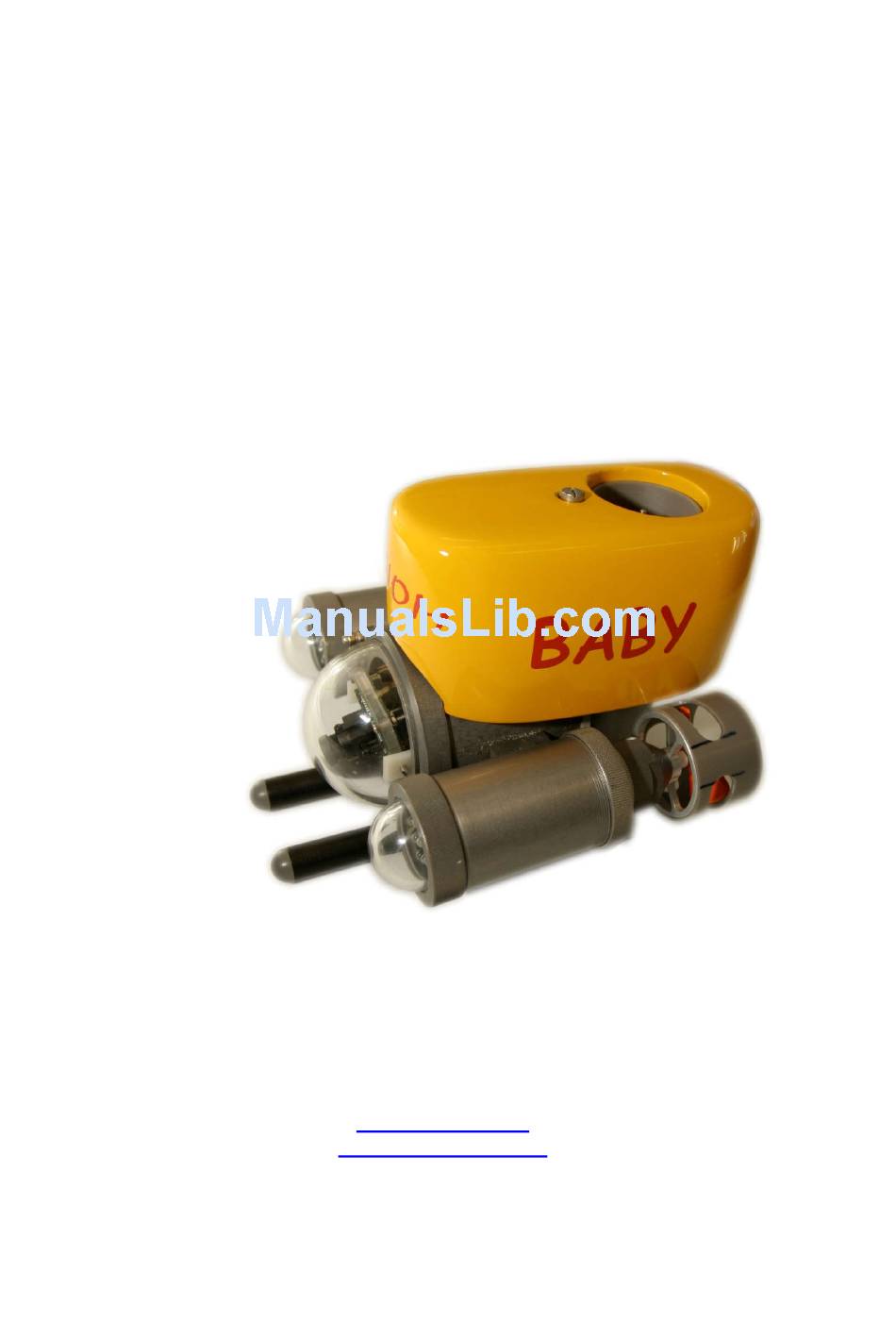

    Digital video recorder Computer Monitor Waterproof case ROV Gnom Baby is intended for inspection of underwater objects such as wrecks, ship underwater parts, propellers and different underwater constructions. ROV Gnom Baby has a small color camera with tilt function. Two clusters of ultra-bright LEDs are installed at both sides of the underwater module.
  • Page 4: Design

    1. DESCRIPTION 1.2 DESING Recommended configurations Hand reel + Coax. cable Underwater module Power supply/control module Joystick Transportation waterprof cases v05/2016...
  • Page 5 1. DESCRIPTION The system consists of underwater vehicle, cable and The system consists of underwater vehicle, cable and surface control unit. Underwater vehicle surface control unit. Underwater vehicle   – contains aluminum waterproof cylindrical hull contains aluminum waterproof cylindrical hull with a side wall with a fastened vertical ...
  • Page 6: Technical Specifications

    Module has standard RCA jack for connecting to TV or audio/video recorder. Using the control pads and joystick the operator can move GNOM forward-backward, turn to the right-left, up-down; adjust the thruster’s speed and the lighters’ brightness. All the data are displayed in TV-text mode.
  • Page 7: User's Manual For Operation With Gnom

    2. USER’S MANUAL FOR OPERATION The central cable wire has 48V voltage! If any damages happened you must repair or change the cable 2.1. Before using, please, check up all parts of vehicle especially propellers, cable and dome. Clean the vehicle if necessary, check propeller rotation. 2.2.
  • Page 8 2. USER’S MANUAL FOR OPERATION 2.4.1 - You can not connect to the GNOM and other devices (accessory) to the mains with the following problems: • Wrong - incorrect wire connections L and N conductors in the appropriate slot. • without protective earthing conductor.
  • Page 9 For monitor operation (TV) follow manual to the appropriate monitor. 2.7. After switch power ON “ WELCOME WELCOME ” is displayed on monitor. Gnom is ready for operation Gnom is ready for operation. After finish operation set switch 230V in finish operation set switch 230V in OFF position 2.8.
  • Page 10 2. USER’S MANUAL FOR O 2. USER’S MANUAL FOR OPERATION PERATION # Simultaneously press ③+ to change the intensity of the front lights ( LOOP : 0%100%, 100% 100%, 100%. If press ③+ simultaneously 100% brightness turns on simultaneously 100% brightness turns on/off. ( Simultaneously press ③+ adjust rear lighters –...
  • Page 11 2. USER’S MANUAL FOR OPERATION # You can choose the menu language (Russian/English) 2.9. Finishing the operation To finish the operation switch power OFF then disconnect cables and pull into the reel. Try to avoid nods and twisting of the cable. After operation please clean propellers and shafts of motors and wash the vehicle in fresh water.
  • Page 12: Keys And Buttons At The Control Panel

    3. KEYS AND BUTTONS AT THE CONTROL PANEL v05/2016...
  • Page 13 3. KEYS AND BUTTONS AT THE CONTROL PANEL v05/2016...
  • Page 14 3. KEYS AND BUTTONS AT THE CONTROL PANEL v05/2016...
  • Page 15: Screen Modes

    4. SCREEN MODES v05/2016...
  • Page 16: Calibration

    Message "Calibration mode" appears. To select function you should use left arrows. To enter functions you should use right key ② “Set current depth as 0”. To calibrate depth sensor you should set 0m when GNOM is on a surface. To finish calibration press Enter (right key ②).
  • Page 17: Maintenance Operation

    6. MAITENANCE OPERATION To maintain the vehicle it is necessary:  to clean the propellers from alge, sand and mud  to rinse the vehicle in the fresh water after using in the sea  to inspect the cable after the operation. In case of any damages the cable must be repaired or changed ...
  • Page 18: Safety Requirements

    7. SAFETY REQUIREMENT 1. Device belongs to CLASS 1 . For this reason the power adapter must have connection to protective earth. 2. Swith-on and swith-off the machine by main 230V switch, which is placed over the power cord to the external control unit. 3.
  • Page 19: Warranty Statement

    8. WARRANTY STATEMENT VFTECH warrants that at the time of shipment all products shall be free from defects in material and workmanship suitable purpose specified product literature. The unit/system warranty commences immediately from the date of customer acceptance and runs for a period of 1 year ( except for thrusters ).
  • Page 20: Examples Of Linking Modules

    9. EXAMPLES OF LINKING MODULES v05/2016...
  • Page 21: Appendix

    10. APPENDIX 5 PAGES For use GNOM in fresh water you need install additional floatation [pos.1] You should do the next: 1. To unscrew screws [pos.3] of skids [pos.2] 2. To remove skids [pos.2] 3. To install the additional block of floatation [pos.1] (enters into the equipment complete set) 4.
  • Page 22 Connection diagramm plug monitor power cable: max 20 m. power cable: max 5 m. Power supply~230V, 3G х 1.0 mm? 3G х 0.75 mm? 50-60 Hz Input power – max. 125W L, N, PE - wires L, N, PE - wires Video out 1 RF filter RCBO...
  • Page 23 Сборочный чертеж малогабаритного подводного телеуправляемого осмотрового аппарата Micro ROV assembly Сборка корпуса Main hull assembly Заглушка полозьев skid closing plug Кольцо уплотнительное sealing ring Полозья опорные skid Крепление блистера blister fixing ring Иллюминатор forward-viewing window Корпус блистера front hull insertion Корпус...
  • Page 24 Сборочный чертеж задней крышки Backwall asembly Болт screw Шайба washer Плата электроники Датчик глубины depth sensor RS-разъем RS-connector Крышка задняя backwall Кольцо крепления задней backwall mounting крышки ring Кольцо уплотнительное sealing ring Крепление двигателя thruster mounting вертикального washer Кольцо уплотнительное sealing ring Гермоввод...
  • Page 25 Сборочный чертеж движителя Horizontal thruster assembly Сборка горизонтального Horizontal thruster двигателя assembly Ограждение гребного винта propeller guard Гайка крепления гребного propeller cap nut винта Гребной винт propeller Кольцо крепления propeller guard mounting ограждения ring Втулка фильтра filter bushing Оголовье thruster cone Гайка...
  • Page 26: Annex

    11. ANNEX PROBLEMS SOLUTION Alight LED on control Check that control unit is connected to a power supply  unit Check that control unit is switch on  If previous conditions are met but LED is still alight, check network fuse of control unit ...
  • Page 27 11. ANNEX SERVICE COUPON Coupon No.1 Date of sale SERIAL NUMBER DATE OF INSPECTION TRUE FALSE DESCRIPTION OF REPARATION HORIZONTAL THRUSTER L HORIZONTAL THRUSTER R VERTICAL THRUSTER F VERTICAL THRUSTER B LIGHTS SERVO COMPASS DEPTH SENSOR JOYSTICK CONTROL UNIT MOTOR COUPLING STAMP AND SIGNATURE Coupon N.2 Date of sale...
  • Page 28 11. ANNEX Year of purchase: TABLE № 1. Registration of working time Start and end date of Place of works Underwater unit working Operator name and executed works time (hours) signature...
  • Page 29 11. ANNEX Table No. 2 Statistics of damaged and replaced fuses in control unit Date / time of fuse Type and parameter Type and parameter of Operator name and work Signature seasoning and her of network fuse power cable fuse +180V position replacements Table No.
  • Page 30 11. ANNEX Protocol of perform warranty repairs Client Address Client’s agent name Name of employee taking complaint Date of taking complaint Date of product sale Type of product + serial number Description of defect by client Description of defect by service operator Used material Legitimate complaint If no legitimate - reason...
