Powerline Wi-Fi Adapter Set
Powerline WLAN Adapter-Set
®
®
MEDION
LIFE
P85150 (MD 90222)
Instruction Manual
Betjeningsvejledning

Advertisement

Chapters

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Powerline P85150 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Medion Powerline P85150

Summary of Contents for Medion Powerline P85150

  • Page 1 Powerline Wi-Fi Adapter Set Powerline WLAN Adapter-Set ® ® MEDION LIFE P85150 (MD 90222) Instruction Manual Betjeningsvejledning...

  • Page 2: Table Of Contents

    Contents Notes on how to use these instructions ..3 1.1. Symbols and key words used in these instructions ........3 GPL/ Package contents ...........5 LGPL Proper use ............5 Safety instructions .........6 4.1. Operating safety ........... 6 4.2. Electromagnetic compatibility ....8 4.3.
  • Page 3 Connecting the device via Wi-Fi with the Powerline WLAN Adapter ......23 11.1. Connect via WPS button ......23 Setting up the device via the web interface ..........24 12.1. Logging on to the web interface ..24 12.2. Setup wizard ..........26 12.3.

  • Page 4: Notes On How To Use These Instructions

    1. Notes on how to use these instructions Read the safety instructions carefully before use. Note the warnings on the device and in GPL/ the operating instructions. LGPL Always keep the operating instructions close to hand. If you sell the device or give it away, make sure you also hand over these instruc- tions and the warranty card.
  • Page 5 CAUTION! Please follow the guidelines to avoid injuries and/or property damage! ATTENTION! Please follow the guidelines to avoid property damage! NOTE! Additional information on using the device. NOTE! Please follow the guidelines in the operat- ing instructions! WARNING! Warning: danger of electric shock! •...

  • Page 6: Package Contents

    2. Package contents Please check your purchase to ensure that all items are included. If anything is missing, please contact us within 14 days of purchase. The following items are GPL/ supplied with the product you have purchased: LGPL − 1 Powerline Adapter −...

  • Page 7: Safety Instructions

    4. Safety instructions 4.1. Operating safety • This device is not intended for use by peo- ple (including children) with reduced physical, sensory or mental abilities or by those without experience and/or knowl- edge, unless they are supervised by a per- son responsible for their safety or they have been instructed in its use by that per- son.
  • Page 8 • Never open the device housing; it contains no parts requiring maintenance! There is a risk of electric shock when the housing is open. This invalidates the warranty and GPL/ may render the device unusable. LGPL • Plug the Powerline Adapter into freely ac- cessible mains sockets so that it can quick- ly be disconnected from the electricity network in case of danger.

  • Page 9: Electromagnetic Compatibility

    (TV set, loudspeakers, mobile phones, etc.) in order to avoid malfunc- tions and data loss. 4.3. Notes on conformity Medion AG hereby declares that the prod- uct MD 90222 (consisting of two devices) conforms to the following European re- quirements: •...

  • Page 10: Transport And Packaging

    4.4. Transport and packaging Keep the original packaging in case you need to send the device by post. GPL/ 5. System requirements LGPL Before installing the Powerline Adapter, ensure that the following conditions are met: − At least two wall sockets (100–240 V 50/60 Hz). −...

  • Page 11: Function

    6. Function You can use the Powerline Adapters to extend your existing LAN network via the mains network in your house without the need for any additional cables. Example of use 10 of 122...
  • Page 12 The two supplied adapters are already synchronized, the encryption is enabled and you can send and re- ceive data without the need for any further set-up. Ad- ditional Powerline Adapters be connected to the net- work by means of a simple cable connection. GPL/ You can use the Powerline WLAN Adapter to connect LGPL...

  • Page 13: Overview Of The Device

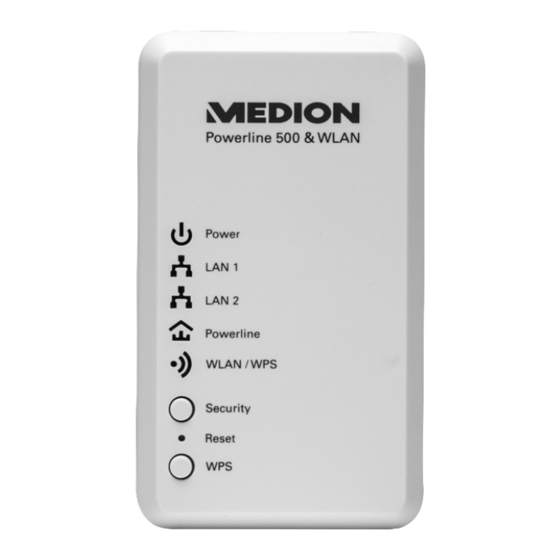

    7. Overview of the device 7.1. Powerline WLAN Adapter LED displays Power, LAN1/LAN2, Powerline, WLAN/WPS; SECURITY, RESET and WPS buttons LAN 2: RJ45 LAN connection ON/OFF: On/off switch LAN 1: RJ45 LAN connection Mains connection plug 12 of 122...

  • Page 14: Powerline Adapter

    7.2. Powerline Adapter GPL/ LGPL Integrated power socket LED displays Power, LAN and Powerline SECURITY/RESET button: encryption/resets to factory default settings RJ45 LAN connection Mains connection plug 13 of 122...

  • Page 15: Possible Led Displays

    8. Possible LED displays 8.1. Powerline WLAN Adapter Status Meaning Lights up The adapter is switched on. green Power Flashes Adapter is restarting or car- green rying out security settings. The adapter is not receiv- ing power. Lights up Wi-Fi is switched on. green Flashes WLAN/...
  • Page 16 Status Meaning LAN cable is plugged in, Lights up adapter is ready for data green transfer. LAN1/2 GPL/ Flashes Data is being transferred. LGPL green The LAN connection is not active (no LAN cable con- nected, network device switched off ). An additional Powerline Adapter has been detected Lights up...

  • Page 17: Buttons On The Powerline Wlan Adapter

    8.2. Buttons on the Powerline WLAN Adapter Function Button Description Leave net- Security Press for 12 seconds: the work and POWER LED flashes on generate and off. random Connecting Security Press for 2–3 seconds: to an ex- the POWER LED flashes isting net- for 2 minutes.

  • Page 18: Powerline Adapter

    8.3. Powerline Adapter Status Meaning Green The adapter is switched on. light GPL/ Flashes Adapter is restarting or carry- LGPL green ing out security settings. Flash- Power es green every 15 The adapter is in standby seconds mode. (other LED lights are off ) The adapter is not receiving power.
  • Page 19 Status Meaning An additional Powerline Adapter has been detected on Lights up the same network. green Connection speed is at > 40 Mbit/sec. Power- line Lights up Connection speed is at > 20– orange 40 Mbit/sec. Lights up Connection speed is at < 20 Mbit/sec.

  • Page 20: The Security/Reset Button

    9. The SECURITY/RESET but- The SECURITY/RESET button on the Powerline Adapter has three different functions, depending on GPL/ how long you press it down: LGPL Function Button Description Leave net- Security/ Press for 5–8 seconds: work and the POWER LED flashes Reset generate on and off.

  • Page 21: Connection

    10. Connection To set up a network of Powerline Adapters, there must always be at least two adapters connected for the data transmission. There are two options: The direct connection between two network-capable devices (of which one is con- nected via Wi-Fi or the LAN port) or a connection be- tween a network-capable device and a router (to the Internet).

  • Page 22: Notes On Power Supply

    10.1. Notes on power supply NOTE Connect the Powerline Adapter directly to the wall outlet and not to an extension cord GPL/ or multiple socket (power strip) as these can LGPL adversely affect the transmission quality. You can use the integrated socket of the Power- line Adapter to operate other devices.

  • Page 23: Connecting To A Network Device

    10.2. Connecting to a network device To connect two network devices such as a PC and a router within a network with the Powerline Adapt- er, one device must be connected to the Powerline Adapter using a LAN cable (RJ45) and the other device connected wirelessly or via a LAN cable (RJ45) to the Powerline WLAN Adapter.

  • Page 24: Connecting The Device Via Wi-Fi With The Powerline Wlan Adapter

     Plug the Powerline Adapter into an individual sock- et if possible.  Switch the computer and router on. The set-up is successful if the LED indicators Power and Powerline light up on both Powerline Adapters. GPL/ LGPL 11. Connecting the device via Wi-Fi with the Powerline WLAN Adapter 11.1.

  • Page 25: Setting Up The Device Via The Web Interface

    11.1.1. Manual connection To register a device manually, proceed as follows: SSID (network name): Powerline-WLAN Password: XXXXXXXXX (9 Xs) NOTE! Please change the default password via the web interface of the Powerline WLAN Adapter. 12. Setting up the device via the web interface 12.1.
  • Page 26  In the login window, enter the password for the web Interface. GPL/ LGPL PLEASE NOTE: The default password is “admin”.  Set the language for the web inter- face in the upper right-hand corner of the screen.  Then click on LOGIN. The home page of the web in- terface appears.

  • Page 27: Setup Wizard

    12.2. Setup wizard 12.2.1. Wizard The easiest way to make the basic settings is by using the wizard.  To carry out the wizard, click on Wizard in the Con- figuration menu:  The wizard guides you through 4 steps. Click on Next to get to the next step.
  • Page 28 NOTE: The default password is “admin”. To ensure sufficient protection for your network, you should set a different password here.  If you do not want to set a different password, click GPL/ on Skip. LGPL  After you have entered the new password, click on Next to go to the next page.
  • Page 29 • Visibility Status − If you select VISIBLE, the SSID is discoverable by all other Wi-Fi devices. − If you select INVISIBLE, the SSID is not broad- cast and other Wi-Fi devices must know the cor- rect SSID before making a connection. •...
  • Page 30 12.2.4. Setup Wireless Security The Wi-Fi router of the Powerline Adapter supports the encryption standards WEP, WPA-PSK, WPA2-PSK and WPA/WPA2-PSK.  If you do not want to use any encryption, select the GPL/ option NONE (not recommended). LGPL  Enter the appropriate encryption algorithm for each encryption type (TKIP or AES) and a network key.

  • Page 31: Wireless Setup

    12.3. Wireless Setup 12.3.1. Wireless Basic You can adjust the settings for the wireless network here. 12.3.2. Enable Wireless Interface Turn Wi-Fi network on or off. 12.3.3. Wireless Name (SSID) The name of the wireless network (SSID) can be up to 32 characters and can only contain letters, numbers and underscores or any combinations thereof.
  • Page 32 12.3.5. Passphrase Here you can assign a network key. 12.3.6. Show encryption key Shows the network key in the web interface. GPL/  After you have made all the settings, click OK: LGPL 12.3.7. WPS You can use the WPS function (Wi-Fi protected setup) to add a wireless client to your network without entering the SSID, encryption and password.
  • Page 33 12.3.10. PBC MODE  Select PBC from the WPS menu and then click the PBC button on the WPS page or press the WPS button on the Powerline WLAN adapter to use the WPS connection.  Then press the WPS button on the Wi-Fi client within 2 minutes or confirm the WPS connection via the settings menu of the wireless client to com- plete the connection.

  • Page 34: Plc Setting

    12.4. PLC Setting On this page you can see all the information (de- vice name, MAC address, network key and network name) regarding the Powerline WLAN Adapter and the GPL/ logged-on clients. LGPL  Click the REFRESH button to refresh the display. ...
  • Page 35 12.4.4. Network Name Status  If you select VISIBLE, the SSID is discoverable by all other Wi-Fi devices.  If you select INVISIBLE, the SSID is not broadcast and other Wi-Fi devices must know the correct SSID before making a connection. 12.4.5.

  • Page 36: Advanced Security

    12.4.8. Enable WMM (Wireless QoS) This feature is not available. If this function is disabled, the Powerline WLAN Adapt- er adopts the WMM priorities from the router. When WMM is activated, the streaming of multimedia con- GPL/ tent is optimised. LGPL 12.4.9.

  • Page 37: Access Control

    12.6. Access Control 12.6.1. Add You can add a client to the list here.  Then enter the MAC address and a description for the client and click on OK to add the client to the list. 12.7. Maintenance 12.7.1. User Password Here you can set a new password for access to the web interface of the Powerline Adapter.

  • Page 38: Firmware Update

    NOTE: After a reset to factory defaults, all the set- tings and passwords are deleted and must be re-entered. GPL/ 12.8. Firmware Update LGPL  If you receive a software update from our service, save it onto your computer.  Then click on BROWSE to execute and install the software update from your computer.

  • Page 39: Status

    12.9. Status Here you can view all information about the ports and the Wi-Fi configuration of the Powerline Adapter. 12.10. Logout When you are finished with the web interface, use this entry to log off from the web interface. 13. Changing the Powerline network key NOTE When delivered, both Powerline Adapters are...
  • Page 40 NOTE To do this, it is useful to plug all the adapt- ers that are to receive the new Powerline net- work key into the same multiple socket. Both Powerline Adapters are connected and GPL/ ready for operation. The POWER LED lights up. LGPL This step is to be carried out on each adapter.

  • Page 41: Adding Further Adapters To The Powerline Network

    14. Adding further adapters to the Powerline network NOTE To do this, it is useful to plug all the adapters that are to receive the new network key into the same multiple socket. For every additional Powerline Adapter that is to be given a new network key, proceed as follows: All Powerline Adapters that are to be configured are connected and ready for operation.
  • Page 42 The device will be reset and restarts. All LEDs go off for a short while. This Powerline Adapter now generates a random, unique network key.  Press the SECURITY button on the Powerline WLAN Adapter again for about 2–3 seconds or GPL/ the SECURITY/RESET button on the Powerline LGPL...

  • Page 43: Removing A Powerline Adapter From The Powerline Network

    15. Removing a Powerline Adapter from the Power- line network If you want to remove a Powerline Adapter from the existing network, proceed as follows:  Press the SECURITY button on the Powerline WLAN Adapter for 12 seconds or the SECURI- TY/RESET button on the Powerline Adapter for about 5–8 seconds.

  • Page 44: Factory Settings

    17. Factory settings The two Powerline Adapters in the set you have bought are already paired on delivery. By changing the Powerline network key or removing GPL/ individual adapters from the Powerline network, this LGPL preset will be deleted. Here is how you can restore the factory setting: ...

  • Page 45: Troubleshooting

    18. Troubleshooting If errors occur, check first whether you can correct the problem yourself. The following list may help you. CAUTION Never try to repair the device your- self. Contact our service centre or an- other suitable specialist workshop if a repair is necessary.
  • Page 46 Problem Possible cause Rectification There is no con- POWER- nection be- LINE LED tween the Pow- does not erline Adapters. GPL/  Try different LGPL light up. • Possibly, the power out- power outlets. lets being used are not suitable for making a Powerline connection.
  • Page 47 Problem Possible cause Rectification • Maybe the You can test wheth- adapters are er the adapters are not synchro- on the same net- nised. work:  Plug the two adapters into ad- jacent power outlets on a mul- tiple socket strip. ...

  • Page 48: Cleaning

    19. Cleaning • Always unplug the Powerline Adapter and discon- nect all the cables before cleaning the device. • Do not use solvents, corrosive agents or aero- GPL/ sol-based detergents to clean the device. LGPL • Clean the device with a soft, lint-free cloth. Store the packaging material in a safe place;...

  • Page 49: Disposal

    20. Disposal Packaging Your device is packaged to protect it from damage in transit. Packaging materials are raw materials and can therefore be reused or recycled. Device Do not under any circumstances dispose of the device with the household rubbish at the end of its service life! Please consult your lo- cal authority for advice on correct and eco-friendly methods of disposal.

  • Page 50: Technical Data

    21. Technical data Model: MD 90222 (set with 2 devices) MD 87319 (WLAN Adapter) GPL/ Input voltage: 100–240 V ~ 50/60 Hz, 0.15 A LGPL Power consumption: < 6 W in operation Connections: 2 x Ethernet (LAN) 100 Mbit/s WLAN: IEEE802.11b/g/n MD 87309 (Adapter) Input voltage: 100–240 V ~ 50/60 Hz, 0.1 A Output voltage:...

  • Page 51: Environmental Requirements

    Environmental requirements Temperature (operational) 5°C–35°C Humidity (operational) 10%–90%, non- condensing Dimensions Powerline Adapter (W x H x D) 61 x 116 x 86 mm Powerline WLAN Adapter (W x H x D) 61 x 106 x 86 mm Weight (per adapter) approx. 183 g 50 of 122...

  • Page 52: Legal Notice

    The operating manual can be reordered via the service hotline and is available for download via the service portal at www.medion.com/gb/service/start/. You can also scan the QR code above and download the operating manual onto your mobile device via the service portal.
  • Page 53 52 of 122...
  • Page 54 Indholdsfortegnelse Om denne brugsanvisning ......55 1.1. Symboler og advarsler, der anvendes i denne brugsanvisning ......55 GPL/ Pakkens indhold ......... 57 LGPL Korrekt anvendelse ........57 Sikkerhedsanvisninger ......58 4.1. Driftssikkerhed ..........58 4.2. Elektromagnetisk kompatibilitet..60 4.3. Meddelelse om overensstemmelse ..60 4.4.
  • Page 55 Tilslutning af en enhed med Powerline- WLAN-adapteren via WLAN ....... 75 11.1. Tilslutning via WPS-knappen ....75 Konfiguration af enheden via webbrugergrænsefladen ......76 12.1. Logon til webbrugergrænsefladen ..76 12.2. Setup wizard ..........78 12.3. Wireless Setup ..........82 12.4. PLC Setting ...........85 12.5.

  • Page 56: Om Denne Brugsanvisning

    1. Om denne brugsanvisning Læs sikkerhedsanvisningerne grundigt igen- nem, før apparatet tages i brug. Tag hensyn til advarslerne på apparatet og i brugsanvis- GPL/ ningen. LGPL Gem brugsanvisningen, så du altid har den ved hånden. Hvis du sælger apparatet el- ler forærer det væk, er det vigtigt, at denne brugsanvisning og garantibeviset også...
  • Page 57 FORSIGTIG! Følg anvisningerne for at undgå kvæ- stelser og materielle skader! PAS PÅ! Følg anvisningerne for at undgå ma- terielle skader! BEMÆRK! Yderligere oplysninger om brugen af appa- ratet. BEMÆRK! Følg anvisningerne i denne brugsanvisning! ADVARSEL! Advarsel om fare på grund af elek- trisk stød! •...

  • Page 58: Pakkens Indhold

    2. Pakkens indhold Kontroller, at der ikke mangler noget i pakken, og giv os besked senest 14 dage efter købet, hvis der mang- ler noget. Med det produkt, som du har købt, skal du GPL/ have modtaget følgende: LGPL − 1 Powerline-adaptere −...

  • Page 59: Sikkerhedsanvisninger

    4. Sikkerhedsanvisninger 4.1. Driftssikkerhed • Denne enhed er ikke beregnet til at bli- ve brugt af personer (herunder børn) med begrænsede fysiske, sensoriske eller men- tale evner og/eller manglende viden, medmindre de er under opsyn af en an- den person, der har ansvaret for deres sik- kerhed, eller som giver dem anvisninger om, hvordan enheden skal bruges.
  • Page 60 driftsforstyrrelser. Driftstemperaturen er 5 til 35 °C. • Åbn aldrig enhedernes kabinet - de inde- holder ingen dele der skal vedligeholdes! GPL/ Hvis kabinettet er åbent, er der risiko for LGPL livsfarlige elektriske stød. Dette vil ophæ- ve garantien og kan ødelægge enheden. •...

  • Page 61: Elektromagnetisk Kompatibilitet

    (fjernsyn, højttalere, mobiltelefon osv.) for at forhindre funktionsforstyrrelser og tab af data. 4.3. Meddelelse om overensstemmelse MEDION AG erklærer hermed, at sættet 90222 bestående af to enheder er i over- ensstemmelse med følgende EU-direktiver: • EMC-direktivet 2004/108/EF •...

  • Page 62: Transport Und Emballage

    4.4. Transport und emba llage Opbevar originalemballagen, så du har adgang til den, hvis enheden skal transporteres. GPL/ 5. Systemkrav LGPL Inden du installerer Powerline-adapteren, skal du kon- trollere, at følgende krav er opfyldt: − Mindst to stikkontakter (100-240 V~50/60 Hz). − LAN-stik −...

  • Page 63: Funktionsmåde

    6. Funktionsmåde Med Powerline-adapterne kan du udvide dit eksiste- rende LAN-netværk via dit hjems lysnet uden at skulle trække yderligere kabler. Anvendelseseksempel 62 af 122...
  • Page 64 De to medfølgende adaptere er på forhånd synkroni- seret, krypteringen er aktiveret, og de kan sende og modtage data uden yderligere konfiguration. Det er også muligt at tilslutte yderligere Powerline-adaptere til netværket via enkel kabeltilslutning. GPL/ Med Powerline-WLAN-adapteren kan andre enheder LGPL oprette forbindelse trådløst og på...

  • Page 65: Oversigt Over Apparatet

    7. Oversigt over apparatet 7.1. Powerline-WLAN-adapter LED-indikatorerne Power, LAN1/LAN2, a Powerline, WLAN/WPS; knapperne SECURITY, RESET og WPS LAN 2: RJ-45 LAN-stik ON/OFF: Tænd/sluk-knap LAN 1: RJ-45 LAN-stik Stik til tilslutning til lysnettet 64 af 122...

  • Page 66: Powerline-Adapter

    7.2. Powerline-adapter GPL/ LGPL Integreret stikkontakt LED-indikatorerne Power, LAN og Powerline Knappen SECURITY/RESET: Kryptering/nul- stiller enheden til fabriksindstillingerne RJ-45 LAN-stik Stik til tilslutning til lysnettet 65 af 122...

  • Page 67: Mulige Led-Indikationer

    8. Mulige LED-indikationer 8.1. Powerline-WLAN-adapter Status Betydning Lyser grønt Adapteren er tændt. Adapteren genstarter eller Power Blinker grønt foretager sikkerhedsindstil- linger Adapteren forsynes ikke Slukket med strøm. Lyser grønt WLAN aktiveret WLAN/ Blinker grønt Der overføres data Lyser orange WPS gennemført Blinker oran- WPS aktiv Slukket...
  • Page 68 Status Betydning Der er blevet fundet endnu en Powerline-adapter på det samme netværk. Lyser grønt GPL/ Forbindelseshastigheden LGPL er > 40 Mbit/sek. Pow- Lyser Forbindelseshastigheden er-line er på 20-40 Mbit/sek. Orange Forbindelseshastigheden Lyser rødt er < 20 Mbit/sek. Der er ikke forbindelse til en anden adapter, eller der Slukket blev ikke fundet nogen en-...

  • Page 69: Knapper På Powerline-Wlan-Adapteren

    8.2. Knapper på Powerline-WLAN- adapteren Funktion Knap Beskrivelse Forlad net- Security Tryk i 12 sekunder, så værket, og LED'en POWER kortva- generer en rigt slukkes og tændes tilfældig igen. Opret for- Security Tryk i 2-3 sekunder, så bindelse til LED'en POWER blin- det eksiste- ker i 2 rende net-...

  • Page 70: Powerline-Adapter

    8.3. Powerline-adapter Status Betydning Lyser Adapteren er tændt. grønt GPL/ Adapteren genstarter eller LGPL Blinker foretager sikkerhedsindstil- grønt linger Blinker Power grønt hvert 15. sekund Adapteren er i standbytilstand. (de andre LED-indi- katorer er slukket) Adapteren forsynes ikke med Slukket strøm.
  • Page 71 Status Betydning Der er blevet fundet endnu en Powerline-adapter på det sam- Lyser me netværk. grønt Forbindelseshastigheden er > 40 Mbit/sek. Pow- Lyser Forbindelseshastigheden er på er-line orange 20-40 Mbit/sek. Forbindelseshastigheden er < Lyser rødt 20 Mbit/sek. Der er ikke forbindelse til en anden adapter, eller der blev Slukket ikke fundet nogen enheder...

  • Page 72: Knappen Security/Reset

    9. Knappen SECURITY/RESET Knappen SECURITY/RESET på Powerline-adapte- ren har tre forskellige funktioner alt afhængigt af, hvor længe der trykkes på den: GPL/ Funktion Knap Beskrivelse LGPL Forlad net- Security/ Tryk i 5-8 sekunder, så værket, og LED'en POWER kortva- Reset generer en rigt slukkes og tændes tilfældig...

  • Page 73: Tilslutning

    10. Tilslutning Hvis du vil oprette et netværk med to Powerline-adap- tere, skal der altid tilsluttes mindst to adaptere til data- overførslen. Du har her to muligheder: En direkte forbindelse mel- lem to netværksenheder (heraf én enhed tilsluttet trådløst eller via LAN-stikket) eller en forbindelse mel- lem en netværksenhed og en router (til internettet).
  • Page 74  Tilslut så vidt muligt Powerli- ne-adapteren til en individuel stikkontakt. GPL/ BEMÆRK LGPL Hvis der ikke oprettes no- gen forbindelse, efter at adapteren er tilsluttet computeren, kan du forsøge at foretage tilslutningen via en anden stikkontakt. Bemærk, at dataoverførslen er afhængig af dit lysnets belastning og kvalitet: −...

  • Page 75: Tilslutning Til En Netværksenhed

    10.2. Tilslutning til en netværksenhed Hvis du vil forbinde to netværksenheder som f.eks. en pc og en router inden for et netværk med Powerli- ne-adapteren, skal én enhed forbindes med Powerli- ne-adapteren via et LAN-kabel (RJ-45), og den anden enhed skal forbindes med Powerline-WLAN-adapteren trådløst eller via et LAN-kabel (RJ-45).

  • Page 76: Tilslutning Af En Enhed Med Powerline-Wlan-Adapteren Via Wlan

     Tilslut så vidt muligt Powerline-adapterne til hver deres individuelle stikkontakt.  Tænd computeren og routeren. Konfigurationen er gennemført, når LED-indikatorerne Power og LAN lyser på begge Powerline-adaptere. GPL/ LGPL 11. Tilslutning af en en- hed med Powerli- ne-WLAN-adapteren via WLAN 11.1.

  • Page 77: Konfiguration Af Enheden Via Webbrugergrænsefladen

    11.1.1. Manuel tilslutning Hvis du vil tilslutte en enhed manuelt, skal du gøre føl- gende: SSID (netværksnavn): Powerline-WLAN Adgangskode: XXXXXXXXX (9 gange X) BEMÆRK! Du bør ændre standardadgangskoden via Powerline-WLAN-adapterens webbru- gergrænseflade. 12. Konfi guration af enheden via webbrugergrænsefl aden 12.1.
  • Page 78 gende på adresselinjen: „wlan.powerline“.  Indtast adgangskoden til webbrugergrænsefladen i logonvinduet. GPL/ LGPL BEMÆRK: Ved leveringen er adgangskoden „admin“.  Indstil sproget for webbrugergrænsefladen i skær- mens øverste højre hjørne.  Klik derefter på LOGIN. Webbrugergrænsefladens startside vises. • Om nød-IP-adressen Hvis der ikke findes nogen forbindelse mellem Power- line-adapteren og en router, kan du få...

  • Page 79: Setup Wizard

    12.2. Setup wizard 12.2.1. Wizard Det er nemmest at foretage de grundlæggende ind- stillinger ved hjælp af guiden.  Hvis du vil starte guiden, skal du i menuen Konfi- guration klikke på Wizard:  Guiden består af 4 trin. Klik på Næste for at gå til det næste trin.
  • Page 80 BEMÆRK: Ved leveringen er adgangskoden „admin“. For at sikre en tilstrækkelig beskyttelse af dit net- værk bør du angive en anden adgangskode her. GPL/  Hvis du ikke vil angive en anden adgangskode, skal LGPL du klikke på Skip.  Når du har angivet en ny adgangskode, skal du klikke på...
  • Page 81 • Visibility Status − Hvis du vælger VISIBLE, er SSID'et synligt for andre WLAN-enheder. − Hvis du vælger INVISIBLE, overføres SSID'et ikke, og andre WLAN-enheder skal kende det, inden de opretter forbindelse. • Region Vælg her det land, hvor du anvender Powerline-adap- teren.
  • Page 82  Hvis du ikke vil bruge nogen kryptering, skal du vælge indstillingen NONE (anbefales ikke).  Angiv for hver kryptering den tilsvarende krypte- ringsalgoritme (TKIP eller AES) og en netværksnøg- GPL/  Når netværkskrypteringen er gennemført, skal du LGPL klikke på NEXT: 12.2.5.

  • Page 83: Wireless Setup

    12.3. Wireless Setup 12.3.1. Wireless Basic Her kan du tilpasse indstillingerne for WLAN-netvær- ket. 12.3.2. Enable Wireless Interface Slår WLAN-netværket til eller fra. 12.3.3. Wireless Name (SSID) WLAN-netværkets navn (SSID) kan være op til 32 tegn langt og kan indeholde bogstaver, tal og understreg- ningstegn eller kombinationer af disse.
  • Page 84 12.3.5. Passphrase Her kan du angive en netværksnøgle. 12.3.6. Show encryption key Viser netværksnøglen i webbrugergrænsefladen. GPL/  Når du har foretaget alle indstillinger, skal du klik- LGPL ke på OK. 12.3.7. WPS Via WPS-funktionen (WiFi-Protected-Setup) kan du til- føje en WLAN-klient til netværket uden at angive SSID, kryptering og adgangskode.
  • Page 85 12.3.10. PBC MODE  Vælg PBC i WPS-menuen, og klik derefter på PBC-knappen på WPS-siden, eller tryk på WPS-knappen på Powerline-WLAN-adapteren for at oprette WPS-forbindelsen.  Tryk derefter inden for 2 minutter på WPS-knap- pen på WLAN-klienten, eller bekræft WPS-forbin- delsen via WLAN-klientens indstillingsmenu for at oprette forbindelsen.

  • Page 86: Plc Setting

    12.4. PLC Setting På denne side vises alle oplysninger (enhedsnavn, MAC-adresse, netværksnøgle og netværksnavn) om Powerline WLAN-adapteren og de klienter, der er log- GPL/ get på den. LGPL  Klik på REFRESH for at opdatere visningen.  Klik på ADD MEMBER for at tilføje en ny enhed til Powerline-netværket.
  • Page 87 12.4.4. Network Name Status  Hvis du vælger VISIBLE, er SSID'et synligt for andre WLAN-enheder.  Hvis du vælger INVISIBLE, overføres SSID'et ikke, og andre WLAN-enheder skal kende det, inden de opretter forbindelse. 12.4.5. Transmission Rate  Her kan du indstille WLAN-overførselshastigheden. Standardindstillingen er AUTO.

  • Page 88: Advanced Security

    12.4.8. Enable WMM (Wireless QoS) Denne funktion er ikke længere tilgængelig. Når denne funktion er deaktiveret, overtager Powerli- ne-WLAN-adapteren WMM-prioriteterne fra routeren. Når WMM er aktiveret, optimeres streaming af multi- GPL/ medieindhold. LGPL 12.4.9. Max. Clients Indtast her et tal fra 1-32 for det maksimale antal klien- ter, der kan logge på...

  • Page 89: Media Access Control

    12.6. Media Access Control 12.6.1. Tilføj Her kan du tilføje en klient til listen.  Indtast derefter MAC-adressen og en beskrivelse af klienten, og klik på OK for at føje klienten til listen. 12.7. Maintenance 12.7.1. User Password Her kan du angive en ny adgangskode for adgangen til Powerline-adapterens webbrugergrænseflade.

  • Page 90: Firmware Update

    BEMÆRK: Efter en nulstilling til fabriksindstillingerne er alle indstillinger og adgangskoder slettet, og de skal angives igen. GPL/ 12.8. Firmware Update LGPL  Hvis du modtager en softwareopdatering fra vores service, skal du gemme den på din computer.  Klik derefter på¨BROWSE for at indlæse soft- wareopdateringen fra din computer og installere den.

  • Page 91: Status

    12.9. Status Her vises alle oplysninger om forbindelserne og om Powerline-adapterens WLAN-konfiguration. 12.10. Logout Hvis du ikke bruger webbrugergrænsefladen længere, skal du logge af ved hjælp af dette punkt. 13. Ændring af Powerline-net- værksnøglen BEMÆRK Ved leveringen er de to Powerline-adapte- re parret, og dataoverførslen er som standard krypteret.
  • Page 92 Begge Powerline-adaptere er tilsluttet og klar til brug. POWER-LED'en lyser. Dette trin skal udføres på samtlige adaptere på Power- line-netværket.  Tryk på WLAN Powerline-adapteren på knappen GPL/ SECURITY i 12 sek., eller tryk på Powerline-adap- LGPL teren på knappen SECURITY/RESET i ca. 5-8 sekunder.

  • Page 93: Tilslutning Af Yderligere Powerline-Adaptere Til Netværket

    14. Tilslutning af yderligere Powerline-adaptere til net- værket BEMÆRK I forbindelse med denne procedure er det praktisk at sætte alle adaptere, der skal have den nye netværksnøgle, ved siden af hinan- den i den samme stikdåse. For hver yderligere Powerline-adapter, som skal have den nye netværksnøgle, skal du gøre som følger: Alle Powerline-adaptere, som skal konfigureres, er til- sluttet og klar til brug.
  • Page 94 Power-LED'en blinker grønt.  Tryk på WLAN Powerline-adapteren på knappen SECURITY igen i ca. 2-3 sekunder, eller tryk på knappen SECURITY/RESET på Powerline-adap- teren i ca. 1-2 sek. på den adapter, der allerede er GPL/ på det eksisterende netværk. LGPL Power-LED'en blinker grønt.

  • Page 95: Fjernelse Af En Powerline-Adapter Fra Powerline-Netværket

    15. Fjernelse af en Powerli- ne-adapter fra Powerli- ne-netværket Hvis du vil fjerne en Powerline-adapter fra det eksiste- rende netværk, skal du gøre som følger:  Tryk på WLAN Powerline-adapteren på knappen SECURITY i 12 sek., eller tryk på Powerline-adap- teren på...

  • Page 96: Fabriksindstillinger

    17. Fabriksindstillinger De to Powerline-adaptere, som følger med dit sæt, er parret på forhånd ved leveringen. Hvis du ændrer Powerline-netværksnøglen eller fjer- GPL/ ner individuelle adaptere fra Powerline-netværket, op- LGPL hæves denne forudindstilling. Sådan gendanner du fabriksindstillingen:  Tryk på WLAN Powerline-adapteren på knappen RESETi 5 sek., eller tryk på...

  • Page 97: Fejlfinding

    18. Fejlfi nding Hvis der opstår en fejl, bør du først prøve, om du selv kan løse problemet. I den forbindelse kan den følgen- de oversigt være en hjælp. PAS PÅ Forsøg under ingen omstændighe- der selv at reparere enheden. Hvis en reparation bliver nødvendig, skal du henvende dig til vores servicecenter eller et andet egnet specialværksted.
  • Page 98 Problem Mulig årsag Afhjælpning POWERLI- Der er ingen for- NE-LED'en bindelse mellem lyser ikke Powerline-adap- terne. GPL/  Prøv med en an- LGPL • Muligvis eg- ner de an- den stikkontakt. vendte stik- kontakter sig ikke til at etable- re en Power- line-forbin- delse.
  • Page 99 Problem Mulig årsag Afhjælpning • Adapterne er Du kan teste, om muligvis ikke adapterne er på det synkronise- samme netværk:  Sæt de to adap- ret. tere i to stik ved siden af hinan- den i en stikdåse.  Hvis ingen af Powerli- ne-LED'en ly- ser, er adapterne...

  • Page 100: Rengøring

    19. Rengøring • Frakobl altid Powerline-adapteren og alle forbin- delseskabler før rengøring. • Brug ikke opløsningsmidler eller ætsende eller gas- GPL/ formige rengøringsmidler. LGPL • Rengør enheden med en blød, fnugfri klud. Gem emballagen, og brug kun denne emballage ved transport af enheden.

  • Page 101: Tekniske Data

    21. Tekniske data Model: MD 90222 (sæt med 2 enhe- der) MD 87319 (WLAN-adapter) Indgangsspænding: 100 – 240 V~50/60 Hz, 0,15 A Strømforbrug: < 6 W drift Tilslutninger: 2 x Ethernet (LAN) 100Mbit/s WLAN: IEEE802.11b/g/n MD 87309 (adapter) Indgangsspænding: 100 – 240 V~50/60 Hz, 0,1 A Udgangsspænding (integreret stikkontakt): 100 - 240 V~/ Maksimal belastning 16 A...
  • Page 102 Omgivelsesbetingelser Temperatur (drift) 5° C-35° C luftfugtighed (Drift) 10 %-90 %, ikke-kondenserende GPL/ Mål LGPL Powerline-adapter (B x H x D) 61 x 116 x 86 mm Powerline WLAN-adapter (B x H x D) 61 x 106 x 86 mm Vægt (pr.

  • Page 103: Kolofon

    Mangfoldiggørelse i mekanisk, elektronisk eller enhver anden form uden skriftlig tilladelse fra producenten, er forbudt. Ophavsretten tilhører firmaet: Medion AG Am Zehnthof 77 45307 Essen Tyskland Brugsanvisningen kan efterbestilles via vores service- hotline og er til rådighed til download via servicepor- talen www.medion.com/dk/service/start/.
  • Page 104 Open Source-software. Hvis du er interesseret, kan du hente kildeteksten for den anvendte GPL/LGPL via følgende link: http://www. medion.com. I Download Center skal du angive det tilsvarende MD-nummer eller MSN-num- mer. Disse numre finder du på den relevante enhed. Vi kan også sende dig et datamedie med kildetekst- indholdet gratis med posten.
  • Page 105 GNU General Public Licence Version 2, June 1991 Copyright (C) 1989, 1991 Free Software Foundation, Inc. 51 Franklin Street, Fifth Floor, Boston, MA 02110-1301, USA Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed. Preamble The licenses for most software are designed to take away your free- dom to share and change it.
  • Page 106 rights. We protect your rights with two steps: (1) copyright the software, and (2) offer you this license which gives you legal permission to copy, distribute and/or modify the software. Also, for each author‘s protection and ours, we want to make certain that everyone understands that there is no warranty for this free GPL/ software.
  • Page 107 1. You may copy and distribute verbatim copies of the Program‘s source code as you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an approp- riate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty;...
  • Page 108 based on the Program, the distribution of the whole must be on the terms of this License, whose permissions for other licensees extend to the entire whole, and thus to each and every part regardless of who wrote it. Thus, it is not the intent of this section to claim rights or contest your rights to work written entirely by you;...
  • Page 109 compilation and installation of the executable. However, as a special exception, the source code distributed need not include anything that is normally distributed (in either source or binary form) with the major components (compiler, kernel, and so on) of the operating system on which the executable runs, unless that component itself accompanies the executable.
  • Page 110 or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License. If you cannot distribute so as to satisfy simultaneously your obliga- tions under this License and any other pertinent obligations, then as a consequence you may not distribute the Program at all.
  • Page 111 in detail to address new problems or concerns. Each version is given a distinguishing version number. If the Pro- gram specifies a version number of this License which applies to it and „any later version“, you have the option of following the terms and conditions either of that version or of any later version publis- hed by the Free Software Foundation.
  • Page 112 PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. END OF TERMS AND CONDITIONS LGPL VERSION 2.1 GPL/ GNU LESSER GENERAL PUBLIC LICENSE LGPL Version 2.1, February 1999 Copyright (C) 1991, 1999 Free Software Foundation, Inc.
  • Page 113 you can do these things. To protect your rights, we need to make restrictions that forbid dis- tributors to deny you these rights or to ask you to surrender these rights. These restrictions translate to certain responsibilities for you if you distribute copies of the library or if you modify it. For example, if you distribute copies of the library, whether gratis or for a fee, you must give the recipients all the rights that we gave you.
  • Page 114 bined work, a derivative of the original library. The ordinary General Public License therefore permits such linking only if the entire com- bination fits its criteria of freedom. The Lesser General Public License permits more lax criteria for linking other code with the library. We call this license the „Lesser“...
  • Page 115 0. This License Agreement applies to any software library or other program which contains a notice placed by the copyright holder or other authorized party saying it may be distributed under the terms of this Lesser General Public License (also called „this License“). Each licensee is addressed as „you“.
  • Page 116 fee. 2. You may modify your copy or copies of the Library or any portion of it, thus forming a work based on the Library, and copy and distri- bute such modifications or work under the terms of Section 1 abo- ve, provided that you also meet all of these conditions: a) The modified work must itself be a software library.
  • Page 117 exercise the right to control the distribution of derivative or collecti- ve works based on the Library. In addition, mere aggregation of another work not based on the Li- brary with the Library (or with a work based on the Library) on a vo- lume of a storage or distribution medium does not bring the other work under the scope of this License.
  • Page 118 However, linking a „work that uses the Library“ with the Library crea- tes an executable that is a derivative of the Library (because it con- tains portions of the Library), rather than a „work that uses the lib- rary“. The executable is therefore covered by this License. Section 6 states terms for distribution of such executables.
  • Page 119 were used in the work (which must be distributed under Sections 1 and 2 above); and, if the work is an executable linked with the Libra- ry, with the complete machine-readable „work that uses the Library“, as object code and/or source code, so that the user can modify the Library and then relink to produce a modified executable containing the modified Library.
  • Page 120 tribute. 7. You may place library facilities that are a work based on the Libra- ry side-by-side in a single library together with other library facilities not covered by this License, and distribute such a combined library, provided that the separate distribution of the work based on the Li- brary and of the other library facilities is otherwise permitted, and GPL/ provided that you do these two things:...
  • Page 121 11. If, as a consequence of a court judgment or allegation of patent infringement or for any other reason (not limited to patent issues), conditions are imposed on you (whether by court order, agreement or otherwise) that contradict the conditions of this License, they do not excuse you from the conditions of this License.
  • Page 122 versions of the Lesser General Public License from time to time. Such new versions will be similar in spirit to the present version, but may differ in detail to address new problems or concerns. Each version is given a distinguishing version number. If the Libra- ry specifies a version number of this License which applies to it and „any later version“, you have the option of following the terms and GPL/...
  • Page 123 NO WARRANTY 15. BECAUSE THE LIBRARY IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE LIBRARY, TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRI- TING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVI- DE THE LIBRARY „AS IS“ WITHOUT WARRANTY OF ANY KIND, EIT- HER EXPRESSED OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
  • Page 124 United Kingdom Hotline: 0333 32 12 106 (National rate) Fax: 01793 71 57 16 To contact us by email please visit the “Service and Support” section of our website at www.medion.co.uk. www.medion.co.uk Medion Service Nordic A/S Naverland 29A 2600 Glostrup...

This manual is also suitable for:

Powerline md 90222

Table of Contents
