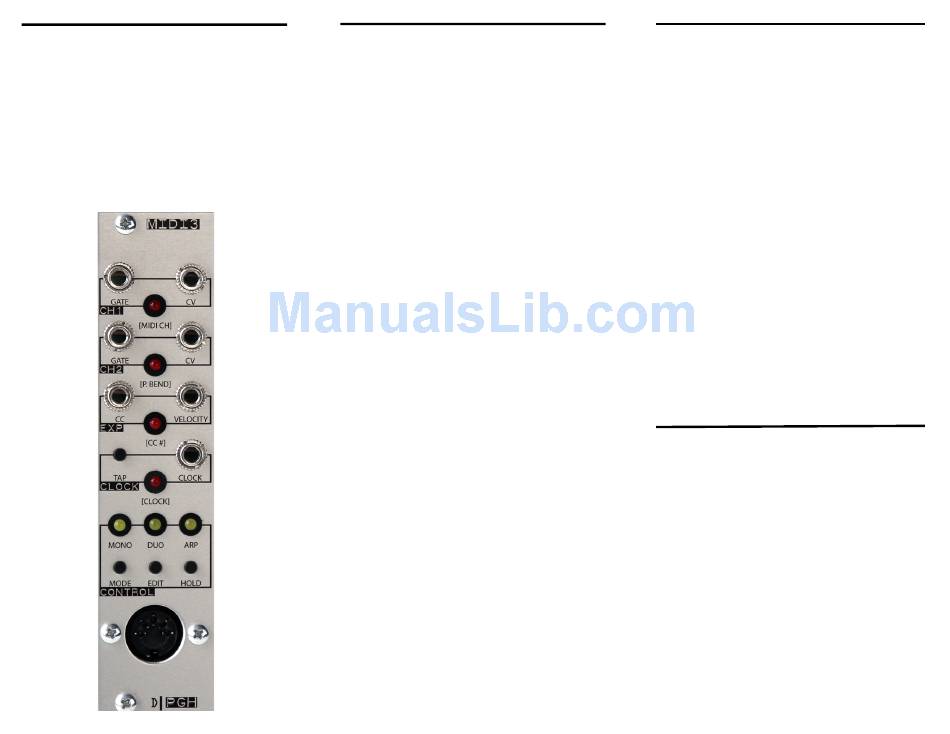

MIDI 3 MANUAL
PITTSBURGH MODULAR SYNTHESIZERS
Extremely Full Featured MIDI to CV Converter
includes a complete set of mono and duophonic
midi response modes, dedicated CC and velocity
outputs, multiple clock source options, and
robust arpeggiator. This module is deep.
THREE PERFORMANCE
MODES
Monophonic Mode
works great when using
a modular as a single voice synthesizer patch.
Channel 2 Gate and CV outputs mirror the
outputs of Channel 1. Monophonic Mode has
several keyboard responses to choose from: last
note priority, low note priority, and high note
priority. Each response is available with and
without gate retriggering.
Duophonic Mode
uses the two sets of Gate
and CV outputs to allow two notes to be played
simultaneously. The first midi note is sent to
Channel 1 Gate and CV outputs and the second
is sent to Channel 2 Gate and CV outputs.
Duophonic Mode has three keyboard response
modes to choose from. Unused channel and new
note priority, unused channel and low note
priority, and split keyboard priority. Duophonic
mode is perfect when working with a two voice
modular synthesizer patch.
Arpeggiator Mode
includes multiple mono
and duophonic responses to choose from.
Available responses are monophonic response
as played, double triggered monophonic
response as played, random monophonic
response, random monophonic with a random
Channel 2 gate, and random duophonic
response with dual random gates. The
arpeggiator can be clocked using tap tempo,
midi clock, or external gate.

THREE CLOCK SOURCES

Internal Clock
utilizes the TAP tempo button
to modify the rate of the internal clock. The
internal clock is used to clock the arpeggiator
and is also output to the CLOCK jack.
External Midi Clock
responds to midi start/
stop messages and midi tempo from an external
midi clock source. The external midi clock is
used to clock the arpeggiator and is also output
to the CLOCK jack. In external midi clock mode,
the tap tempo button cycles through five
available clock divisions.
External Gate Clock
responds to gate
signals patched into the CLOCK jack. The
external gate clock is used to clock the
arpeggiator. With the external gate clock source,
the tap tempo button cycles through six available
clock divisions.

ADDITIONAL FEATURES

Assignable Midi Channel
can be assigned
to respond to all channels or any individual midi
channel.
Assignable Pitch Bend Range
between 2 semitones and 2 octaves.
Assignable Control Change
CC # the Midi 3 responds to.
Velocity Response Output
active note.
Gate Hold Function
allows arpeggiator and
midi note latch.
assignable
easily set the
based on last

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MIDI 3 and is the answer not in the manual?

Questions and answers

Summary of Contents for Pittsburgh Modular MIDI 3

  • Page 1: Additional Features

    Assignable Control Change easily set the response as played, random monophonic CC # the Midi 3 responds to. response, random monophonic with a random Channel 2 gate, and random duophonic Velocity Response Output based on last response with dual random gates.
  • Page 2: Performance Modes

    LED. The selected mode is saved in memory The EDIT Button cycles between 6 different and recalled when the Midi 3 module is powered on. Monophonic Response Types. The selected type is identified by a blinking MONO LED. The number of times the LED blinks identifies the selected...
  • Page 3 Arpeggiator Response Type. The selected Arpeggiator Response Type is saved in memory and RESPONSE TYPES recalled when the Midi 3 module is powered on. 1. Unused Channel and New Note Priority - Unused Midi 3 output channel used first. If multiple notes are active, oldest note is replaced with new RESPONSE TYPES note.
  • Page 4 Edit Mode (see EDIT MODE on the next page). Internal Clock - The internal Midi 3 clock utilizes the TAP tempo button to modify the rate of the internal clock. 2 or 3 taps are needed to determine the internal clock tempo.
  • Page 5: Edit Mode

    Modify a Parameter by selecting the parameter assigns the control change number that the Midi 3 responds to. The control to edit and tapping the HOLD button. change number is assigned to the control change number of the last control change message it receives while in Edit Mode.
  • Page 6: Factory Reset

    EURORACK SPECS FACTORY RESET Width - 8hp Performing a factory reset returns all of the stored settings to the default setting. Hold down MODE for 4 seconds. The LEDs will blink to show the reset is Power Consumption - 50mA complete.
