REDBACK® C 8890D 700 Channel UHF Band Diversity Wireless Mic System
Altronic Distributors warrants this product for 12 months from date of purchase from Altronics or its resellers to the consumer. If
this item is part of an installation or another product, please contact the installer or supplier for your warranty.
During the warranty period, we undertake to repair or replace your product at no charge if found to be defective due to a
manufacturing fault. The warranty excludes damage by misuse or incorrect installation (i.e. failure to install and operate device
according to specifications in the supplied instruction manual), neglect, shipping accident, or no fault found, nor by use in a way
or manner not intended by the supplier.
For repair or service please contact your PLACE OF PURCHASE.
If this item was purchased directly from Altronics please make a warranty claim by:
1.
FOR MAIL ORDER CUSTOMERS (includes school and trade orders),
a)
Ringing us on 1300 797 007 and quoting your Tax invoice number.
b) Upon contacting Altronics, we will issue an R.A. (Return Authorisation). As Altronics have a
number of service agents throughout Australia, a copy of the R.A. will be emailed, faxed or mailed
to you with full instructions of how and where to send the goods. The freight for shipping goods back
to Altronics for all repairs is at the customers expense.
c)
A copy of the R.A. form, (or at the very minimum, the R.A. number) must accompany the goods
to effect the repair.
d) Altronics will pay the return freight to the customer where the warranty claim has been accepted.
e)
Please quote the R.A. number in any correspondence to us.
2. FOR OVER THE COUNTER PURCHASES; to make a warranty claim, please return the goods to us in
any of our stores, with a copy of your proof of purchase (tax invoice).
a)
Upon leaving the goods at one of our stores, an R.A. (return authorisation) number will be issued
to you.
b) Once repaired, you will be contacted, advising that the goods are ready to be collected from the
store.
It is at Altronics discretion as to whether the goods will be repaired or replaced (whilst under warranty); and as to whether
identical goods will be used to replace the item due to changes of models / products.
Note: Under no circumstances should you attempt to repair the device yourself or via a non-authorised Altronics service centre,
as this will invalidate the warranty!
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement
or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to
have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major
failure.
NOT FIELD SERVICEABLE.
Distributed by Altronic Distributors Pty. Ltd. Perth. Western Australia.
Phone: 1300 780 999 Fax: 1300 790 999
Internet: www.altronics.com.au
Page 16

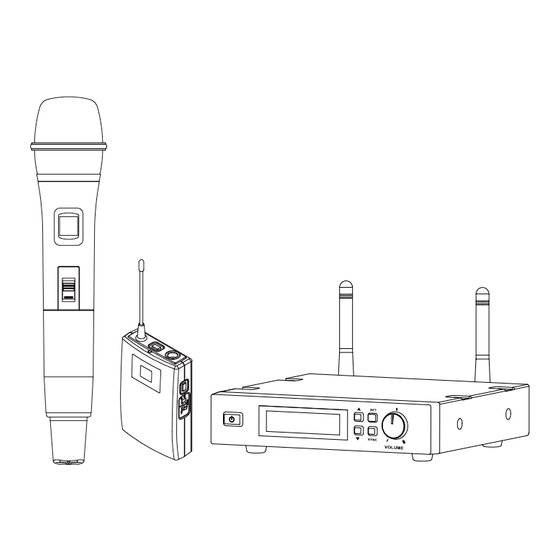

700 Channel UHF Band True Diversity
Wireless Microphone System

Operating Instructions

Revision 23092015
REDBACK
UHF Band Diversity Wireless Microphone System
REDBACK® C 8890D 700 Channel UHF Band Diversity Wireless Mic System
®
®
Manufactured exclusively for Altronic Distributors Pty Ltd

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C 8890D and is the answer not in the manual?

Questions and answers

Summary of Contents for Redback C 8890D

  • Page 1: Operating Instructions

    REDBACK UHF Band Diversity Wireless Microphone System REDBACK® C 8890D 700 Channel UHF Band Diversity Wireless Mic System REDBACK® C 8890D 700 Channel UHF Band Diversity Wireless Mic System ® Altronic Distributors warrants this product for 12 months from date of purchase from Altronics or its resellers to the consumer. If this item is part of an installation or another product, please contact the installer or supplier for your warranty.
  • Page 2 UHF band frequency (520-550MHz) with 700 selectable channels. Please read this instruction manual completely before operating the system. These instructions cover the transmitters, and receiver model C 8890D. The receiver unit is used with compatible 700 channel handheld (C 8892D) and lavalier (C 8893D) transmitters.
  • Page 3 REDBACK® C 8890D 700 Channel UHF Band Diversity Wireless Mic System REDBACK® C 8890D 700 Channel UHF Band Diversity Wireless Mic System Figure 1: Front Panel View 1. Power ON/OFF button. 2. LCD: Displays the channel number, frequency level, RF & AF signal strength, and mode.
  • Page 4 C8846B Antenna divider For further information on these and technical help please contact your nearest Redback dealer or consult the product manuals for the above. 1. Antenna Input Connector: BNC-type connectors provide connection to the supplied antennas or to coaxial cable used with an antenna divider, antenna boosters or remote antennas.
  • Page 5 REDBACK® C 8890D 700 Channel UHF Band Diversity Wireless Mic System REDBACK® C 8890D 700 Channel UHF Band Diversity Wireless Mic System Note: TWO OR MORE WIRELESS MICROPHONES WHICH TRANSMIT AT THE SAME FREQUENCY CAN NOT BE CHANNEL SELECTION MODES: USED IN THE SAME LOCATION.
  • Page 6 REDBACK® C 8890D 700 Channel UHF Band Diversity Wireless Mic System REDBACK® C 8890D 700 Channel UHF Band Diversity Wireless Mic System SPEAKER Auto Scan Channel Selection: Figure 6: Wireless Receiver Connection Via Mic In This mode automatically searches for an interference free channel.
  • Page 7 Beltpack Microphone: This mode is used when multiple C 8890D systems are used in the same area. Each receiver is setup to use PRESET mode. This A range of microphones and pickups are available for the belt pack transmitter including tie clip mic, lecture type headset and allows each receiver to select a channel in one of four preset groups.
  • Page 8 REDBACK® C 8890D 700 Channel UHF Band Diversity Wireless Mic System REDBACK® C 8890D 700 Channel UHF Band Diversity Wireless Mic System PLEASE NOTE: ALL TRANSMITTERS ARE SOLD SEPARATELY SYNC Mode: Sync mode is designed to avoid having to manually Handheld Transmitter Features: match channels on your receiver and transmitter. This •...
