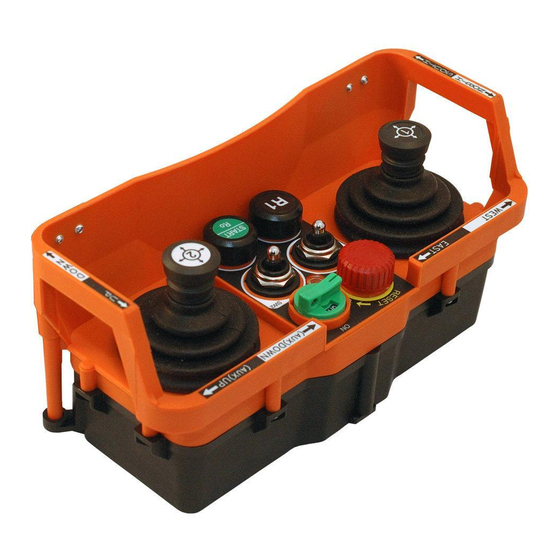

- Page 1 User’s Guide SAGA1-L40 Joystick type Industrial Radio Remote Controller...
-
Page 2: Table Of Contents
Contents Warranty Precautions of operation General Operation Batteries Emergency Procedures Wiring... -
Page 3: Warranty
Warranty Gain Electronic Co., Ltd. guarantees that this equipment meets its published specifications at the time of shipment from the factory. Under proper installation it should work as expected. However, GAIN does not guarantee that operation in SAGA1 system is error free or without intermission. This equipment is warranted against defects in material and manufacturing for a period of one year from the date of shipment. -
Page 4: Precautions Of Operation
Precautions of Operation 1. Please carefully read the manual before operating this device. 2. Never dismantle the equipment by any unauthorized personnel, or equipment may be damaged. 3. This manual is for reference only. Pleases consult your distributor for further assistance. -
Page 5: General Operation
"OFF" position to shut off the motion of the receiver and remove the key. b) Switch off the main power switch of the equipment (Crane). c) Remove the batteries when the equipment is not going to be in use for a long period of time. SAGA1-L40 Transmitter Emergency Rotary Key Stop... -
Page 6: Emergency Procedures
Emergency Procedures In case of any emergency, please follow the steps below and ask the distributor for service immediately: 1. Press EMS mushroom. 2. Turn the rotary key to "OFF" position. Shut off the main power of the Crane and discontinue the operation. 4. - Page 7 Batteries Four AA size batteries are required for the transmitter. There is a 3-stage power indicating functions with LED display. “Green color”: Sufficient power to operate transmitter. ”Yellow color”: Power is depleting. Operation must be stopped immediately (for example: down the goods to ground) to replace batteries. “Red color”: Insufficient power.
-
Page 8: Wiring
Wiring... - Page 9 3. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment. Remark: This product of SAGA1-L40 will apply and be sold to both the transmitter and the associated receiver unit as a "complete system"only.
