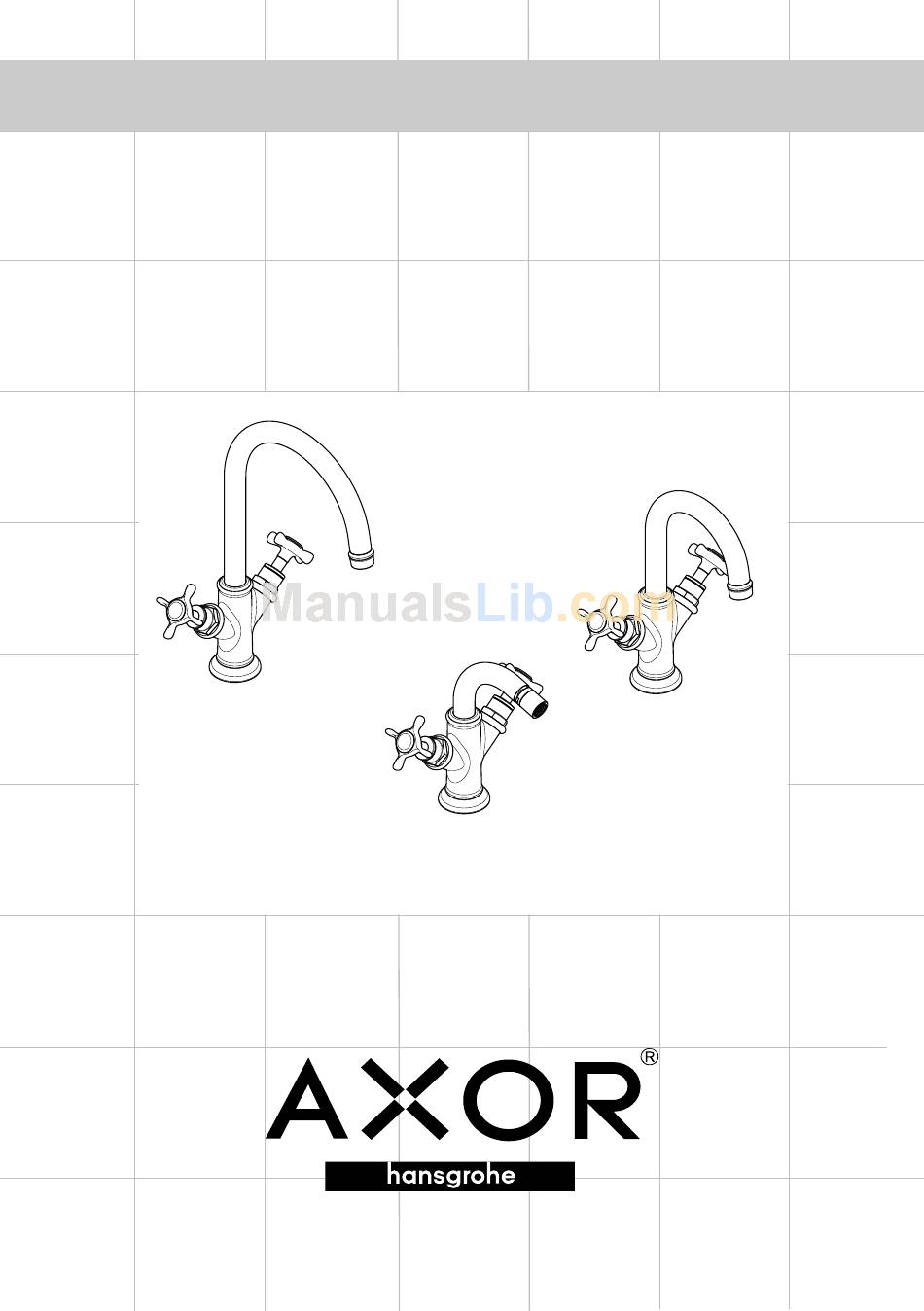

- Page 1 Installation Instructions / Warranty Montreux Montreux 16502XX1 16505XX1 16506XX1 Montreux 16520XX1...
-
Page 2: Technical Data
Montreux Single-hole Lavatory Faucet 16502XX1 Single hole Lavatory Faucet without Drain 16506XX1 Single-hole Small Lavatory Faucet 16505XX1 Single-hole Bidet Faucet 16520XX1 16502XX1 / 16506XX1 16520XX1 16505XX1 Technical Data Maximum Flow Rate Maximum incoming water pressure 145 psi Recommended incoming water pressure Hot water temperature: Recommended hot water temperature: 120 Hole size in mounting surface... -
Page 3: Replacement Parts
Replacement Parts handle screw cover, cold/ hot spout large model aerator cpl. shut off unit pull rod fixation set connection hose spout small model 10 spout for bidet 11 aerator cpl. 12 sleeve 13 height adjuster & filter 14 swivel connector XXX = Colors 001 chrome plated 821 brushed nickel... -
Page 4: Installation
sealing washer slide washer metal washer collar nut tensioning screws Caution: Do not bend or twist the supply hoses! Installation Flush the hot and cold supplies thoroughly before installing this faucet. Damage to the cartridges due to debris is not covered by the Hansgrohe limited lifetime warranty. -
Page 5: Install The Pop-Up Drain
Install the pop-up drain Remove the plunger assembly. Unscrew the drain outlet flange from the tee. Unscrew the tailpiece from the tee. Wrap the plunger threads with Teflon thread tape and replace. height adjuster Install the white, flexible sealing gasket to the flange. -
Page 6: Limited Lifetime Consumer Warranty
If you purchased the product for use primarily for any other purpose, including, without limitation, a commercial purpose, this warranty extends only (i) for 1 year, with respect to Interaktiv and Retroaktiv products, and (ii) for 5 years, with respect to AXOR, ShowerPower and Pharo products. - Page 7 THIS WARRANTY DOES NOT COVER, AND HANSGROHE WILL NOT PAY FOR: Conditions, malfunctions or damage not resulting from defects in material or workmanship. Conditions, malfunctions or damage resulting from (1) improper installation, improper maintenance, misuse, abuse, negligence, accident or alteration, or (2) the use of abrasive or caustic cleaning agents or “no rinse” cleaning products, or the use of the product in any manner contrary to the product instructions.
- Page 8 Hansgrohe, Inc. • 1490 Bluegrass Lakes Parkway • Alpharetta, GA 30004 Tel. 770 360-9880 • Fax 770 360 9887 www.hansgrohe-USA.com...
