46241.H04
Descrizione
NVR a 4 canali, funzione Pentaplex, compressione H.265, 4 canali Real
Time (5 Mpx max), HDD professionale da 1 TB, SATA x 1 max 6 Tera, con-
nessioni audio 1 out, 2 USB, HDMI, switch PoE integrato da 4 porte con
configurazione Plug&Play, controllo e visione remota, QRCODE, masche-
ratura di privacy, motion, protocollo ONVIF, software CVM.
1 Introduzione
1.1 Riepilogo
Basata sulle tecnologie SOC e sui sistemi embedded più all'avanguardia
del settore, questa serie di NVR adotta l'ultimo design di interfaccia utente
e supporta la gestione intelligente delle telecamere IP e della ricerca per
fascia oraria, delle registrazioni. Questa serie di NVR, di grande potenza
e semplicità di utilizzo, è dotata di un'eccellente qualità dell'immagine e
di un sistema stabile. Contiene prodotti per la gestione centralizzata del
monitoraggio ad elevate prestazioni e qualità, progettata appositamente
per il settore del monitoraggio di video di rete.
Questa serie di NVR è applicabile ai sistemi di sicurezza per banche,
scuole, impianti domotici, traffico, tutela dell'ambiente, supermercati,
stazioni di rifornimento, zone residenziali, stabilimenti industriali, ecc.
1.2 Descrizione del pannello anteriore
Le seguenti descrizioni valgono solo come riferimento.
Name/Name
REC (Registra)
Durante la registrazione la luce è blu / When recording, the light is blue
Net (Rete)
Quando è attivo l'accesso alla rete la luce è blu / When access to network, the light is blue
Alimentazione (Power)
Spia di alimentazione, quando è collegata la luce è blu / Power indicator, when connection, the light is blue
Fn (Funzione)
Nessuna funzione disponibile al momento / No function temporarily

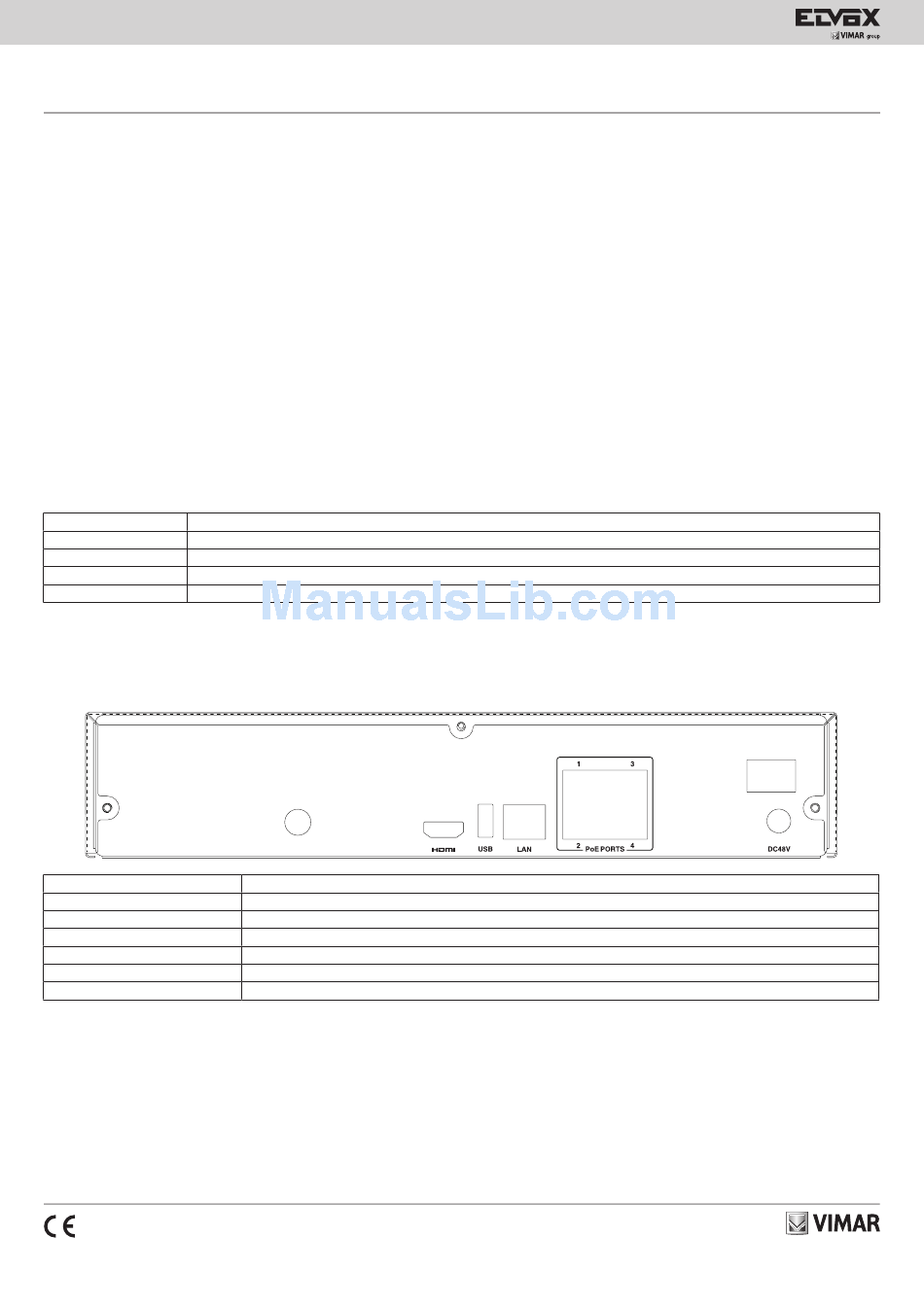

1.3 Descrizione del pannello posteriore
In questa sezione prendiamo ad esempio soltanto una parte dei pannelli
posteriore per presentare le loro interfacce e le loro connessioni. Le
interfacce e le posizioni delle interfacce valgono solo come riferimento.
Far riferimento all'apparecchiatura in dotazione.
Nome/Name
PORTE PoE / PoE PORT
48 Vdc
LAN
HDMI
USB
AUDIO OUT
2 Guida all'utilizzo di base
2.1 Avvio e spegnimento
Prima di collegare l'unità all'alimentazione, verificare che tutti i
collegamenti siano stati eseguiti correttamente. Un corretto avvio e
arresto è estremamente importante per la durata del dispositivo.
2.1.1 Avvio
1- Collegare il dispositivo di visualizzazione in uscita all'interfaccia
VGA/HDMI del NVR.
49401069A0 02 1701
AUDIO
OUT
RJ45x4
Ingresso alimentazione 48 Vdc / 48 Vdc power input
Porta di rete / Network port
Collegamento al dispositivo di visualizzazione ad alta definizione / Connect to high definition display device
Connessione di dispositivo di memoria USB o mouse USB / Connect USB storage device or USB mouse
Uscita audio, connessione agli altoparlanti / Audio output; connect to sound box
Description
4-channel NVR, Pentaplex function, H.265 video compression, 4 channels
Real Time (5 Mpx max), professional HDD 1 TB, SATA x 1 max 6 Tera, 1 out
audio connection, 2 USB, HDMI, built-in 4-port PoE switch with Plug&Play
configuration, remote control, QRCODE, privacy masking, ONVIF protocol,
CVM software.

1 Introduction

1.1 Summary

Based on the most advanced SOC technology and embedded system in
the field, this series of the NVR adopt the new designed human interface
and support the smart management of the IP camera and the record
search of slice. This series of the NVR which are powerful and easy to
use are provided with excellent image quality and stable system. They
are centralized monitoring management products with high performance
and high quality specially designed for network video monitoring field.
This series of the NVR can be widely used to security system of banks
at home and abroad, schools, intelligent mansions, traffic, environmental
protection, supermarkets, petrol service stations, residential quarters and
factories and so on.

1.2 Front Panel Descriptions

The following descriptions are for reference only.
Descriptions/Descriptions

1.3 Rear Panel Descriptions

Here we only take a part of real panels for example to introduce their
interfaces and connections. The interfaces and locations of the interfaces
are only for references. Please take the real object as the standard.
Descrizioni/Descriptions

2 Basic Operation Guide

2.1 Startup & Shutdown
Please make sure all the connections are done properly before you
power on the unit. Proper startup and shutdown are crucial to expending
the life of your device.
2.1.1 Startup
1- Connect the output display device to the VGA/HDMI interface of the
NVR.
Viale Vicenza, 14
36063 Marostica VI - Italy
www.vimar.com
