Summary of Contents for Dinstar DAG1000-4FXS

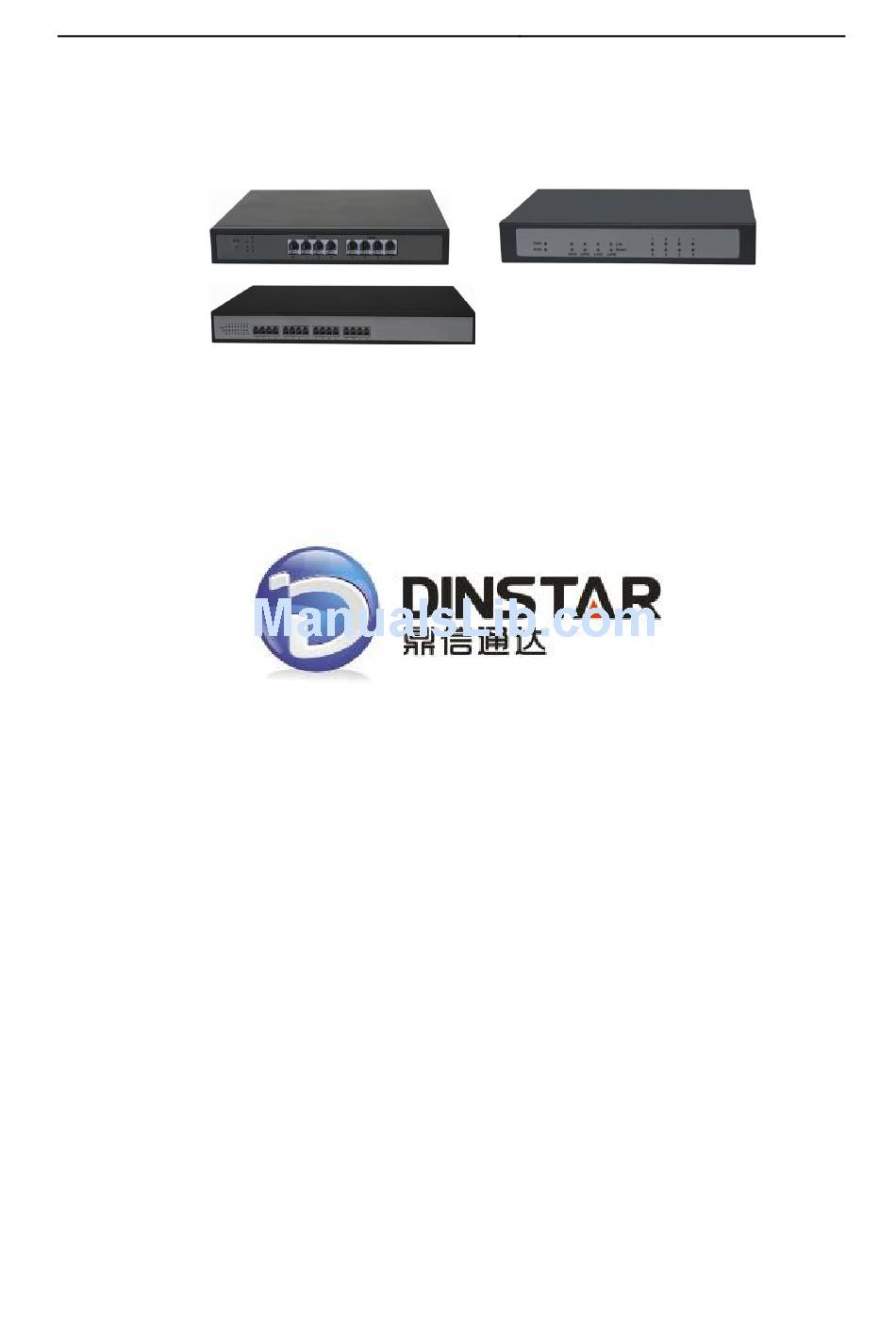

- Page 1 DAG Serial User Manual Dinstar Technologies Co., Ltd. Address: Floor 6, Guoxing Building, Changxing Road, Nanshan District, Shenzhen, China 518057 Telephone: +86 755 6130 2265 Fax: +86 755 2645 6659 Emails: sales@dinstar.com, support@dinstar.com Website: www.dinstar.com...
-
Page 2: Table Of Contents
TABLE OF CONTENTS WELCOME ........................... 1 CONFIGURE YOUR DAG1000 ....................4 EQUIPMENT PACKAGING ......................4 CONNECT YOUR DAG .......................4 CONFIGURE YOUR DAG serial ....................5 CONFIGURE YOUR DAG serial ....................6 DAG serial APPLICATION DESCRIPTION ................. 7 A. IP PBX / SIP Server with DAG serial ..................7 B. -
Page 3: Welcome
WELCOME DAG Serial Thank you for purchasing . The affordable, features rich Analog Telephone Adaptor. It features the rich audio quality, a broad range of voice codecs. DAG Serial This manual will help you learn how to operate and manage your Analog Telephone Adaptor and make the best use of its many upgraded features including simple and quick installation, and DAG Serial... - Page 4 anything that handles a call from the telephone company like AT&T. They should also operate the same way when connected to an FXS interface. • An FXS interface will accept calls from FXS or PSTN interfaces. All countries and regions have their own standards.
- Page 5 SIP Session Initiation Protocol, An IP telephony signaling protocol developed by the IETF (RFC3261). SIP is a text-based protocol suitable for integrated voice-data applications. SIP is designed for voice transmission and uses fewer resources and is considerably less complex than H.323. All Dinstar products are SIP based...
-
Page 6: Configure Your Dag1000
• one Ethernet cable • one device unit • one DAG stand CONNECT YOUR DAG First, familiarize yourself with the features of the DAG . FIGURE 1: CONNECTING DAG1000-4FXS/4 lifeline DAG1000-8FXS DAG2000-16FXS 1: D DAG CONNECTORS ABLE EFINITIONS OF THE... -
Page 7: Configure Your Dag Serial
PHONE (RJ-11) FXS port to be connected to analog phones / fax machines. FXO ports to be connected to physical PSTN lines from a traditional PSTN PBX or PSTN Central Office. 2: D DAG LEDS ABLE EFINITIONS OF THE Power LED Indicates Power. -
Page 8: Configure Your Dag Serial
DAG serial FIGURE 2: CONFIGURING THE CONFIGURE YOUR DAG serial The DAG serial is easy to configure using the embedded GUI pages and the following five (5) steps. DAG serial IVE EASY STEPS TO CONFIGURE THE 1. Connect a standard touch-tone analog telephone (or fax machine) to FXS port. 2. -
Page 9: Dag Serial Application Description
DAG serial FIGURE 3: CONFIGURING THE APPLICATION DESCRIPTION DAG serial DAG serial IP PBX / SIP Server with A SIP proxy server such as Asterisk or a SIP registrar server can be deployed with the DAG Serial. In this environment, the SIP server handles SIP registration and call control and the DAG serial processes media conversion between IP and PSTN calls. -
Page 10: Fxs Gateway With Dag1000-Xo [No Sip Server Required]
lines to the destination PSTN. Most of the configuration on the Gateway for this case will remain default, except Stage Method needs to be set to 1, and SIP Server IP Address/DNS name has to be filled. FIGURE 4: FUNCTIONAL DIAGRAM OF SIP-Server & DAG serial For incoming calls from the PSTN analog endpoints to the DAG1000-8O, the device will auto forward each call to a configured IP extension or DAG serial’s FXS ports. -
Page 11: Product Overview
FIGURE 5: DAG1000-8S& DAG1000-8O SCENARIO/TOLL- FREE CALLING BETWEEN LOCATIONS In this diagram, configure the SIP Server field to be the IP Address of the other gateway (i.e. configure IP address of FXS gateway to be SIP Server of DAG1000-8O and vice versa). Please be sure you set SIP Registration to No. - Page 12 Network Interface 10M/100 Mbps, RJ-45. LED Indicators Power, WAN, LAN, Run,PHONE ( FXS and FXO ) Voice Activity Detection (VAD) with CNG (comfort noise generation) and PLC (packet loss concealment), Dynamic Jitter Buffer, Modem detection & Voice over Packet auto-switch Capabilities to G.711, Packetized Voice Protocol Unit (supports RTP/RTCP and AAL2 protocol), G.168 compliant Echo Cancellation, LEC (line echo cancellation) with...
-
Page 13: Basic Operations
DAG100/DAG2004QA/DAG2004QB have Two (2) 10M/100 Mbps, RJ-45, LAN Interface and DAG2002QA/DAG2004QA/DAG2004QB have Tour (4) 10M/100 Mbps, RJ-45. (integrated router) Input: 100-240V AC, 50Hz, 0.5A Max Universal Switching Output: 12V DC, 1.0A Power Adaptor UL certified –104 Operation Temperature F / 0~40° C Storage Temperature -20~70°... -
Page 14: Call Hold
If the target IP address is 192.168.0.160, the dialing convention is *47, then 192*168*0*160. Followed by pressing the “#” key or wait 3 seconds. Destination port is 5060 NOTE: You cannot make direct IP calls between FXS0 to FXS1 since they are using same IP. It only supports the default destination port 5060. -
Page 15: Call Features
Call Features The DAG serial supports all the traditional and advanced telephony features. 5: DAG serial CALL F ABLE EATURE EFINITIONS Direct IP Calling. Dial “*47” + “IP address”. No dial tone is played in the middle. Detail see Direct IP Calling section on page 9. Disable Call Waiting (for all subsequent calls) Enable Call Waiting (for all subsequent calls) Unconditional Call Forward: Dial “*72”... -
Page 16: Configuration Guide
CONFIGURATION GUIDE CONFIGURE LAN PORT’S IP ADDRESS Telephone set must connect to the FXS port: 1.Dynamic IP address by DHCP： Offhook; Input “*150*2#”; Onhook; If hint success, after 10 seconds, restart the DAG1000 . (Power-off then power-on) 2.Static IP address： Offhook;... -
Page 17: Important Settings
Work Mode to Route Mode, restart DAG serial. 2. Set 3. Enable the “Remote Manage”. 4. Find the WAN IP address of the DAG serial .example:172.16.0.177 5. Access the DAG serial Web Configuration page by the following URI via WAN port: http:// 172.16.0.177 IMPORTANT SETTINGS... -
Page 18: Sysrem Info
FIGURE 6: Web trees SYSREM INFO The system information shows the current status of the system, including IP address, running time, network traffic, version and FXS ports status. FIGURE 7: System Info 8: System Info Definitions ABLE The device ID in HEX format. This is needed for ISP troubleshooting. Note MAC Address there are separate MAC addresses for the WAN side and the LAN side. -
Page 19: Network Parameter
Short for Domain Name System (or Service or Server), an Internet service DNS Server that translates domain names into IP addresses System Up Duration Shows system up time since the last reboot. Network Connection Show network occupancy Occupancy Program: This is the main software release. Boot and Loader are seldom Version Information changed. - Page 20 Table 7 Local Network This parameter controls whether the device is working in NAT router mode Work Mode or Bridge mode. This option specifies the WAN port’s ip address, and its Ethernet network work mode. Link speed & duplex This option specifies the Ethernet network’s work mode. It have: Auto Detect,10Mbps/Half Duplex,10Mpbs/Full Duplex,100Mbps/Half Duplex,100Mpbs/Full Duplex, There are three modes to operate the DAG serial WAN IP address, default...
- Page 21 This option specifies the Ethernet network’s work mode. It have: Auto Detect,10Mbps/Half Duplex,10Mpbs/Full Duplex,100Mbps/Half Duplex,100Mpbs/Full Duplex, IP address Set LAN IP address, default value is 192.168.1.111 Subnet mask Sets the LAN subnet mask. Default value is 255.255.255.0 Dynamically assigned via This option specifies get the DNS server ways: DNS(WAN IP address is DHCP IP) and set static DNS (WAN IP DNS Server...
- Page 22 This option sets the DHCP server, if you want to establish a sub network, you can use the DAG serial DHCP Server function, and no need ex-equipment. DHCP Server Table 8 IP address pool start DHCP address pool initiative address IP address pool end DHCP address pool end address Default value is 72hrs (3 Days.) The time IP...
-
Page 23: System Parameter
Foward Rule Forwards a matching (TCP/UDP) port to a specific LAN IP address with a specific (TCP/UDP) port. FIGURE 14:Forward Rule Static Route FIGURE 15:Static Rule SYSTEM PARAMETER System parameter includes 1) System Config 2) Service Config 3) SIP Config 4) port Config 5) Fax Config. - Page 24 System Config The page of system setting is mainly used to set some system parameters, including: 1) Hint Language 2) Provision NTP 4) Time Zone. FIGURE 17:System Config Table 9 System Config Hint Language Languages supported with voice prompt A service provider or an enterprise with large deployment of DAG serial can Provision easily manage the configuration and software upgrading of individual devices remotely from a central server.
- Page 25 FIGURE 18:Service Config (DAG1000-XS & DAG100) Table 10 Service Config (DAG1000-XS & DAG100) RTP Start Port Defines the local RTP-RTCP port pair the DAG1000 will listen and transmit. Endpoints sending audio as an RTP stream are not required to send packets Silence Suppression during silent periods.
- Page 26 silent periods is known as "Silence Suppression" or VAD (Voice Activity Detection). Configure ring or tone frequencies according to preference. By default tones Call Progress Tone are set to USA frequencies. Frequencies should be configured with known values to avoid uncomfortable high pitch sounds. SLIC Setting Dependent on standard phone type (and location).
- Page 27 FIGURE 19:Service Config (DAG1000-XO) Page 25...
- Page 28 Table 9 Service Config (DAG1000-XO) Defines the local RTP-RTCP port pair the DAG1000-8O will listen and RTP Start Port transmit. Endpoints sending audio as an RTP stream are not required to send packets during silent periods. The capability to stop sending RTP packets during Silence Suppression silent periods is known as "Silence Suppression"...
- Page 29 SIP Config It is used to set the local SIP port, the SIP server address and port. If an outbound proxy is required, please fill in the IP address and port of the outbound proxy; otherwise, just keep the default settings. FIGURE 20:SIP Config Table 11 SIP Config SIP Server’s IP address or Domain name provided by VoIP service provider.
- Page 30 Port Config This page is used to config the account and password of DAG serial, call transfer, call waiting and do-not-disturb service. Port 0 maps to FXS0, while Port n maps to FXS n. FIGURE 21:Port Config Table 12 Port Config User account information, provided by VoIP service provider (ITSP).
-
Page 31: Tools
No answer call Call will transfer appointed phone when nobody answer the call. forwarding call waiting Default is No. User can use * code to use this feature per call basis. call waiting tone indicates an incoming call，default is 2 short beeps. When enabled all incoming calls are rejected. - Page 32 •Please don’t reset DAG serial during software updating, it will restart automatically after updating. •Firmware upgrade may take as long as 1 to 20 minutes over Internet, or just 20+ seconds if it is performed on a LAN. • Alternatively, user can download a free TFTP server and conduct local firmware upgrade. FIGURE 24:Software Update Table 14 Update Config File Name...
-
Page 33: Saving The Configuration Changes
Remote Manage In route mode, if you want to access your DAG serial through WAN port, you need to enable remote Management. Note： •This option will be displayed only in route mode. •This function can be enabled only by into the web interface through the LAN port. FIGURE 26:Remote Manage Factory Reset WARNING! - Page 34 The following screen confirms that the changes are saved. If the changes need restart, reboot or power cycle the DAG serial to make the changes take effect. FIGURE 29:Rave Config Page 32...
