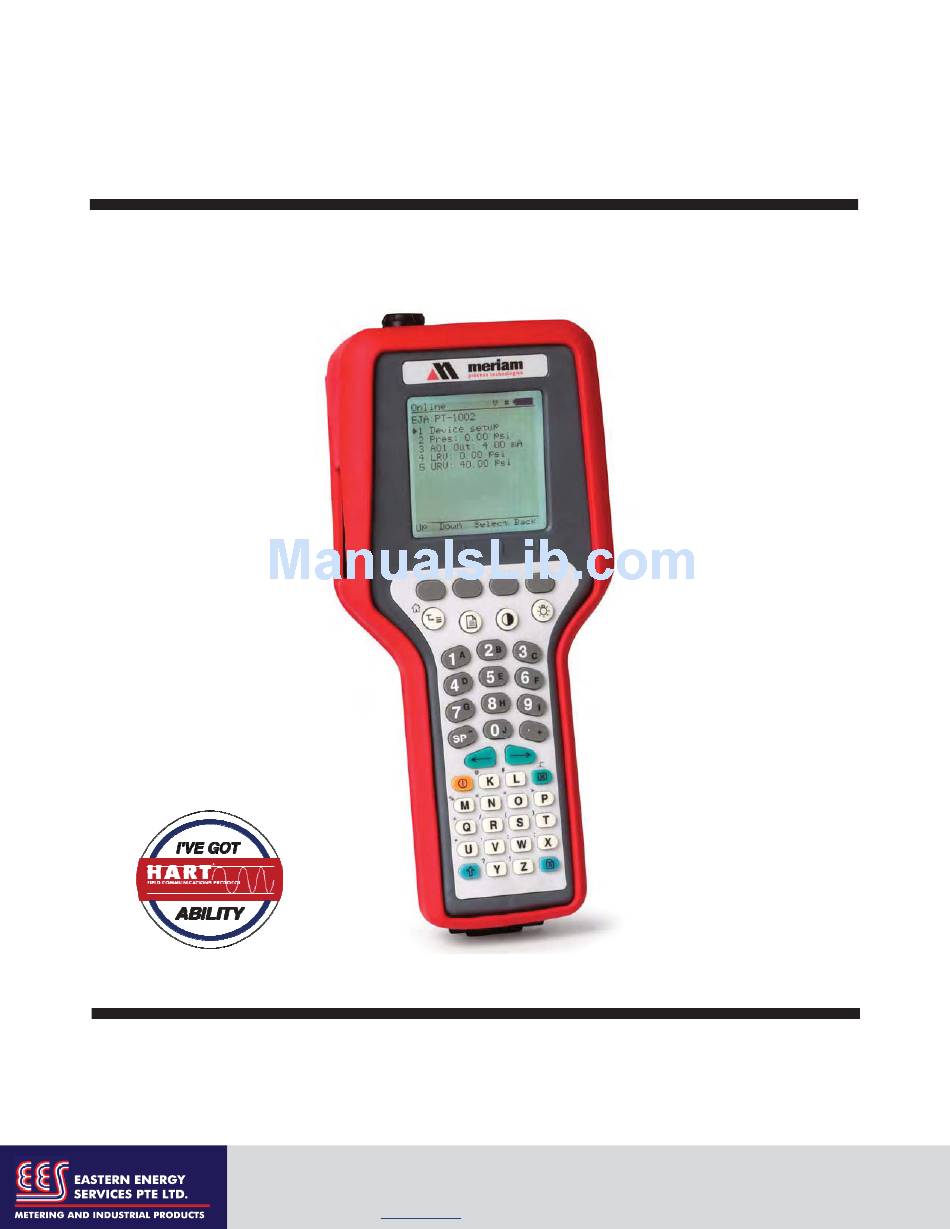

- Page 1 File No. 4150:440-2 9R000053-B April, 2008 ® 4150 General Purpose HART Communicator ® 4150X ATEX I.S. Certified HART Communicator USER’S MANUAL EASTERN ENERGY SERVICES PTE LTD. 60 Kaki Bukit Place #02-19 Eunos Tech Park Singapore, SG 415979 Singapore Telephone: +65-6748 6911 Fax: +65-6748 6912 Email: info@eesgroup.com Website:...
- Page 2 For a geographic listing of Representatives and contact information, visit our web site at www.meriam.com and click on the “Representatives” link. Contact Meriam Process Technologies directly by phone at (216) 281-1100 or by e-mail at www.meriam.com . Direct all assistance inquiries to Technical Services.
-
Page 3: Table Of Contents
4150 / 4150X HART Communicator USER’S MANUAL TABLE OF CONTENTS Subject Page 4150 / 4150X Communicator Overview ....................1 Display Overview............................1 Header Line Symbols ........................... 2 Keypad Overview............................2 Alphanumeric / Symbol Entry....................... 3 Left / Right Arrow Keys ........................4 Soft Keys............................... - Page 4 Save / Send Configuration Functions...................21 DOF Memory Maintenance ........................22 Documenting HART Configurations with Meriam DMS Software ............23 4150 / 4150X Device Specific & Generic HART Communication ............23 Using Generic HART Communications ....................23 Updating 4150 / 4150X Firmware and DOFs ...................24 Overview ...............................24...
-
Page 5: 4150 / 4150X Communicator Overview

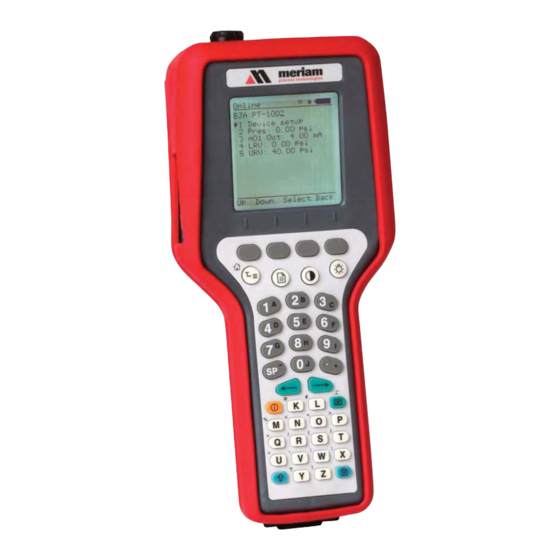

DISPLAY OVERVIEW The display of the 4150 / 4150X is a 128 x 128 pixel graphic display with backlight. Viewable area is 2.6” x 2.6” for 13 viewable message lines. The display provides three types of information: 1) header information... -
Page 6: Header Line Symbols
Photo below depicts the 4150 / 4150X with HEADER LINE SYMBOLS initial HART display and Soft keys: heart symbol indicates active HART communication up arrow indicates SHIFT key ( ) is on # number sign indicates numeric / symbol entry... -
Page 7: Alphanumeric / Symbol Entry
If no device is found, the Main navigation screen is displayed. To turn the 4150 / 4150X off, press and hold the ON/OFF key for approximately .5 seconds. Unit will power down provided a critical HART operation is not in process. -
Page 8: Left / Right Arrow Keys
Alpha Lock This key changes the keypads dual function keys from numeric/symbol entry mode to alpha character entry mode and back. The active entry mode is indicated in the display header line next to the power supply indicator on the upper right of the screen. The letter “A” in the display header line indicates that alpha entry is active while a # sign in the display header indicates that numeric / symbol entry is active. -
Page 9: Thumb Operated Keys
The Communication / AC Adapter Dongle, included with each unit, is used to connect the AC adapter to the 4150 / 4150X when needed. The dongle is also used to connect the unit to a PC for serial communications. See the “Updating 4150 / 4150X Firmware and DOFs” and “Documenting HART Configurations with Meriam DMS Software”... -
Page 10: Navigating Menus On Display
Turning on the 4150 / 4150X Use the dedicated ON/OFF key to power up the unit. A brief diagnostic runs while the Meriam logo, model number, and firmware version is displayed. A message is displayed indicating active scanning for a HART device at address zero. - Page 11 0 is connected, or if a connected device is not found Online Setup due to wiring or loop resistance problem, the 4150 / 4150X will Offline Menu enter the Main navigation display depicted at right. Device 0: Not Found 2.1 Select Online Setup once a HART device is connected...
-
Page 12: Main Display
The HART Communicator can be programmed to lockout certain standard functions that a supervisor may wish to control. The functions included are used to set up the 4150 / 4150X for normal use, change online HART device configurations, create offline HART device configurations, update the installed DOFs list (HART device profiles), or to update the Unit’s operating firmware. -
Page 13: Lockout Code
NUMBER. ACCESS TO LOCKED-OUT FEATURES WILL BE DENIED WITHOUT THE PROPER CODE. Note: the 4150 / 4150X is shipped with a factory lockout code of 3 2 1. The user must enter this code the first time Lockout is used. -
Page 14: Backlight (Off Timer)
Off Timer (master) To conserve battery life, the 4150 / 4150X allows the user to set the unit to shut off after a certain period of keypad inactivity. To change the off timer on the unit, scroll Down to Off Timer and press Chng repeatedly until the desired value is displayed. -
Page 15: Polling Type: Auto (Default To Address 0) Or Digital (Default Poll For Addresses 0 - 15)
Auto polling directs the 4150 / 4150X to always poll for HART device address 0 (zero) first. When found, communications begin automatically. If address 0 is not found, the unit automatically asks for direction; select Multi soft key to start a multi-drop poll from address 1 – 15 or select Retry soft key to try to find address 0 again (for more details see the HART Communications section) Digital polling directs the 4150 / 4150X to always poll for HART device addresses 0 –... -
Page 16: Battery Installation & Removal (All Models)
(attached to Dongle lead – see photo below). The Dongle is used to connect the AC adapter to the 4150 / 4150X when AC power is desired. The Dongle is also used to connect the unit to a PC for serial communications. See the “Updating 4150 / 4150X Firmware EASTERN ENERGY SERVICES PTE LTD. -
Page 17: Hart Jacks / Lead Set
2. HART Jacks / Lead Set – All models are equipped with a standard size banana jack on 0.75” center. The lead set supplied with the 4150 / 4150X has a standard banana plug on one end and mini-grabbers on the other for convenient connections. -
Page 18: Hazardous Area Use
Note: Restrictions apply to the use of Intrinsically Safe units in hazardous areas. Refer to the Intrinsic Safety Control Drawing in the Appendix of this manual for more information. Meriam reserves the right to revise the Intrinsic Safety Control Drawing without notice. Contact Meriam (phone 216.281.1100) for the current Intrinsic Safety Control Drawing. -
Page 19: Hart ® Communications With 4150 / 4150X
Warning: To avoid damage to a PC serial port, do not connect the Unit’s HART leads to an AC powered HART device while the unit is on AC power and a serial cable is connected to a PC. Meriam recommends disconnecting the HART leads from the communicator prior to any communication activity. -
Page 20: Hart Communications
When connecting the 4150 / 4150X to a loop with a resistive load greater than 250 s, the HART jacks may be connected across the loop + and – or to the HART device communication terminals. Refer to the following diagram for connecting across the loop + and -. -
Page 21: Multidrop Poll (Addresses 1 - 15)
Cfg soft key and then select the “5 Other” menu option. Select “ user selectable options are available. Auto polling directs the 4150 / 4150X to always poll for HART device address 0 (zero) first. When found, communications begin automatically. If address 0 is not found, the unit automatically asks for direction;... -
Page 22: Manual Launch Of Device 0 Poll
Communicator Manual Launch of Device 0 Poll When the message Device 0: *On-line* is displayed on the Main Online Setup Navigation Screen, selecting Online Setup will launch HART Offline Menu communication with the device. The message indicates that a HART device with address 0 has been detected at the HART connection and the Device 0: *On-Line* unit is standing by to initiate communications. -
Page 23: Create Configurations
= saved from connected device in Online mode, or a complete config that was downloaded from DMS Default Config = created by 4150 / 4150X in Offline mode, or created in DMS and downloaded to unit Edit Vars Only = created by editing an existing configuration and includes only the edited parameters MVar Primary Cfg = for multivariable devices –... -
Page 24: Online Setup Mode
Online Setup Mode Online Setup is the normal HART communication mode for the 4150 / 4150X. Device Setup This mode enables communication with HART field devices at the Universal, 3051 :PT-1012D 1 Process variables Common Practice and Device Specific Command levels for full device setup 2 Diag/Service and functionality. -
Page 25: Communications Trouble Shooting
Select Online Setup from the Main Navigation Screen and then select the Multi soft key to initiate the Multidrop poll. If the “No Devices Found” message is received, then the loop connections to the 4150 / 4150X should be carefully checked. -
Page 26: Dof Memory Maintenance
DOFs. Fragmentation reduces the total number of DOFs that can be saved in memory. 560 DOFs is the nominal capacity of the flash memory. When fragmentation becomes extreme, the 4150 / 4150X will not accept additional DOF downloads. Periodic DOF memory maintenance will be needed to optimize DOF memory. -
Page 27: Documenting Hart Configurations With Meriam Dms Software
® 4150 / 4150X Device Specific & Generic HART Communications Meriam supports a large and growing number of Device Specific DOFs (Device Object Files). For a current ® listing of HART devices with full Device Specific communication support, go to www.meriam.com , select the Resources tab, Download Center page, and then select the “Available DOFs”... -
Page 28: Updating 4150 / 4150X Firmware And Dofs
Site) on a PC with Internet access to download files from the DOF Download Site automatically and then update the 4150 / 4150X. The second way is to use the DOF Download Site to download the needed files to the host PC and then use the DPC Manager utility to coordinate the update of the 4150 / 4150X. The Download Site enables users to stay current as new DOF’s or revisions of existing ones are posted. -
Page 29: Using The Dof Download Site Directly
B. The correct PC COM port has been configured (see “Settings” topic in Tool Bar, then “Communications” and then “Port” to select COM port). C. Dongle and RS-232 Cable are connected to the 4150 / 4150X and the unit is turned on. Note: HART communication cannot occur while communicating using the RS-232 connection. -
Page 30: Downloading From The Dof Download Site And Using Dpc Manager To Update
2. Select individual files for downloading from the list of downloadable files (including DPC Manager Utility, 4150 / 4150X Firmware, and DOF’s) by locating the file name(s) of interest with the PC mouse and clicking on the corresponding selection box(es). Alternatively, all files can be marked for download by clicking on the “Check All Files”... -
Page 31: Eastern Energy Services Pte Ltd
12. DPC Manager will provide updates as firmware or DOFs are being loaded. To report any difficulties with downloading operations, please contact Meriam at 216-281-1100 or meriam@meriam.com EASTERN ENERGY SERVICES PTE LTD. 60 Kaki Bukit Place #02-19 Eunos Tech Park Singapore, SG 415979 Singapore Telephone: +65-6748 6911 Fax: +65-6748 6912 Email: info@eesgroup.com Website:... -
Page 32: Returning For Repair
RETURNING FOR REPAIR In the event that a 4150 / 4150X requires service and must be returned for repair, please contact Meriam at the numbers listed below. DO NOT send any unit in for repair without first contacting Meriam for a Return Material Authorization (RMA) number. -
Page 33: Appendix
DOF Memory: 560 HART devices (based on average DOF size) Configuration Memory: 200 HART devices (based on average configuration size) AUTO SHUT-OFF - occurs after user-selected period of keypad inactivity or can be disabled (both 4150 / 4150X auto shut off and backlight auto shut off are user selectable). -
Page 34: Models, Options, Ordering Information
NiMH battery charger, 100 – 240 vac, 50/60 Hz, universal plug kit Z9B000007 Power adapter, 100 Vac to 240 Vac, 50-60 Hz universal plug kit (incl’d with unit) Paper instructions for 4150 / 4150X (PDF instructions incl’d with unit on CD) F/N 4150:440 EASTERN ENERGY SERVICES PTE LTD. -
Page 35: Intrinsic Safety Control Drawing
Intrinsic Safety Control Drawing EASTERN ENERGY SERVICES PTE LTD. 60 Kaki Bukit Place #02-19 Eunos Tech Park Singapore, SG 415979 Singapore Telephone: +65-6748 6911 Fax: +65-6748 6912 Email: info@eesgroup.com Website: www.eesgroup.com... -
Page 36: Ec Declaration Of Conformity
II, Category 1 G. Regarding Electromagnetic Compatibility (EMC) for Handheld Class A device Series 4150 hand held unit compliant with EMC Directive 89/336/EEC as amended by 92/31/EEC and 93/68/EEC EN 61326:1997 + A1:1998 + A2:2001 + A3:2003 EN 60529: 2004: Degrees of Protection Provided by Enclosures (IP Code) -
Page 37: Hart Command Structure Menu Trees
Generic DOF (HART 5 devices) “Config Menu” “Process Vars Menu” Process Vars % Range “Rerange Menu” LRV (edit) URV (edit) “Sensor Menu” Sensors Set 4mA Range Rerange Set 20mA Range Signal Conditioning “Signal Conditioning” Transfer Function “Main Menu” Damping Value Device Config Units “Analog Trim Menu”... -
Page 38: 1151 Rev 5
1151 Rev. 5 Menu Tree Pressure Value Zero Trim Pressure Percent Range Lower Sensor Trim Process Vars Analog Output Upper Sensor Trim Lower Sensor Trim Point Upper Sensor Trim Point Pressure Trim Re Range Sensors Signal Cond Pressure Lower Range Value Pressure Upper Range Value Set 4mA Range Set 20mA Range... -
Page 39: 3051C Rev 2
3051C Rev. 2 Menu Tree Pressure Value Zero Trim Pressure Percent Range Lower Sensor Trim Process Vars Analog Output Upper Sensor Trim Temperature Value Lower Sensor Trim Point Upper Sensor Trim Point Sensor Trim Re Range Sensors Signal Cond Pressure Lower Range Value Units Pressure Upper Range Value Set 4mA Range... -
Page 40: Eja Rev 2
EJA Rev. 2 Menu Tree Pressure Value Zero Trim Pressure Percent Range Lower Sensor Trim Analog Output Upper Sensor Trim Temperature Value Lower Sensor Trim Point Process Static Pressure Value Upper Sensor Trim Point Vars Engr Display Unit Engr Display Value Pressure Lower Range Value Pressure Upper Range Value Sensor Trim...
