DEMOQE128 User Manual
Figure 3-6: MCU Change Wizard
7. Click " Finish." In the background CodeWarrior will transform your
project to the 32-bit microcontroller with no software changes needed.
An informational " Project Messages" window may appear letting you
know that changes have been made to the project.
8. If the Logic Analyzer utility is open, click the " Close Port" button on
that utility.
9. Turn the board power switch to OFF.
10. Switch the green 8-bit S08 daughter card with the red 32-bit Cold-
Fire V1 daughter card. Make sure to align pin 1 (as marked by
arrows) on the daughter card with pin 1 on the board.
11. Turn the board power switch to ON.
12. Compile the transformed Quick Start Application and start the pro-
cess of programming it into the flash on the 32-bit QE128 microcon-
troller by clicking on the debugger launch button shown here :

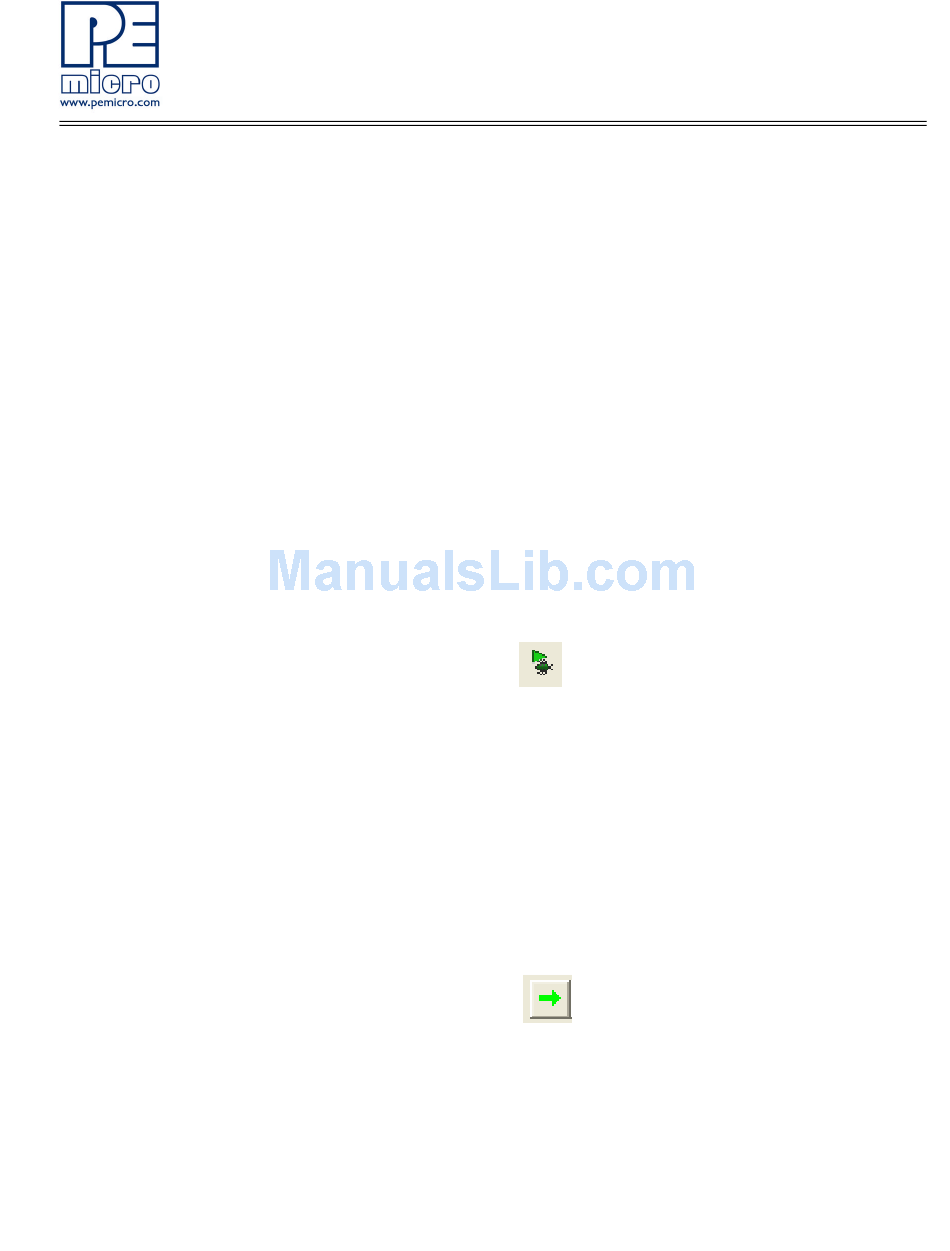

Figure 3-7: IDE Debugger Launch Button
13. From the Connection Manager menu, select " USB1: DEMOQE"
port and click on " Connect (Reset)."
14. From the Loader Warning menu, click on " OK" to allow the debug-
ger to mass erase the microcontroller' s on-chip flash memory and
program it with the new application.
15. Click on the GO button in the debugger to run the application. The
GO button is shown here:
Figure 3-8: Debugger GO Button
16. Repeat Step 4 of the Quick Start Guide instructions to observe the
32-bit QE128 device running the same application as the 8-bit
QE128 device did previously.
13
