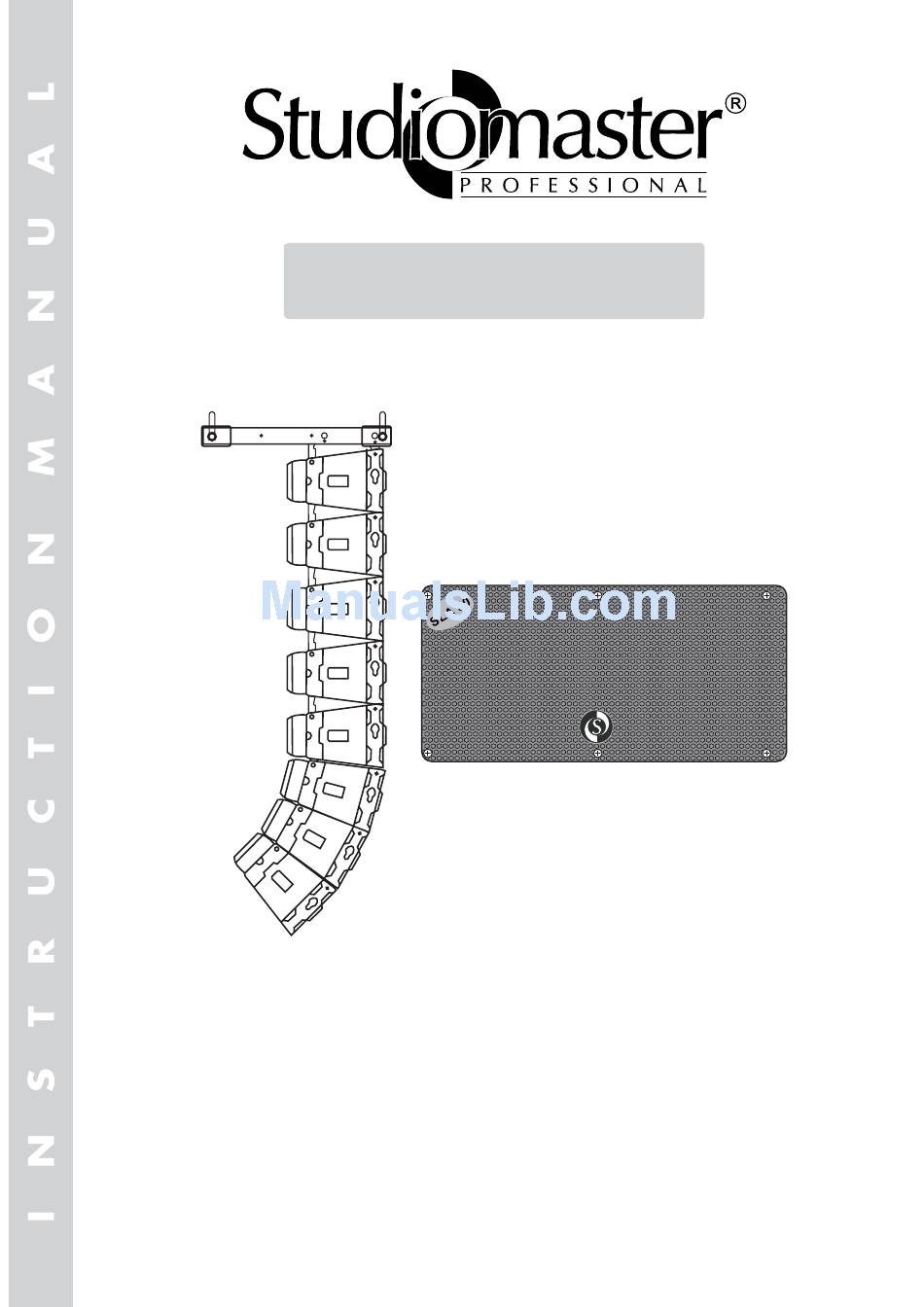

- Page 1 SLA 30 Active Compact Line Array System Index: 1. Important Notes 2. Important Safety Precautions 3. Introduction 4. Features at a Glance 5. Rear Panel Artwork 6. Configuring & Setting-Up 7. Rigging Instructions 8. Flying Patterns 9. Live Setup 10. Connection Diagrams & Dimension...
-
Page 2: Important Notes
The manual is to be considered as integral part of this product & must accompany it when it changes ownership as a reference for correct installation and use as well as for the safety precautions. • Install in accordance with Studiomaster Professional's instructions and under the supervision of a licensed Professional Engineer only. •... -
Page 3: Introduction
The SLA 30 has a maximum hinge of 10°, variable in steps of 2°. This hinge is enough to provide necessary tilt in a typical J or spiral array. The SLA 30 is capable of producing peak SPL of 123dB with its Single LF driver & twin HF drivers. -
Page 4: Features At A Glance
& dispersion. This ensures pure performance and negates the possibilities of phase cancellations. SLA 30 Kit: The SLA 30 Kit is set of essential hardware required for rigging & flying this line array system. -
Page 5: Vertical Beam
When ground stacked, the SLA 30 enclosures are generally kept straight i.e., all enclosures have 0° tilt without any splay. Two to four SLA 30 enclosures may be adequate for small venues. A pair (in Left & Right placement) of this set-up i.e., two to four SLA 30 with one Studiomaster Profesional subwoofer (Combine of SLA 30 power requirement) will... - Page 6 Therefore the incremental angle of 2° will yield 0°, 2°, 6°, 12°, 20°, 30°,40°, 50° aiming angles relative to the horizontal when eight SLA 30 enclosures are flown. The topmost module has 0° tilt and lowest (eighth) has 50° tilt relative to horizontal.
- Page 7 Four SLA 30 Array SPLAY HOLE 1. SLA 30 0° 2. SLA 30 2° 3. SLA 30 4° 4. SLA 30 6° TILT ANGLE 1. SLA 30 0° 2. SLA 30 2° 3. SLA 30 6° 4. SLA 30 12°...
-
Page 8: Rigging Instructions
• The SLA 30 can be rigged using the SLA 30 KIT, as set of essential hardware required for rigging & flying this line array system. It consists of ultra durable Flybars / Array Frames & Quick Release Pins (Push - Pull Bullets). -
Page 9: Flying Patterns
The ideal height at which the frame should be flown is between 5m to 8m. In auditoriums & churches, a single line array comprising of 4 to 6 SLA 30 modules should be adequate. This array is normally flown in the centre of the auditorium or church above the stage proscenium in the vertical plane at the edge of stage towards the audience. -
Page 10: Live Setup
9. Live Setup SLA 30 SLA 30 ON - LIMITER ON - LIMITER SLA 30 SLA 30 POWER POWER ACTIVE LINE ARRAY SPEAKER SYSTEM ACTIVE LINE ARRAY SPEAKER SYSTEM +3dB +3dB -3dB -3dB 240V~ 50Hz, 450W MAX 240V~ 50Hz, 450W MAX 1=GND T2.5A/250V~... -
Page 11: Connection Diagrams & Dimension
Pin 1 - Screen / Ground / Earth balanced balanced To connect a Line Input/Output, To connect a equipment to Line Input, wire the 3 pin XLR as above wire the 1/4” TRS jack as above Dimensions SLA 30 Kit... -
Page 12: Technical Specifications
Net Weight Note: You can connect maximum 15 nos. of SLA 30 with a supplied Studiomaster flybar. * Design and specification are subject to change without notice. is a registered trademark of Audioplus in India. © Copyright Audioplus, 2008. All rights reserved. Any unauthorised reproduction or use of logos, images or design elements is strictly prohibited by law.
