ARTECH DUET Operation Manuals

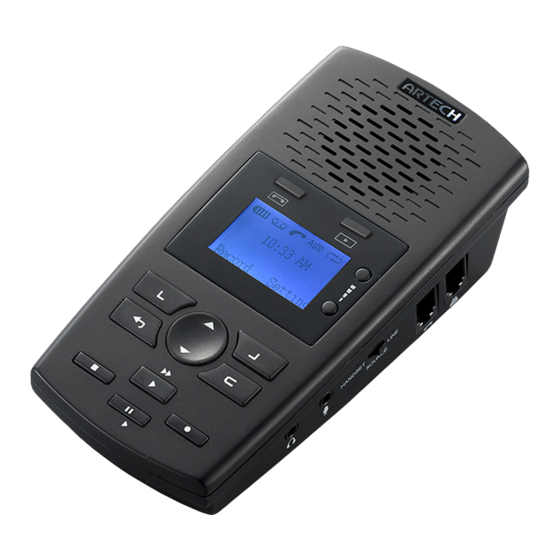

Single line voice logger
Hide thumbs

Advertisement

Quick Links

Download this manual
Enlarged version
DUET
Operation Manual
Version1.0.1
Everlea Group Ltd
www.everlea.co.nz

Advertisement

loading
Need help?

Need help?

Do you have a question about the DUET and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ARTECH DUET

Summary of Contents for ARTECH DUET

  • Page 1 DUET Operation Manual Version1.0.1 Everlea Group Ltd www.everlea.co.nz...
  • Page 2 INDEX INDEX INDEX INDEX 1 1 1 1 INTRODUCTION INTRODUCTION …………………………………………………… …………………………………………………………… ………….. …..2 2 2 2 INTRODUCTION INTRODUCTION …………………………………………………… …………………………………………………… ……… ……… ….. ….. 2 2 2 2 APPEARANCE APPEARANCE APPEARANCE………………………………………… ……… APPEARANCE ………………………………………… ……… ………………………………………… ……… ………………………………………… ……………………… ………………...
  • Page 3 1 INTRODUCTION Thank you for purchasing an ARTECH product. This device is single line voice logger. It can record all the calls over the phone including Caller ID, date, time and elapse. You can also enable its answering machine function, it will record all the messages for you when you are unavailable.
  • Page 4 2 APPEARANCE APPEARANCE APPEARANCE APPEARANCE ○ ○ 1 USB Port ○ DV 5V ○ ○ Microphone LINE port ○ ○ DELETE PHONE port ○ 1 5Earphone ○ Play Message ○ ○ Fast Forward Handset Line ○ Recording ○ Volume + ○...

  • Page 5: Accessory Information

    ○ ○ 2 3Page Up 2 7LCD Display ○ ○ 2 4Back 2 8Answering Machine ○ 2 5Records ○ ○ 2 9Speaker 2 6SD Card 3 Accessor y information 1、AR100 2、Operation Instruction 3、USB Cable 4、DC5V Adaptor 5、2G SD Memory card 4 PC Requirement 1、Windows7/Vista/XP/2000 2、Pentium 400 MHz CPU 以上...
  • Page 6 5 Connection 1． ． ． ． Analog line connection： ： ： ： a. Switch the SOURCE to PHONE b. Telecom line to LINE port c. Phone to PHONE port, will be shown on the LCD. See P.9 for set up. Everlea Group Limited Everlea Group Limited Everlea Group Limited...

  • Page 7: Microphone Connection

    2 2 2 2 ． ． ． ． Digital phone Connection (Handset) Digital phone Connection (Handset)： ： ： ： Digital phone Connection (Handset) Digital phone Connection (Handset) a. Switch SOURCE to PHONE b. Connect handset line to LINE c. Connect handset to PHONE will be shown on the LCD.
  • Page 8 6 Main Menu (A)Standby mode Standby mode Standby mode Standby mode ：Remaining Battery capacity ： Recording display ：Handset recording mode ：Microphone recording mode Auto：Auto recording mode Manual：Manual recording mode Trigger：Voice Trigger mode ：Loop recording mode 10H：Recording time of remaining capacity Time：System Time (B)Talk Mode Talk Mode Talk Mode...
  • Page 9 7 Setup ( A) Answ er Machine 1 . Pl a y G r eet ing: Play a greeting message to callers. 2 .Record Greeting: Record a greeting 3 .Remote Access Code: Set password for remote access. The default setting is 111。 4 .Number of rings before the unit answers a call：...
  • Page 10 Recording Recording Parameter Parameter 1 .MIC REC Mode ： ： ： ： Switch the SOURCE to MIC, DUET can record audio from built in microphone or external microphone. (1)Manual Press RECORD to start, STOP to terminate. (2)Automatic (Voice Trigger) When voice level is higher than settings, it starts recording automatically.
  • Page 11 (2)Automatic Recording When line voltage is lower than settings, it starts recording automatically (3)Voice Trigger When voice level is higher than settings, it starts recording automatically. 3 .VOX Trig Level Adjust voice level in voice trigger conditions. Setting range is 1-10. 4 .VOX Silence Adjust silent time to terminate recording in voice trigger conditions.
  • Page 12 11 . Call Out Delay Time The system will record calls after setting delay time. Setting range is 0~20 ( ( ( ( C C C C ) ) ) ) ..System System System System Setup Setup Setup Setup...
  • Page 13 5 .Time synchronization with Caller ID Synchronize the time with FSK Caller ID 6 .Language You can choose Traditional Chinese, Simple Chinese or English as system language. 7 .LCD Contrast Adjust the contrast of LCD display, the higher the brighter. Range 1-6 8 .SD Card Reserve Space SD card can be set to retain the capacity for system smooth running.
  • Page 14 1 .Record Type I=Incoming call O=Outgoing call N=MIC T=Voice Trigger A=Answering machine 2 .Date /Time Display date and time of audio files 3 .Recording Length Display the length of audio files. Symbol indicates audio files, otherwise CDR only. 5 .Incoming /Outgoing Call Number Display Display incoming or outgoing numbers.
  • Page 15 1 .Play： ： ： ： Play selected audio files。 2 .Flag： ： ： ： Mark important audio files。 3 .Remove Flag： ： ： ： Remove mark on audio files。 4 .Delete： ： ： ： Delete selected audio files or CDR。 (1) Delete audio files and keep the CDR (2) Delete both audio files and CDR 5 .Search by Time: Search audio files by time...
  • Page 16 (D) .Searching Option 1 . All Search all records in SD card 2 .Incoming Search all incoming calls including missed calls. 3 .Answered Search all received calls 4 .Unanswered Calls Search all missed calls 5 .Outgoing Search all outgoing calls 6 .Note Search all audio files from MIC Everlea Group Limited...
  • Page 17 7 .Flag Search marked audio files 8 .Trig Search voice triggered audio files 9 .Answering Search answering machine messages audio files You can search specified audio files by operating search functions. 9 Enable/Disable Answ ering System 1 .Enable / Disable answering system Press to enable the answering system, press again to disable...

  • Page 18: Service Guarantee

    ONE (1) YEAE from the date of purchase. 2. SOFTWARE: ARTECH warrants attached software can be installed in computer system and ensure it is compatible or works with the hardware. Third party application is not covered under this Limited Warranty.
  • Page 19 (c) to a product or part that has been modified to alter functionality or capability without the written permission of ARTECH; (d) to damage caused by customer relocation or falling or (d) to defects caused by normal wear and tear or otherwise due to the normal aging of the product.
  • Page 20 11 Contact Contact Contact Contact ARTECH TECHNOLODY DESIGN CO.,LTD Taipei Office 13F-2, No.293-2, Sec 1, JhongShan Rd, BanCiao City, Add: Taipei County, Taiwan Tel: 886-2-29589686 Fax: 886-2-29589596 Email: sales@artech.com.tw Service Time: AM9:00~PM:6:00 Mon - Fri http://www.artech.com.tw Webpage: Shenzhen Office 1008 room, Zehua Building, intersection of Meilong Rd and...
