Page 1: User Guide

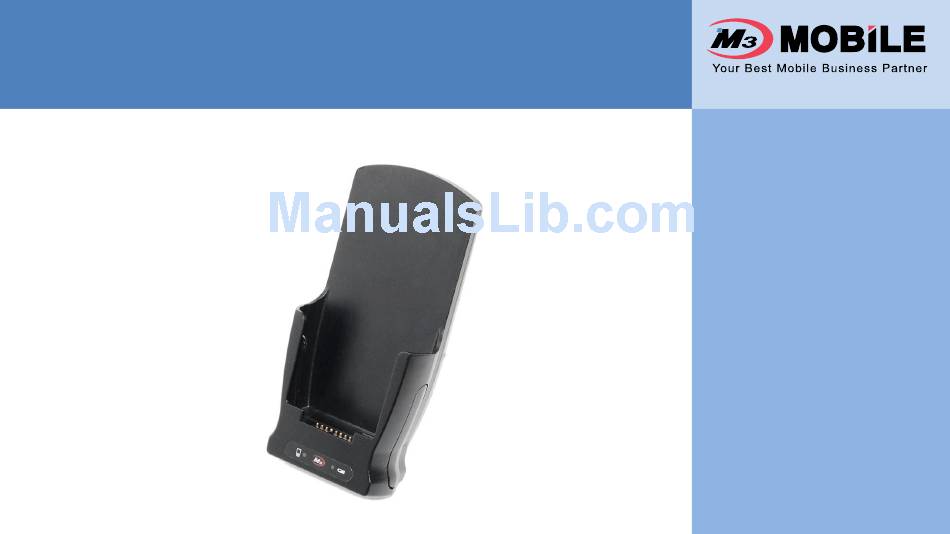

M3 Charging Holster User Guide Product Model: A-CHH-ATYP-150-R00 Compatible Device: M3 RED, GREEN, SKY and ORANGE Version 2.1 Released in March 2013... -
Page 2: Table Of Contents
Contents Copyright and Agreement ..... 3 Notice …………………………………. 4 Warnings and Cautions for Safety 1. Checklist ………………………….. 8 2. Usage …………………………..….. 9 ........9 Description ........11 Specification ........12 How to use …….... 13 Services and Support... -
Page 3: Copyright And Agreement
Copyright and Agreement in Usage All contents of this user manual are protected by the Microsoft, Windows, MS Office, Outlook, ActiveSync, copyright laws, and M3 Mobile Co., Ltd. owns all rights Internet Explorer, Windows Logo, and Windows CE, related to them. -
Page 4: Notice
Notice – General Notices The contents of this user manual were made based on the M3 Mobile does not guarantee the quality of the programs “current state” of the product, and this manual may produced by third party software companies installed after contain technical and editing errors or omissions. - Page 5 Notice – Revision History Version 2.1 – March, 2013 Change address and M3 Mobile technical support webpage Version 2.0 – Feb, 2011 Second release of user manual for renewal charging holster. Version 1.0 – May, 2010 First release of printed version.
-
Page 6: Warnings And Cautions For Safety
If the device is lost or stolen, then immediately report the incident to the service provider. Refrain from using the device while driving. When service for the product is required, request services through the designated service center of M3 Mobile. - Page 7 Warnings and Cautions for Safety – Cntd. Cautions in Carrying and Storing Do not modify the product Do not use the product in high temperature or high Do not try to modify the product by any means. humidity environments as this may quickly cause damage to the product.
-
Page 8: Checklist
Please check if all the contents shown Please use the correct power supply below are nearby for use. Power Supply is needed for charging. provided by M3 Mobile. Compatibility with other power supply source is not guaranteed. -
Page 9: Usage
2. Usage – Description A-CHH-ATYP-150-R00 is one of the M3 Mobile’s optional accessories for convenience of charging a PDA. Description Refer to next images (A-CHH-ATYP-150-R00) for Charging Holster parts and descriptions. 7. Insert Detector 8. Belt Clip Holder 1. Device Slot 5. - Page 10 2. Usage – Description continued. 1. Device Slot – A PDA slides into the slot for charging. Please note the sliding direction. 2. LED Connection Indicator – Connection status of a PDA and the Charging Holster is displayed. Note that the LED on the PDA will show the charging status of PDA. LED Color Meaning RED Blink...
-
Page 11: Specification
2. Usage – Specification Model Charging Holster Compatible PDA(s) M3 RED, GREEN, SKY and ORANGE Internal Battery 4,500mAh Charging Period Holster – About five hours and thirty minutes PDA – About five hours Holster & PDA – About five hours each Note that a PDA will be charged first and then the holster battery will be charged. -
Page 12: How To Use
2. Usage – How to use How to use Step 1. Plug in the AC Step 2-1. Reversely slide Step 2-2. In case of Step 3. After use, press adaptor plug to wall jack in PDA to the Charging charging a PDA and the and hold the Hook to slide and DC Jack to power Holster. -
Page 13: Services And Support
Services and Support Should you require any services or technical support on M3 Mobile’s products, contact your supplier or visit M3 Mobile technical support webpage http://itc.m3mobile.net. Desired or relevant manuals can be downloaded from Knowledge Center or FAQ in technical support webpage.
