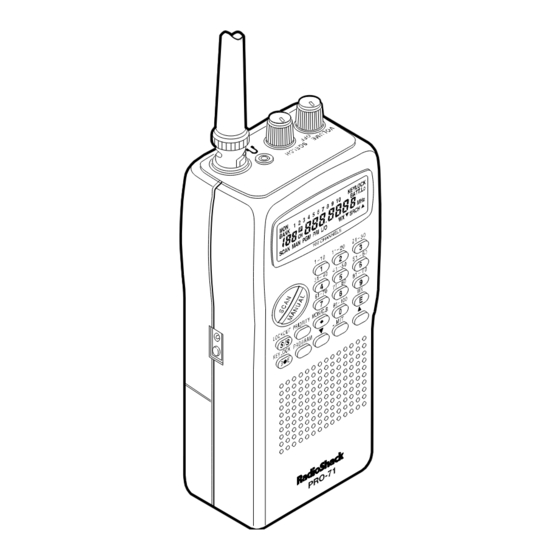

- Page 1 20-311A Cat. No. OWNER’S MANUAL PRO-71 VHF/UHF/Air Handheld Scanner Please read before using this equipment.
- Page 2 FEATURES Your new RadioShack PRO-71 VHF/UHF/Air Handheld Scanner lets you in on all the action! This scanner gives you direct access to 23,000 exciting frequencies that include police department, fire department, ambulance, aircraft, amateur radio, and transportation services. You can select up to 100 channels for your scanner to scan and you can change your selection at any time.
- Page 3 420–450 450–470 470–512 In addition, your scanner is preprogrammed with the following weather service channels: This Owner’s Manual also includes the section “A Guide to the Action Bands,” which lets you target services in your area by giving you fre- quency ranges to search.
-
Page 4: Scanning Legally
FCC NOTICE Your scanner might cause TV or radio interference even when it is op- erating properly. To determine whether your scanner is causing the in- terference, turn off your scanner. If the interference goes away, your scanner is causing it. Try to eliminate the interference by: •... - Page 5 This scanner has been designed to prevent reception of illegal trans- missions. This is done to comply with the legal requirement that scan- ners be manufactured so as to not be easily modifiable to pick up those transmissions. Do not open your scanner’s case to make any modifica- tions that could allow it to pick up transmissions that it is not legal to lis- ten to.
-
Page 6: Table Of Contents
Banks and Memories ... 19 Channel-Storage Banks ... 19 Monitor Memories ... 19 Operation ... 20 Turning On the Scanner and Setting Squelch ... 20 Storing Frequencies ... 20 Searching For and Temporarily Storing Active Frequencies ... 21 Limit Search ... 22 Direct Search ... - Page 7 Canadian Weather Frequencies ... 30 Guide to the Action Bands ... 31 Band Allocation ... 32 Avoiding Image Frequencies ... 37 Frequency Conversion ... 37 Troubleshooting ... 38 Resetting the Scanner ... 39 Care and Maintenance ... 40 Specifications ... 41...
-
Page 8: Preparation
• vehicle battery power (using an optional DC adapter) INSTALLING BATTERIES Your scanner requires 4 AA batteries (not supplied) for power. For the best performance and longest life, we recommend alkaline batteries. Or, you can use rechargeable nickel-cadmium batteries. Both types of batteries are available at your local RadioShack store. -
Page 9: Important Information About The External Power Jacks
Cautions: • If you do not plan to use the scanner with batteries for a month or more, or if you plan to use only an AC or DC adapter, remove the batteries. Batteries can leak chemicals that can destroy electronic parts. -
Page 10: Using Standard Ac Power
CHARGE Jack USING STANDARD AC POWER To power the scanner from AC power, you need an AC adapter such as RadioShack Cat. No. 273-1665. Plug the adapter’s 3.4 mm outer di- ameter/1.3 mm inner diameter barrel plug into the scanner’s POWER jack. -
Page 11: Using Vehicle Battery Power
• When you finish using the AC adapter, disconnect it from the AC outlet first. Then disconnect it from the scanner. USING VEHICLE BATTERY POWER You can power the scanner from your vehicle’s battery power using an optional DC adapter, such as Cat. No. 273-1810. Cautions: •... -
Page 12: Charging Nickel-Cadmium Batteries
4. Plug the other end of the adapter into your vehicle’s cigarette- lighter socket. Note: If the scanner does not operate properly when you use a DC adapter, unplug the adapter from the cigarette-lighter socket and clean the socket to remove ashes and other debris. -
Page 13: Connecting The Antenna
Connecting an Optional Antenna The antenna connector on your scanner makes it easy to use the scan- ner with a variety of antennas. Instead of the supplied antenna, you can attach an external mobile antenna or outdoor base antenna (for example). -
Page 14: Connecting An Earphone/Headphones
Doing so can create a traffic hazard and could be illegal in some areas. If you use an earphone or headphones with your scanner while riding a bicycle, be very careful. Do not listen to a continuous broadcast. Even... -
Page 15: Connecting An Extension Speaker
USING THE BELT CLIP You can attach the supplied belt clip to make the scanner easier to use when you are on the go. Use a Phillips screwdriver and the two sup- plied screws to attach the belt clip to the scanner. Then slide the belt clip over your belt or waistband. -
Page 16: Understanding Your Scanner
UNDERSTANDING YOUR SCANNER A LOOK AT THE KEYPAD Your scanner’s keys might seem confusing at first, but this information should help you understand each key’s function. — scans through the programmed channels. SCAN — stops scanning and lets you directly enter a channel num- MANUAL ber. -
Page 17: A Look At The Display
See “Banks and Memories” on Page 19. A LOOK AT THE DISPLAY The display has several indicators that show the scanner’s current op- erating mode. A quick look at the display will help you understand how to operate your scanner. - Page 18 — appears when you select the priority feature. — appears when you manually select a locked-out channel, or during a search hold when the frequency is stored in search skip mem- ory. — appears when you scan the preprogrammed weather channels. —...
-
Page 19: Banks And Memories
BANKS AND MEMORIES Your scanner can store up to 110 frequencies. You store each frequen- cy in either a memory called a channel, or a temporary memory called a monitor memory. This scanner has 100 channels and ten monitor memories. -
Page 20: Operation
OPERATION TURNING ON THE SCANNER AND SETTING SQUELCH 1. Make sure that you turn on the scanner. 2. Turn clockwise until you hear a hissing sound. VOLUME 3. Turn SQUELCH Note: If you want to listen to a weak or distant station, turn counterclockwise. -
Page 21: Searching For And Temporarily Storing Active Frequencies
Notes: • If you entered an incorrect frequency in Step 3, and the scanner beeps three times. Start again from Step 3. • Your scanner automatically rounds the entered frequency to the nearest valid frequency. For example, if you enter a frequency of 151.473, your scanner accepts it as 151.475. -
Page 22: Limit Search
The current monitor memory number flashes. 7. When the scanner stops on a transmission you want to save, press ) to store the frequency in the current monitor memory. The monitor memory number stops flashing. -
Page 23: Direct Search
2. Press to search up or down from the selected frequency. 3. When the scanner stops on a transmission, press that frequency in the current monitor memory. Or, press continue the search. 4. To hold the frequency, press... -
Page 24: Listening To Monitor Memories
The channel number flashes. 5. Press . The scanner stores the frequency in the selected chan- nel, and the channel number stops flashing. number keys for memories 1–9, and appears. -
Page 25: Manually Selecting A Channel
MANUAL 2. Enter the channel number. 3. Press MANUAL Or, if the scanner is scanning and stops at the desired channel, press once. (Pressing MANUAL ner to step through the channels.) To resume automatic scanning after manually selecting a channel,... -
Page 26: Special Features
, and SQUELCH Note: Turning on the keylock does not prevent the scanner from scan- ning channels. To turn the keylock on or off, turn on the scanner then hold down until the scanner beeps and LOCK LOCKING OUT CHANNELS... -
Page 27: Turning Channel-Storage Banks On And Off
AND OFF You can turn each channel-storage bank on and off. When you turn off a bank, the scanner does not scan any of the 10 channels in that bank. While scanning, press the number key corresponding to the bank you want to turn on or off. -
Page 28: Priority
You can scan through channels and still not miss an important call on a specific channel. When a channel is selected as the priority channel and priority is turned on, the scanner checks that channel every 2 sec- onds, and stays on the channel if there is activity until the activity stops. -
Page 29: Listening To The Weather Band
). Your scanner begins scanning through the weather band, and appears. If there is a weather broadcast in your area, your scanner stops within a few seconds and you hear the local weather broadcast. If the broad- cast is weak, you can press again to scan through the rest of the weather band. -
Page 30: A General Guide To Scanning
A GENERAL GUIDE TO SCANNING Reception of the frequencies covered by your scanner is mainly “line- of-sight.” That means you usually cannot hear stations that are beyond the horizon. During the summer months, you might be able to hear stations in the 30–50 MHz range located several hundred or even thousands of miles... -
Page 31: Guide To The Action Bands
Birdie Frequencies Every scanner has birdie frequencies. Birdies are signals created in- side the scanner’s receiver. These operating frequencies might inter- fere with broadcasts on the same frequencies. If you program one of these frequencies, you hear only noise on that frequency. If the inter- ference is not severe, you might be able to turn cut out the birdie. -
Page 32: Band Allocation
Aircraft and Others Aircraft Note: Your scanner rounds the entered frequency to the nearest valid frequency. For example, if you try to enter 151.473, the scanner ac- cepts this as 151.475. BAND ALLOCATION To help decide which frequency ranges to scan, use the following list-... - Page 33 ceives. These frequencies are subject to change, and might vary from area to area. For a more complete listing, refer to the “Police Call” available at your local RadioShack store. Abbreviations AIR ............Aircraft BIFC.
- Page 34 10-Meter Amateur Band—(28.0––29.7 MHz) 29.000–29.700 ..........HAM Very High Frequency (VHF) —...
- Page 35 152.480 ........... . BUS 152.510–152.840 .
- Page 36 452.0375–453.00 ......IND, TAXI, TRAN TOW, NEWS 453.0125–453.9875 ......... . .PUB 454.000 .
-
Page 37: Avoiding Image Frequencies
AVOIDING IMAGE FREQUENCIES You might discover one of your regular stations on another frequency that is not listed. It might be what is known as an image frequency. For example, you might find a service that regularly uses a frequency of 431.875 also on 474.675. -
Page 38: Troubleshooting
In the scan mode, the scanner locks on frequencies that have an unclear transmission. If none of these suggestions help, take your scanner to your local Ra- dioShack store for assistance. POSSIBLE CAUSE is not SQUELCH adjusted correctly. Only one channel or no channels are stored. -
Page 39: Resetting The Scanner
Caution: This procedure clears all the information you have pro- grammed into the scanner. Before you reset the scanner, try turning it off and on to see if it begins working properly. To reset the scanner, turn it off then turn it back on while holding down keys. -
Page 40: Care And Maintenance
CARE AND MAINTENANCE Your RadioShack PRO-71 VHF/UHF/Air Handheld Scanner is an ex- ample of superior design and craftsmanship. The following sugges- tions will help you care for your scanner so you can enjoy it for years. Keep the scanner dry. If it gets wet, wipe it dry immedi- ately. -
Page 41: Specifications
SPECIFICATIONS Frequency Coverage: VHF Lo ... 29–50 MHz (in 5.0 kHz steps) 6-Meter Ham ... 50–54 MHz (in 5.0 kHz steps) Aircraft ... 108–136.975 MHz (in 12.5 kHz steps) VHF/Government ... 137–144 MHz (in 5.0 kHz steps) 2-Meter Ham ... 144–148 MHz (in 5.0 kHz steps) VHF Hi ... - Page 42 ) ... Dimensions (HWD Inches (147 64.5 42.5 mm) Weight ... 7.94 oz (225 g) Specifications are typical; individual units might vary. Specifications are subject to change and improvement without notice.
- Page 43 NOTES...
- Page 44 This product is warranted by RadioShack against manufacturing defects in material and workmanship under normal use for one (1) year from the date of purchase from RadioShack company-owned stores and authorized RadioShack franchisees and dealers. EXCEPT AS PROVIDED HEREIN, RadioShack MAKES NO EXPRESS WARRANTIES AND ANY IMPLIED WARRANTIES, INCLUDING THOSE OF MER- CHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE DURATION OF THE WRITTEN LIMITED WARRANTIES CON-...
