Panel Layout - Roland JX-305 GROOVESYNTH Service Notes

JX-305

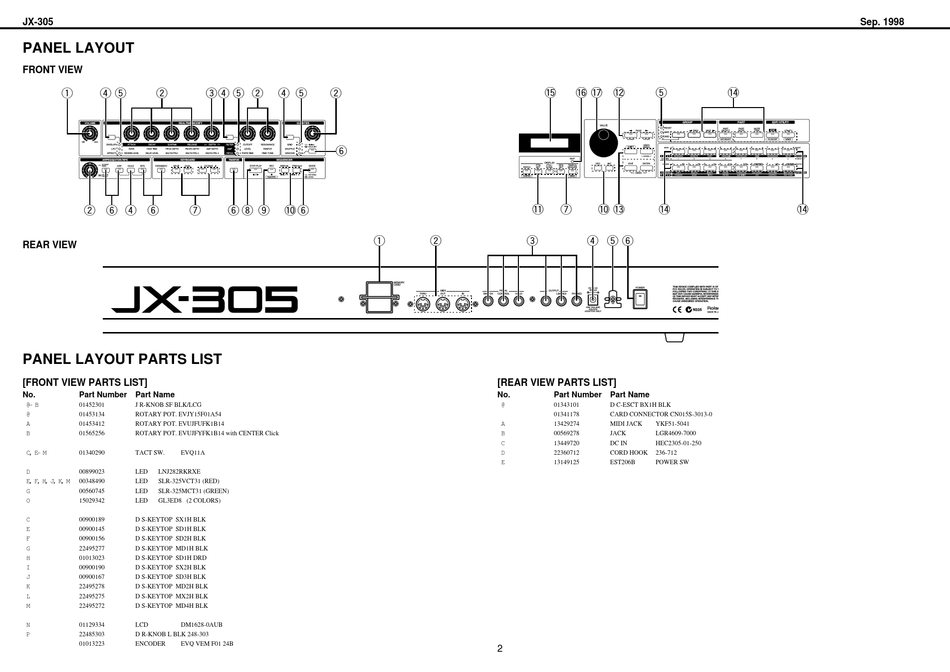

PANEL LAYOUT

FRONT VIEW
q r t w
w y r y u
REAR VIEW
PANEL LAYOUT PARTS LIST
[FRONT VIEW PARTS LIST]
No. Part Number Part Name
@- B 01452301 J R-KNOB SF BLK/LCG
@ 01453134 ROTARY POT. EVJY15F01A54
A 01453412 ROTARY POT. EVUJFUFK1B14
01565256 ROTARY POT. EVUJFYFK1B14 with CENTER Click
B
01340290 TACT SW. EVQ11A
C, E - M
D 00899023 LED LNJ282RKRXE
E, F , H, J, K , M 00348490 LED SLR-325VCT31 (RED)
G 00560745 LED SLR-325MCT31 (GREEN)
15029342 LED GL3ED8 (2 COLORS)
O
00900189 D S-KEYTOP SX1H BLK
C
E 00900145 D S-KEYTOP SD1H BLK
F 00900156 D S-KEYTOP SD2H BLK
G 22495277 D S-KEYTOP MD1H BLK
H 01013023 D S-KEYTOP SD1H DRD
00900190 D S-KEYTOP SX2H BLK
I
J 00900167 D S-KEYTOP SD3H BLK
22495278 D S-KEYTOP MD2H BLK
K
L 22495275 D S-KEYTOP MX2H BLK
M 22495272 D S-KEYTOP MD4H BLK
N 01129334 LCD DM1628-0AUB
22485303 D R-KNOB L BLK 248-303
P
01013223 ENCODER EVQ VEM F01 24B
e r t w r t w
y
y i o !0 y
q
!5 !6 !7
!1 u !0 !3
w e r t y
[REAR VIEW PARTS LIST]
No. Part Number
@ 01343101
01341178
A 13429274
00569278
B
C 13449720
22360712
D
E 13149125
2
!2 t !4
!4
Part Name
D C-ESCT BX1H BLK
CARD CONNECTOR CN015S-3013-0
MIDI JACK YKF51-5041
JACK LGR4609-7000
DC IN HEC2305-01-250
CORD HOOK 236-712
EST206B POWER SW
Sep. 1998
