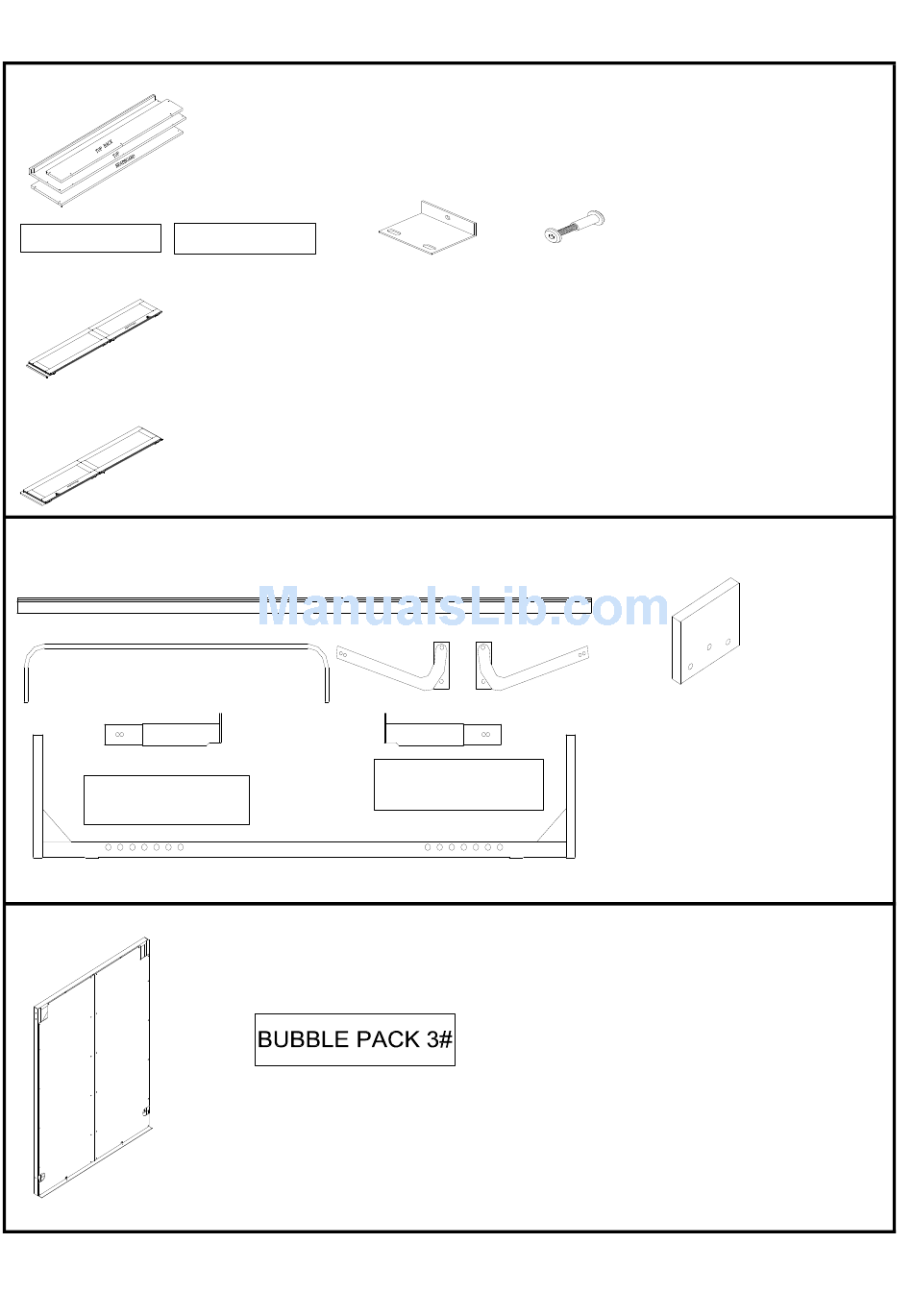

D993 MURPHY BED PACKING LIST
BOX 1 D993F( )-H: HORIZ PANELS
BUBBLE PACK 1#
HANDLES AND SCREWS
BOX 2A D993F( )-L: LT DOORS & SIDE PANEL
BOX 2B D993F( )-R: RT. DOORS & SIDE PANEL
BOX 3 103-B : SPRING BASE
HOOP
BUBBLE PACK 2#
BOX 4 993-TDK : BED TRAY
In Box 1 you will find 3 panel parts: The Crown top, the top back panel, and the center back panel
You will have also found this set of instruction documents/
and the Bubble pack #1-which has all the hardware you'll need for step 1 of the instructions.
2 spacing brackets
FOOT ROD
FLIP -OVER FEET
FLANGE ARM
BOX OF SPRINGS
SPRING BASE
2 sets
male-female connectors
Open these 3 boxes for
STEP 1
of the instructions.
2 flange spacer blocks
Open this box for
STEP 2
of the instructions.
Open this box for
STEP 3
of the instructions.
Advertisement
Related Manuals for Wallbed Gallery D933
Summary of Contents for Wallbed Gallery D933
- Page 1 D993 MURPHY BED PACKING LIST BOX 1 D993F( )-H: HORIZ PANELS In Box 1 you will find 3 panel parts: The Crown top, the top back panel, and the center back panel You will have also found this set of instruction documents/ and the Bubble pack #1-which has all the hardware you'll need for step 1 of the instructions.
- Page 2 D993 SIMPLE MURPHY HARDWARE LIST PAGE 1 instruction step where bubble pack these parts D993 MURPHYBED HARDWARE LIST this item is first are in box# used POSITION ITEM PICTURE SIZE ITEMS SHIPPED IN D993F()-H -- HORIZONTAL PANELS BOX instructions instructions ALLEN WRENCH ALLEN WRENCH TOOL...
- Page 3 PAGE 2 ITEMS SHIPPED IN 993-TDK --METAL TRAY WITH DECK BOX INSTALL MATTRESS HOOP WING HEAD BOLT M6x4/5" BOLT M8x9/5" ATTACHING FLIP FOOT LOCKING WASHER BUBBLE PACK 993-TDK 993 TDK WING NUT BOLT Ф1/4" x 2/5" ATTACH FOOT ROD TO FEET BOLT Ф1/4"...
- Page 4 D993 Simply Murphy Bed Assembly Instructions Congratulations and a Big Thank You for your purchase of a Wallbed Gallery Murphy Bed! We sincerely appreciate your business! First – a few words of advice and caution: 1. Please do this job with two people. Attempting to do it alone, though heroic, could lead to product damage or injury because some things can be too heavy for just one person to safely handle.
-
Page 5: Preparation For Assembly
PREPARATION FOR ASSEMBLY: 2 Please locate and confirm that you have the following 5 boxes. SIMPLY MURPHY BED – BOX LIST – Queen Size BOX # SKU# DESCRIPTION D993F()-H Horizontal Panels D993F()-L Left Side Door Set D993F()-R Right Side Door Set 103-B Spring Base 993-TDK Tray EXAMPLE BOXES A. -
Page 6: Assembly Sequence
3 STEP 1: SETTING UP THE BED CASE FROM BUBBLE PACK #1, FOUND IN BOX #1, Please use the 11 bolts and barrel nuts, along with the #5 Allen Wrench and/or #5 Allen Head for Power Drill (the larger ones) to assemble the Bed Case as shown below. –... -
Page 7: Operation Sequence
Stand the assembled Bed Case up and move to the desired position against the wall. – 4 OPERATION SEQUENCE (Before you do this – check AGAIN that Top crown there is at least 20 inches from the wall to molding the side panels.) Begin with TWO PEOPLE standing at the top corners of the bed case. - Page 8 STEP 2 : SETTING UP AND INSTALLING THE SPRING BASE MEASURE THICKNESS 5 OF BASE MOLDING The best results will be achieved by following these instructions carefully. TOOLS YOU WILL NEED TO SUPPLY: 1. A power drill gun with a #2 Phillips head, base molding 2.
- Page 9 STEP 2C – You will notice that the left and right flange arms can be attached to the spring carriage in two positions 6 – and this is where the base-board thickness measurement comes in: OPTIONS: 1. If you have no base board or ¼” baseboard – you will use the pre-drilled wood Flange Spacer Blocks – and you will use the “extended” position.
- Page 10 STEP 2D – Connect Flange arms and Spacer Brackets to the Spring Carriage Frame using the four Wing Bolts, and 7 Carefully place the Spring Carriage Frame into the bed case (don’t scratch the wood), then use Wing Bolts to attach the spacer brackets on each side.
- Page 11 STEP 2F – Use the Anchor Screws in bubble pack #2 to connect Flange Arms to the Base Plate. 8 Stick your foot in here and press down while driving screws base molding FOOTER STUD Base Plate INSIDE THE inside the wall DRIVE SCREWS WALL A 10 DEGREE...
- Page 12 STEP 3 – 9 Building the Bed Frame STEP 3A –Attach the mattress hoop and flip-over feet from box 3 to the bed tray from box 4 as shown here, and connect them with the connection hardware in bubble pack #3, and using the wrench and #4 Allen tools from bubble pack #1. ...
- Page 13 STEP 3B –Install the assembled bed frame onto the spring carriage frame, By dropping the pivot bolt into pivot post. 10 Pivot Bolt Pivot Post Set the Assembled Bed Tray onto the spring base by dropping the Pivot Bolt into the slot at the top of the Pivot Post STEP 3C –...
- Page 14 11 STEP 3D – With the doors still open, center the bed case at the top by inserting some folded pieces of cardboard in equal thickness on either side. Put equally folded pieces of cardboard in each of the gaps between the flip‐over‐foot leg and the Stud position side panel . This assures the top of the bed case is “squared” with the bed frame. WALL Short screw STUD Long screw While the pieces of ...
- Page 15 12 STEP 3E – Remove the two pieces of cardboard, install the door handles from box 1, and then close and latch the doors. Install wood plug If side is exposed...
- Page 16 13 APPENDIX 1 – Mounting your Murphy Bed to a concrete wall (such as is often found in a basement). If you have either brick or masonry WITHOUT DRYWALL - We recommend the TAPCON Concrete Screw System, model 3/16” x 2.1/4” flat-head screw.
