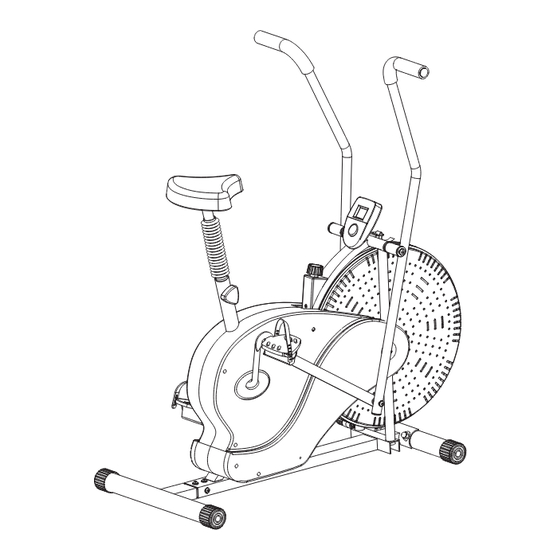

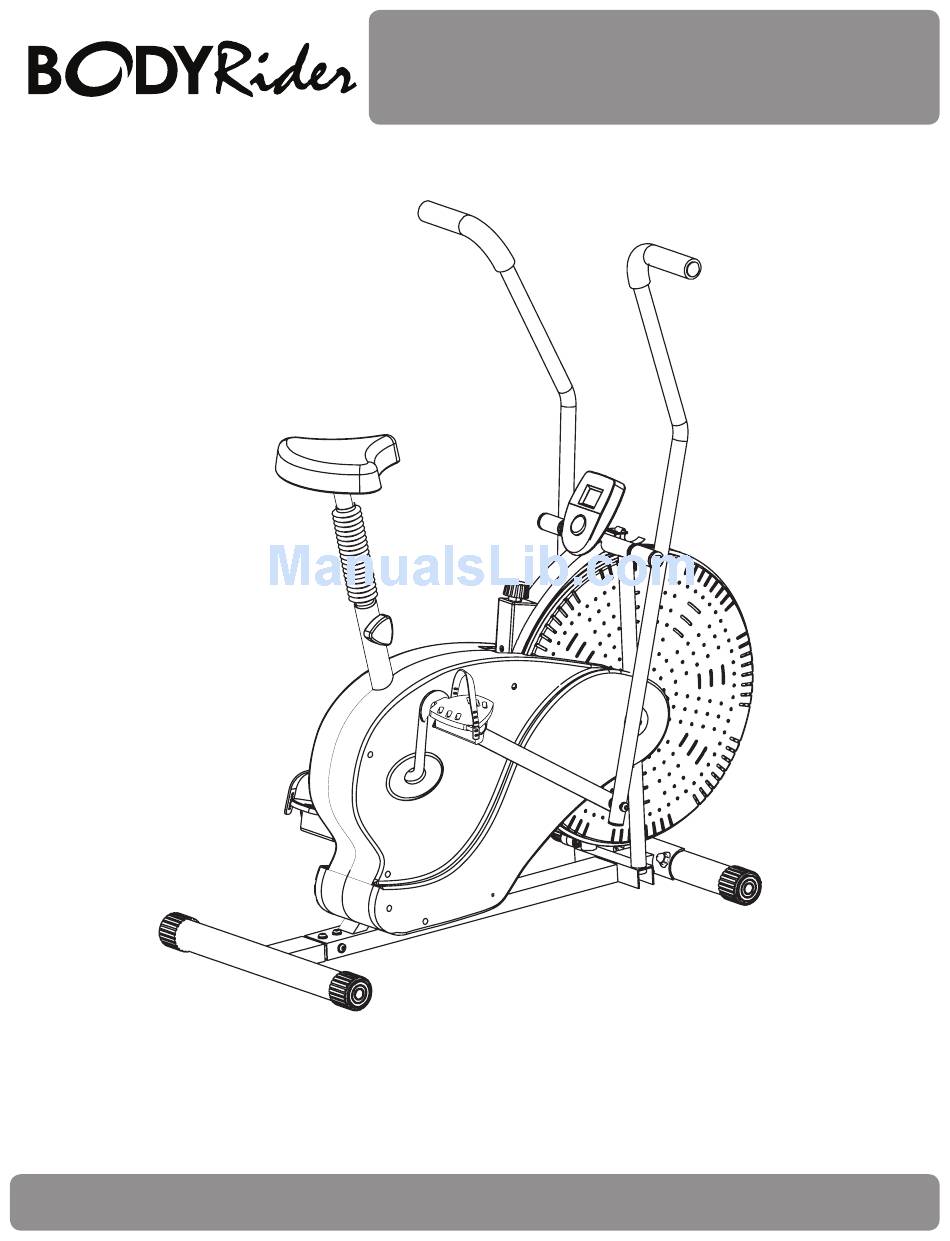

- Page 1 BRF700 BRF701 UPRIGHT FAN BIKE This product is intended for indoor, home use only and is not to be used in a commercial setting. OWNER’S MANUAL...
- Page 2 The diagram below highlights and reviews many of the important Safety and Warning labels also found on the unit. Please ensure any user of the unit familiarizes themselves with these Safety and Warning guidelines before use. BRF700 / 701 Page 1...
-
Page 3: General Information
- 1 x Philips (”Crosshead”) Screw Driver Telephone: 1 (888) 266 - 6789 Fax: 1 (909) 598 - 6707 Weight Limit Email: info@bodyflexsports.com Your product is suitable for users weighing : 250 pounds or less BRF700 / 701 Page 2... -
Page 4: Before Assembly
Use to measure the length or size of hardware including QTY: 1 bolts to ensure you are using the correct part. Adjustable or flat wrenches Use to securely install parts including nuts and bolts. QTY: 2 BRF700 / 701 Page 3... -
Page 5: Part Listing
67 Gear Shaft 29 Special Washer (Φ16xΦ28x0.3 mm) 68 Nut (M10x1xH5xS17 mm) 30 Round Cap (50) 69 Sensor 34 Bushing (Φ8.3xΦ18x5 mm) 70 Washer (d10xΦ20x2 mm) 35 Bearing (TY-6201) 71 Crank Cover (85x64x4 mm) 36 Tension Control BRF700 / 701 Page 4... -
Page 6: Exploded View
: : Not all of the parts and hardware you see here will be used while you are assembling the machine because some of these items are already pre-installed. Please use this page only as a reference guide for parts and hardware. BRF700 / 701 Page 5... -
Page 7: Hardware And Tool List
BLACK inner nylon ring w/ WHITE inner nylon ring [2 pieces] Pre-assembled [1 piece] [1 piece] Others #17 Knob (M12) #22 Bushing [1 piece] [2 pieces] Tools (Included) S10-S13-S15-S17-S19 6mm Allen Wrench [1 piece] [2 pieces] BRF700 / 701 Page 6... -
Page 8: Assembly Step
Secure the Front Stabilizer (#2A) to the Main Frame (#1B) with two Carriage Bolts (#26), two Arc Washers (#27) and two Cap Nuts (#28). #26 Carriage Bolt (M10x57 mm) [2 pieces] #27 Arc Washer (M10) #28 Cap Nut [2 pieces] [2 pieces] BRF700 / 701 Page 7... - Page 9 Secure the Rear Stabilizer (#3) to the Main Frame (#1B) with four Bolts (#24), four Spring Washers (#25) and four Washers (#19). #24 Bolt (M8x16 mm) [4 pieces] #19 Washer (M8) #25 Spring Washer (M8) [4 pieces] [4 pieces] BRF700 / 701 Page 8...
- Page 10 Pedal (#7R) on the right crank. Then turn COUNTER- #21 Big Washer #22 Bushing CLOCKWISE to tighten the Right Nylon Nut (#23R) [WHITE [2 pieces] [2 pieces] inner nylon ring] to secure the right pedal assembly. Right Crank BRF700 / 701 Page 9...
- Page 11 Big Washer (#21) and the two pieces fit Please refer to the exploded diagram for correct orientation and flushed together. Please refer to the exploded diagram for correct positioning. orientation and positioning. BRF700 / 701 Page 10...
- Page 12 Left Handlebar (#4LA). [***When assembling D Shape Washer (#15), please ensure the flat edge matches and is flush with the corresponding flat edge of Handlebar Axle (#16) as marked in close-up diagram below.] BRF700 / 701 Page 11...
- Page 13 Nylon Nut (#20) > Washer (#19) > Bushing (#34) Left Handlebar (#4L) > Bolt (#18) of Right Linkage (#6R) > Washer (#19) > Right Handlebar (#4R) > Bolt (#18) *RIGHT Side: **LEFT Side: INNER (SIDE) OUTTER (SIDE) OUTTER (SIDE) INNER (SIDE) BRF700 / 701 Page 12...
- Page 14 Always ensure that the Knob (#17) is securely tightened [1 piece] and engaged through the hole on the Main Frame (#1B) and thehole setting most comfortable to you on the Seat Tube (enhanced) (#5E) for your safety. BRF700 / 701 Page 13...
- Page 15 However, for your own safety, please make sure to read this entire Owner’s Manual which includes safety instructions and warnings, as well as any safety/warning labels affixed to the product before use. For your safety , please visually and functionally inspect and test the unit after assembly is complete. BRF700 / 701 Page 14...
-
Page 16: Tension Adjustment
Friction Belt (#38). NOTE: It is normal for the Friction Belt (#38) to periodically loosen due to regular use. Repeat the below process anytime you feel it may be necessary to recalibrate the tension adjustment system. BRF700 / 701 Page 15... -
Page 17: Computer Operation
OPERATING TEMP 32°F - 104°F or be used for medical purposes. Please consult a physician before beginning any STORAGE TEMP 32°F - 160°F workout program. BRF700 / 701 Page 16... - Page 18 - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. BRF700 / 701 Page 17...
-
Page 19: Safety And Maintenance
Body Flex Sports Inc. 21717 Ferrero Parkway Walnut, CA 91789 More detailed information about how to reach our CUSTOMER SUPPORT may be found on Page 2 of the Owner’s Manual under the “CUSTOMER SUPPORT” section. BRF700 / 701 Page 18... -
Page 20: Troubleshooting
2. Check to ensure the AC Adapter* or Batteries* are properly plugged in or fully charged. 3. Check your product manual to determine if your model uses either AC Adapter or batteries to power your unit. BRF700 / 701 Page 19... - Page 21 Keep your left leg straight. 2. Return to the starting position slowly. 2. Gently pull your right leg toward your trunk without raising your upper body. Switch leg positions and repeat. BRF700 / 701 Page 20...
- Page 22 Repeat on the other leg. muscles in your left calf stretch. other. Switch leg positions and repeat. Reverse arm positions and BRF700 / 701 Page 21...
- Page 23 This page is left blank intentionally...
- Page 24 THANK YOU FOR YOUR PURCHASE MODEL NO.: BRF700 / BRF701 Please fill in the information below and keep this manual along with your sales receipt as proof of purchase. Serial Number : Date of Purchase : Retailer : Body Flex Sports Inc.
