Page 1: Package Contents

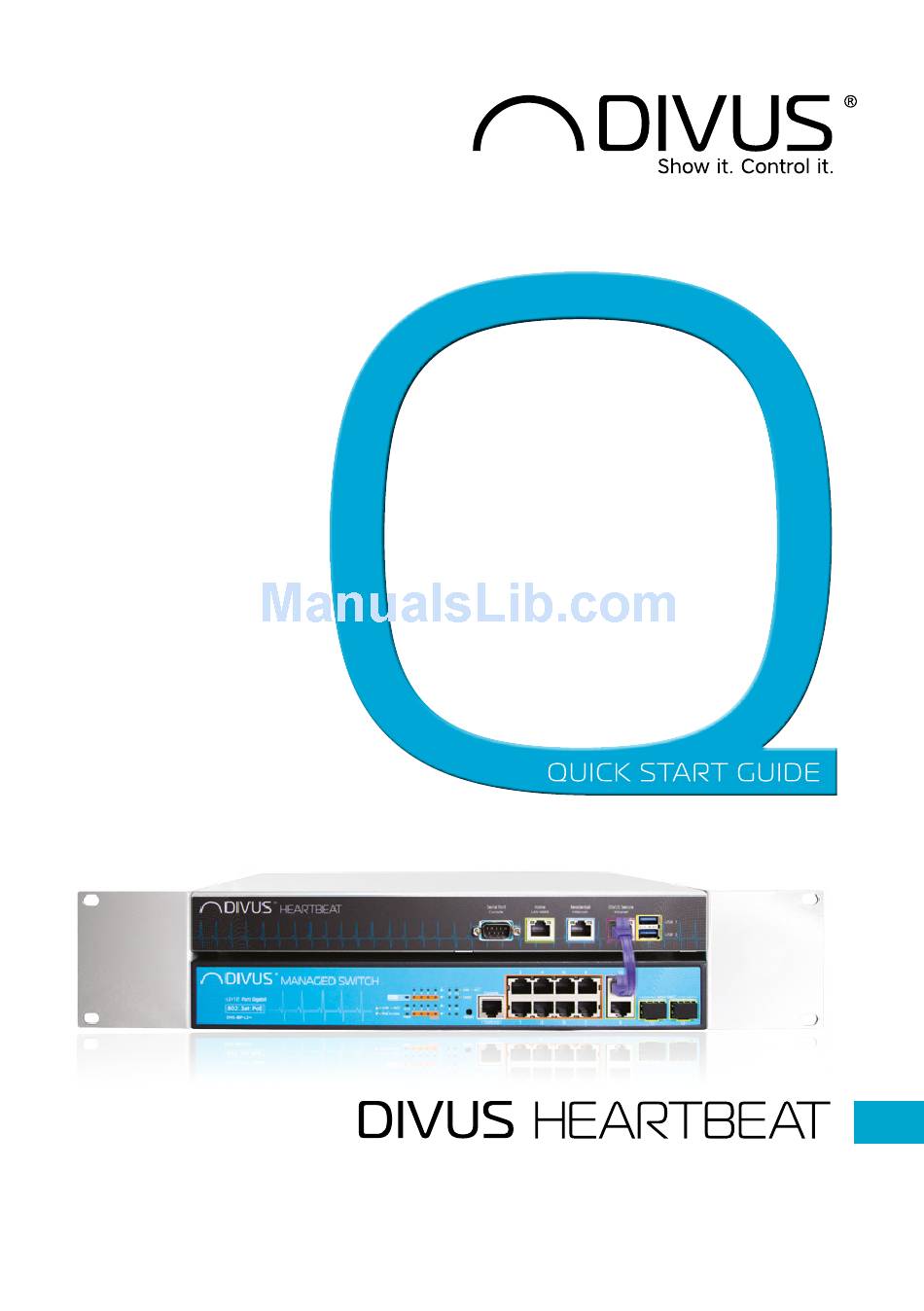

Package contents • Quick Start Guide Quick Start Guide • DIVUS MANAGER: DMANAGER • DIVUS MANAGED SWITCH: DMS-8P-L2+ • Mounting Adapter - set • 2x Power cable • Adapter RJ45 on DB9 Version 0117 • Patch cable (purple) - Page 2 Your DIVUS HEARTBEAT will then adapt to the new network automatically. No new configuration of the single devices will be necessary if you follow the instructions detailed here and in the DIVUS HEARTBEAT manual, available from www.divus.eu. Connect the DIVUS and/or third-party home automation...
-
Page 3: Technical Data
8 POE+ ports (orange 1-8) DIVUS SECURE NETWORK Residential Intercom Port 9 – for cascading connections (to other switches) or DIVUS SECURE INTRANET - port to connect manager to for normal client devices. switch Port 10 – same as 9. Use to connect to manager. -
Page 4: Client Setup
Then use the path shown above to connect from clients. IMPORTANT NOTE: PLEASE DO NOT USE THE IP ADDRESSES OF THE SERVERS IN THESE CONFIGURATIONS! USING dhb-heartbeat ALLOWS THE SYSTEM TO ADAPT TO NETWORK CHANGES IN THE FUTURE AUTOMATICALLY, WITHOUT THE NEED TO RE-CONFIGURE ANYTHING. - Page 5 CONNECTION DIAGRAMM TABLET/SMARTPHONE INTERNET / IOT COMPUTER / SERVER MULTIROOM TABLET/SMARTPHONE FIREWALL PROTECTED KNX SERVER LIVINGROOM ENTRANCE KITCHEN IP CAM IP CAM RESIDENTIAL FIREWALL PROTECTED INTERCOM BACKDOOR ENTRANCE GATE...
- Page 6 EXAMPLE OF USE...
-
Page 7: General Information
DHCP server to DIVUS SECURE INTRANET Sending network report by email NTP server to DIVUS SECURE INTRANET STANDARD DIVUS HEARTBEAT meets the following guidelines and standards: Low Voltage Directive 2014/35/EU (ex 73/23/CEE – 93/68/CEE – 06/95/CE) Standard(s) to which conformity is declared: EN 50491-3:2009, EN60950-1:2006+A11:2009+A1:2010+A12:2011 Safety EMC Directive 2014/30/EU (ex 89/336/CEE –... - Page 8 DM15 – DM19 DD10 – DD15 – DD19 DIVA22 DH10 – DH15 Intercom & Apps KNX visualization system DIVUS Headquarters Pillhof 51 . I-39057 Eppan (Italy) . Tel. +39 0471 633 662 . Fax. +39 0471 631 829 info@divus.eu . www.divus.eu...
