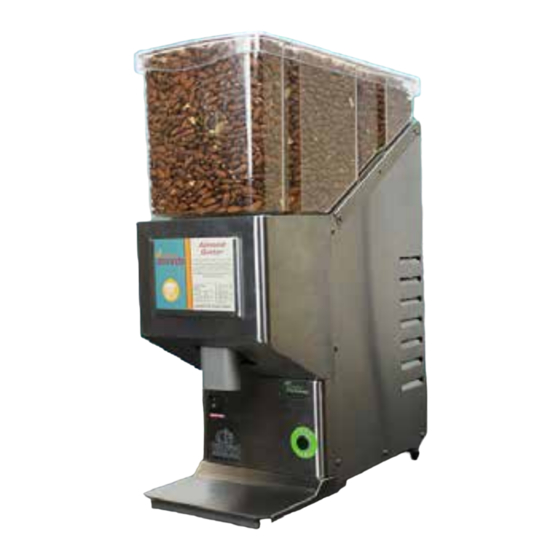

RHINO® Grind
Nut Butter Grinder
Model No. NG2000, NG2004
THIS DOCUMENT CONTAINS
IMPORTANT INFORMATION
AND MUST BE READ AND
UNDERSTOOD PRIOR
TO INSTALLATION AND
OPERATION OF NUT
GRINDER EQUIPMENT.
Retail Merchandising
Installation &
Operating Manual
Revision Date: 20180125:1128
TM
GRIND
a better, nut butter
Revision: A
Advertisement
Table of Contents
Related Manuals for RHINO Grind NG2000
Summary of Contents for RHINO Grind NG2000
- Page 1 GRIND a better, nut butter Installation & Operating Manual Revision Date: 20180125:1128 Revision: A RHINO® Grind Nut Butter Grinder Model No. NG2000, NG2004 THIS DOCUMENT CONTAINS IMPORTANT INFORMATION AND MUST BE READ AND UNDERSTOOD PRIOR TO INSTALLATION AND OPERATION OF NUT GRINDER EQUIPMENT.
- Page 2 Access to Help VIDEOS AND THIS MANUAL ARE ONLINE We recommend reading every page of this paper RHINO® Grind manual, but us- ing a QR code scanner on your smartphone will take you to an electronic webpage with videos, and electronic manual. Where you see this logo in this paper manual, you can scan to go to a video on the topic being discussed.
- Page 3 The products, technical information, and instructions contained in this manual are subject to change without notice. These instructions are not intended to cover all details or variations of the equipment, nor to provide for every possible contingency in the installation, operation or maintenance of this equipment. This manual assumes that the person(s) working on the equipment have been trained and are skilled in working with electrical, plumbing, pneumatic, and mechanical equipment.
-
Page 4: Table Of Contents
INFORMATION PERTAINING TO QUESTIONS THAT ARISE DURING INSTALLATION, OPERATION, SERVICE AND MAINTENANCE, OR TROUBLESHOOTING THIS EQUIPMENT. SHOULD YOUR RHINO® Grind NUT BUTTER GRINDER EVER LOSE POWER, WE SUGGEST LOOKING AT BOTH THE POWER ON/OFF SWITCH AND FAQ’S IN THIS MANUAL... - Page 5 Our RHINO® Grind nut butter grinder will dispense nut butter paste at a flow rate of 2.5Lbs/min. of peanuts. Different nut meat flow rates, and how to adjust settings can be found in this manual.
- Page 6 Read and Follow All Instructions Read and follow all safety instructions, best practices, and precautions in this manual and on the RHINO® Grind nut butter grinder (decals and labels). Retain this manual for future reference. Read and follow all applicable safety regulations before operating the RHINO®...
- Page 7 Do not grind anything other than specified nut meat through this unit. See a list of approved nut meats found on pages 8-9 of this manual. Do not plug the RHINO® Grind in a power socket and/or circuit breaker with Ground Fault Circuit Interrupt (GFCI).
-
Page 8: Safety Precautions
Proper Lifting Procedures When placing the RHINO® Grind for the first time, you will be required to lift and CAUTION set approximately 70+ lbs at the location of your choosing. The initial fill, and subsequent refills of the nut hopper will weigh 20lbs. -
Page 9: Specifications / Features
ANTI TIP SAFETY BRACKET WARNING The RHINO® Grind should be operated on a sturdy level countertop, table or sur- face capable of supporting 100lbs per completely full unit. The anti-tip device below should be secured to a wooden surface with the provided Philip head wood screws (Fig. -
Page 10: General Description
Current Draw (U.S.) 12.0A U.S. / 7.5A We recommend a 20A dedicated circuit and breaker with standard 3 prong ground per RHINO® Grind machine. Typical current draw is 7A. DIMENSIONS OF RHINO® Grind The RHINO® Grind measures as follows: Hopper... - Page 11 WITH CAUTION! A. Align the 4 tabs in the back of the hopper with the rear of the RHINO® Grind. B. Tabs should rest in the slots on the grinder body. C. Align front merchandiser ensuring the tabs align with no gap. Assure front merchandiser fully seats to chassis.
- Page 12 PRODUCT LABEL There is a product label holder on the front of the RHINO® LABEL GOES HERE. Grind which measures 6” wide by 4” tall. The visible area PLEASE NOTE: If you do not measures 5.5” by 3.75” tall. Slide use the insert, or your label is not the product label into the channel.
-
Page 13: Getting Started/Quick Start
Dry roasted nuts work best for producing a spreadable butter. Raw, unroasted nuts CAUTION or those with low oil content are not recommended to grind in the RHINO® Grind, as they may produce a thick, coarse nut butter meal paste or not produce nut butter at all. - Page 14 Dry roasted nuts work best for producing a spreadable butter. Raw, unroasted nuts or those with low oil content are not recommended to grind in the Rhino Grind unit, as they may product a thick coarse nut butter meal paste or not produce nut butter at all.
-
Page 15: Cleaning And Sanitizing
Running the RHINO® Grind on Fine texture minimizes the nut powder/dust dispense you may see, or particles until the paste forms. Discard this cup, and you are now... -
Page 16: Recommended Cleaning Schedule
Keeping the RHINO® Grind clean will ensure many years of operation, build consumer confidence, and offer a fresh, healthy option for your customers. We recommend daily cleaning of the RHINO® Grind food contact components such as auger, grinding plates, cover, housing, duckbill valve, nut hopper, internal component and shutter. -
Page 17: Disassembly/Reassembly Procedure
Disassembly / Reassembly CAUTION SHOCK SAFETY PRECAUTION FOR UNIT CLEANING 1. Switch off the RHINO® Grind at Main On/Off power switch. Scan for 2. Disconnect the power cord from the power source. Help 3. Remove, or dispose of the nut hopper contents depending on their age. - Page 18 Disassembly / Reassembly Remove housing from Press/Hold Auger lock pin. Rotate Remove thumbscrews from the auger assembly Grinding Wheel counterclockwise. housing. Place on catch tray brkt. Wipe thoroughly internal and external surfaces of the hopper, shutter and pins using a dry cloth Wipe the auger, rotary seal Empty the hopper bin &...
-
Page 19: Cleaning Of Product Delivery Parts
1. Reassemble by reversing the instructions. 2. Ensure the nut hopper is properly installed. 3. Fill the nut hopper with nut meat. 4. Connect cord to power source. 5. Switch on the RHINO® Grind. 6. If activation button does not activate, please refer to page 18 Troubleshooting. -
Page 20: Wiring Schematic
Wiring Schematic / U.S. Model 115V/60Hz... - Page 21 Wiring Schematic / U.S. Model 220V/60Hz...
-
Page 22: Illustrated Parts List
RHINO® Grind ILLUSTRATED PARTS LIST: GRINDING ASSY. -
Page 23: Troubleshooting
- Check the motor interrupting safety switch locations to ensure no gap. - Check the power circuit to make sure it has not tripped the breaker at your store. - If you have power, but the unit will not work, the RHINO® Grind nut butter grinder has any of the following... - Page 24 Troubleshooting Tips WARNING START UP DRY PRODUCT / NOZZLE CLOGGING At startup, some products produce a dry residual that clogs the duckbill valve. The result is that product does not flow. Potential solutions: (Each step is progressive. Check for product flow after each step) 1.
- Page 25 Troubleshooting Tips WARNING 3. Contact Trade Fixtures for specific components that will grind the product in a higher viscosity paste • Special Duckbill valve (see photo below) Scan for Help DUCKBILL VALVE rhinogrinder.com/help PRODUCT BRIDGING, OR NOT ENTERING THE GRINDER Certain products have size and exterior surface features that allow the product to “bridge”...
- Page 26 7. Hand tighten the anti rotation screw. 8.Store the tool/wrench on the rear of the RHINO Grind. Scan for The provided wrench features a screw driver on Help one end AND wrench for removing or breaking loose the outer grinding plate.
-
Page 27: Setting The Timer Switch
Start/Stop push button to run the unit. If you prefer this operation mode, there is nothing further to do. Simply plug in the RHINO® Grind and begin using it. However, if you desire to configure your Start/Stop push button for a predetermined amount of time, you need to access the toggle switch bank and set the black toggle switches according to the table below. -
Page 28: Setting The Grind Texture (Smooth Or Coarse)
Setting the Grind Texture By default, the RHINO® Grind ships with the nut butter texture set to Fine. If you want to change the dispense from Fine (Smooth), to Coarse product, simply unscrew the adjustment thumbscrews (x2), rotate the grinding plate, and screw the adjustment thumbscrews back down manually. - Page 29 Setting the Grind Texture CAUTION Scan for STEPS TO ADJUST FROM FINE TO COARSE 1. Remove the Front Merchandiser. Help 2. Loosen anti rotation screw on the grinding cover. 3. Loosen the texture adjustment screw. Do this (x2). 4. Rotate the cover and grinding plate clockwise. 5.
-
Page 30: Warranty Information
Warranty Information Trade Fixtures / New Leaf Designs LLC (Trade Fixtures) warrants this equipment manufactured by it as follows: One (1) year parts These warranty periods run from the date of installation. Trade Fixtures warrants that the equip- ment manufactured by it will be commercially free of defects in material and workmanship existing at the time of manufacture and appearing within the applicable warranty period. - Page 31 Retail Merchandising A Marmon / Berkshire Hathaway Company 1501 Westpark Drive, Suite 5 Little Rock, Arkansas 72204 1.800.872.3490 www.tradefixtures.com service@tradefixtures.com Trade Fixtures / New Leaf Designs, LLC. Products illustrated or described within this printed brochure are subject to design, patent, trademark and copyright protection.
