Wagan 8581 User Manual

All-in-one solar courtyard / street led light
Hide thumbs Also See for 8581:

Advertisement

Table of Contents

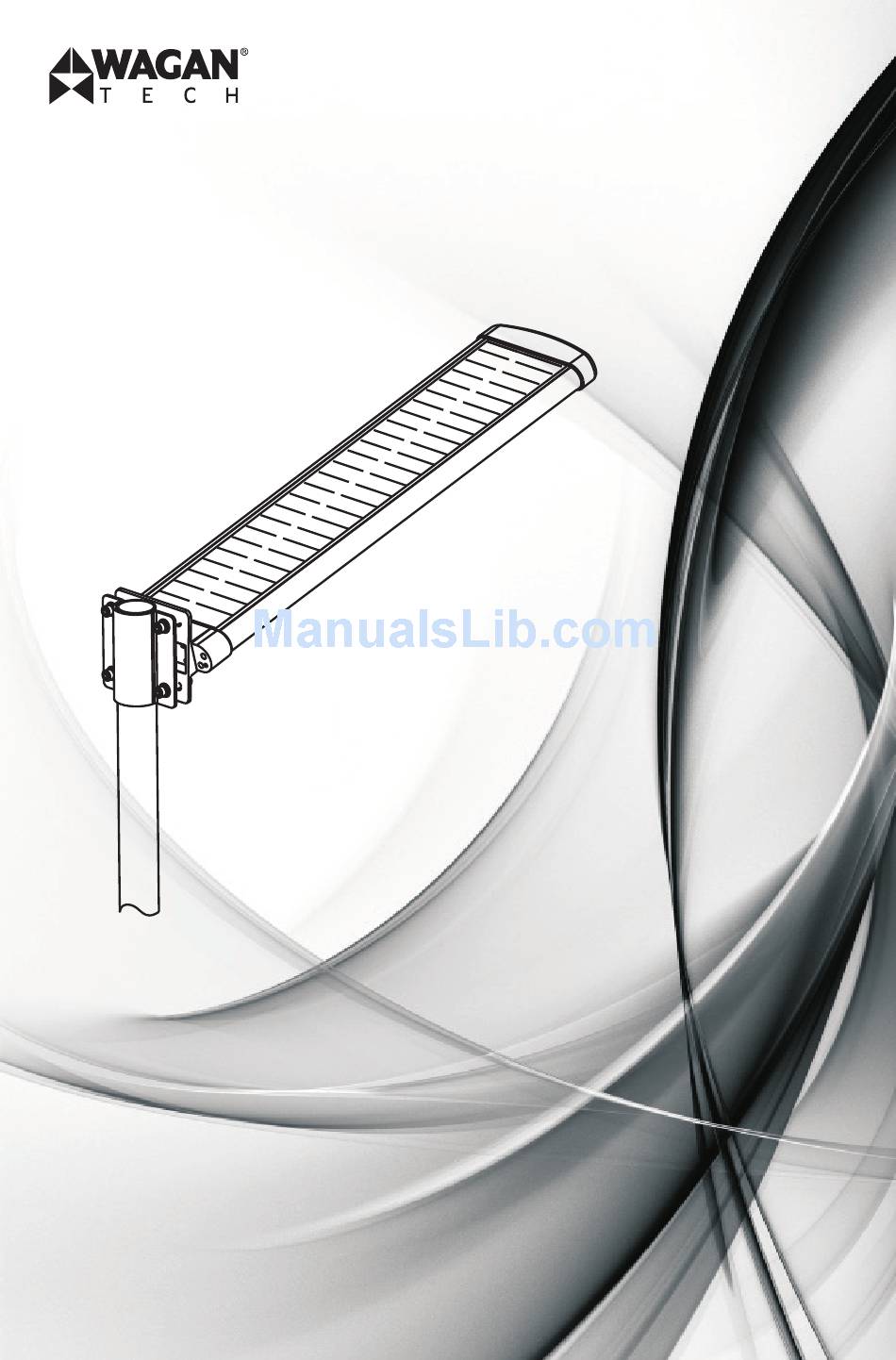

Item No. 8581
User Manual
All-in-One Solar
Courtyard / Street LED Light

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 8581 and is the answer not in the manual?

Questions and answers

Related Manuals for Wagan 8581

Summary of Contents for Wagan 8581

  • Page 1 Item No. 8581 User Manual All-in-One Solar Courtyard / Street LED Light...
  • Page 2 ON/OFF switch Assembling bolt Washer Solar panel Light panel Bracket Features 1. Smart Remote Control Function to satisfy different customer use. 3 main lighting mode as below a). Constant brightness all the time (100%/60%/30%/10%) b.) Dim lighting + motion sensor (30 seconds 100% High brightness) c.) Timer lighting mode (8 Option) 2.

  • Page 3: Specifications

    Specifications Solar Panel 14V, 22.7W 80 LED's, 4,500 lumens Charging Time 9-10 hours Lighting Mode 1. Constant brightness all the time (100%/60%/30%/10%) 2. Dim lighting + Motion Sensor (30 sec 100% High brightness) 3. Timer lighting mode (1H/2H/3H/4H/5H/6H/7H/8H, 8 options) Lighting Time More than 3 nights PIR Sensor...

  • Page 4: Operating Instructions

    Operating Instructions: 1 How to unlock the working system? The internal battery is locked from factory for safety shipment, so users have to use supplied key pin to click the "on/off" socket and unlock the battery and lighting system. Remark: Then use the supplied pin key to click the "ON/OFF"...
  • Page 5 Working process instructions Use the supplied key pin to click the Please fasten the light to the "ON/OFF" socket to unlock the battery pole by the bolt Step 1: Light switch off for sun charging in daytime Step 2: When the first time use, at night, press the button "on"...

  • Page 6: Remote Controller

    Remote controller Indicator light Infrared transmitter Brightness key On key Timer key M1/M2 PIR mode key Off key ON: Turn on the lamp, when you first time turn on the lamp, the initial default lighting mode is M1. OFF: Turn off the lamp and save the last lighting mode.
  • Page 7 Button 10%: To set brightness 10% for all the time till dawn, if you press any buttons of T1~T4, the lamp will turn on M1 lighting mode after timer end. Button 30%: To set brightness 30% for all the time till dawn, if you press any buttons of T1~T4, the lamp will turn on M1 lighting mode after timer end.
  • Page 8 If you want to set up time to 5-6-7-8 hours, please pull the backside button to "ON" position. Button M1: 10% brightness + PIR (100% brightness for 30S delay and 10% dim light if no new motion happen) Button M2: 30% brightness + PIR (100% brightness for 30S delay and 30% dim light if no new motion happen) Indicator: Turn red when you press buttons All the buttons have memory function: Means when you set up the...
  • Page 9 Replace the inside battery work as the picture when the battery span life is in the end. Special note: 1.) Please notice to unlock the battery and working system by supplied Key Pin before install. 2.) Please give bright sunlight charging over 5 hours before first time use, as the battery is very low from factory.

  • Page 10: Package Includes

    Warning: 1. Keep the device away from fire and oil in order to avoid any fire or explosion. 2. Any severe shock or smash to the light is not recommended. 3. No one except professional technicians should attempt to disassemble the light in order to avoid damaging the light.
