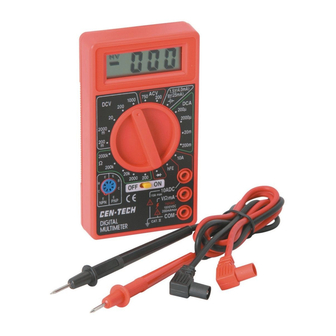

7 FUNCTION DIGITAL MULTIMETER
REV 12a
llfft,1~®169096)
OPERATING INSTRUCTIONS
Visit our Web site at http://www.harborfreight.com
Copyrigh~
2011 by Harbor Freight
Tools®
.
All
rights reserved
.
No portion of this manual or any artwork contained herein may be
reproduced in any shape or form without the express written consent of
'
\
.
Harbor Freight
Tools.
For
technical questions and replacement parts, please call 1-800-444-3353

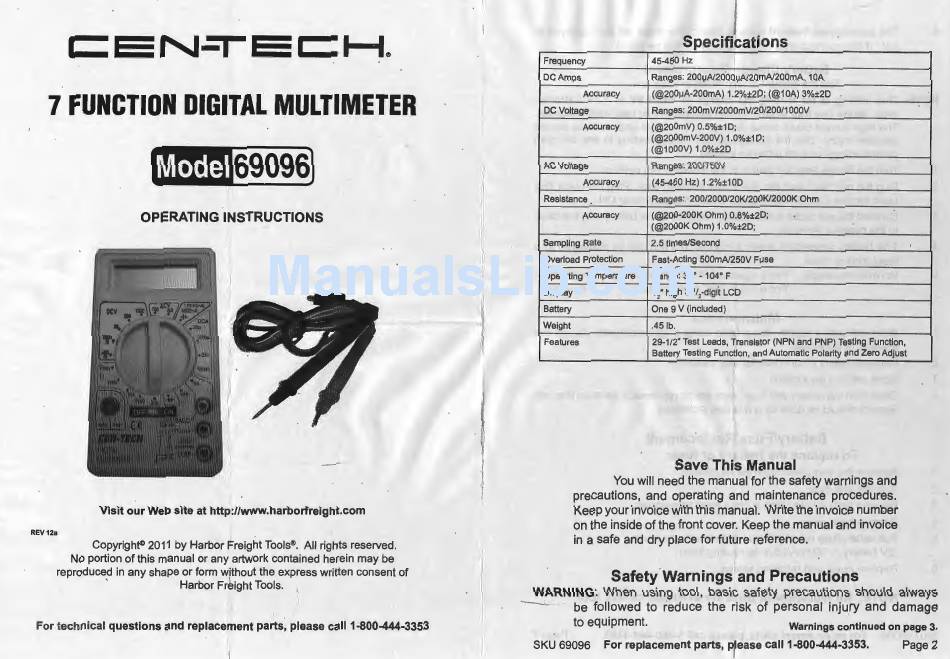

Specifications
Frequency
45-450
Hz
DC Amps
Ranges:
200µA/20.
0 0µA/20mA/200mA,
1 OA
Accuracy
(@200µA-200mA}
1.2%±20;
(@1 QA)
3%±20
DC Voltage
Ranges:
200mV/2000mW20/200/1
OOOV
Accuracy
(@200mV)
0.5%±1
D;
'r
(@2000mV-200V)
1.0%±1
D;
(@1000V)
1.0%:1:20
AC Voltage
Ranges: 200/750V
Accuracy
(45-450 Hz)
1.2%±100
'
Resistance
Ranges:
200/2000/20K/200K/2000K
Ohm
Accuracy
(@200-200K
Ohm} 0.8%±20
;
(@2000K Ohm) 1.0%±20;
Sampling
Rate
2.5 times/Second
Overl oad Protecti
on
Fast-Acting 500mA/250V Fuse
Operating Temperature
Range
: 32°
-
104°
F
Display
'I,"
high
3-
1 /
2
-digii LCD
Battery
One 9
V
(included}
Weight
.45
lb.
Features
29-1/2"
Test
Leads,
Transistor
(NPN and
PNP)
Testin
g
Function
,
Battery Testing
Function,
and
Automatic
Polarity and Zero Adju st
Save This Manual
You will need the manual for the safety warnings and
precautions,
and operating and maintenance
procedures.
Keep your invoice with this manual. Write the invoice number
on the inside of the front
cover.
Keep the manual and invoice
in a safe and dry place for future reference.
Safety
Warnings''
and Precautions
WARNING
:
When using tool, basic safety precautions should always
be followed to reduce the risk of personal injury and damage
to equipment.
Warnings continued on page 3.
SKU 69096
For replacement parts, p/ease call 1-800-444-3353.
Page 2
