XONTEL S3200-FXS User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
S3200-FXS Gateway
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S3200-FXS and is the answer not in the manual?

Questions and answers

Related Manuals for XONTEL S3200-FXS

Summary of Contents for XONTEL S3200-FXS

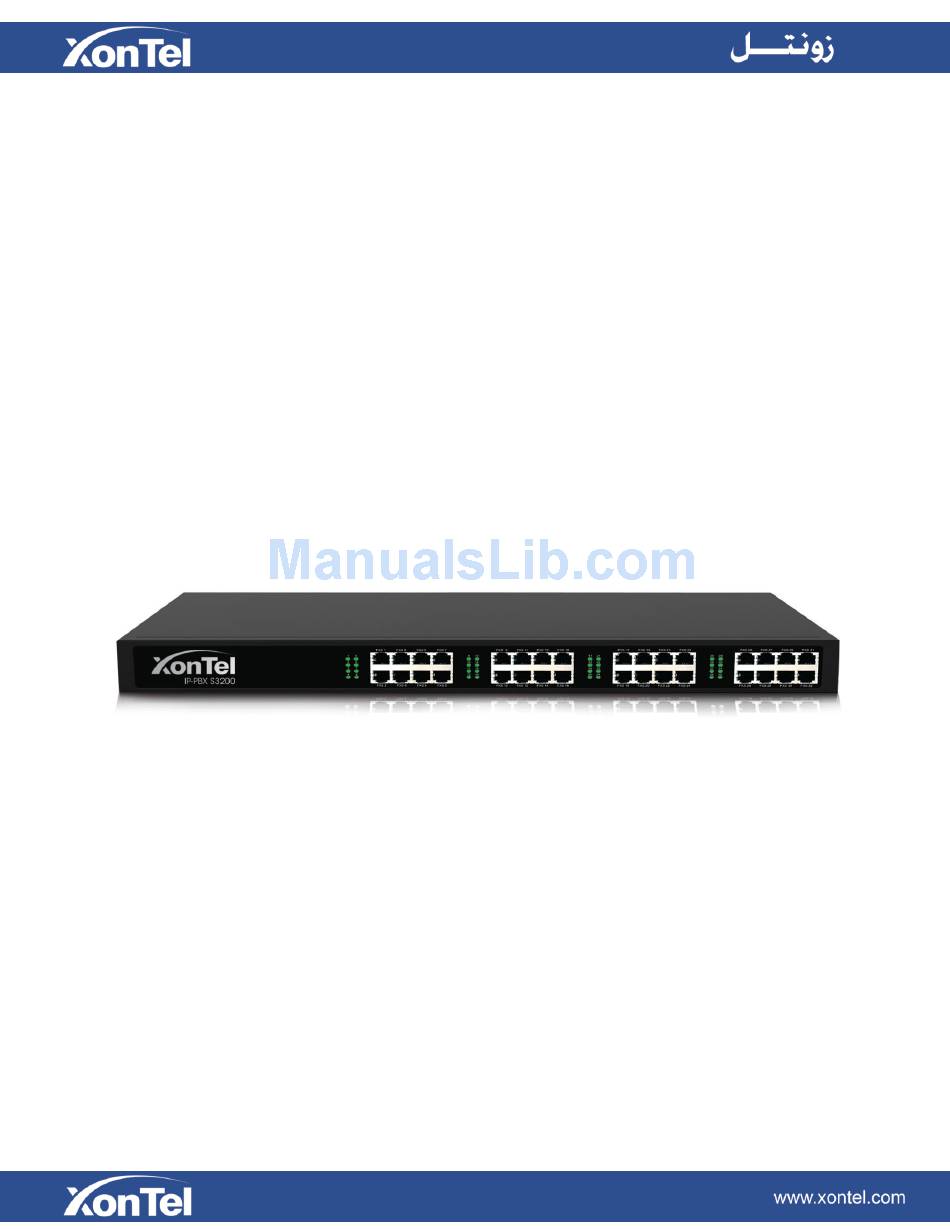

  • Page 1 S3200-FXS Gateway User Manual...

  • Page 2: Declaration Of Conformity

    No parts of this publication may be reproduced or transmitted in any form or by any means, electronic or mechanical, photocopying, recording, or otherwise, for any purpose, without the express written permission of XonTel. Under the law, reproducing includes translating into another language or format.
  • Page 3 Warranty The information in this document is subject to change without notice. XonTel makes no warranty of any kind with regard to this guide, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose.

  • Page 4: Table Of Contents

    Call Waiting ................................... 11 Call Transfer ................................. 11 Three-party Conference ............................12 Direct IP Call ................................. 12 Change S3200-FXS Gateways IP Address Using Analog Phones ..............12 FXS Port Settings ............................14 General Settings ................................14 Other Settings ................................16 Hunt Group ...................................
  • Page 5 VPN Settings ................................. 42 DDNS Settings ................................43 Static Route .................................. 44 SNMP Settings ................................46 TR-069 Settings ................................46 Security Center ............................48 Security Center ................................48 Alert Settings ................................49 AMI Settings .................................. 51 Certificates ..................................52 Firewall Rules ................................53 IP Blacklist ..................................

  • Page 6: About This Guide

    VoIP. Audience This manual will help you learn how to operate and manage your S3200-FXS Analog VoIP Gateway. In this guide, we describe every detail on the functionality and We begin by assuming that you are interested in configuration of S3200-FXS.

  • Page 7: Getting Started

    Getting Started In this chapter, we guide you through the basic steps to start with a new S3200-FXS Gateway: Accessing Web GUI Web Configuration Panel Making and Receiving Calls Accessing Web GUI The S3200-FXS Gateway attempts to contact a DHCP server in your network to obtain valid network settings (e.g., the IP address, subnet mask, default gateway...
  • Page 8 Figure 2-1 S3200-FXS Gateway Login page...

  • Page 9: Web Configuration Panel

    System: configure Network Settings, Security related Settings, System Date and Time, Password, Backup and Restore, etc. Gateway: configure FXS ports, gateway settings and SIP settings, etc. Logout: log out S3200-FXS Gateway. Note: After saving the changes, remember to click the “Apply changes” button on the upper right corner of the Web GUI to make the changes take effect.

  • Page 10: Basic Operations

    Change S3200-FXS Gateways IP Address Voice Menu S3200-FXS Gateway provides a voice menu to guide you to configure the network settings for the device. You need to press *** on the analog phone which is connected to S3200-FXS Gateways FXS port to enter the voice menu.

  • Page 11: Call Hold

    Figure 3-2 Enable Call Waiting Call Transfer Blind transfer and attended transfer are supported on S3200-FXS Gateway. Users can achieve call transfer by pressing the feature code during the call. Blind Transfer Default feature code: *03 1.

  • Page 12: Three-Party Conference

    To call the IP phone, you should dial *96192*168*2*123*5060 on the analog phone. Change S3200-FXS Gateways IP Address Using Analog Phones By default, S3200-FXS Gateway obtains a dynamic IP address from the DHCP server. You can change the device’s IP address via the analog phone which is connected to the FXS port.
  • Page 13 Here we introduce how to set a static IP address for S3200-FXS Gateway. IP address: 192.168.10.125 Subnet mask: 255.255.255.0 Gateway: 192.168.10.1 DNS: 8.8.8.8 1. Press *** to enter the voice menu. 2. Press 3 to enter the “Advanced Settings”. 3. Enter the password follow by the pound key: 123456# (The default password is 123456).

  • Page 14: Fxs Port Settings

    FXS Port Settings This chapter explains how to configure FXS port on S3200-FXS Gateway, go to Gateway→ Port List→ Port List page to configure the FXS ports. General Settings Other Settings Hunt Group Click "Edit" button to configure the FXS port.
  • Page 15 Caller ID Name A character-based name for this user. For example, Bob Jones. General Caller ID Number The Caller ID string used when this user calls another user. Choose a VoIP server, where the account will be VoIP Server registered. User Name User name provided by VoIP server.

  • Page 16: Other Settings

    Other Settings Figure 4-2 FXS Port Other Settings Table 4-2 Description of FXS Port Other Settings Follow Me Choose the forward type and configure the relevant destination number. In different conditions, the incoming calls to the account will be forwarded to different destinations.

  • Page 17: Hunt Group

    Gateway: neon, FSK and Polarity. Choose the lighting method MWI Light Option according to your phone. S3200-FXS Gateway will light the lamp up once receiving a new message; the lamp will goes off if there is no unread voice mail.
  • Page 18 S3200-FXS Gateway model has. For example, there are 24 hunt groups on S3200-FXS Gateway. Hunt group will be chosen when configuring the FXS port "Follow Me". The hunt group will work when a call reaches the FXS port associated user which is busy or no answer.
  • Page 19 FXS port1, the next call will go to 2, the next to 3. The succession throughout each of the FXS users even if one of the previous local users becomes free. When the end of the hunting group is reached, the hunting starts over at the first local users. Linear Linear hunting is also referred to serial hunting.

  • Page 20: Voip Settings

    VoIP Settings To integrate with other IP PBX, we need to configure the VoIP settings in S3200-FXS Gateway to set up VoIP trunk (SIP and IAX). In this chapter, we introduce the following settings: VoIP Server Settings Dial Pattern Template...
  • Page 21 Template Register – register to your VoIP server and apply the template to FXS ports. The FXS ports will register to the server with the same account. Figure 5-2 Template Register Check VoIP settings below. General Table 5-1 Description of VoIP Server General Settings Items Description Server ID...

  • Page 22: Dial Pattern Template

    Set default mode for sending DTMF of this trunk. Default DTMF Mode setting: rfc2833 Define the codec for this sip trunk and its priority. S3200-FXS Gateway supports the following codec: u-law, a-law, G726, Codec G729A/B, GSM, ADPCM, G722, G723, iLBC.

  • Page 23: Sip Settings

    Figure 5-3 Dial Pattern Template Table 5-3 Description of Dial Pattern Template Settings Items Description Template ID The ID for this template. Template Name A name for this template. Calls from the FXS port should match the dial pattern set on this template, or the call cannot be established.
  • Page 24 Figure 5-4 SIP General Settings Table 5-4 Description of SIP General Settings Items Description UDP Port Port used for SIP registrations. The default is 5060. Enable Random Port Enable or Disable Random SIP port. Random Port Update Set the Random Port Update Interval. Interval TCP Port Port used for SIP registrations.
  • Page 25 Once enabled, when dialing out via SIP/SPS trunks, the Calling Channel Codec codec of calling channel will be selected preferentially. If Priority not, S3200-FXS Gateway will follow the priority order in your SIP/SPS trunks. Video Support Support SIP video or no. The default is yes.
  • Page 26 Enable STUN (Simple Traversal of UDP through NATs) is a protocol for assisting STUN devices behind a NAT firewall or router with their packet routing. The STUN server allows clients to find out their public address, the type of NAT they are behind and the internet side port associated by the NAT with a STUN particular local port.
  • Page 27 TA FXS Gateway side. 4) Response Code You can change the response code on S3200-FXS Gateway to the one you want before sending it to the VoIP server. It helps the VoIP server understands better the exact call status, like busy, no response and others.
  • Page 28 Allow Guest that it is disabled for security reason. Pedantic Enable pedantic parameter. Default: no. If enabled, when S3200-FXS Gateway rejects “Register” or “Invite” packets, S3200-FXS Gateway always respond the packets using “SIP404 NOT Alwaysauthreject FOUND”. It’s recommended that it is enabled for security reason.

  • Page 29: Iax Settings

    Session-refresher Choose the session-refresher, the default is Uas. IAX Settings IAX is the Internal Asterisk Exchange protocol, you can connect to S3200-FXS Gateway or register IAX trunk to another IAX server. It’s supported by the asterisk-based IP PBX. Figure 5-10 IAX Settings...

  • Page 30: Gateway Settings

    Gateway Settings This chapter explains Gateway settings, which can be applied globally to S3200-FXS Gateway. The gateway settings can be configured under Gateway→ Gateway Settings. Basic Preferences Feature Codes Speed Dial Basic Preferences Figure 6-1 Basic Preferences Table 6-1 Basci Preferences...

  • Page 31: Feature Codes

    Set the iLBC packet frame size. Feature Codes There are various feature codes on S3200-FXS Gateway. The feature codes are used to acquire the gateway info or activate and inactivate supplementary services. The default feature codes are illustrated below. The parameters for feature codes are configurable.
  • Page 32 Voice Menu The password of voice menu is required before entering Password 123456 the advanced settings. The default password is 123456. Settings Table 6-3 Description of Call Forwarding Preferences Items Default Description Users may reset all call forwarding defaults Reset to Defaults by calling *70 on their phone.

  • Page 33: Speed Dial

    The number you want to call. To make a speed dial, e.g. you want to call 18033334444, simply dial *981. The *98 tells S3200-FXS Gateway that you want to use the Speed Dial and the 1 is the Speed Dial Code for destination number 18033334444.

  • Page 34: Prompt Settings

    Prompt Settings This chapter explains prompt settings on S3200-FXS Gateway. Custom Prompts Music on Hold Prompts System Prompts Custom Prompts We can upload the prompts in this page; you can also download it and save it as a backup. Figure 7-1 Custom Prompts The administrator can upload prompts by doing the following: 1) Click “Upload Prompt”.

  • Page 35: Music On Hold Prompts

    Alaw/Ulaw 8 kHz, Mono, 1 Kb/s; PCM 8 kHz, Mono, 16 Kb/s. System Prompts S3200-FXS Gateway supports Chinese and English system prompts. You can download the appropriate language you need. Notes: 1. Auto-detection is highly recommended. But if you prefer to download via HTTP or TFTP server, please contact the local dealer for the prompts.
  • Page 36 Figure 7-5 System Prompts Settings Page...

  • Page 37: Advanced Settings

    Tone Zone Settings RADIUS Settings Distinctive Ringtones S3200-FXS Gateway provides 10 configurable distinctive ringtones. Users could configure different ringtones to match different incoming caller ID. For example, if Inbound Caller Pattern is configured as “100.”, all the incoming calls start with digits “100” will ring using cadence “2000,4000” as the following figure shows.

  • Page 38: Radius Settings

    RADIUS Settings TA FXS Gateway supports RADIUS (Remote Authentication Dial in User Service) protocol. RADIUS feature is mainly for billing purpose on S3200-FXS Gateway. There are primary and secondary RADIUS server configurations available. Once the primary server is unreachable, the RADIUS requests will be sent to the secondary server.
  • Page 39 Figure 8-4 RADIUS Settings Table 8-2 Description of RADIUS Settings Items Description Enable RADIUS Enable RADIUS on S3200-FXS Gateway. Primary Server IP Set IP address of the primary server. Primary Server Default is 1813. Specifies the port to be used for the primary Port RADIUS account.

  • Page 40: Network Preferences

    Static Route SNMP Settings TR-069 Settings LAN Settings After successfully logging in the S3200-FXS Gateway Web GUI for the first time, users could go System→Network Preferences→LAN Settings to configure the network for S3200-FXS Gateway. Figure 9-1 LAN Settings Table 9-1 LAN Settings...

  • Page 41: Service

    Figure 9-3 PPPoE Fill in user name and password to access the Internet via PPPoE. Service The administrator can manage all the access methods on S3200-FXS Gateway on the "Service" page. Figure 9-4 Service Settings Table 9-2 Description of Service Settings...

  • Page 42: Vlan Settings

    A VPN can provide secure information transport by authenticating users, and encrypting data to prevent unauthorized persons from reading the information transmitted. The VPN can be used to send any kind of network traffic securely. S3200-FXS Gateway supports Open VPN.

  • Page 43: Ddns Settings

    1. Uncomment “user” and “group” in the “config” file. You can get the config package from the Open VPN provider. 2. S3200-FXS Gateway works as VPN client mode only. DDNS Settings DDNS (Dynamic DNS) is a method/protocol/network service that provides the...

  • Page 44: Static Route

    S3200-FXS Gateway will have more than one Internet connection in some situations but it has only one default gateway. You will need to set some Static Route for S3200-FXS Gateway to force it to go out through different gateway when accessing to different internet.
  • Page 45 Define which gateway S3200-FXS Gateway will go through when Gateway accessing the destination network.

  • Page 46: Snmp Settings

    SOAP/HTTP-based protocol, it provides the communication between customer-premises equipment (CPE) and Auto Configuration Servers (ACS). XonTel S3200-FXS Gateway acts as a CPE, enable TR-069 and configure the parameters in the corresponding fields, if configured correctly, the gateway will establish the TR-069 session with the ACS.
  • Page 47 Figure 9-10 TR-069 Settings Table 9-5 Description of TR-069 Settings Items Description URL of the TR-069 ACS. This is the URL the CPEs will ACS URL send TR-069 messages to. Username for HTTP authentication against the ACS. Leave it ACS Username blank if no ASC username.

  • Page 48: Security Center

    Certificates Firewall Rules IP Blacklist Security Center All the security settings including Firewall, Service, Port Settings in S3200-FXS Gateway are displayed in Security Center. Users could rapidly check and configure the relevant security settings here. 1) Firewall In the “Firewall” tab, users could check firewall configuration and alert settings. By clicking the relevant button, you can enter the configuration page directly.

  • Page 49: Alert Settings

    3) Port In “Port” tab, you can check SIP port and HTTP port. You can also enter the relevant page by clicking the button in “Setting” column. Figure 10-3 Security Center—Port Alert Settings If the device is under attack, the system will alert users via call or E-mail. The attack modes include IP attack and Web Login.
  • Page 50 Figure 10-4 Alert Settings Table 10-1 Description of Alert Settings Phone Notification Settings PHONE Whether to enable phone notification or not. Notification The numbers could be set for alert notification; users can setup multiple extension and outbound phone numbers. Please separate them by “;”. Number Example: “500;9911”, if the extension has configured Follow Me Settings, the call would go to the forwarded number...

  • Page 51: Ami Settings

    There are two main types of messages on the Asterisk Manager Interface: manager events and manager actions. The 3 party software can work with S3200-FXS Gateway using AMI interface. It is disabled by default. If necessary, you can enable it. Figure 10-5 AMI Settings User Name, Password &...

  • Page 52: Certificates

    Gateway Certificate This certificate is server certificate. No matter selecting “TLS Verify Client” as “Yes” or “NO”, you should upload this certificate to S3200-FXS Gateway. If the VoIP provider enables “TLS Verify server”, you should also upload the relevant CA certificate on the VoIP provider.

  • Page 53: Firewall Rules

    Firewall Rules Firewalls are used to prevent unauthorized Internet users from accessing private networks connected to the Internet, especially intranets. All messages entering or leaving the intranet pass through the firewall, which examines each message and blocks those that do not meet the specified security criteria. Figure 10-7 Firewall Settings 1) General Settings Table 10-2 Description of Firewall General Settings...
  • Page 54 Figure 10-8 Common Rules Table 10-3 Description of Common Rules Items Description A name for this rule, e.g. “HTTP”. Name Simple description for this rule. E.g. accept the specific host to Description access the Web interface for configuration. The protocols for this rule. Protocol Initial port should be on the left and end port should be on the right.

  • Page 55: Ip Blacklist

    Table 10-4 Description of Auto Defense Items Description The port you want to auto defense, for example, 8022. Port Select the protocol. You can select UDP or TCP. Protocol The maximum packets or connections can be handled per unit time. For example, if you configure it as below: Port: 8022 Rate Protocol: TCP...
  • Page 56 Table 10-5 Description of Auto Blacklist Rules Items Description Auto defense port Port Auto defense protocol. TCP or UDP. Protocol Allowed IP packets number in the specific time interval. IP Packets The time interval to receive IP packets. For example, IP packets 90, Time interval time interval 60 means 90 IP packets are allowed in 60 seconds.

  • Page 57: System Preferences

    4. Log in S3200 FXS Gateway using the new password. Figure 11-1 Password Settings Date and Time Please adjust the time of S3200-FXS Gateway (including the time zone) consistent with your local time. Go to System→System Preferences→Date and Time to configure the system date and time.

  • Page 58: Email Settings

    Enter the time using the numbers on your keyboard. Note: you have to reboot the system to make the changes take effect. Email Settings Please Configure Email settings if you want to use Email notification in “Alert Settings” in XonTel S3200 FXS Gateway Figure 11-3 Email Settings...
  • Page 59 Email Address: The Email address that S3200 FXS Gateway will use to send system alert or balance alarm Password The password for the Email address used above SMTP Server The hostname of an SMTP server that S3200 FXS Gateway will connect in order to send system alarm or balance alarm via email, i.e.

  • Page 60: Firmware Upgrade

    When updating the firmware, please don’t turn off the power. Or the system will be damaged. If you are trying to upgrade through HTTP, please make sure that your S3200-FXS Gateway is able to visit external network, or it cannot access XonTel website to get the firmware file, causing the upgrade fail.

  • Page 61: Upgrade Through Tftp

    On option “Current Directory”, click “Browse” button, choose the firmware file (BIN file) upgraded patch. Figure 11-5 Configure Tftpd32 Login to S3200-FXS Gateway Web page and go to System→System Step3. Preferences→Firmware Update, choose “TFTP Server”. 1) TFTP Server: fill in IP address of tftpd32 server (your PC’s IP address).

  • Page 62: Backup And Restore

    S3200-FXS Gateway configurations to a file. Notes: 1. When you have updated the firmware version, it’s not recommended to restore using an old package. 2. Backup from an earlier version cannot be restored on S3200-FXS Gateway of a later version. Create a New Backup Click to create a new backup.
  • Page 63 Figure 11-8 Reset and Reboot...

  • Page 64: Status

    Status Users could check the system status on Status→System Status, where FXS Port Status, Network Status and System Info can be checked. FXS Port Status Network Status System Info FXS Port Status Figure 12-1 FXS Port Status Table 12-1 Description of FXS Port Status Up/Down The FXS module works well.

  • Page 65: Network Status

    Network status In this page, the IP address of LAN port will appear with their status. Figure 12-2 Network Status If your VLAN or VPN are configured, you can check the status in this page also. System Info In this page, we can check the hardware/firmware version, or the disk usage of TA FXS Gateway.

  • Page 66: Reports

    Reports Users could check the call logs, system logs on Status→Reports page, and use the packet Tool and Port Monitor Tool to capture debug logs from S3200-FXS. Call Logs System Logs Packet Tool Port Monitor Tool Call Logs The call log captures all call details, including call time, caller number, callee number, call type, call duration, etc.

  • Page 67: Packet Tool

    Figure 13-2 System Logs Packet Tool This feature is used to capture packets for technician. Integrate packet capture tool “Wireshark” in S3200 FXS Gateway. Users also could specify the destination IP address and port to get the packets. Figure 13-3 Packet Tool...

  • Page 68: Port Monitor Tool

    Port Monitor Tool This tool is used to debug a FXS port. Select a FXS port and click “Start” to monitor the FXS port, stop monitoring by clicking “Stop” button. Figure 13-4 Port Monitor Tool...
