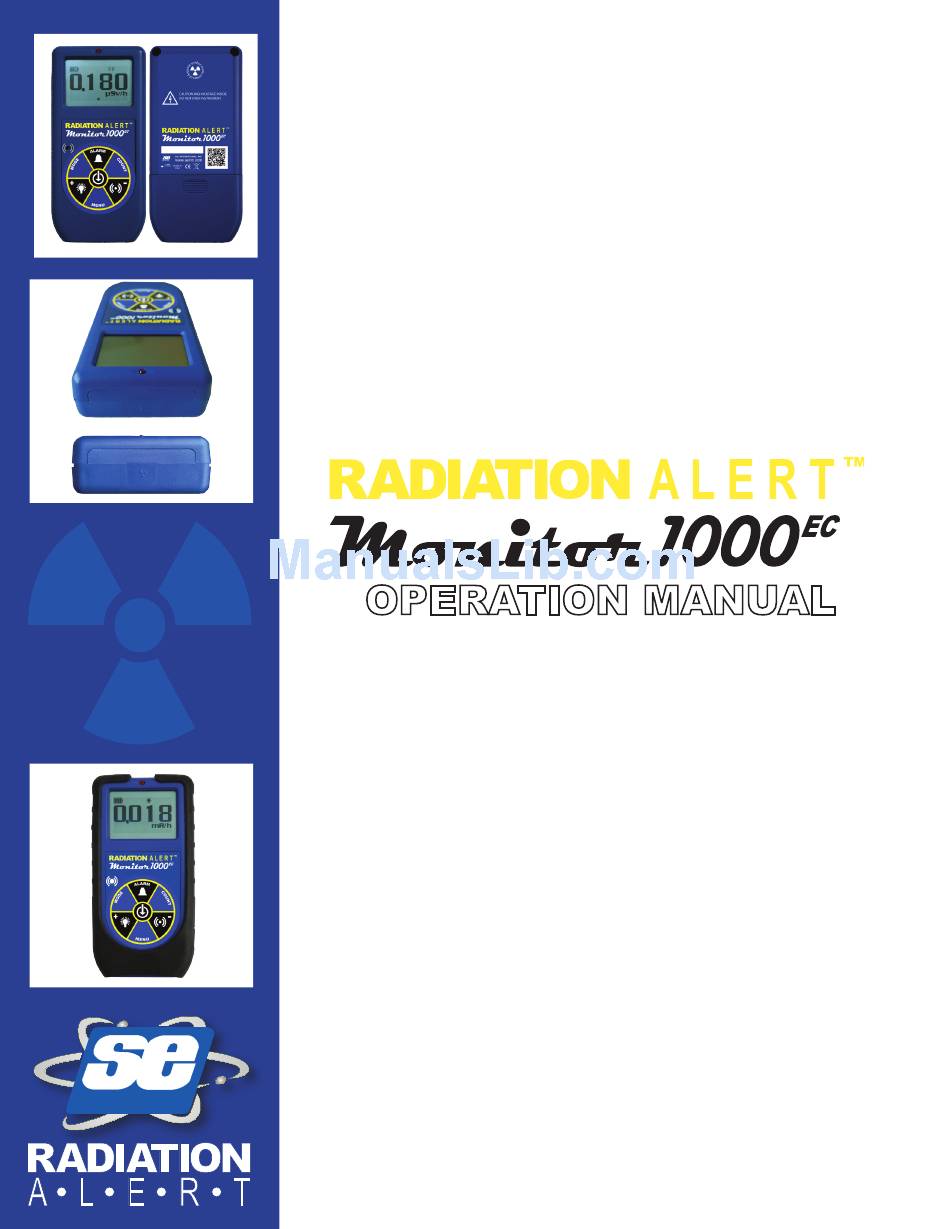

- Page 1 INTERNATIONAL ® S.E. International, Inc. P.O. Box 39, 436 Farm Rd. Summertown, TN 38483 USA 1.800.293.5759 | 1.931.964.3561 | Fax: 1.931.964.3564 www.seintl.com | radiationinfo@seintl.com...
-
Page 2: Table Of Contents
Contents Cal Panel (Calibration Panel) Chapter 1: Introduction Calibration Information How the Monitor 1000 Detects Radiation Functions Precautions Retrieve Memory Chapter 2: Features Synchronize Monitor 1000 to PC Clock The LCD Display Chapter 7: Troubleshooting Indicators Accessories The Buttons Xtreme Boot (Included) Power (Enter) Button Lanyard (Included) Alarm Button... -
Page 3: Chapter 1: Introduction
Chapter 1: Introduction The Monitor 1000 is a health and safety instrument that is optimized to detect low levels of radiation. It measures gamma and x-ray radiation (ionizing radiation only). Its applications include: • Detecting and measuring surface contamination • Monitoring possible radiation exposure while working with radionuclides •... -
Page 4: Chapter 2: Features
Chapter 2: Features The Monitor 1000 measures gamma and x-ray radiation. It is optimized to detect small changes in radiation levels and to have high sensitivity to many common radionuclides. This chapter briefly describes The Monitor 1000 ’s features. The Monitor 1000 counts ionizing events and displays the results on the liquid crystal display (LCD). -
Page 5: The Buttons
The Buttons The Monitor 1000 has a circular membrane button on the face of the instrument, which consists of: Power (Enter), Alarm, Count, Audio (Minus), Menu, Backlight (Plus), and Mode. Power (Enter) Button The power (enter) button is located in the center of the membrane switch. -
Page 6: Mode Button
Mode Button The MODE BUTTON (Figure 2 (2)) is used to select from the available units of measurement. • mR/hr (MilliRoentgen) - displays the radiation level from .001 to 200. • CPS (Counts Per Second) - displays the radiation level from 0 to 3923. •... -
Page 7: Chapter 3: Operation
Chapter 3: Operation Starting The Monitor 1000 Before starting the Monitor 1000 , install 2 AA alkaline batteries in the battery compartment located in the lower rear of the enclosure. You will need to remove the protective boot to gain access. CAUTION: Be sure not to press on the window of the GM tube while removing the boot. -
Page 8: Autoranging
Autoranging When radiation levels increase in some modes over certain preset levels, the Monitor 1000 uses autoranging, automatically changing from CPM to KCPM or from µR/hr to mR/hr. Operating in Dose/Rate Modes Caution: Be sure there is no obstruction between the detector window and the source being monitored/ surveyed. -
Page 9: Operating In Count Mode
Operating in Count Mode A timed count is useful for determining the average counts per minute over a longer period of time. The number of counts detected varies from minute to minute due to the random nature of radioactivity. When a count is taken over a longer period, the average count per minute is more accurate. -
Page 10: Menu Items
Menu Items Auto Averaging Turns auto averaging on or off. On by default. Data Logging Turns the internal memory on or off to record readings. Off by default. Set To Defaults Resets the Monitor 1000 to the default factory settings. Doing this will not change the deadtime and sensitivity, the time and date, or the data collection frequency. -
Page 11: Chapter 4: Common Procedures
Chapter 4: Common Procedures The following sections give instructions for several commonly-used procedures. With any procedure, the user must determine the suitability of the instrument or procedure for that application. Establishing the Background Count Normal background radiation levels vary at different locations, different times, even in different areas of the same room. -
Page 12: Chapter 5: Maintenance
Chapter 5: Maintenance The Monitor 1000 requires regular calibration and careful handling to assure good measurements. Use the following guidelines to properly maintain the instrument. Calibration We recommend that the Monitor 1000 be calibrated annually, or as often as your regulations require. The best way to calibrate the Monitor 1000 is using a calibrated source at a calibration lab. -
Page 13: Chapter 6: Observer Usb Software
Chapter 6: Observer USB Software The Observer USB reads in Total Counts, CPM, µR/hr, mR/hr, CPS, µSv/hr, and has the ability to collect, log the data received, set the calibration date and settings, and echo the readings collected on a PC. The data is displayed on a graph, as well as a digital on-screen meter. -
Page 14: Observer Usb Meter Screen
Observer USB Meter Screen The Observer USB Meter Screen (Figure 6(3)) simulates a digital meter to display the readings collected by the detector. Zero When the Zero is clicked, the averaging of the collected counts starts over. Averaging Time The Averaging Time selects the amount of time in which the previous readings are averaged. -
Page 15: View
View Preferences Use View > Preferences menu to adjust the settings in the Observer USB Preferences (Figure 6(5)). Chart Settings Autosave and Clear Chart Every Will automatically save and clear the chart at the number of minutes selected. Auto Save files are saved to the Observer USB Data folder located in the Documents Library. -
Page 16: Functions
Alarm cpm and Alarm Enabled To activate the alarm, enter the alarm threshold in the Alarm cpm field, and check Alarm Enabled. To disable the alarm, uncheck Alarm Enabled. If the alarm has been activated and Alarm Enabled is then unchecked, the alarm will continue to sound until Update Settings has been selected. -
Page 17: Chapter 7: Troubleshooting
Chapter 7: Troubleshooting The Monitor 1000 is a highly reliable instrument. If it does not seem to be working properly, look through the following chart to see if you can identify the problem. Problem Possible Cause Action Display works, but no counts defective Geiger tube Replace it. -
Page 18: Accessories
Accessories Xtreme Boot (Included) The Xtreme boot offers maximum performance in a lightweight rugged solution for using Radiation Alert® products in the field. The Xtreme boot is designed specifically for individuals operating in tough environments, such as 1st Responders and Mining and HAZMAT crews. Made of a RoHS compliant TPE rubber, the case also offers superior grip and drop protection. -
Page 19: Appendix A: Technical Specifications
Appendix A: Technical Specifications Detector Halogen-quenched GM tube with thin mica end window. Mica window density 1.5-2.0 mg/cm2. Effective window diameter is .360 inch. Side wall is .012 inch thick. Operating Range mR/hr - .001 (1µR) to 1000 mR/hr 71313 ENERGY RESPONSE (Relative to Cs-137) µSv/hr - .01 to 10000 CPM - 0 to 450,000... -
Page 20: Appendix B: Limited Warranty
PROCEDURE FOR OBTAINING PERFORMANCE OF WARRANTY: In the event that the product does not conform to this warranty, please write or call to the address above. S.E. International, Inc. will not accept contaminated instruments for calibration or repair under warranty or otherwise. -
Page 21: Calibration Database Application
Please fill out this form and send it back to us if you would like to be notified of the NIST calibration renewal for your instrument to: S.E. International, Inc. P.O. Box 39, 436 Farm Rd. Summertown, TN 38483 1.800.293.5759 | 1 931.964.3561 | Fax: 1.931.964.3564 www.seintl.com | radiationinfo@seintl.com...
