Summary of Contents for Edmonds AiroMatic

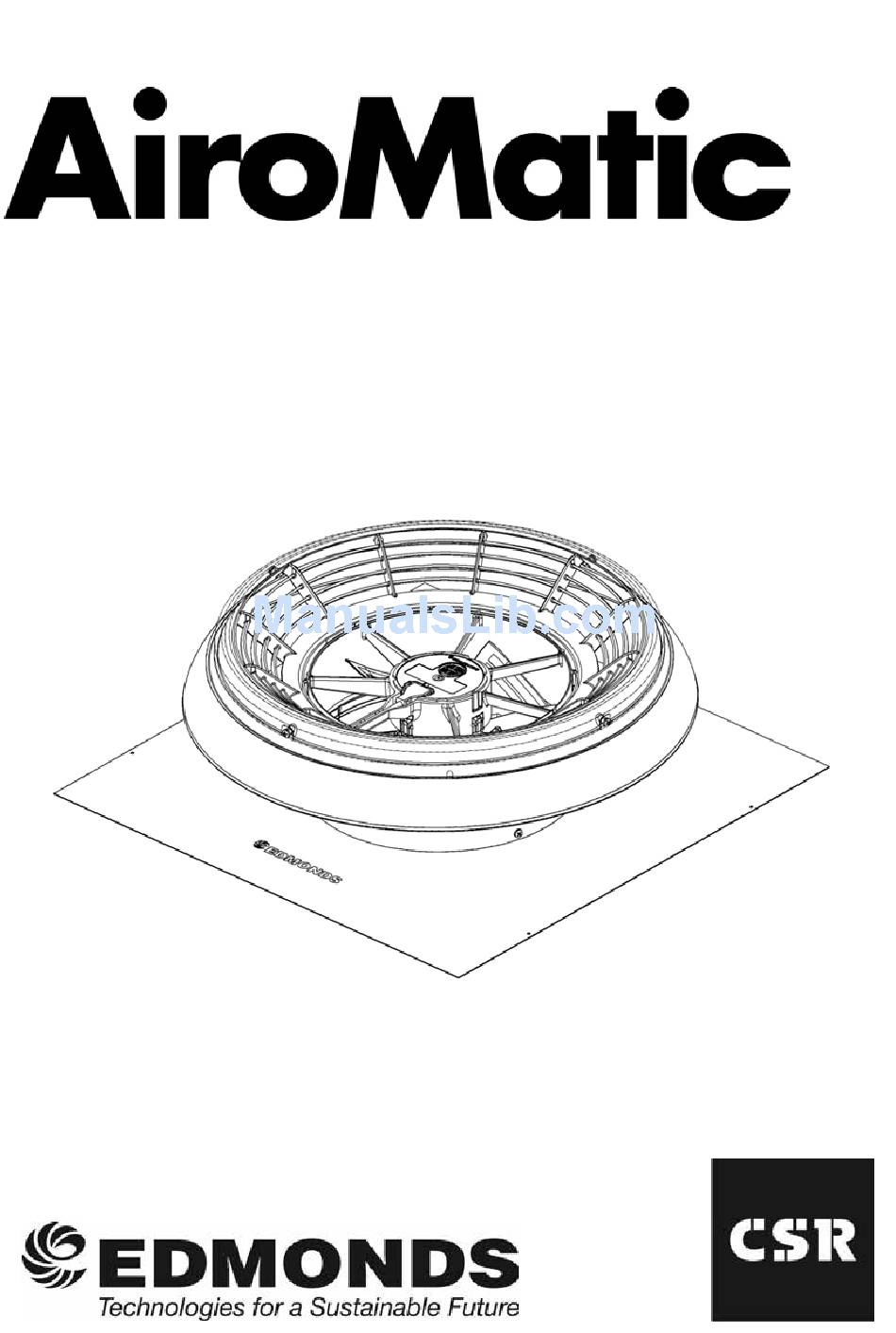

- Page 1 Product Manual...
- Page 2 Item Checklist & Additional Tools Required For Installation Included Parts: QTY: AiroMatic Speed Controller Power Supply Fixing Strap Speed Controller Fixing Screws 6Gx13mm Product Manual Warranty Document Additional Parts & Tools Required (Not Supplied) Soft Rubber Hammer Roof Sealant & Caulking Gun Cable Ties Cordless Drill &...
- Page 3 NOT use to exhaust hazardous or explosive materials and vapours The Airomatic has an unguarded fan assembly. DO NOT use in locations readily accessible to people or animals. The fan is intended for use facing an unoccupied space only.
- Page 4 Installation—Tiled Roof STEP 1 Remove one tile from the third row down from ridge cap. If the gap produced is less than a 250mm square opening then either push the tiles above upwards or cut the tiles to provide clearance The removal of a tile higher than this may damage the integrity of the ridge tile pointing and is NOT recommended STEP 2...
- Page 5 Installation—Tiled Roof STEP 3 Taking the Airomatic unit slide the flashing under the tiles above the opening. Ensure the motor cable is on the low side for correct orientation. Centre the unit over the opening. Make sure that the cable is through the opening and not caught under the flashing.
- Page 6 Installation—Tiled Roof STEP 5 To ensure a weatherproof installation, apply a bead of silicone under the side and front edges of the flashing. STEP 6 From within the roof space, fit the fixing strap by hooking it between the flashing up stand and the outer housing.
- Page 7 Installation—Tiled Roof STEP 7 Take the fixing strap and screw/ nail (not supplied) it to the bottom batten The strap can be deformed as required to achieve this. For additional weather proofing turn the rear edge Turning the rear of the flashing upwards allows it of the flashing up to act as a gutter to prevent any wind driven so that it seals...
- Page 8 Installation—Metal Roof STEP 1 Position the vent in an appropriate position and slip the top edge of the flashing under the ridge capping. Mark the centre of each side to determine where the centre of the vent will Ensure the flashing covers the corrugations or ribs equally and that it is located between the roof joists.
- Page 9 Installation—Metal Roof STEP 3 Place the vent back on the roof by slipping the top of the flashing under the ridge capping. Line up the centre marks made earlier to ensure that the vent is centred on the opening Ensure that the cable is through the opening and not caught under the flashing.
- Page 10 Installation—Metal Roof STEP 5 Lift the flashing and run a bead of silicone along the underside of the flashing, following the edge along the three exposed sides. The fixing strap is not required for metal roof installations and can be discarded STEP 6 Secure the flashing to the metal sheeting...
- Page 11 Installation—Electrical Connection STEP 1 Connect the lead coming from the AiroMatic fan unit to the speed controller How the connectors clip together STEP 2 Connect the power supply lead to the speed controller STEP 3 Connect the power supply to a mains socket.
- Page 12 (30°C - 45°C) and roof cavity relative humidity (65%rH—80%rH). In AUTO mode the AiroMatic will run based off the environmental conditions. When the conditions are deemed suitable for no ventilation the unit will enter power saving mode and the motor will not run.
- Page 13 Painting the Airomatic WARNING: Do not disassemble the Airomatic unless you are confident that you understand the process. Damage caused by incorrect disassembly and reassembly can void the product warranty. STEP 1 Remove the 4 screws securing the dome. Lift the dome off...
- Page 14 The plastic used for the Airomatic housing is suitable for painting with standard spray paints without priming. The surface must be clean before painting. STEP 4 Paint Airomatic housing and flashing and allow to dry.
- Page 15 Painting the Airomatic STEPS 5,6,7 Reassemble the Airomatic using the reverse of the steps used to disassemble. When attaching the flashing make sure to align the notch in the flashing up stand with the cable exit All screws should be hand tightened until snug. Do not over tighten screws...
- Page 16 Technical Data Material: Dome: Plastic (PMMA – Clear, High Impact) Housing: Plastic (ASA) Flashing: Aluminium (Soft) Fan & Motor Housing: Plastic (PP-TD20) Fan Impeller: Plastic (PA6-GF30) Weight: 2.7 kg Electrical: Power Supply Type: Electronic Switching Mode Input: 100-240VAC, 1~, 50/60Hz, 2A Output: 24 VDC Fan Motor:...
- Page 17 Performance Data & Product Dimensions Sound Pressure Level (SPL) L Flow rate q Max. running power Speed consumption [W] /hr] [dB(A)] 35.4 45.1 52.9 NOTE—Sound pressure level measured 1m from fan inlet...
- Page 18 Can I wire it directly into the mains power? No, you must use the supplied power supply and speed controller for the Airomatic to work correctly. Failure to do so may damage the product. Can I duct the Airomatic? Yes, however a suitable collar or adaptor would be required to attach the ducting (Not Supplied).
- Page 19 __ __ __ __ __ __ __ __ __ __ __ __ / __ __ / __ __ March 2017 I-040-B Edmonds | business division of CSR Building Products Limited ABN 55 008 631 356 10 Stanton Road, Seven Hills NSW 2147 Australia | www.edmonds.com.au...
- Page 20 edmonds.com.au...
