HHP Dolphin 7900 User Manual

Windows mobile 2003 second edition software for pocket pcs
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
®
Dolphin
7900 Mobile Computer
Windows Mobile™ 2003 Second Edition Software for Pocket PCs
™

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Dolphin 7900 and is the answer not in the manual?

Questions and answers

Related Manuals for HHP Dolphin 7900

Summary of Contents for HHP Dolphin 7900

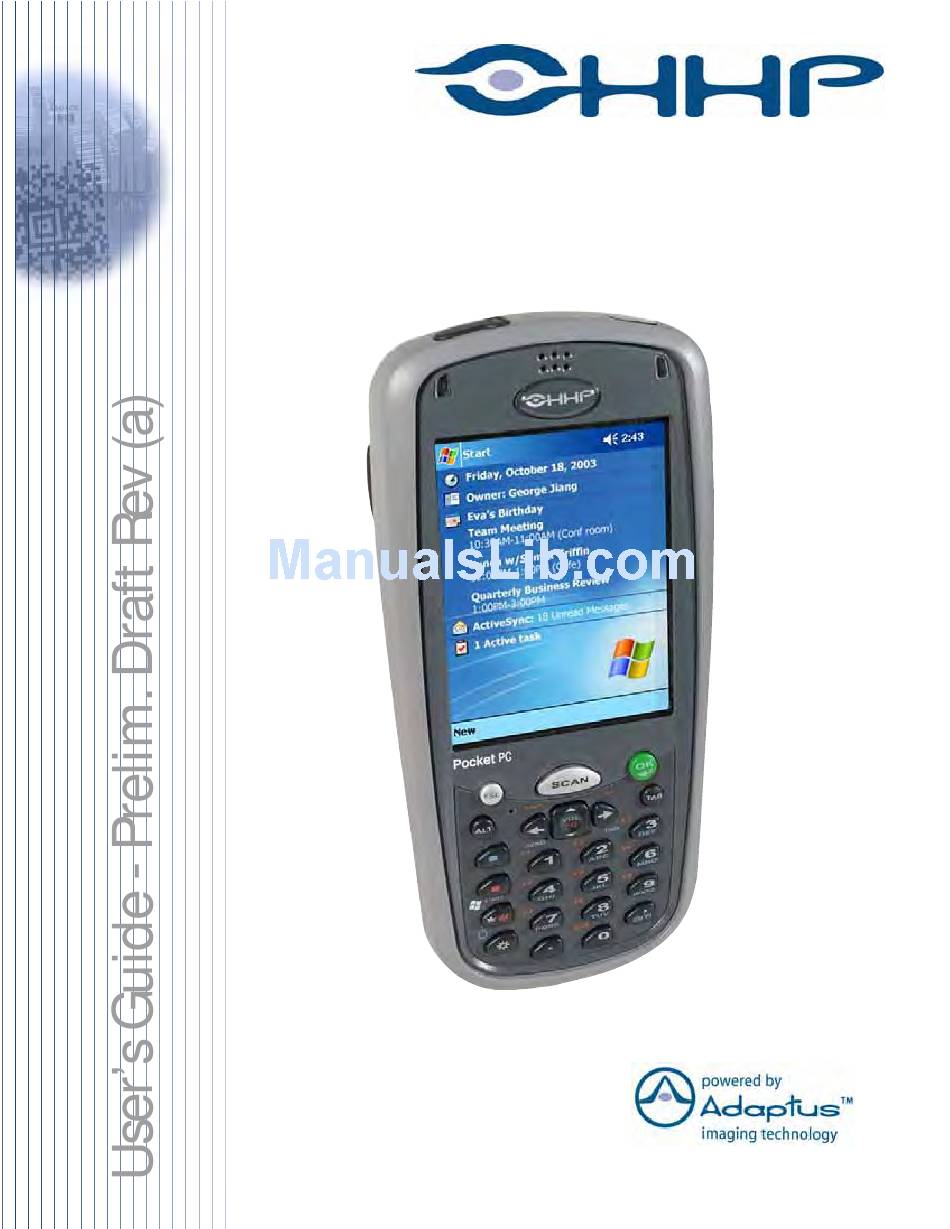

  • Page 1 ® Dolphin 7900 Mobile Computer Windows Mobile™ 2003 Second Edition Software for Pocket PCs ™...
  • Page 2 Hand Held Products, Inc. d/b/a HHP (“HHP”) reserves the right to make changes in specifications and other information contained in this document without prior notice, and the reader should in all cases consult HHP to determine whether any such changes have been made.

  • Page 3: Table Of Contents

    FCC Compliance..........................1-6 Dolphin 7900 Batch Terminal...................... 1-6 Dolphin 7900 RF Terminal with 802.11b, Bluetooth, and/or GSM Radios ........ 1-6 RF, Regulatory, and Safety Agency Approvals for 802.11b and Bluetooth ....... 1-7 RF, Regulatory, and Safety Agency Approvals for GSM ............1-7 Dolphin 7900 802.11b and/or Bluetooth R&TTE Compliance Statement ........
  • Page 4 Sample Bar Codes ........................5-4 Capturing Images ..........................5-5 Taking an Image ........................... 5-5 Uploading Images......................... 5-5 Chapter 6 - Using Dolphin 7900 Keyboards Overview............................. 6-1 Using the Function Keys........................6-2 Using the Navigation Keys ......................... 6-3 Using the Modifier Keys........................6-4 25-Key Numeric-Alpha Keyboard......................
  • Page 5 Personal Tab............................7-2 Adding a Program to the Start Menu.................... 7-3 Headset Control ..........................7-5 System Tab............................7-6 About ............................7-6 Backlight ............................7-7 Certificates............................ 7-7 ClearType Tuner........................... 7-7 Clock & Alarms..........................7-7 CPU Speed ........................... 7-7 Memory ............................7-8 Power............................
  • Page 6 Overview............................. 9-1 Powering Up the 802.11b Radio Driver ..................9-1 Configuration Utilities........................9-1 802.11b Settings..........................9-2 Status Tab ............................. 9-3 Config Tab............................ 9-5 Advanced Tab ............................9-10 About Tab........................... 9-11 The Status Icon .......................... 9-12 802.11b Wireless Security Supplement .................... 9-13 Required Network Configuration Information Worksheets ............
  • Page 7 SIM Card Installation........................11-2 Requirements..........................11-2 To Install a SIM Card:........................ 11-2 Using uPhone ............................ 11-3 Accessing uPhone........................11-3 Navigation Bar ........................... 11-3 Using the Dialler ..........................11-6 Making a Call ..........................11-6 Receiving a Call ......................... 11-7 Ending a Call ..........................11-8 Keyboard Combinations for Calls ....................
  • Page 8 Windows Media Player for Pocket PC ................... 12-22 MSN Messenger..........................12-24 Pictures............................12-26 Chapter 13 - Dolphin 7900 HomeBase Overview............................13-1 Dolphin 7900 HomeBase Parts and Functions ................. 13-2 Front Panel ..........................13-2 Rear Panel ..........................13-4 Powering the HomeBase........................13-5 HomeBase Serial Connector ......................13-6 Charging the Main Battery........................
  • Page 9 Mounting the ChargeBase......................... 15-6 Bottom Panel ..........................15-6 Using the DIN Rail........................15-6 Using the Mounting Brackets..................... 15-8 Chapter 16 - Dolphin 7900 QuadCharger Overview............................16-1 Dolphin QuadCharger Parts and Functions ..................16-1 Front Panel ..........................16-1 Rear Panel........................... 16-2 Supplying Power to the QuadCharger ....................
  • Page 10 Dolphin® 7900 Mobile Computer User’s Guide - Prelim. Draft Rev (a)

  • Page 11: Chapter 1 - Introduction

    Ergonomics The patented shape of the Dolphin 7900 fits into either hand comfortably with major function keys that are easy to access. The adjustable hand strap on the back panel ensures a secure grip on the terminal for solid one-handed operation in mobile environments.

  • Page 12: Required Safety Labels

    Required Safety Labels Dolphin 7900 mobile computers meet or exceed the requirements of all applicable standards organizations for safe operation. However, as with any electrical equipment, the best way to ensure safe operation is to operate them according to the agency guidelines that follow.

  • Page 13: Regulatory And Safety Approvals For All Dolphin 7900 Terminals

    5627 BT Eindhoven The Netherlands HHP shall not be liable for use of our product with equipment (i.e., power supplies, personal computers, etc.) that is not CE marked and does not comply with the Low Voltage Directive. Dolphin® 7900 Mobile Computer User’s Guide - Prelim. Draft Rev (a)

  • Page 14: Dolphin 7900 Wlan Or Wpan Radio

    The following is the required safety label that appears on the back panel of Dolphin 7900 terminals equipped with a Bluetooth radio: 802.11b and Bluetooth The following is the required safety label that appears on the back panel of the Dolphin 7900 terminals equipped with an 802.11b and a Bluetooth radio combination: 1 - 4...

  • Page 15: Dolphin 7900 Wwan Radio

    Institute of Electrical and Electronics Engineers (IEEE) and the American National Standards Institute (ANSI) and has been recommended for adoption by the Federal Communications Commission (FCC). The following is the required safety label that appears on the back panel of Dolphin 7900 terminals equipped with a GSM radio: GSM and 802.11b The following is the required safety label that appears on the back panel of Dolphin 7900 terminals equipped with a GSM and 802.11b radio combination:...

  • Page 16: Fcc Compliance

    Dolphin mobile computers meet or exceed all applicable standards and have been manufactured to the highest level of quality. Dolphin 7900 Batch Terminal Dolphin 7900 Batch terminals comply with part 15 of the FCC rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference.

  • Page 17: Rf, Regulatory, And Safety Agency Approvals For 802.11B And Bluetooth

    FCC Part 24 Canada RSS 133 Dolphin 7900 802.11b and/or Bluetooth R&TTE Compliance Statement Dolphin 7900 RF terminals are in conformity with all essential requirements of the R&TTE Directive (1999/5/EC). This equipment has been assessed to the following standards: Parameter Specification R&TTE...

  • Page 18: Dolphin 7900 Gsm R&Tte Compliance Statement

    Dolphin 7900 GSM R&TTE Compliance Statement Dolphin 7900 terminals are in conformity with all essential requirements of the R&TTE Directive (1999/5/EC). This equipment has been assessed to the following standards: Parameter Specification R&TTE EN 301 511: 2000 EN 301 489-1 (2002-08)

  • Page 19: Chapter 2 - Getting Started

    Data Input The Dolphin 7900 mobile computer features a PDA design with a larger display and smaller recessed keyboards. The display area is 3.8 inches with a 240 X 320 VGA display in TFT color that is backlit for maximum viewability, then covered with an industrial touch screen for maximum durability.

  • Page 20: Dolphin 7900 Models

    Bluetooth-enabled PCs, etc. Dolphin 7900 WWAN (GSM/GPRS) This terminal features all the benefits of the Dolphin 7900 with the additional capabilities of GSM/GPRS technology. Dolphin 7900 WLAN and WPAN (802.11b and Bluetooth) This terminal features co-located 802.11b and Bluetooth radios, which means that your terminal contains the capabilities of both radios.

  • Page 21: Dolphin 7900 Peripherals

    The Dolphin Net Base is a four-slot charging/communication cradle that holds, powers, charges, and communicates with the terminal in each slot. Ethernet communication occurs via statically and dynamically-assigned IP addresses. For more information about the Dolphin Net Base, please consult the Dolphin 7900 Net Base Quick Start Guide. Dolphin QuadCharger™...

  • Page 22: Dolphin 7900 Accessories

    The protective holster secures the terminal for mobile use. Dolphin Mobile Mount The Dolphin Mobile Mount solution secures Dolphin 7900 in the cab of any vehicle. Used in conjunction with the Mobile Charger, Dolphin terminals can be adapted to almost any in-transit environment.

  • Page 23: Using The Dolphin 7900 For The First Time

    If you ordered accessories for your terminals, verify that they are also included with the order. The Dolphin 7900 Handstrap Handstrap The Dolphin 7900 ships with the handstrap installed and fastened with a clip on the top panel. To install the battery pack, you must detach the handstrap. Clip 1.

  • Page 24: Communications

    Time to Charge - Four hours for the main battery pack, eight hours for the internal backup battery the first time. Use only Dolphin 7900 series peripherals, power cables, and power adapters. Use of peripherals, cables, or power adapters not sold/manufactured by HHP will void the warranty and may damage the terminal.
  • Page 25 1. Power on the terminal. The decode LED lights and the scan LED blinks for approximately three seconds. Do NOT press any keys while the terminal is booting up. 2. The terminal initializes and the HHP splash screen displays for a few seconds. The Build numbers indicate the software version numbers.
  • Page 26 Screen protectors help prevent damage to the touch screen, are easily installed, and can be purchased at any major computer retail store or directly from HHP, Inc. Please contact HHP directly for part numbers and pricing.
  • Page 27 All configurations of the Dolphin 7900 terminal install HHP Demos and HHP Utilities. If the terminal is configured with a wireless radio, the appropriate radio drivers and utilities for each radio install.
  • Page 28 Step 9. Verifying Operations with HHP Demos The Dolphin 7900 mobile computer comes loaded with HHP Demos you can use to verify imaging and decoding. Verify Imaging The Image Demo enables you to use the imager to capture an image.

  • Page 29: Resetting The Terminal

    Resetting the Terminal There are two ways to reset the terminal: a soft and a hard reset. Soft Reset (Warm Boot) A soft reset re-boots the device without losing RAM data. You would perform a soft reset when • the terminal fails to respond. •...
  • Page 30 2 - 12 Dolphin® 7900 Mobile Computer User’s Guide - Prelim. Draft Rev (a)

  • Page 31: Chapter 3 - Dolphin 7900 Hardware Overview

    Dolphin 7900 Hardware Overview System Features Processor The Dolphin 7900 terminal is equipped with an Intel X-Scale 400MHz RISC microprocessor that runs on a 100 MHz RAM BUS, making it one of the most powerful mobile computers on the market. Operating System Windows Mobile 2003 Second Edition software provides a compact, highly efficient, scalable operating system.

  • Page 32: Front Panel Features

    Front Panel Features This section describes features on the front panel of the Dolphin 7900 terminal. (The following graphic shows a Dolphin 7900 with a 25-key keyboard.) Audio Jack Speaker IrDa Port Scan LED Decode LED Display SCAN key Microphone...
  • Page 33 Speaker The Dolphin 7900 terminal has an integrated speaker that sounds audio signals as you scan bar code labels and enter data. The operating frequency range is 500Hz at 71 dB up to 80 dB. The speaker can also be used for playing sounds (e.g., WAV or MP3 files).

  • Page 34: Back Panel Features

    Back Panel Features The following graphic describes features on the back panel of the Dolphin 7900 terminal. Image Engine Window Hand Strap Clip Stylus Fastener Scan Button Scan Button Stylus (in slot) Access Door Battery 3 - 4 Dolphin® 7900 Mobile Computer User’s Guide - Prelim. Draft Rev (a)
  • Page 35 Hand Strap Clip The Dolphin 7900 has an adjustable, elastic hand strap attached to the terminal with a clip on the top of the back panel. You can detach the handstrap from this clip when you need access to the battery or other item on the back panel.

  • Page 36: Side Panel Features

    When closed, the access door seals the memory interface and SIM card from moisture and particle intrusion providing secure storage for read/write data. Note: This door is not removable by the user in the field. The door can only be removed using a special Torx T8 tool from HHP. This tool is HHP part number 100001024.

  • Page 37: Bottom Panel Features

    Mechanical Connector The bottom panel of the Dolphin 7900 features a custom, industrial-grade connector with 17 pins. When seated in a Dolphin 7900 series peripheral, the terminal is powered, the main battery charged, and communication occurs via this connector. All Dolphin 7900 series peripherals are designed to work exclusively with this connector.

  • Page 38: Battery Power

    Both batteries work together to prevent data loss when the terminal is used over long periods of time. Both batteries must also be charged to full capacity before using the Dolphin 7900 for the first time.

  • Page 39: Managing Battery Power

    Managing Battery Power Data and files saved on the Dolphin 7900 terminal may be stored in RAM; therefore, maintain a continuous power supply to the terminal to help prevent data loss. Letting the backup battery become fully discharged causes the terminal to lose all data in RAM.

  • Page 40: Storing Batteries

    • Although your battery can be recharged many times, it will eventually be depleted. Replace it after the battery is unable to hold an adequate charge. • If you are not sure the battery or charger is working properly, please send it to HHP or an authorized HHP service center for inspection.

  • Page 41: Dolphin 7900 Technical Specifications

    HHP Dolphin SDK Add-on for Pocket PC 2003 - supports Embedded Visual C++ 4.0 Development Environment: HHP Dolphin .NET SDK for Pocket PC 2002 and 2003 - supports Visual Studio.NET 2003 (VB.NET and C#.NET) HHP Dolphin GSM/GPRS SDK Add-on for Pocket PC 2003 - supports Embedded Visual C++ 4.0 and Visual Studio.NET 2003...
  • Page 42 Dolphin 7900 Technical Specifications Electrical Static 15 kv on all surfaces Discharge: Withstands multiple 5ft. (1.5m) drops onto concrete Impact Resistance: Environmental Independently certified to meet IP64 standards for moisture and particle resistance Resistance: Lithium-Ion battery technology – 7.4V, 14.8 watt-hour main battery with hot-swappable design for...

  • Page 43: Chapter 4 - Using The Dolphin 7900

    Using the Touch Screen HHP recommends using screen protectors to protect the touch screen; especially when used with applications that require high- volume interfacing with the touch screen. Screen protectors help prevent damage to the touch screen display and are easily installed.

  • Page 44: Today Screen

    Today Screen When the terminal powers one for the first time, you see the Today screen. You can also display it by tapping Start and then Today. On the Today screen, you can see at a glance important information for the day. Tap to adjust the volume Tap to change the date and time Tap to open to change owner information...

  • Page 45: Navigation Bar

    Navigation Bar The navigation bar is located at the top of the screen and displays the active program and current time, and allows you to switch to programs and close screens. Navigation bar Start menu Tap to open a program Tap to open a program you have recently used Tap to see additional programs Tap to see to customize your terminal...

  • Page 46: Pop-Up Menus

    Pop-Up Menus With pop-up menus, you can quickly choose an action for an item. For example, you can use the pop-up menu in the contact list to quickly delete a contact, make a copy of a contact, or send an e-mail message to a contact. The actions in the pop-up menus vary from program to program.

  • Page 47: Selecting Programs

    Selecting Programs To see additional programs loaded on your terminal, tap Start > Programs. The Programs screen displays the programs that are not listed on the Start menu. To open a program, tap once on the icon. Note: Some programs have abbreviated labels underneath the icon. To see the full spelling of an abbreviated label, tap and hold the stylus on the label.

  • Page 48: Adjusting The Backlight

    Adjusting the Backlight The backlight for the color display is user-defined. There are two tabs - one for Battery and the other for External power. The options on each tab are the same. Go to Start > Settings > System tab > Backlight. Backlight settings open displaying the Battery tab.

  • Page 49: Communication Media Options

    3-7. IrDA Port The IrDA port enables the Dolphin 7900 to transmit data via pulses of light to and from other IrDA-compliant devices, such as printers and PCs or to other Dolphin 7900 terminals. For more information, see...

  • Page 50: Radio Options

    Radio Options Dolphin 7900 terminals can be configured with one or a combination of the following radios: • 802.11b • Bluetooth • GSM/GPRS Available Radio Combinations Dolphin 7900 terminals can be configured with more than one radio. Co-located Radios Some radio combinations are co-located, which means that you can use only one radio at a time. In this case, you can have both radios installed but need to power one up and the other down before operation.

  • Page 51: Powering Up Radios

    Powering Up Radios Requirements To successfully power up a radio, both the hardware module and the software driver must be installed on the terminal. If the module is present, the radio appears in the Radio Manager. However if the driver is not installed, you cannot successfully power up the radio.

  • Page 52: Using The Soft Input Panel (Sip)

    When you use the SIP, your terminal anticipates the word you are typing or writing and displays it above the input panel. When you tap the displayed word, it is inserted into your text at the insertion point. The more you use your Dolphin 7900 terminal, the more words it learns to anticipate.
  • Page 53 2. Write a letter in the box. When you write a letter, it is converted to typed text that appears on the screen. For specific instructions on using Letter Recognizer, with Letter Recognizer open, tap the question mark next to the writing area Using the Block Recognizer With Block Recognizer you can input character strokes using the stylus.

  • Page 54: Input Panel Options

    Input Panel Options You can set input options by going to Start > Settings > Personal tab > Input.The following graphics are the tab windows where you can customize the input panel to your preferences: Input Method tab Word Completion tab Options tab 4 - 12 Dolphin®...

  • Page 55: Writing On The Screen

    Writing on the Screen In any program that accepts writing, such as the Notes program, and in the Notes tab in Calendar, Contacts, and Tasks, you can use your stylus to write directly on the screen as you would on paper. To write on the screen, tap the Pen button to switch to writing mode.

  • Page 56: Drawing On The Screen

    Drawing on the Screen Drawing on the screen is similar to writing on the screen. The difference between writing and drawing on the screen is how you select items and how they can be edited. To create a drawing, cross three ruled lines on your first stroke. A drawing box appears. Subsequent strokes in or touching the drawing box become part of the drawing.

  • Page 57: Status Icons

    Status Icons Status Icon Meaning Turns all sounds on and off Backup battery is low Main batteries are charging Main batteries are low Main batteries are very low Main batteries are full Synchronization is beginning or ending Notification that one or more e-mail messages were received Note: The Notification icon displays if more notification icons need to be displayed than there is room to display them.

  • Page 58: Finding And Organizing Information

    Finding and Organizing Information The Find feature on your Dolphin mobile computer helps you quickly locate information. On the Start menu, tap Find. Enter the text you want to find, select a data type, and then tap Go to start the search. To quickly find information that is taking up storage space, select Larger than 64 KB in Type.

  • Page 59: Overview

    Using the Image Engine Overview The Dolphin 7900 terminal houses a compact image engine that instantly reads all popular 1D and 2D bar codes and supports omni-directional aiming and decoding for greater flexibility in real-world settings. The image engine can also capture digital images, such as signatures and pictures of damaged inventory.

  • Page 60: Activating The Engine

    3-6. Demos All Dolphin 7900 terminals contain Demos that enable you to test and verify the image engine. To access these demos, go to Start > Demos, • Select Image Demo to verify imaging, or • Select Scan Demo to verify decoding.

  • Page 61: Decoding

    Decoding The Dolphin 7900 terminal supports two types of image decoding for use in various bar code reading and imaging applications: full-area imaging and Advanced Linear Decoding (ALD). Full-area Imaging Full-area imaging provides omni-directional reading of linear and non-linear 1D and 2D bar codes, OCR, signature capture, and picture taking.

  • Page 62: Sample Bar Codes

    The following chart displays the imager’s aiming positions: Linear Bar Code 2D Matrix Symbol Sample Bar Codes You can use the following bar codes to verify decoding: Sample 128 Sample PDF417 Code 128 PDF417 Test Message 5 - 4 Dolphin® 7900 Mobile Computer User’s Guide - Prelim. Draft Rev (a)

  • Page 63: Capturing Images

    Image Preview When the imaging process is initiated, the Dolphin 7900 touch screen displays a preview of the object. This is a live video image of what the imager is currently viewing and has a slightly degraded appearance compared to the captured image. This is normal.
  • Page 64 5 - 6 Dolphin® 7900 Mobile Computer User’s Guide - Prelim. Draft Rev (a)

  • Page 65: Chapter 6 - Using Dolphin 7900 Keyboards

    Using Dolphin 7900 Keyboards Overview The Dolphin 7900 series features two keyboard options: 25-key numeric-alpha keyboard and 36-key alpha-numeric keyboard. 25-key Numeric-Alpha Keyboard 36-key Alpha-Numeric Keyboard B K S P B K S P S E ND E ND S E ND...

  • Page 66: Using The Function Keys

    Using the Function Keys Function keys are those keys that perform specific functions and usually have the name of the function they perform. Name Function The SCAN key activates the scan and wakes the terminals from suspend mode. Its position allows SCAN convenient one-handed image-taking and/or bar code decoding.

  • Page 67: Using The Navigation Keys

    Using the Navigation Keys Located in the center of each keyboard for easy access with either hand, the navigation keys enable you to navigate the cursor through an application screen. Press To … Move the cursor up one row or line. Move the cursor down one row or line.

  • Page 68: Using The Modifier Keys

    Modifier keys are those keys that modify the next key pressed. They are used on combination with the keys that follow to perform functions or type special characters. In addition to the standard ALT key, the Dolphin 7900 terminal features Blue and Red modifier keys and a color-coded overlay.

  • Page 69: 25-Key Numeric-Alpha Keyboard

    25-Key Numeric-Alpha Keyboard The following graphic displays the 25-key numeric/alpha keyboard. SCAN key OK key Escape key Microphone Tab key B K S P Navigation keys S E ND E ND Blue Modifier keys S T A R T Power key F 10 Backlight key Alpha Mode Functionality...

  • Page 70: Blue Key Combinations

    Blue Key Combinations Characters Key Combination Character Blue + 2 Blue + 3 Blue + 4 Blue + 5 Blue + 6 Blue + 7 PQRS Blue + 8 Blue + 9 WXYZ Blue + , @ ? ! Functions Key Combination Function Blue + Backlight...
  • Page 71 Key Combination Function/Special Character Red + 9 Red + * Dolphin® 7900 Mobile Computer User’s Guide - Prelim. Draft Rev (a) 6 - 7...

  • Page 72: 36-Key Alpha-Numeric Keyboard

    36-Key Alpha-Numeric Keyboard The following graphic displays the 35-key alpha/numeric keyboard. SCAN key Escape key Microphone B K S P S E ND E ND Blue Modifier keys ST ART Number Lock key Power key Backlight key Number Mode Functionality The 35-key keyboard defaults to alpha mode.

  • Page 73: Blue Key Combinations

    Blue Key Combinations Key Combination Function/Special Character Blue + Backlight Power Blue + Left Arrow Send Blue + Right Arrow Blue + Up Arrow Volume up Blue + Down Arrow Volume down Red Key Combinations Key Combination Function/Special Character Red + Left Arrow Backspace Red + Right Arrow Space...
  • Page 74 Key Combination Function/Special Character NUM + S NUM + UV NUM + WX NUM + YZ 6 - 10 Dolphin® 7900 Mobile Computer User’s Guide - Prelim. Draft Rev (a)

  • Page 75: Chapter 7 - Settings

    Settings Overview Customized settings are available on the Start menu. Go to Start > Settings and settings screen opens displaying the Personal tab. Settings consists of three tabs: Personal, System, and Connections. Personal Tab System Tab Connections Tab This tab enables you to … Personal Customize buttons, set SIP options, and adjust headset settings;...

  • Page 76: Personal Tab

    Buttons Customize buttons to perform functions. To use this setting, the HotKeys HHP Utility must be initialized. Tap Start > Utils > HotKeys (the icon is the same). The HotKeys utility initializes. Return to the Personal tab and tap Buttons.

  • Page 77: Adding A Program To The Start Menu

    Adding a Program to the Start Menu You can add existing programs you use often, such as File Explorer, to the Start menu for faster access. You are not installing the program, just re-routing access to it. Using System Settings 1.
  • Page 78 2. Tap and hold on the program, then tap Copy on the pop-up menu. 3. Navigate to the Windows folder and open the Start Menu (My Device > Windows > Start Menu), tap and hold a blank area of the window, and tap Paste Shortcut on the pop-up menu. 4.

  • Page 79: Headset Control

    Headset Control The Headset Control setting enables you to adjust audio settings while using a headset. Headset Type Stereo headphone Select this option if you are using a headset for audio output only. In this case, you need to use the microphone on the terminal (Microphone, page 3-2) for audio input;...

  • Page 80: System Tab

    System Tab The System tab enables you to verify and sometimes alter system parameters. To access the System tab, go to Start > Settings > System tab. Tap the appropriate icon to open that system setting. About The About system setting displays specific information about what is loaded on the terminal. It contains three tabs: Version tab Displays the information about the software, operating system, and processor of the terminal.

  • Page 81: Backlight

    Device name: Displays the system’s default name. This is the name used by ActiveSync. Description: Displays the description of the device ID. Copyrights tab Displays important copyright information. Backlight The Backlight system setting enables you to customize backlight functionality for the display. For more information, see Adjusting the Backlight on page...

  • Page 82: Memory

    Memory The Memory system setting enables you to review and manage both RAM (volatile) and IPSM/Storage Card (non-volatile) memory. Access this system setting whenever you receive system messages about memory. There are three tabs: Main, Storage Card, and Running Programs. Main tab This tab displays current capacity and usage of the 64MB of on-board, volatile RAM memory.
  • Page 83 Storage Card tab This tab displays the current capacity and usage statistics of the selected memory type; IPSM or Storage Card. Select the memory type from the drop-down list. IPSM is selected by default. Total storage card The total MB of memory capacity of the selected memory. memory In use The MB currently being used.
  • Page 84 Running Programs tab Displays the software programs currently using Storage memory. Check this tab when you are receiving out of memory errors or when the mobile computer is running slowly. You can • Select a program in the list and tap Stop to stop it from running (and therefore from using memory), or •...

  • Page 85: Power

    Power Power system settings contains three tabs: Battery, Wireless, and Advanced. This tab enables you to … Check the remaining charge of both the main and backup batteries. For more Battery Tab information about the terminal’s batteries, see Battery Power on page 3-8.
  • Page 86 This tab enables you to … Determine the power settings for your wireless connection. Wireless Tab Select Wireless signals off… when you don’t want to use system power to power up the radio(s). Select Wireless signals on when you want the radio to use system power to transmit. This is the default settings.
  • Page 87 This tab enables you to … Determine power time-outs. Advanced Tab For On battery power, select from the drop-down list, the number of minutes of inactivity you want to pass before the terminal powers off when running on battery power. For On external power, select from the drop-down list, the number of minutes of inactivity you want to pass before the terminal powers off when running on external power.

  • Page 88: Regional Settings

    Regional Settings Regional Settings enables you to customize the appearance and formatting to your geographic region. Specifically, you can customize numbers (number of decimal places allowed, for example), currency (using the $ or € symbol, for example), time, and date. These specifications apply to all screens, including the Today screen. The Region tab displays an overview of the region selected in the drop-down list at the top.

  • Page 89: Remove Programs

    The results appear below. To see specific settings or change a specific setting, tap on one of the tabs, make the change and tap OK to save it. Remove Programs The Remove Programs settings enables you to remove programs installed on the terminal. Use this setting to troubleshoot when you receive messages that the device is out of memory.
  • Page 90 To Remove Programs 1. Tap Remove Programs. In the list, select the program you want to remove. 2. Tap Remove. The following message appears: 3. Tap Yes. Wait while the program is removed. 4. Verify that the program no longer appears in the list. Memory The Remove Programs screen displays the total storage memory available.

  • Page 91: Screen

    Screen The Screen system setting contains three tabs: General, Clear Type, and Text Size. General tab The Screen system setting opens to the General tab. On this tab, you can changes the screen orientation and align the screen. The default screen orientation is Portrait. You can change the orientation to Landscape (right-handed) or Landscape (left- handed) depending on which hand you tend to hold the terminal.

  • Page 92: Tasks

    You would need to re-align the screen if tapping buttons or icons with the stylus no longer seems to work appropriately. ClearType Tab The Dolphin 7900 displays support ClearType font rendering. ClearType is a Microsoft technology that dramatically increases the readability of text on LCD displays. To enable ClearType font rendering, select Enable ClearType and tap OK.

  • Page 93: Uphone Settings

    Default Font Size Largest Font Size uPhone Settings If you have a GSM/GPRS radio installed on your terminal the uPhone Settings icon appears on the System tab. For details, see uPhone Configuration on page 11-20. Dolphin® 7900 Mobile Computer User’s Guide - Prelim. Draft Rev (a) 7 - 19...

  • Page 94: Connections Tab

    Other Icons on the Connections Tab Other icons appear on this window if your terminal is configured with specific network software, protocols, and/or radios. HHP WLAN Settings This icon appears only if an 802.11b radio is installed on the terminal.

  • Page 95: Server-Assigned Ip Addresses

    Please note that all server-assigned IP addresses use Dynamic Host Configuration Protocol (DHCP). Zero-Config Wi-Fi Please note that the zero-config Wi-Fi feature of Windows Mobile is disabled on Dolphin 7900 series mobile computers. Com Port Assignment Table The Dolphin 7900 terminal ships with the Com ports assigned as follows:...

  • Page 96: Opening The Connections Manager

    Opening the Connections Manager To open the connections manager, tap Connections. The connection manager opens displaying the Tasks tab. The connections manager consists of two tabs: Tasks and Advanced Task tab The Task tab enables you to configure and manage your My Work Network settings. Click on the link to setup or manage existing network accounts.

  • Page 97: Creating An External Modem Connection To An Isp

    Creating an External Modem Connection to an ISP 1. Obtain the following information from your ISP: • ISP dial-up access telephone number, • user name, • password, and • TCP/IP settings. 2. Use a NULL modem cable to connect to an external modem. 3.
  • Page 98 8. Enter the number that should be dialed when connecting to your ISP. Include any special digits such as "*" or "#" (see Establishing Dialing Rules on page 7-33). Tap Next. 9. Now enter any authentication information your ISP requests. 10.
  • Page 99 Port Settings Tab The Port Settings tab has options that should be left alone unless indicated otherwise by your ISP. TCP/IP Tab If your ISP does not use a dynamically-assigned address, enter that information into the TCP/IP tab. Dolphin® 7900 Mobile Computer User’s Guide - Prelim. Draft Rev (a) 7 - 25...
  • Page 100 Servers Tab Finally, if your ISP requires special DNS or WINS information, enter it into the Servers tab. Connecting to Your ISP 1. Tap Start > Settings > Connections tab > Connections to open the connections manager. 2. Tap Manage existing connections. 3.

  • Page 101: Creating An External Modem Connection To Your Work

    Creating an External Modem Connection to Your Work Follow the instructions for Connecting to Your ISP, but select Add a new modem connection under My Work Network. Establishing Exceptions for Work URLs Some companies use periods in their intranet URLs (for example, intranet.companyname.com). If you attempt to connect to one of these URLs, Pocket Internet Explorer will search for the website on the Internet rather than the company's intranet.
  • Page 102 Setting up a Proxy Server Connection for Work Connections If you are connected to your ISP or private network during synchronization, the terminal should download proper proxy settings during synchronization from your PC. If these settings are not on your PC or need to be changed, ask your ISP or network administrator for the proxy sever name, server type, port, type of Socks protocol used, and your user name and password.
  • Page 103 • Tap Advanced for advanced settings. This information can be provided only by your network administrator. 5. To change existing settings, under My Work Network, tap Manage existing connections and tap the Proxy tab. Dolphin® 7900 Mobile Computer User’s Guide - Prelim. Draft Rev (a) 7 - 29...
  • Page 104 Setting Up a VPN Connection for Work Connections A VPN connection helps you securely connect to servers, such as a corporate network, via the Internet. Ask your network administrator for your user name, password, domain name, TCP/IP settings, and host name or IP address of the VPN server. 1.
  • Page 105 5. Enter your login details. If finished, tap Finish to complete VPN setup. 6. Otherwise, tap Advanced to access more options. • Enter TCP/IP settings in the first tab; server-assigned IP addresses use DHCP. • Enter Server DNS/WINS information in the Servers tab. Connecting to a VPN Server 1.
  • Page 106 2. Select Edit my VPN servers. 3. Tap and hold on the server, then select Connect on the popup menu. (Note that through this screen you can delete your VPN server connection.) 1. Your VPN Server is accessed. When connected, tapping on the icon displays the following bubble: 7 - 32 Dolphin®...

  • Page 107: Establishing Dialing Rules

    Establishing Dialing Rules 1. Tap Start > System > Connections tab > Connections > Advanced tab (see page 7-22). 2. Tap Select Location. 3. Select Use dialing rules. By default two dialing rules profiles exist: Home and Work. 4. Tap Edit to configure either profile. (You can define your own dialing profile by tapping New.
  • Page 108 5. Tap OK to confirm. Enter the appropriate information on the next screen. 6. Tap Dialing Patterns to change how dialing occurs. 7. Following the format of "e" represents country code, "f" represents area code, and "g" represents the number, enter how local, long distance, and international calls should be dialed.

  • Page 109: Creating A Wireless Network Connection

    In the Connections Manager, you can access the Wireless tab from Start > Settings > Connections tab > Network Cards > Wireless tab. However, on the Dolphin 7900, wireless networks need to be configured according to the radio installed in the terminal.
  • Page 110 After you tap OK, the following message appears: Tap OK again to save any changes. For details about performing a soft reset, see Soft Reset (Warm Boot) on page 2-11. During the soft reset, the new registry entries created by the changes can be read by the applications that need them. Do NOT perform a hard reset (see Hard Reset (Cold Boot) on page...

  • Page 111: Chapter 8 - Communications

    Communications Overview You can exchange information between your Dolphin 7900 and other mobile devices, a desktop computer, a network, or the Internet. You have the following connection options: • Connect to your desktop computer and synchronize via Microsoft ActiveSync v3.7 or higher.

  • Page 112: Using Activesync

    Requirements To synchronize, ActiveSync version 3.7 or higher must be installed on both your desktop computer and the Dolphin 7900 terminal. Dolphin 7900 terminals ship with ActiveSync 3.7 already installed. Therefore, you must install ActiveSync 3.7 on your desktop computer from the Microsoft Companion CD that came with your terminal.

  • Page 113: Synchronizing From The Terminal

    For more information, see Dolphin 7900 HomeBase page 13-1 or Dolphin 7900 Mobile Base on page 14-1. Dolphin® 7900 Mobile Computer User’s Guide - Prelim. Draft Rev (a) 8 - 3...

  • Page 114: Exploring The Terminal From The Desktop Computer

    2. Read any installation instructions, Read Me files, or documentation that comes with the program. Many programs provide special installation instructions. 3. Connect the terminal to the desktop computer via an HHP communication peripheral. If the File is an Installer: An installer program is one that installs on the PC and the terminal simultaneously;...
  • Page 115 1. On the PC, double-click the *.exe or *.setup.exe file. The installation wizard begins. 2. Follow the directions on the PC screen. The installation process includes transferring the software to the terminal. If the File is Not an Installer: Some programs cannot be installed on PCs because they are designed for terminals. In these cases, the appropriate files must be stored on the host PC, transferred via ActiveSync, and installed on the terminal.

  • Page 116: Using Infrared

    Note: The IrDA icon appears on the Connections tab only if there is a Bluetooth radio installed on the terminal. IrDA Port Location on the Terminal IrDA Port The above graphics shows the left side panel of the Dolphin 7900 terminal. For more information, see IrDA Port on page 3-3.

  • Page 117: Verify That Beam Settings Are Set To Receive

    Verify That Beam Settings Are Set to Receive The Beam Settings must be set to receive for the terminal to receive data from other infrared devices. To verify, tap Start > Settings > Connections tab > Beam. The Beam Settings window should appear as follows: Dolphin®...

  • Page 118: Sending And Receiving Information

    Sending and Receiving Information To send or receive, the IrDA ports of both devices - whether it’s two terminals, or a terminal and a host device - must be aligned with each other and within a close range. The maximum data-transfer speed is 115 Kbps. Sending 1.

  • Page 119: Troubleshooting

    Troubleshooting If the Beam Settings are not set to receive or you’ve aligned two IrDA ports and the terminal is still not receiving, go to Start > Programs > Infrared Receive. The terminal searches for the sending device. If the terminal cannot find the sending device, the following message appears: Dolphin®...

  • Page 120: Using An Isp

    Using an ISP The communication software for creating an ISP connection is already installed on your device. Your service provider should provide the software needed to install other services, such as paging and fax services. After you are connected, you can send and receive e-mail messages by using Inbox and view web pages using Pocket Internet Explorer.

  • Page 121: Chapter 9 - Wireless Lan Communications With 802.11B

    Direct Sequence Spread Spectrum (DSSS) technology to spread the signal continuously over a wide frequency band at a data rate of up to 11 Mbps. In addition, the open software architecture makes the Dolphin 7900 a complete solution for a variety of wireless mobile data collection applications.

  • Page 122: 802.11B Settings

    802.11b Settings You can access the configuration utility two ways: 1. Tap Start > Settings > System tab > 802.11b Settings. This icon appears on the System tab only if there is an 802.11b radio installed on the terminal. 2. Tap the Status icon in the system tray - see The Status Icon on page 9-12.

  • Page 123: Status Tab

    Status Tab HHP WLAN Settings always opens to the Status tab, which displays the current WLAN settings for 802.11b. Field Description Current Channel Shows the RF channel currently used by the radio. Current TX Rate Shows the current transmit rate. This can be 1 Mbps, 2 Mbps, 5.5 Mbps, or 11 Mbps.
  • Page 124 Field Description Tap this button to display detailed TCP/IP information as shown in the following screen: More Info Tap this button to open the Ping Utility for WLAN. Ping Field Description IP Address Displays the current IP address. You can enter another IP address to ping. Displays the current bytes size;...

  • Page 125: Config Tab

    Field Description Displays the current timeout; 500 is the default. Increase or decrease it by tapping Timeout (ms) the up and down arrow buttons. Clear Tap this button to clear IP Address input and the ping statistics field. Ping Tap this button to ping the IP address entered in the input field. Ping This section lists the pinging IP address and the pinging results.
  • Page 126 Icon Name Description Down Tap this button to move the selected SSID down one place in the Preferred Profile list. Remember that the terminal accesses the SSIDs in this list in the exact order that they appear; moving an SSID up or down in the list determines the order of contact.
  • Page 127 To Create a New Profile In the Preferred Profiles section, tap the New button . A screen opens with two tabs windows: Network Profile and Authentication. Network Profile Tab Field Description Network Name &Type SSID Enter an SSID, which is the Network Name. Check with your network administrator for Network Name (SSID).
  • Page 128 Authentication Tab On the Authentication tab, you configure the WEP encryption key for secure wireless communication. To use WEP, the encryption key must be configured as part of the profile before connecting. For more information about configuring a profile, see To Create a New Profile on page 9-7.

  • Page 129: Accessing

    Field Description This option and drop-down list is active only when the WEP Key is enabled. *Enable 802.1X Select this option if access to the network needs group authentication, then select the 802.1X security standard - PEAP or TLS - from the drop-down list. Tap the Properties button to choose the certificate that applies.

  • Page 130: Advanced Tab

    Advanced Tab Field Description This drop-down list determines the settings for Power Save Mode. Power Save Mode Disable – Disables the Power Save mode. Always Enable – Enables Power Save mode. This is the default setting. Auto Enable – Automatically enables the Power Save mode when the terminal is running on battery power and automatically disables Power Save mode when the terminal is running on external power.

  • Page 131: About Tab

    About Tab This window provides Version Number and time of build for Network Driver, Configuration Utility, and NIC Firmware. Dolphin® 7900 Mobile Computer User’s Guide - Prelim. Draft Rev (a) 9 - 11...

  • Page 132: The Status Icon

    The Status Icon You access the 801.11b Settings by tapping and holding on the Status icon in the task tray at the bottom of the Today screen. The following menu pops up: Menu Option Selecting This Option… Turns on the radio. LED is on and the Link Icon displays with signal strength. Wireless Radio On Wireless Radio Off Turns off the radio.

  • Page 133: 802.11B Wireless Security Supplement

    If the card isn’t in the computer, the installation program can’t make the proper program and protocol associations. Be sure your wireless card is installed! • The appropriate version of the AEGIS Client software package for your operating system. Contact HHP for the correct version for your company.

  • Page 134: Required Network Configuration Information Worksheets

    Required Network Configuration Information Worksheets Because AEGIS Client enables your terminal to access a network that is protected by the IEEE 802.1X protocol, you must configure EAP data communication to match your network server parameters. If the EAP configuration doesn’t match your network configuration, you can’t access the network.
  • Page 135 TLS/SmartCard Worksheet To configure AEGIS Client to use TLS/SmartCard authentication, you need to know: 1. Is a client certificate required? ____ No. ____ Yes. This file needs to be installed on your machine by your network administrator. 2. Should the AEGIS Client validate the server certificate chain? ____ No.
  • Page 136 TTLS Worksheet To configure with TTLS authentication, you need to know: 1. Use Windows user name and password for authentication? (Applies only to Windows clients.) 2. If not, what is your unique user name? If a second set of credentials is required, you need to know the exact user name. This is usually case-sensitive.
  • Page 137 This usually includes the server’s domain, for example: server.big_school.edu. _____________________________ PEAP Worksheet To configure AEGIS Client with PEAP Authentication, you need to know: 1. Use Windows user name and password for authentication? (Applies only to Windows clients.) 2. If not, what is your unique user name? If a second set of credentials is required, you need to know the exact user name. This is usually case-sensitive.

  • Page 138: Opening The Client

    Opening the Client To access the client the first time, tap Start > Programs > Meetinghouse AEGIS Client After the Client has been activated, you can: 1. Tap Start. The icon appears in the quick start tray on the Start menu. Tap the icon to open the Client. 2.

  • Page 139: The Main Screen

    The Main Screen On the terminal, open the Client. The main screen opens displaying a list of ports on the system’s network interface cards, You manage ports on this screen. Port Status icon Port Status Icon The main screen contains a port status icon to the left of each port listed. The color of this icon indicates the status of the port. The color of the icon changes as the port starts authentication, negotiates with the access point and/or authentication server, and then joins the network.
  • Page 140 Client Menu To open the client menu, tap Client in the command bar along the bottom of the window. Menu Item Tapping this item… Close Closes the Client's interface, while leaving the client running. Start/Stop Starts or stops 802.1X authentication. After you finish the initial configuration, tap the network interface and tap Start.
  • Page 141 View Menu To access the View menu, tap View. The Standard and Advanced Views control the number of columns displayed in the main menu. Menu Item Tapping this item… Standard View Displays the Port (adapter name) and State columns. This is the default view. Advanced View Displays the Port (adapter name), State, Primary Wireless Network, Wireless Network, and MAC Address of AP columns.
  • Page 142 Event Log The Event Log is a text file that contains status information from the logging function. Each entry is listed sequentially with a time stamp and a text message. Tap Refresh to retrieve the most current information and display it in the log immediately. Tap Close to return to the main screen.
  • Page 143 Status Bar The status bar is displayed at the bottom of the main screen and indicates the connection status between the network card and the access point. Status Bar The status bar displays one of the following depending on the status of connectivity: •...
  • Page 144 Port Menu On the main screen, tapping on a port opens a popup menu that allows the port to be enabled or disabled, configured, or deleted. The port menu enables you to use 802.1X authentication, change the port configuration, or remove it from the port list. If there are no entries in the Port list, follow the advice in the troubleshooting section to resolve the problem.

  • Page 145: Configuring The Client

    Configuring the Client The Client is configured in two separate areas: 1. Client Configuration area - enables you to configure user settings and is accessed from the Client menu in the command bar. 2. Port Settings area - enables you to configure Network Properties settings for individual wireless networks and is accessed from the Port menu.
  • Page 146 Client Configuration Area Each user account needs to define the protocol and the credentials used to authenticate a user. Because Windows Mobile devices are usually small devices with a single NIC and, usually, a single user, the initial configuration is usually the only time the software needs to be set up.
  • Page 147 User Tab The User settings tab defines the protocol and the credentials used to authenticate a user. Field Description Multiple user credential profiles can be created for use when the user roams from one network Profile to another. The drop-down list contains existing authentication credential profiles. Select a profile from the list to edit it in the fields that follow.
  • Page 148 Field Description This is the 802.1X identity supplied to the authenticator. The identity value can be up to 63 ASCII Identity characters and is case-sensitive. For tunneled authentication protocols such as TTLS and PEAP, this identity (called the Phase 1 identity) is sent outside the protection of the encrypted tunnel.
  • Page 149 Field Description The password used for the tunneled authentication protocol specified. It may contain up to 63 Password ASCII characters and is case-sensitive. Asterisks appear instead of characters for enhanced security. This parameter specifies the authentication protocol operating within the secure tunnel. Protocol The following protocols are currently supported for TTLS: EAP-MD5, CHAP, PAP, MS-CHAP and MS-CHAP-V2.
  • Page 150 Field Description Use this option only as directed by technical support. Disable Wireless Zero Config Selecting this option disables other wireless utilities whether the Client is running or not. If not selected, other wireless utilities cannot apply their settings to the wireless card while the Client is running (although their status displays are usually unaffected).
  • Page 151 Field Description This is either the server name or the domain the server belongs to, depending on which option Server name must be is selected below the text field. During authentication, this name will be compared to the server certificate’s Subject: CN field. When selected, the server name entered must match the server name found on the certificate Must match exactly exactly.

  • Page 152: Network Tab

    Port Settings Area In the Port Settings area, you configure network parameters for each port listed on the main screen; see The Main Screen page 9-19. Accessing the Port Settings Area 1. On the main screen, tap and hold on a port. The Port popup menu appears; see Port Menu on page 9-24.
  • Page 153 Wireless Networks Tab Field Description Available Networks Section This section displays the networks the terminal recognizes as available to connect to. When the Client is first installed, there are no entries in the Available Networks list. Tap this button to see a list of networks broadcasting their availability. Scan Note: You can also attach to networks who are not broadcasting.
  • Page 154 Field Description Tap this button to manually add a network to the Configured Networks list if • the access point does not broadcast its SSID or • you are pre-configuring the client for an access point that is not currently in range. For more information, see Adding a Wireless Network Configuration on page...
  • Page 155 Field Description This option specifies that the EAPOL notification message will be displayed to the user. An Display EAP authenticator may use such notification to inform you, for example, about a near password notifications expiration. However, some authenticators send chatty and annoying notifications that may, for the convenience of the user, be suppressed.
  • Page 156 Adding a Wireless Network Configuration To add a wireless network configuration, on the main screen, tap and hold on the port, tap Configure on the Port popup menu, then tap Add in the Network Configurations section of the Wireless Networks tab. The Network Profile screen opens displaying the Profile Info tab.
  • Page 157 Profile Info Tab Field Description Enter the name of this record. This is the name that appears in the Configured Networks list and, Network Profile by default, is the same as the broadcast SSID. Note that there is nothing special about the name "default".
  • Page 158 Note: The settings on this tab window are interrelated. This means that selecting one may disable access to others. Field Description Provide encryption This option is selected by default. If this option is selected, the other WEP settings on this page key dynamically are disabled.

  • Page 159: Logging

    WPA Settings Tab The WPA Settings tab enables you to configure WPA settings. Field Description This drop-down list contains the following options: WPA Mode • Disabled - Do not enable WPA mode. This is the default selection. • WPA 802.1x - Enable WPA and obtain key information through the 802.1x protocol. •...
  • Page 160 If you wish to start with a blank file, exit from the Client (so the icon no longer appears at the lower right of the screen) and delete the log file (log8021x) in File Explorer; see Finding and Organizing Information on page 4-16.

  • Page 161: Installing Certificates With Certadd

    Installing Certificates with CertAdd Certificate Requirements During configuration, you may have specified one or two certificates to use during the authentication process. The specified identity should match the Issued to field in the certificate and should be registered on the authentication server (i.e., RADIUS server) that is used by the authenticator.

  • Page 162: Advice And Workarounds

    Advice and Workarounds Issue Possible Causes and Solutions The Client will not start on the device with Perform a soft reset. an error message about missing files. • The license is not valid (If you have entered a time-limited license, is The wireless network interface (port) does your clock on the device correct?).
  • Page 163 Advice and Workarounds Issue Possible Causes and Solutions I made changes, but they do not appear to Always tap OK before exiting a screen you have changed. Then restart have taken effect. the Client from the Client menu on the main screen. •...

  • Page 164: How 802.1X Works

    How 802.1X Works The network elements in the above graphics are those involved in a typical wireless LAN. When 802.1X is running, a wireless device must authenticate itself with the access point in order to get access to the Existing LAN. With respect to the terms used in the 802.1X standard, access points (APs) function as authenticators and wireless devices function as supplicants.
  • Page 165 The RADIUS server can then act as a central repository of user profile information. Such use of a centralized authentication server allows the user to access wireless LANs at many different points, but still be authenticated against the same server. In response to the Access-Request, the RADIUS server sends an Access-Challenge to the AP, which is then relayed in the form of an EAP-Request to the device.

  • Page 166: Benefits Of 802.1X

    Benefits of 802.1X Central User Administration The Client allows network administrators to continue to use RADIUS or another AAA server as their centralized authentication server. In 802.11b, where authentication took place between the access point and the station, there was no concept of passing credentials from the access point to an authentication server.
  • Page 167 Cisco LEAP The message exchange used by Cisco LEAP is proprietary. This protocol is not a standard EAP type, but is supported by the Client through a licensing arrangement with Cisco. Relative Merits of Authentication Protocols MD5 is the least secure of the EAP protocols as it only does a one-way authentication, and does not support automatic distribution and rotation of WEP keys, increasing the administrative burden of manual WEP key maintenance.
  • Page 168 9 - 48 Dolphin® 7900 Mobile Computer User’s Guide - Prelim. Draft Rev (a)

  • Page 169: Chapter 10 - Wireless Pan Communications With Bluetooth

    Wireless PAN Communications with Bluetooth Overview Dolphin 7900 terminals are available with a Bluetooth radio for WPAN (Wireless Personal Area Network) usage. When the mobile computer is first initialized, the *.cab file and module for Bluetooth are installed. Powering Up the Bluetooth Radio Driver Before using the radio, make sure that the Bluetooth radio is powered up.

  • Page 170: Assign Com Ports

    Assign COM Ports Follow these steps to view and/or modify the Bluetooth COM ports. If you are not going to use the IrDA port, you can disable it to free up a port for Bluetooth devices; see Using Infrared on page 8-6.

  • Page 171: Discover Bluetooth Device(S)

    Discover Bluetooth Device(s) Follow these steps to discover other Bluetooth devices nearby, including non-phone devices. The Device Discovery Wizard is a more detailed alternative to using the Bluetooth “Get Connected!” Wizard or Bluetooth ActiveSync or Bluetooth LAN Access options. The Device Discovery Wizard allows you to discover any type of Bluetooth device. 1.
  • Page 172 2. Tap and hold your stylus on the Bluetooth device you want to bond with. In the pop-up menu, select Bond. 3. Alternatively, after selecting a device, tap on the Bond icon. Or tap on Device, then select Bond. 4. The Bluetooth Device Bonding Wizard launches. Follow the wizard to bond with your selected device. 10 - 4 Dolphin®...

  • Page 173: View Device Properties

    5. As prompted, make sure the Bluetooth device that you want to bond with is in Bondable mode. 6. If the remote device is set up to accept bonding, a Bluetooth Passkey screen appears. To continue bonding, enter the correct passkey and tap Reply. 7.

  • Page 174: Set Up Your Favorite Device

    3. Use the General and Services screens to research device properties. If needed, assign a new device type icon by tapping on the arrow buttons in the General screen. You can also use the Device name field to rename the device. When done, tap OK for the setting to take effect.

  • Page 175: Delete A Device From The Folder

    2. In the pop-up menu, choose between Large Icons or Details. Large Icons Details Note: In Details view, you can see the Device Class and scroll right to see the current Bonded status. Delete a Device From the Folder If you no longer plan to connect with it, you can delete a device from the Bluetooth Devices folder. 1.

  • Page 176: Turn Radio Transmitter On/Off

    Turn Radio Transmitter ON/OFF You may want to turn off the radio transmitter to save power or if you are entering an area with radio restrictions (e.g., an airplane). 1. The Bluetooth icon should appear in the task tray on the Today screen. Tap on the icon. 2.

  • Page 177: Bluetooth Activesync

    Bluetooth ActiveSync This section explains how to use the Bluetooth ActiveSync feature. It helps you quickly and easily ActiveSync to a notebook or desktop computer with ActiveSync v3.x installed. 1. Tap on the Bluetooth icon. In the pop-up menu, select Bluetooth ActiveSync. 2.
  • Page 178 (b) Your mobile computer attempts to connect to your selected computer. (c) After a successful connection is made, the status screen reports Connected. Now you are ready to synchronize files, if desired. SCENARIO #3: Your Bluetooth Devices folder contains no computers. (a) When you tap on Bluetooth ActiveSync, a Bluetooth Device Search automatically begins.

  • Page 179: Bluetooth Lan Access

    Bluetooth LAN Access This section explains how to use the Bluetooth LAN Access feature to quickly and easily connect to a Bluetooth-enabled LAN access point. 1. Tap on the Bluetooth icon. In the pop-up menu, select Bluetooth LAN Access. 2. The next screens varies depending on if your Bluetooth Devices folder contains any access points, and if one is chosen as your favorite.
  • Page 180 SCENARIO #2: Your Bluetooth Devices folder contains a favorite access point. (a) When you tap Bluetooth LAN Access, your mobile computer automatically tries to connect with your favorite access point. (b) If your LAN requires a passkey, a screen appears, asking for the passkey. Enter the passkey, then tap OK. (c) After a successful connection is made, the status screen reports Connected.
  • Page 181 (e) After a successful connection is made, the screen reports Connected. Now you are ready to access your LAN for Internet access, files, etc. Dolphin® 7900 Mobile Computer User’s Guide - Prelim. Draft Rev (a) 10 - 13...

  • Page 182: Obex

    OBEX This section explains how to use the OBEX (object exchange) application to trade business cards, contacts or files with another Bluetooth device that supports OBEX. Bluetooth OBEX application supports five operations: • Exchange Business Cards • Send a Contact •...
  • Page 183 2. Make sure the other Bluetooth device is set up to receive a contact. The device must support the OBEX Object Push profile. Note: If the other device is also using the Bluetooth Connection Kit, you can set it up to receive a contact by tapping the Bluetooth icon.
  • Page 184 3. Tap and hold your stylus on the contact(s) you would like to send. In the pop-up menu, select Send Via Bluetooth. 4. If your mobile computer has no devices in the Bluetooth Devices Folder, then it begins to search for Bluetooth devices nearby.
  • Page 185 2. Now you are ready to send a file. Tap on the Bluetooth icon. In the pop-up menu, tap Transfer via Bluetooth > Send a File. 3. If your mobile computer has no devices in the Bluetooth Devices Folder, then it begins to search for Bluetooth devices nearby.
  • Page 186 6. Your mobile computer sends the file. Browse Remote Device The Bluetooth File Explorer lets your mobile computer share files with another Bluetooth device. The other device must support the OBEX File Transfer server profile. This section covers the following file transfer operations: •...
  • Page 187 4. Select the Bluetooth device you wish to browse. If the desired device is not listed, tap Find. 5. Your mobile computer begins to establish a file sharing connection. 6. After the devices successfully connect, the Bluetooth File Explorer appears. Half of the screen shows contents of the remote device, while the other half shows contents of your device (the local device).

  • Page 188: Create A Folder

    1. Select the file(s) or folder(s) that you wish to transfer. You can select items from only one device per transfer session. 2. There are two different ways to initiate the transfer: • Tap on the File menu. Select Send to remote or Get from remote, as applicable. The inappropriate option should be gray. •...
  • Page 189 3. In the next screen, enter a name for your new folder. Tap OK. 4. The new folder should be listed under the appropriate device. Delete File(s) or Folder(s) 1. Select item(s) that you wish to delete. You can only delete item(s) from one device at a time. 2.
  • Page 190 1. Make sure the remote device has file sharing enabled. 2. Start the connection process by either of two methods: • Tap on the Device menu. Select Connect. • Tap on the Connect icon. 3. In the next screen, select the device you wish to connect to. Tap Select. Your mobile computer attempts to connect to the device selected.

  • Page 191: Enable File Sharing

    Enable File Sharing 1. Tap on the Bluetooth icon. In the pop-up menu, tap Transfer via Bluetooth > Enable File Sharing. 2. The Enable File Sharing status screen appears. Your mobile computer waits two minutes for the remote device to connect. 3.

  • Page 192: Using The Dialer

    Using the Dialer This section explains how to assign a dialing prefix and use the Dialer to dial a number directly from your Contacts list. The Dialer makes it quick and easy to perform dial-up networking. Note: The Dialer has been verified to work with Nokia and Ericcson phones and is known not to work with the Motorola 270c, NTT Docomo Paldio 633S or Sony au C413S phone.
  • Page 193 The following string can also be included in a phone number: (',') The Dialer cannot dial a phone number containing non-numeric characters other than those listed above. HHP recommends that you follow the standard Microsoft Outlook format for phone numbers.

  • Page 194: Get Connected Wizard

    Get Connected Wizard The Get Connected! Wizard guides you through a one-time setup process that prepares the mobile computer and phone for Bluetooth connections. The wizard varies depending on what phone you want to connect to. Ericcson, Nokia 6210, NTT DoCoMo, Sony Phones 1.
  • Page 195 4. When the search is complete, a list of the discovered Bluetooth phones appears. Choose the phone you wish to connect to, and tap Select. A service discovery phase begins, about 5-10 seconds. 5. As prompted in the next screen, prepare your phone for bonding. For instructions on setting your phone to “Bondable” or “Pairable”...
  • Page 196 4. The mobile computer searches for the phone. When the search is over, a list of the discovered Bluetooth phones appears. 5. Choose the phone you want to connect to, and tap Select. A service discovery phase begins, about 5-10 seconds. 6.

  • Page 197: Dial Up To Your Network

    Dial Up to Your Network Complete the following steps to create a new Bluetooth internet connection. Before setting up dial-up networking, prepare yourself with dial-up information and other necessary settings from your office network or ISP. Note: For more information about modem connections, see Creating an External Modem Connection to an ISP on page 7-23.
  • Page 198 Make up a 4-16 digit passkey, enter it on the phone, then enter it on the terminal. Note: The Bluetooth icon on the Today screen blinks to indicate a connection. c) After successfully bonding, you can set up the phone to automatically connect to your Dolphin 7900 without a passkey. Automatic Connections for Motorola Timeport 270C: •...
