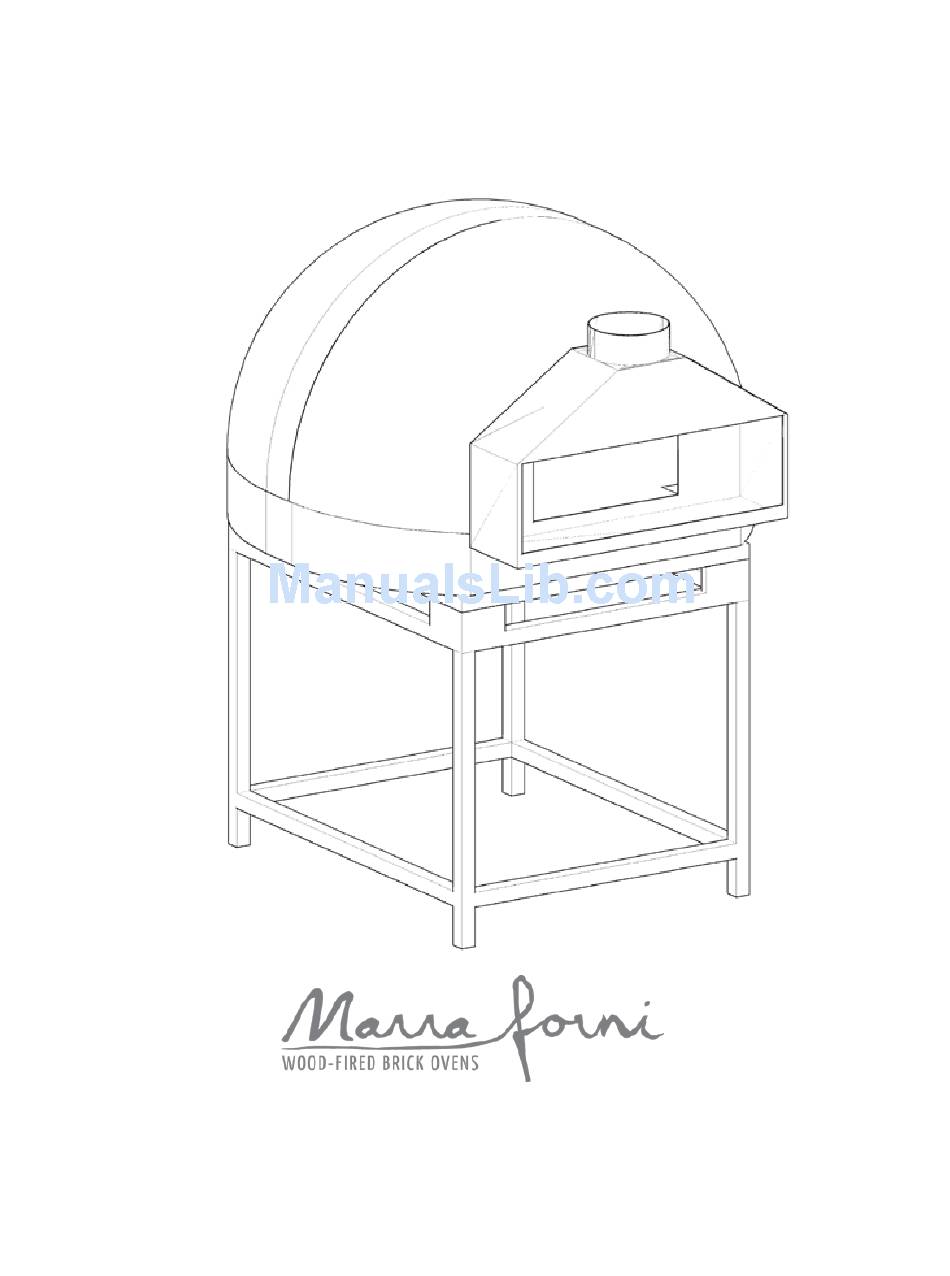

- Page 1 Marra Forni: Traditional Installation/Operation Manual 10310 Southard Drive Beltsville, MD 20705 Bus. 1.888.239.0575 Fax. 240.667.7991 info@marraforni.com marraforni.com...
- Page 2 DO NOT THROW THIS MANUAL AWAY. REVIEW WARRANTY BEFORE INSTALLING OVEN. Scan to visit www.marraforni.com! Updated April 2013...
- Page 3 This oven has been extensively tested and approved by the ETL and NSF. As an added option available to you, this versatile oven may be converted from wood-burning to gas, or converted for dual usage. A Marra Forni oven from Euro Restaurant Solutions enhances your menu and decor, while al- ways providing dependable service and performance.
-
Page 4: Important Information
Use Ramset Redheads that are a minimum of three inches in length to insert through base plates. Complete oven installation intructions are shown on page 8. Ex- ercise caution when moving the oven; it is top heavy. Marra Forni 10310 Southard Drive Beltsville, MD 20705 1.888.239.0575... - Page 5 Proceed to lift slowly and move oven as needed. Use 21” wide pallet jack for the Model 90. For all other models use regular pallet jacks that meet the necessary capacity. Marra Forni 10310 Southard Drive Beltsville, MD 20705 1.888.239.0575 info@marraforni.com...
- Page 6 4. Non-combustible materials such as brick, ceramic tile, stainless steel, marble and other decorative metals may be used to face the outside surface of the oven dome if desired. NEVER USE COMBUSTIBLE MATERIALS OR ADHESIVE TO DECORATE THE FACADE OF YOUR OVEN. Marra Forni 10310 Southard Drive Beltsville, MD 20705 1.888.239.0575...
- Page 7 Avoid flue fires by maintaining a set cleaning schedule. Door: This is used for heat retention. Spread out the coals before putting the door in place. Marra Forni 10310 Southard Drive Beltsville, MD 20705 1.888.239.0575...
- Page 8 Refer to Lennox Chimney Supply instructions for specific Direct Venting installation requirements. A field-built duct, constructed and installed to NFPA 96 or International Mechanical Code grease duct specifications, may also be used. Volume: 150-200 CFM www.SecurityChimneys.com Marra Forni 10310 Southard Drive Beltsville, MD 20705 1.888.239.0575...
- Page 9 DIRECT VENTING - TRADITIONAL MODEL DIAMETER OF INSIDE GREASE DUCT BY OVEN SIzE: .90M (6” DUCT), 1.10M (8”DUCT), 1.40M (8” DUCT), 1.50M (8” DUCT). (optional below 24’) Grease Duct Heating Appliance Lennox Secure Stack CIX The above diagram depicts the installation required for a direct venting application that complies with ETL guidelines.
- Page 10 Improper Installation The combustion is diverted from the oven burner. The room is open to a low- pressure area, therefore the exhaust is pulled backwards through the oven burner. Marra Forni 10310 Southard Drive Beltsville, MD 20705 1.888.239.0575 info@marraforni.com...
- Page 11 This will disrupt air flow to the oven as the air moves from normal to low pressure. Improper Installation If the air intake area is blocked, insufficient combustion will result in burner malfunction and poor oven performance. Marra Forni 10310 Southard Drive Beltsville, MD 20705 1.888.239.0575 info@marraforni.com...
- Page 12 Proper Installation Apply non-combustible board in between the oven’s facade and the ceiling, as well as a minimum of 6” on both sides of the facade. Marra Forni 10310 Southard Drive Beltsville, MD 20705 1.888.239.0575 info@marraforni.com...
-
Page 13: Gas Installation
7. To prevent sparks from entering ductwork, exhaust systems serving Solid Fuel equipment MUST NOT be combined with exhaust systems serving other (non-solid fuel) cooking equipment. Consult local authorities for regulations concerning proper exhaust installation. Marra Forni 10310 Southard Drive Beltsville, MD 20705 1.888.239.0575... - Page 14 NEVER close the oven door fully unless there is an emergency. 5. Use only non-combustible hearth tools and cooking implements inside the oven (we offer an entire line of Marra Forni pizza making tools). 6. NEVER ELEVATE THE FIRE. Fires should always be built directly on the hearth.
- Page 15 If there are malfunctioning parts, leakages, deterioration, or any other problems, contact Marra Forni to schedule a time to inspect and repair the unit. If there is a problem with the ventilation system, contact a qualified ventilation repair service to inspect and repair the system.
- Page 16 4. Maintain your desired heat rate by adding wood as needed, being careful to never over-fire the unit. Signs of over-firing include temperatures in excess of 1000°F and having flames spill out of the oven door. Marra Forni 10310 Southard Drive Beltsville, MD 20705 1.888.239.0575...
- Page 17 GAS BURNER MAINTENANCE WARNING: Fire or injury may result from improper oven maintenance. Do not clean or service oven, hood, or vent while oven is in use. Contact Marra Forni or a local service company to perform all maintenance and repairs.
- Page 18 Gas ovens feature an EC200 gas burner that maximizes usable deck space with its compact design. The burner has an adjustable external air shutter with a visual indication of the air shutter position. Example of non-functioning & functioning burners. Marra Forni 10310 Southard Drive Beltsville, MD 20705 1.888.239.0575...
- Page 19 3/4” NPT connection and is capable of 200,000 BTU/h output. It is UL and CUL listed, and works with both natural gas and propane models. GAS BURNER WIRING DIAGRAM Marra Forni 10310 Southard Drive Beltsville, MD 20705 1.888.239.0575...
- Page 20 Propane gas is heavier than air and can settle in low areas or confined spaces. This can cause a dangerous condition. Marra Forni 10310 Southard Drive Beltsville, MD 20705 1.888.239.0575 info@marraforni.com...
-
Page 21: Troubleshooting
9. Light the end of a piece of paper on fire and hold over the burner to light the oven. Use this process to light the oven until you are able to call Marra Forni and be issued a replacement burner. - Page 22 NOTE: ELECTRICAL AND FLAME CHECKS MUST BE MADE IN THE ORDER LISTED. 1. Check status of electronic burner control diag- power outside of the blower motor (White and Blue nostic indicator LED. wires for 115V, White and Black for 230V). A.
- Page 23 GAS BURNER PARTS ISOMETRIC VIEW Marra Forni 10310 Southard Drive Beltsville, MD 20705 1.888.239.0575 info@marraforni.com...
- Page 24 ULC-S645-93 - Standard for Power Roof Ventilators and Commercial/Institutional Kitchen Exhaust Systems Approvals CE Compliant Warranty 2 year factory warranty on the entire fan 10 year warranty against corrosion perforation Manufactured at an ISO9001 certified plant Marra Forni 10310 Southard Drive Beltsville, MD 20705 1.888.239.0575 info@marraforni.com...
-
Page 25: Product Information
GSV 009 Locking Hinge GSV 012 Bird Screen GSV 014 Carrying Handle GSV 016 Wiring Conduit Capacity Plume Height Marra Forni 10310 Southard Drive Beltsville, MD 20705 1.888.239.0575 info@marraforni.com EXHAUSTO Inc. P: 770.587.3238 1200 Northmeadow Pkwy. F: 770.587.4731 Suite 180 T: 800.255.2923... - Page 26 UL has developed more than 800 standards for safety, and millions of products and their components are tested to UL’s safety standards. If a Marra Forni product is UL listed, you know it has passed UL’s stringent tests for electrical safety. UL’s web site can be found at http://www.
- Page 27 We can even apply patterns, or the name of your restaurant on the front of your oven. With Marra Forni, your oven is more than just an appliance, it is a work of art. 9. Unprecedented technological advances enable our curing cases to boast “One Touch” salami making.
- Page 29 Marra Forni Wood-Fired Brick Ovens 1 Year Limited Warranty Registration Complete this form and return it to Marra Forni within 30 days of receipt of purchase. This is to Certify that Marra Forni Products Have Been Received by: ______________________________________________________________ Located at:...
- Page 31 DO NOT THROW THIS MANUAL AWAY. REVIEW WARRANTY BEFORE INSTALLING OVEN. Scan to visit www.marraforni.com!
- Page 32 10310 Southard Drive Beltsville, MD 20705 Bus. 1.888.239.0575 Fax. 240.667.7991 info@marraforni.com marraforni.com...
