User Guide
HFS1000 Non-Contact Infrared Thermometer
HFS1000 is included as a medical device on the Australian
Register of Therapeutic Goods (ARTG No. 279076).
HFS1000 is intended for use as a measuring device for determining the patient's body temperature. ALWAYS
READ THE LABEL AND USER GUIDE, USE ONLY AS DIRECTED.
Keep this user guide for future reference. Always retain your proof of purchase in case of warranty service and
register your product on line at AUSTRALIA: www.oricom.com.au

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HFS1000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Oricom HFS1000

Summary of Contents for Oricom HFS1000

  • Page 1 HFS1000 is included as a medical device on the Australian Register of Therapeutic Goods (ARTG No. 279076). HFS1000 is intended for use as a measuring device for determining the patient's body temperature. ALWAYS READ THE LABEL AND USER GUIDE, USE ONLY AS DIRECTED.
  • Page 2 Need Help? If you need assistance setting up or using your Oricom product now or in the future, call Oricom Support. Australia 1300 889 785 or 02 4574 8888 www.oricom.com.au Mon-Fri 8am – 6pm AEST New Zealand 0800 67 42 66 www.oricom.co.nz...

  • Page 3: Table Of Contents

    HFS1000 NoN-coNtact iNfrared thermometer Table of Contents How to take a temperature product description Before first use switcHing on and setting tHe tHermometer measuring Body temperature displaying stored measurements...
  • Page 4 HFS1000 NoN-coNtact iNfrared thermometer measuring oBject temperature measuring room temperature error messages Battery replacement maintenance and storage product specifications customer support...
  • Page 5 HFS1000 NoN-coNtact iNfrared thermometer important How to make a claim under warranty in australia important information warranty information (australia)
  • Page 6 HFS1000 NoN-coNtact iNfrared thermometer Thank you for purchasing the Oricom HFS1000 Non-contact Infrared Thermometer. This product has been developed using the latest in infrared technology. This technology allows the user to measure the temperature without physical contact. To use this device correctly please follow the directions in this user guide.
  • Page 7 HFS1000 NoN-coNtact iNfrared thermometer • Do not use this product if it is not working properly, contact Oricom support. • There are no user serviceable parts the only service required is battery replacement and general cleaning please follow instructions in this user guide.
  • Page 8 HFS1000 NoN-coNtact iNfrared thermometer Cautions • The reliability of the measurement cannot be guaranteed if the temperature is measured from parts of body that are not recommended. • Similar to other thermometers, measurement error may occur within a range of ±0.2 °C (±0.4 °F).
  • Page 9 HFS1000 NoN-coNtact iNfrared thermometer Simple Operation Principle The body temperature is reflected on the temporal artery. • The temporal artery is the artery located closest to the skin and is spread across the forehead. If the blood with body temperature reflection passes the temporal artery on forehead, corresponding amount of infrared rays will be generated. From the infrared rays, the body temperature can be measured.

  • Page 10: How To Take A Temperature

    HFS1000 NoN-coNtact iNfrared thermometer How to take a temperature IMPORTANT MEASUREMENT POINT Recommended measurement is the temple area. Temple area Behind the ear lob Incorrect measurement If sweating on the forehead is present ▶ we recommend changing the measurement point to behind to earlobe.
  • Page 11 Wipe away sweat on the forehead and 2~3 cm away HFS1000 NoN-coNtact iNfrared thermometer ▶ push back any hair from the forehead from forehead. 2~3 cm Wipe away sweat Push back hair before use.
  • Page 12 HFS1000 NoN-coNtact iNfrared thermometer • Body Temperature Measurement Ranges Body temperature means internal temperature of body. Normal temperature even in a healthy person can vary within a small range. The temperature of a person measured in the evening is normally 0.5 °C higher than early morning and is also affected by the environment, time and activity. Refer to the table below to find out the normal...
  • Page 13 HFS1000 NoN-coNtact iNfrared thermometer • Using the Thermometer - Measuring Body Temperature Select the HFS1000 to body temperature measuring mode, and check the body temperature on the temple area from 2 to 3 cm distance. - Measuring Bathing Water Temperature Select the thermometer to daily wide temperature measuring mode, and check the water temperature by holding the thermometer 2 to 3 cm from the water.

  • Page 14: Product Description

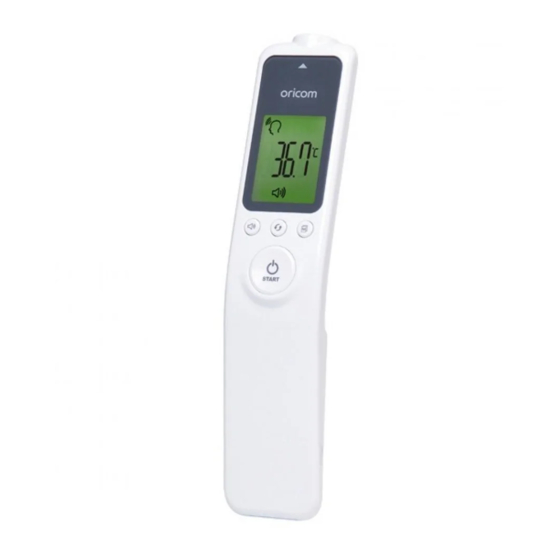

    HFS1000 NoN-coNtact iNfrared thermometer Product Description Unit Buttons Functions 1 LCD display Switching device on. Starting temperature 2 Sound (on/off) button measurement. 3 Mode button Setting the sound (On/Off). 4 Memory button 5 Start button (Power & Selecting the measurement method and unit.
  • Page 15 HFS1000 NoN-coNtact iNfrared thermometer Display 1 Body temperature mode 2 Object temperature mode 3 Room temperature mode 4 Low Battery symbol 5 Temperature display 6 Measurement unit (Celsius/Fahrenheit) 7 Memory 8 Sound on/off...

  • Page 16: Before First Use

    HFS1000 NoN-coNtact iNfrared thermometer Before first use • Before first use, insert the batteries supplied. > Battery Replacement [page. 26] Switching on and setting the thermometer • Press the Start button or Mode button briefly. > The device switches on. After two seconds, the display shows that the device is ready for use.

  • Page 17: Measuring Body Temperature

    HFS1000 NoN-coNtact iNfrared thermometer Setting the measurement sound • Press the Sound button briefly. > Each time the button is pressed, the sound switches on or off. > If the display shows after pressing the button, the device emits sound. > If is not displayed after pressing the button, the device does not emit sounds.
  • Page 18 HFS1000 NoN-coNtact iNfrared thermometer • Press the Start button briefly. > Keep the distance until you hear the measurment completion beep. > If the thermometer is in silent mode, keep the distance for approximately 2 seconds. Normal Sweating Site of measurement recommended is the temple area...
  • Page 19 HFS1000 NoN-coNtact iNfrared thermometer • Temperature readings may vary according to location. Therefore we recommend to measure the temperature at more than 2 points. Then please recognize the highest temperature as the right temperature. • Check the temperature on the LCD screen. The temperature reading will be automatically stored. • The LED backlight will illuminate based on the readings. > LED will automatically turned off after 2 to 3 seconds. LED 3 Colours Green: between 22 °C ~ 37.3 °C Yellow: between 37.4 °C ~ 37.9 °C...

  • Page 20: Displaying Stored Measurements

    HFS1000 NoN-coNtact iNfrared thermometer Displaying stored measurements • Press the Start button or Mode button briefly to turn on the thermometer. > The device switches on. After two seconds, the display shows that the device is ready for use. • The device automatically stores the last 32 measurements.

  • Page 21: Hfs1000 Non-Contact Infrared Thermometer Measuring Object Temperature

    HFS1000 NoN-coNtact iNfrared thermometer Measuring object temperature • Press the Start button or Mode button briefly. > The device switches on. After two seconds, the display shows that the device is ready for use. > The device always starts in body temperature mode.
  • Page 22 HFS1000 NoN-coNtact iNfrared thermometer • Read the temperature from the display. [Figure 2] > Measurements in object temperature mode are not stored. Object temperature • LED 3 Colours > Green: Measured temperature is between 0 °C ~ 100 °C (32 °F ~ 212 °F) >...

  • Page 23: Measuring Room Temperature

    HFS1000 NoN-coNtact iNfrared thermometer Measuring Room temperature • If you want to use the thermometer to measure the room temperature, you need to change the mode to room temperature. • Press the Mode button briefly. > The device switches to the room temperature measuring mode. > If the object temperature measuring mode is selected, press the MEM button to save it. • Check the measurement ready status in [Figure 1].

  • Page 24: Error Messages

    HFS1000 NoN-coNtact iNfrared thermometer Error messages Display Error description Trouble-shooting Ambient temperature is not within the allowed operating temperature. Operating temperature range: 16 °C ~ 40 °C (60.8 °F ~ 104 °F) Allow the device to remain for approx “H 40” means: Ambient temperature is 43 °C 30 minutes in a normal room temperature.
  • Page 25 HFS1000 NoN-coNtact iNfrared thermometer Display Error description Trouble-shooting Measurement range for body temperature: 22 °C UP 42.5 °C (71.6 °F UP 108.5 °F) The temperature of the measuring point is above the measurement range. Measurement range for object temperature: 0 °C UP 100 °C (32 °F UP 212 °F) Measurement range for body temperature: 22 °C UP 42.5 °C (71.6 °F UP 108.5 °F)

  • Page 26: Battery Replacement

    HFS1000 NoN-coNtact iNfrared thermometer Battery Replacement • The device requires two AA Alkaline batteries. > Open the battery compartment. > For this purpose, slide down the battery compartment lid on the back. • Take the used batteries out of the battery compartment. Insert new batteries. > Observe correct polarity. • Close battery compartment.

  • Page 27: Maintenance And Storage

    HFS1000 NoN-coNtact iNfrared thermometer Maintenance and Storage • The sensor part of the thermometer is very sensitive and must be kept clean and undamaged. • Do not put any foreign materials inside the probe. • To clean the sensor, using a cotton swab with alcohol (ethanol), carefully wipe the surface clean. • Keep the product away from direct sunlight, dust and any other type of contaminating substance. • The thermometer should be stored in normal room temperature. • Please place the product in normal room temperature for 30 minutes prior to use if it has been stored outside normal room temperature. Do not subject the thermometer to strong shocks, such as dropping the unit. Do not submerge the device or any of the components in water or any other solutions.

  • Page 28: Product Specifications

    HFS1000 NoN-coNtact iNfrared thermometer Product Specifications Item Details of description Measurement method Infrared (IR) measurement, Non-Contact measurement Basic functions Switches for Multi-measurements (Body, Object and Room temperature) Switches for Celsius/Fahrenheit, Memory function, Sound controls (On,Off) Operating condition 16 °C to 40 °C (60.8 °F to 104 °F), Humidity: 15% to 93%, non-condensing,...
  • Page 29 HFS1000 NoN-coNtact iNfrared thermometer Item Details of description Measuring time Less than 2 seconds, Continuous measurement Resolution 0.1 °C/0.1 °F Mode selection Body temperature, Object temperature, Room temperature Memory function Automatic memory function, Confirm the result by using memory button Can store up to 32 results (1 to 32)
  • Page 30 Turns On for 3 seconds after measurement. The backlight turns off automatically Power-saving Turns Off automatically after one minute Components HFS1000 1 set, Manual, Battery (AA type) 2ea, case Power AA Alkaline Batteries (x2) Measurable numbers More than 10,000 times...

  • Page 31: Customer Support

    Important Please retain your purchase receipt and attach to the back page of this user guide as you will need to produce this if warranty service is required. Take a few moments to register your product online: www.oricom.com.au...

  • Page 32: How To Make A Claim Under Warranty In Australia

    Please note that if a Customer Support Team member advises that your product does not qualify for return, this warranty does not apply to your product. Products that are authorised to be returned to Oricom in Australia must include all of the following: • A completed Return Authorisation form • A copy of your Proof of Purchase (please keep your original copy)

  • Page 33: Important Information

    Please also be aware that goods presented for repair may be replaced by refurbished goods or parts of the same type rather than being repaired. Warranty Information (Australia) This Warranty is provided by Oricom International Pty Ltd ABN 46 086 116 369, Unit 1, 4 Sovereign Place, South Windsor NSW 2756, herein after referred to as “Oricom”.
  • Page 34 Any implied warranties that may be imposed by law are limited in duration to the Warranty Period. Oricom warrants that the product is free from defects in materials or workmanship during the Warranty Period. This Warranty does not extend to any product from which the serial number has been removed or was purchased outside of Australia.
  • Page 35 Oricom does not warrant that the operation of the product will be uninterrupted or error free. Oricom is not responsible for damage that occurs as a result of your failure to follow the instructions that came with the product. These terms and conditions together with any specific terms and conditions contained in the user guide to the product purchased constitute the complete and exclusive agreement between you and Oricom regarding the product.
  • Page 36 4. modification to the product or services carried out on the production by anyone other than Oricom or Oricom’s authorised service provider. Oricom will not be liable for any damages caused by the product or the failure of the product to perform, including any lost profits or savings or special, incidental or consequential damages. Oricom is not liable for any claim made by a third party or made by you on behalf of a third party. This limitation of liability applies whether damages are sought, or a claim made, under this Warranty or as a tort claim (including negligence and strict product liability), a contract claim or any other claim.
  • Page 38 Phone: 1300 889 785 or (02) 4574 8888 (Monday to Friday 8am to 6pm AEST) Web: www.oricom.com.au Fax: (02) 4574 8898 Contact details for Oricom support and warranty claims in New Zealand Email: support@oricom.co.nz Phone: 0800 674 266 (Monday to Friday 10am to 8pm NZST) Web: www.oricom.co.nz...
