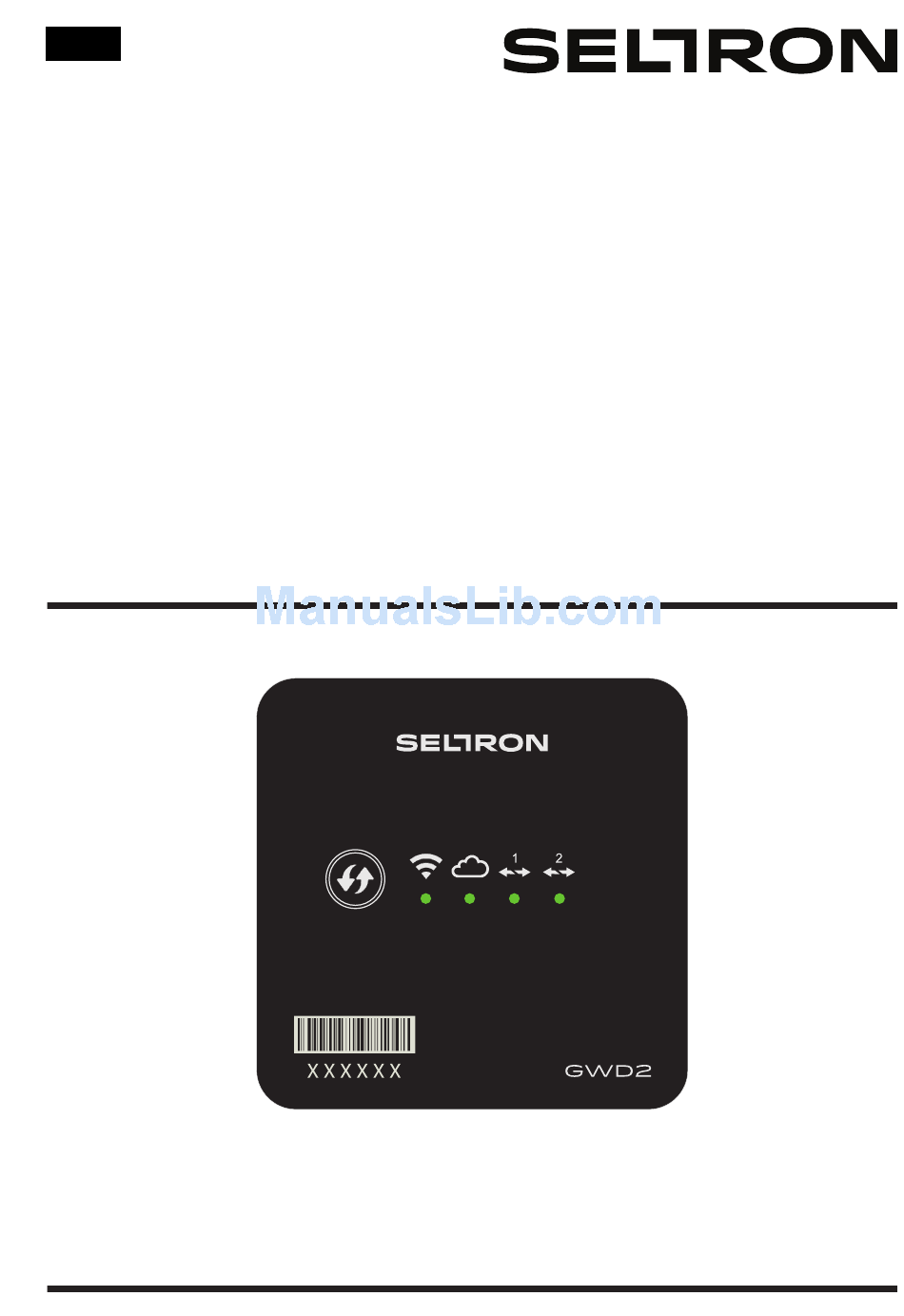

- Page 1 Instructions for use and setting of the module Instructions for installation Wi-Fi communication module GWD2...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Introduction ..........................4 INSTRUCTIONS FOR USE AND SETTING OF THE MODULE GWD module description.......................5 SeltronHome platform description ..................6 Setup communication module GWD ..................6 Setup connection with the controller..................6 Download the Clausius mobile application ................7 Create an account in Clausius ....................7 Register GWD on your user account ..................8 Connect GWD to a Wi-Fi network ..................8 Method A: Connect GWD to a Wi-Fi network with a Clausius app .......9... -
Page 4: Introduction
INTRODUCTION Wi-Fi communication modules GWD are advanced microprocessor-driven devices. They are made with digital and SMT technology, intended for remote access to Seltron heating controllers with Clausius application. You can connect up to 2 controllers to a GWD2 communication module. -
Page 5: Instructions For Use And Setting Of The Module
4 - Signal light for the indication of connection to a cloud service. 5 - Signal light for the indication of connection to a first Seltron heating controller. 6 - Signal light for the indication of connection to a second Seltron heating controller. -
Page 6: Seltronhome Platform Description
Before you start using the communication module GWD it is necessary: - to mount the module on the wall, - connect it to a Seltron controller, - connect it to a supply voltage. You can find technical instructions on pages 12 and 13. -
Page 7: Download The Clausius Mobile Application
DOWNLOAD THE CLAUSIUS MOBILE APPLICATION Mobile application Clausius is used for the heating manage- ment and the connection of communication module GWD to the Internet. For the devices with Android operating system you can find the application on Google Play Store. For the iOS devices you can find it on the App Store. -
Page 8: Register Gwd On Your User Account
REGISTER GWD ON YOUR USER ACCOUNT Upon the first log in into the application, on the welcome screen (1.) choose the option »ADD YOUR NEW DEVICE AS OWNER«. In the window for adding a device (2.), enter the registration key of the GWD device and select »CHECK«. -
Page 9: Method A: Connect Gwd To A Wi-Fi Network With A Clausius App
METHOD A: CONNECT GWD TO A WI-FI NETWORK WITH A CLAUSIUS APP After you registered your GWD, application checks if your GWD is connected to a Wi-Fi network. Follow the instructions in the app: 1. The application checks the 2. If the GWD is offline, on 3. -
Page 10: Method B: Connect Gwd To A Wi-Fi Network With Wps Button
Condition of the signal lights on theGWD while connecting to Wi-Fi network When the configuration is complete, the WPS button turns off, ahd establishing of wireless Wi-Fi connections starts, which is signaled with an orange flashing warning Wi-Fi light When the wireless connection is established with theWi-Fi rou- ter, the signal Wi-Fi light lights green. -
Page 11: Gwd Connection With Seltronhome Cloud Service
GWD CONNECTION WITH SELTRONHOME CLOUD SERVICE After successful establishment of a wireless Wi-Fi connection, the GWD integration with »SeltronHome« service will be initi- ated automatically, which illustrates an orange flashing signal cloud light Once the GWD connection is established with the service, signal cloud light will light green. -
Page 12: Instructions For Installation
INSTRUCTIONS FOR INSTALLATION GWD INSTALLATION The GWD module must be installed in an indoor and dry area. Avoid immediate proximity of strong electromagnetic field sources. Choose the installation site so that the GWD is within the range of the Wi-Fi router's wireless network. GWD ELECTRICAL CONNECTION Electrical connection of devices shall be done by a qualified technician or an authorised organisation. -
Page 13: Supply Voltage Connection
(3). CONNECTION WITH A HEATING CONTROLLER You can connect up to two Seltron controllers to a GWD2. Connect the GWD module to the WDC heating controller with a 2-wire cable. Connect the first controller into the cable fasteners 1 and 2 on GWD first (4), then connect it into a corresponding COM and GND fasteners on a controller (5). -
Page 14: Com Fastener Numbers On The Controller
»Ver.«. For more information on controller support in SeltronHome please visit www.seltronhome.com. In case your controller's version is lower than minimum supported please bring or send your controlller to a Seltron service to check options for upgrade. Instructions for installation... -
Page 15: Troubleshooting, Technical Data, Statements
TROUBLESHOOTING, TECHNICAL DATA, STATEMENTS GWD FACTORY RESET To reset the GWD, pleas press down and hold the WPS button ., until you hear a tone (for around 6 seconds). TROUBLESHOOTING No signal light lights on the GWD module. The GWD is not connected onto a power source or there is a blackout. - Page 16 The »cloud« signal light on the GWD lights orange. 1. option: device is connected to the network but doesn't have access to internet. We recommend: • reset your wireless router; • reset your modem; • check your internet connection access by you internet provider.
-
Page 17: Technical Data
TECHNICAL DATA Dimensions [w x h x d]:..........90 x 90 x 44 mm Weight of the device..........465 g Device housing............PC - thermoplastic polycarbonate Supply voltage............230 V ~ , 50 Hz Own consumption............0.5 VA Cross-sectional area of network conductors ..... 0.5 to 0.75 mm2 Cross-sectional area of communication conductors.. -
Page 18: Declaration Of Conformity
DECLARATION OF CONFORMITY Wi-Fi communication modules GWD conform to the following directives: - LVD: Low Voltage Directive 2014/35/EC, - EMC: Electromagnetic Compatibility Directive 2014/30/EC, - RoHS II: Directive on the restriction of the use of certain hazardous substances in electrical and electronic equipment 2002/95/EC. TYPE: Wi-Fi communication module TIP:... -
Page 19: Notes
NOTES Notes... - Page 20 SELTRON d.o.o. Tržaška cesta 85 A SI-2000 Maribor Slovenija tel: +386 (0) 2 671 96 00 fax: +386 (0) 2 671 96 66 http://www.seltron.eu V2.0 email:info@seltron.eu © 2016 We reserve the right to errors, changes and improvements without giving prior notice.
