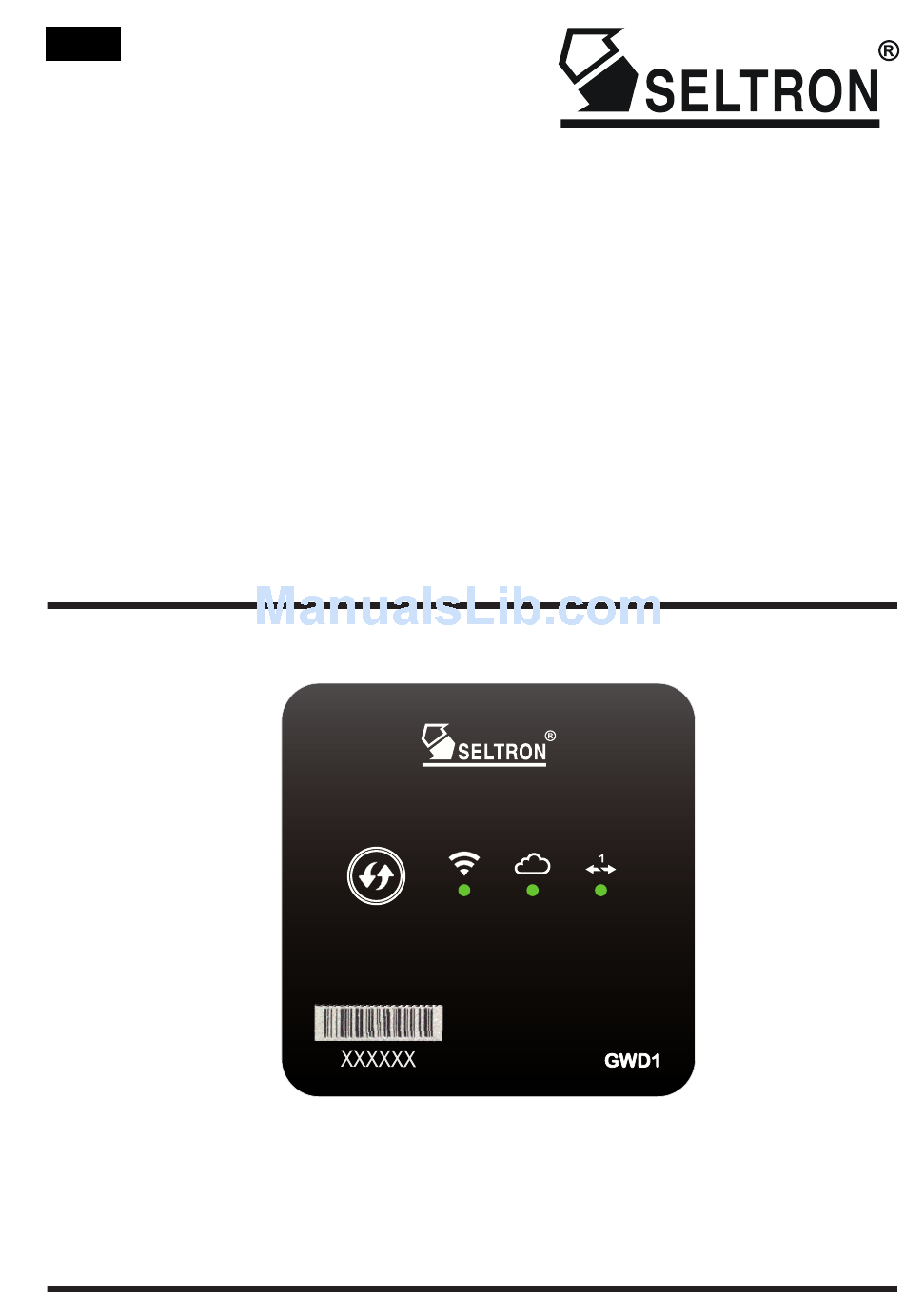

- Page 1 Instructions for use and setting of the module Instructions for installation Wi-Fi communication module GWD1...
-
Page 3: Table Of Contents
Register GWD1 on your user account ...................8 Connect GWD1 to a Wi-Fi network ..................9 Method A: Connect GWD1 to a Wi-Fi network with WPS button .........9 Method B: Connect GWD1 to a Wi-Fi network with Clausius application ....9 GWD1 connection with SeltronHome cloud service ............11 INSTRUCTIONS FOR INSTALLATION GWD1 installation ........................12... -
Page 4: Introduction
Introduction Wi-Fi communication modules GWD1 are advanced microprocessor-driven devices. They are made with digital and SMT technology, intended for remote access to Seltron heating controllers with Clausius application. -
Page 5: Instructions For Use And Setting Of The Module
3 - Signal light for the indication of connection to a Wi-Fi network. 4 - Signal light for the indication of connection to a cloud service. 5 - Signal light for the indication of connection to a Seltron heating controller. Meaning of signal lights:... -
Page 6: Seltronhome Platform Description
SeltronHome platform description Communication module GWD1 is connected to the heating controller via a wire (BUS) connection. The GWD1 connects in to the internet via the Wi-Fi router, through which it communicates with the SeltronHome cloud services. SeltronHome service is a link between the communication with the mobile app Clausius. -
Page 7: Download Mobile Appliaction Clausius
Download the Clausius mobile application Mobile application Clausius is used for the heating management and the connection of communication module GWD1 to the Internet. For the devices with Android operating system you can find the application on Google Play. For the iOS devices you can find it on the App Store. -
Page 8: Register Gwd1 On Your User Account
4) In the window for building adding, you will enter the data for the building (apartment, house, company, street,...) in which the GWD is installed and select »CONTINUE«. Each GWD1 device has a unique registration key, which is printed on the front of the housing. 1) Tap the button »ADD YOUR... -
Page 9: Connect Gwd1 To A Wi-Fi Network
Close the Wi-Fi settings, and return to the application SeltronHome Clausius. At the first start or after reset the GWD1 is configured as an access point (an open network). This makes it possible for you to connect to GWD1 and complete its setup. - Page 10 Connecting procedure: 1. The application detects the GWD1 device. Tap »CONTINUE«. If the application after a few seconds doesn't detect the communication module GWD1, turn off the mobile data on your mobile device. 2. Listed Wi-Fi networks, which are withing the GWD1 range. Select your home Wi-Fi network.
-
Page 11: Gwd1 Connection With Seltronhome Cloud Service
1) you entered the wrong password. In this case repeat the procedure (on page 9); 2) signal between the wireless router and GWD1 is too weak. Try to establish a better signal reception by moving the router or GWD1;... -
Page 12: Instructions For Installation
INSTRUCTIONS FOR INSTALLATION GWD1 installation The GWD1 module must be installed in an indoor and dry area. Avoid immediate proximity of strong electromagnetic field sources. Choose the installation site so that the GWD1 is within the range of the Wi-Fi router's wireless network. -
Page 13: Supply Voltage Connection
Connection with a heating controller Connect the GWD1 module to the WDC heating controller with a 2-wire cable. Connect the cable into fasteners 1 and 2 on GWD1 first, then connect it into fasteners 7 (COM1) and GND on the WDC controller (4). -
Page 14: Troubleshooting, Technical Data, Statements
(for around 6 seconds). Troubleshooting No signal light lights on the GWD1 module. The GWD1 is not connected onto a power source or there is a blackout. 1. Check the electrical supply of the GWD1 module. 2. Assure that the power cord is connected correctly. - Page 15 2. option: the SeltronHome cloud services are currently under maintenance By update, the cloude services are under maintenance. Please wait until SeltronHome cloud services are again available and the GWD1 reconnects it self automatically with SeltronHome cloude services. The GWD1 WPS button lights green Settings of the communication module GWD1 have been reset.
-
Page 17: Technical Data
Technical data Dimensions [w x h x d]:..........90 x 90 x 44 mm Weight of the device..........465 g Device housing............PC - thermoplastic polycarbonate Supply voltage............230 V ~ , 50 Hz Own consumption............0.5 VA Cross-sectional area of network conductors ..... 0.5 to 0.75 mm2 Cross-sectional area of communication conductors.. -
Page 18: Declaration Of Conformity
Declaration of conformity Wi-Fi communication modules GWD1 conform to the following directives: - LVD: Low Voltage Directive 2014/35/EC, - EMC: Electromagnetic Compatibility Directive 2014/30/EC, - RoHS II: Directive on the restriction of the use of certain hazardous substances in electrical and electronic equipment 2002/95/EC. -
Page 19: Notes
Notes Notes... - Page 20 SELTRON d.o.o. Tržaška cesta 85 A SI-2000 Maribor Slovenija tel: +386 (0) 2 671 96 00 fax: +386 (0) 2 671 96 66 http://www.seltron.si V2.0 email:info@seltron.si © 2016 We reserve the right to errors, changes and improvements without giving prior notice.
