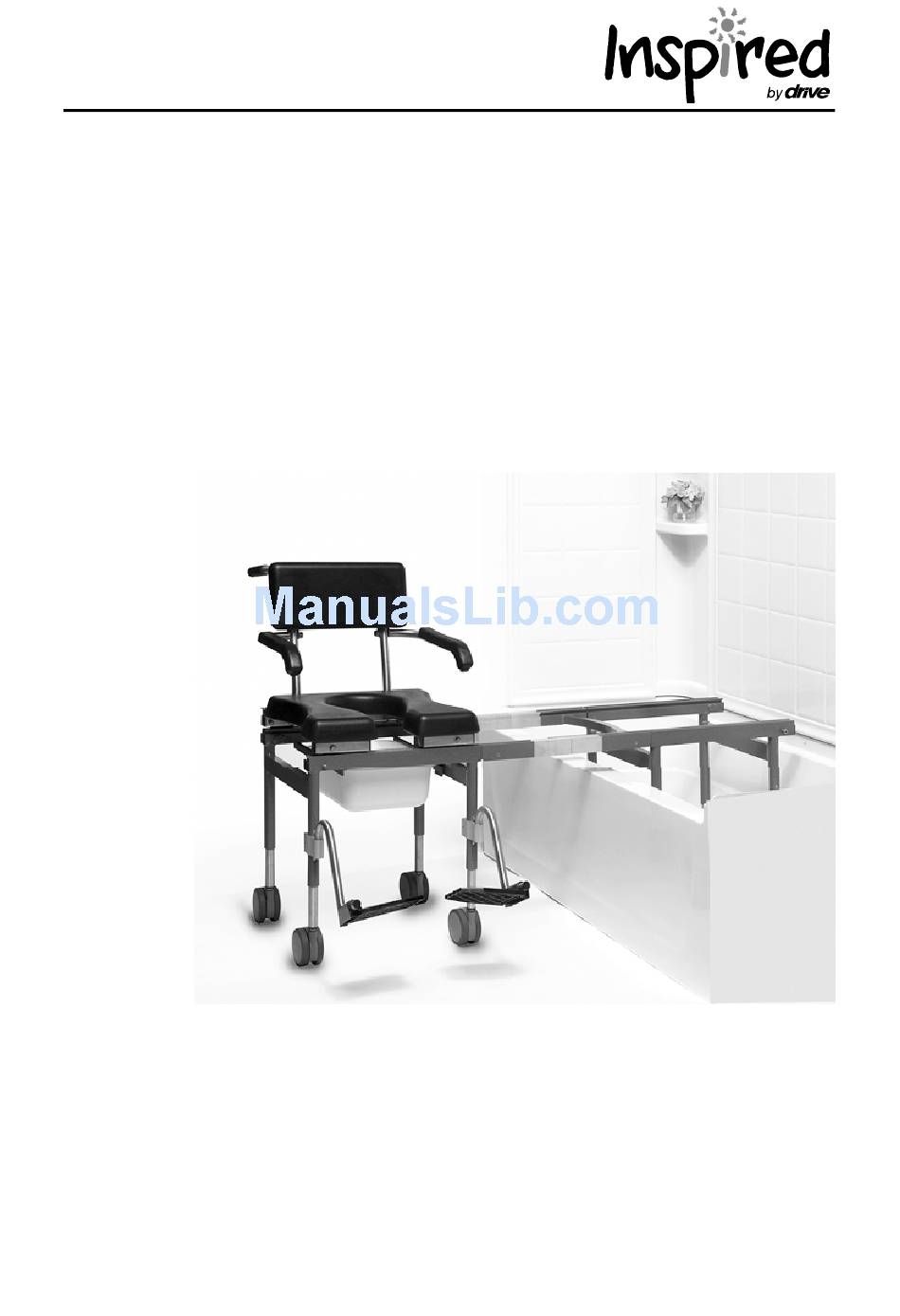

- Page 1 ™ Versa Bath Transfer Versa Transfer System: BTV-5100...
- Page 2 5. Keep your Versa Transfer System clean and sanitary. 6. Check regularly that all bolts, buckles, and other parts are tight and in good working order. 7. SAVE THESE INSTRUCTIONS. Thank you for choosing Inspired by Drive January 2017...
-
Page 3: Before You Begin
BEFORE YOU BEGIN The Versa Bath Transfer is shipped partially unassembled. Remove all parts from the packaging before assembly. The instructions will be referring to the following parts: Backrest Rolling base with seat Tub Base Footrests Leg Tubes Commode leg tubes Bridge Footrest clamps Leveling screws... - Page 4 ASSEMBLY OF TRANSFER SYSTEM The rolling base has commode pail system that is pre-installed to the system. If you need to remove it, please follow these steps: 1. Turn the rolling base upside-down. 2. Remove both support rails by using a Figure 1 Phillips screw driver (Fig.
- Page 5 ASSEMBLY OF THE TRANSFER SYSTEM Seat Assembly: 1. Attach the backrest to the seat bottom with the provided bolts (Fig. 6) in the bag attached to this instruction. Figure 6 2. Attach the armrests to the back using the enclosed bolts and internal spacer (Fig. 7). Seating and Rolling Base Assembly: 1.
- Page 6 OPERATING THE TRANSFER SYSTEM 1. Set the desired height on both tub base and rolling base by depressing the locking button on leg tubes and slide them up or down. 2. Place the tub base inside the tub or shower (Fig. 11). Level the frame by adjusting the leveling feet making sure that the height of the rolling base is the same as the tub base (Fig.
- Page 7 CLEANING YOUR VERSA Soapy water or mild cleansers may be used on all parts of your Versa Transfer System. Harsh abrasive cleaners (Ajax, Comet, etc.) may dull the fi nish. Versa Bath Transfer...
- Page 8 Every Inspired by Drive product comes with our one year manufacturer’s warranty. This warranty ensures that when you receive our products, they will arrive free of defects in material and workmanship. We will repair or replace any part or entire product at our discretion for a period of up to one year from the date of delivery to the original purchaser.
