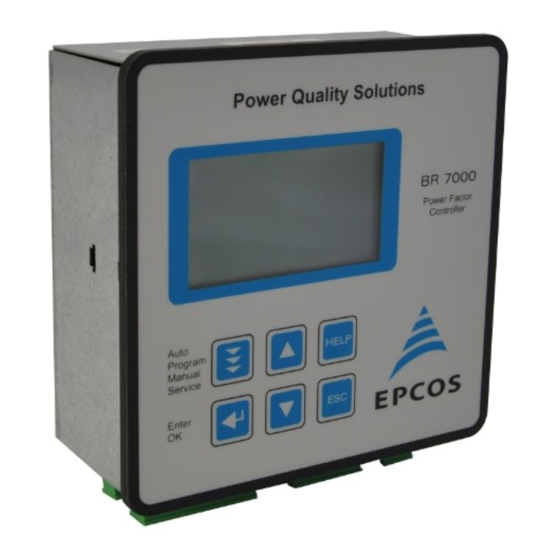

Power Factor Controller
AUTO-MODE cos
L1
L2
L3
1 2 3 4
Auto
Program
Manual
Service
Enter
OK
BR 7000
j
0.869 IND
0.869 IND
0.869 IND
HELP
ESC
Manual
Version 4.0 E
BR 7000
Power Factor
Controller

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BR 7000 and is the answer not in the manual?

Questions and answers

Related Manuals for Epcos BR 7000

Summary of Contents for Epcos BR 7000

  • Page 1 Power Factor Controller BR 7000 Power Quality Solutions AUTO-MODE cos 0.869 IND BR 7000 0.869 IND Power Factor 0.869 IND Controller 1 2 3 4 Auto Program HELP Manual Service Enter Manual Version 4.0 E...
  • Page 2 PC-Software „BR7000-Soft“ (enclosed with delivery) Windows-Software for programming of the PF-controller BR7000 and for visualization, storage and analysis of grid parameters. Connection to RS485-Bus Administration of several controllers possible Direct connection to USB-port of PC via accessory USB-adapter It allows a comfortable visualization and analysis of grid parameters during online- operation.

  • Page 3: Table Of Contents

    CONTENTS Section 1 General Section 2 Installation and instructions for usage Section 3 Connection alternatives measuring voltage and measuring current Section 4 Display functions Section 5 Display of grid parameters Section 6 PROGRAM-MODE / Manual programming p.11 6.1 Programming lock p.18 Section 7 HELP-function / actual assignment of outputs...
  • Page 4 Section 1: GENERAL The power factor controller BR7000 is the consequent follow-up development of the well proven series BR6000. The main distinctive feature is the new 3-phases measuring system. Due to the 3-phases recording of voltage and current the device allows a convenient usage as grid measuring device and as power factor controller.
  • Page 5 Section 2: INSTALLATION AND INSTRUCTIONS FOR USAGE The BR7000 is designed as panel mounting instrument in PFC-systems. This requires a cut out of 138 x 138 mm according to DIN 43700 / IEC 61554. The controller has to be inserted from the front and fixed with the clamps (included in delivery). The device may only be installed by qualified personnel and may only be operated according the given safety regulations.

  • Page 6: Expert-Mode

    AUTO-MODE cos - Program. parameter Help pages - Manual oper. 0.869 IND - Service BR 7000 0.869 IND - Expert Mode Power Factor 0.869 IND - Osci - Mode Controller - Display Editor 1 2 3 4 HELP...
  • Page 7 Section 3: CONNECTION ALTERNATIVES MEASURING VOLTAGE AND MEASURING CURRENT According to the existing grid and the desired operating mode (CONTROL-MODE Programming) the BR7000 has to be connected accord. one of the following alternatives. In grids without neutral conductor the connector N from meas.voltage at the controller has to be open.
  • Page 8 HIGH VOLTAGE LOW VOLTAGE Meas- supply Meas.current 20 kV / 400 V voltage voltage Im (X/1A) L1 (R) L1 (R) L2 (S) L2 (S) L3 (T) L3 (T) 20000 BR 7000 Meas.current Meas. voltage Um Supply voltage Ub - 7 -...
  • Page 9 Section 4: DISPLAY - FUNCTIONS After the operating voltage has been switched on, the BR7000 briefly indicates with description and software-version before changing to automatic operation. Actual values and symbols of the particular operation state are shown in the display. In the automatic operation (standard) capacitor steps are automatically switched on or off to reach the pre-set target cos-phi.
  • Page 10 Section 5: DISPLAY OF GRID PARAMETERS 5.1 Display of 3 selected grid parameters In Auto-Mode, button é leads to display mode 1. Here 3 (free selectable) grid parameters are displayed in large letters. The selection and storage of these values is done in the Display- Editor.
  • Page 11 === DISPLAY === Examples of different displays: DISPLAY DISPLAY [ 1] DISPLAY 1 LINE VOLTAGE 2 CURRENT 3 REACTVE POWER 2 STROM 233 V 235 A 71 kvar L1-N 233 V 133 A 23 kvar L2-N 233 V 133 A 22 kvar L3-N 116 kvar...
  • Page 12 Section 6: PROGRAM-MODE (manual programming) Pressing the button “Operation Mode“ one time switches from automatic operation to the program mode. The upper part of the display always shows the parameter, the adjustable values are shown in the lower part. Editable values are generally given in square brackets. Changes of these values can be done by the buttons é...
  • Page 13 === PROGRAM-MODE === CONTROL-MODE [2]: MIXED-MODE 3-phasige measuring 3 current transformers required. Values displayed and calculated per phase. Connection of measuring current and measuring voltage see page 6. Controlling done with max. 4 outputs per phase for switching of single phase capacitors L-N. The rest of the outputs (min.
  • Page 14 === PROGRAM-MODE === CONTROL-MODE [4]: 3-phase measuring / max. 15 three-phase capacitors Connection of measuring current and measuring voltage refer to page 6. Values displayed and calculated per phase. Controlling done with max. 15 outputs according to maximum or mean-value of the reactive power CONTROL-MODE [5]: 1-phase measuring / max.

  • Page 15: Annex

    === PROGRAM-MODE === 3 I-CONVERTER PRIM [1000 ] A / X ( 5 ... 13000) A PROGRAM-MODE Selects the primary current of the current converter. 3 I-CONVERTER PRIM Sequential adjustment of L1...L3. [ 1000]A / 5 A 1000]A / 5 A via the é...
  • Page 16 === PROGRAM-MODE === 9 TARGET COS PHI [ 0.98 ind ] ( 0.1 ind ... 0.1 cap ) PROGRAM-MODE By setting the target cos phi, the power factor to be TARGET cos j attained via the PF correction is defined. [ 0.980 IND] Sequential setting of L1 ...
  • Page 17 === PROGRAM-MODE === 18 DISCONNECT TIME: [ 40 ] sec. ( 1 sec..130min.) The time between disconnecting the capacitors to reduce the momentary network capacitance. Selection via é / ê. Save / continue with ENTER 19 DISCHARGE TIME: [ 60 ] sec.
  • Page 18 === PROGRAM-MODE === 23 EXTERNAL INPUT [ NO ] ( 1...8 ) Setting of the desired action upon applying a control voltage of 110...230V~ at the external input. 1 - NO (no action) 2- 2nd parameter set (switch over to 2nd parameter set). This selection simultaneously activates the following points 24…37 for programming of the values of the 2nd parameter set.
  • Page 19 === PROGRAM-MODE === 39 HARMONICS [ --,-- ]% (--.-- ... 25.5)% Threshold value THD-I (in%). In case this value is exceeded a message will be displayed. 40 CLOCK [ HH:MM ], DATE [DD.MM.YY] Set system-time and date (Due to an internal battery the time will be kept even in case of power loss) Selection with é...
  • Page 20 Section 7: HELP-Functions / actual output assignment The BR7000 features a context related help function. For each menu item one or more help pages are available which can be accessed directly with the HELP-button. Scrolling is done with "UP/DOWN" buttons, back retrace with ESCape.
  • Page 21 === Actual assignment of outputs === Example: CONTROL-MODE 2 (MIXED-MODE) set in END STOP to: 4 stages with 3 single- phase capacitors each and 3 stages with 1 three-phase capacitor each 3 x 4 single-phase capacitors 3 standard- 3-phase capacitors L1 (R) L2 (S) L3 (T)
  • Page 22 Section 9: MANUAL OPERATION Manual operation is designed for maintenance and service purpose. Menu “MANUAL-MODE” consists of the following sub- windows: MANUAL CONTROL [STOP] L1 ( L1...L3) MANUAL-MODE 1 manual operation, capacitor steps 1 [ STOPP ] connected /disconnected according to the control 40 kvar series and switching time irrespective of the prevailing power-line-conditions.
  • Page 23 Section 10: SERVICE MENU / Fault memory This service menu can be reached by the operating-mode key. The stored maximum values of the grid parameters can be displayed here as well as the number of switching operations of the individual capacitor steps and their operation time. The desired stage (in square brackets) is selected via the arrow keys.
  • Page 24 Section 11: EXPERT-MODE 1 and 2 The expert modes are meant for the adjustment of values which normally should not be changed. As a protection these levels have access codes: EXPERT-MODE 1 PASSWORD ???? 11.1 EXPERT-MODE 1 (Code: 6 3 4 3) 0*** 1 PASSWORD ? “...
  • Page 25 === EXPERT-MODE 1 === 12 DISPLAY [cos -0.10 ... +0.10] (tan -9.95 ... +9.95) (cos -0.910 ... +0.910) (tan -0.456 ... +0.456) Display of the power factor (cos oder tan) 13 U-Selection [ N - L1 - L2 - L3 ] ( - L1 - L2 - L3 ) Connection of the voltage (with or without Neutral) has to be programmed here in every case!
  • Page 26 11.2 EXPERT-MODE 2 ( Code: 6 3 4 3 ) The 2nd expert mode defines all operation-, warning- and fault messages which can be displayed by the controller. They can be activated/de-activated separately. Also a setting of a delay-time (0...255sec.) is possible. When de-activated, the display of the message as well as the possible activation of the alarm-relay or consequent effects on the control behavior are suppressed.
  • Page 27 Section 12: OSCI-MODE 1 U/I-1 11:38:00 To be reached via button operation menu in the main menu. In Osci-mode the actual form of a period of voltage and current is graphically displayed. This provides information about phase shift and curve form. Display possible consecutively for L1…L3 Section 13: DISPLAY EDITOR To be reached via button operation mode in the main...
  • Page 28 Section 15: INTERFACES As a standard, the BR7000 is equipped with two RS485 interfaces. COM 1 is located at the bottom of the device as double- RJ 45 jack. (for standard-patch-cable) The „powered“ jack has an additional internal power supply for external accessories. (e.g.
  • Page 29 INTERFACE Parameter: PROTOCOL COM1 [MODBUS RTU] (ASCII, MODBUS, ----) BAUDRATE COM1 [9600/None] (9600...256000 / None, Odd, Even) BUS ADRESS COM1 (1...255) ASCII-Transm.interval [10] sec. (5...255) PROTOCOL COM2 [MODBUS-RTU] (----, MODBUS, MASTER BAUDRATE COM2 [38400/None] (9600...256000 / None, Odd, Even) BUS ADRESS COM2 (1...255) RJ45 Pin configuration Data - (A)
  • Page 30 Section 16: C-TEST-MODE and TEST-RUN C-TEST: During each switching operation in AUTO-MODE the power of the particular capacitor stage is calculated and compared to the step power of the capacitor stage in the background. An error message will be displayed in case of discrepancies! A calculated faulty capacitor will be shown in the display as inverse capacitor- symbol C-TEST...
  • Page 31 CONTROL PRINCIPLE The control behavior can be selected in the programming mode. Generally, the BR7000 offers different possibilities of controlling: ˜ SEQUENTIAL CONNECTION In sequential connection, the required capacitor stages are successively connected or disconnected step by step (last in first out).The ranking of each step always corresponds to the power of the smallest stage.
  • Page 32 (First all stages of the first system, then all steps of the second system) Coupling of 2 power factor controllers BR7000 is done via their interface COM2: Power Quality Solutions Power Quality Solutions COM 2 COM 2 BR 7000 BR 7000 Power Factor Power Factor Controller Controller Auto...
  • Page 33 Annex 1: Table of control series Control serie Loop connection 1 : 1 : 1 : 1 : 1 ..possible 1 : 2 : 2 : 2 : 2 ..possible 1 : 2 : 3 : 3 : 3 ..possible 1 : 2 : 3 : 4 : 4 ..
  • Page 34 Annex 2: Troubleshooting Fault Reasons / Solution For target cos PHI=1 and inductive load Check terminals of measuring voltage and steps are switched out / for the already measuring current (l and k)! compensated grid steps are switched in Check phase position! Supply and consumption Check phase allocation exchanged.
  • Page 35 Fault Reasons / Solution In inductive grid stages are switched In case a value other than 1 for target- cos-phi is off resp. in capacitive grid conditions pre-set, the display “<” may be illuminated stages are switched on despite an inductive grid load. Arrows indicate the control direction, not the grid conditions! The controller does not connect all Check END STOP!
  • Page 36 Annex 3: Technical Data Type series BR 7000..Operating voltage 110...440 V~, +/-10%, 50 / 60Hz Measuring voltage (3-phase) 3 · 30...440 V~ (L-N) / 50...760V~ (L-L) Measuring current (3-phase) 3 · X : 5 / 1A selectable Power consumption <...
  • Page 37 Display / Display functions Display of grid parameters 3-phase As real value/in %/as bar graph cos-Phi, voltage, current, frequency, reactive-, active-, apparent power, missing kvar, temperature, THD-V / THD-I Large display of 3 grid parameters selection via display-editor Harmonics 3. - 31. harmonics of U and I display also in % or as bar graph Osci-mode graphical display of 1 period U/I in oscilloscope...
  • Page 38 Annex 4: Factory settings Note: The following values for the default settings apply only if the controller is supplied directly from the manufacturer. Otherwise, these values may have been replaced by settings made by the manufacturer of the compensation system (optimal values for the relevant network) Parameter Default setting...
  • Page 39 Parameter Default setting programmed values of this 2nd parameter set / system (to be entered by EXPERT-MODE manufacturer or operator) EXPERT-MODE: 6 3 4 3 PASSWORD Expert-Mode 1 BASIC SETTINGS - NO - - NO - SWITCH.OPERATION Reset OPERATING TIME Reset - NO - 1 sec.
  • Page 40 AUTO-MODE 1/2 0.869 IND 0.869 IND 0.869 IND PROGRAM-MODE ===== ===== 1 2 3 4 LINE VOLTAGE LANGUAGE [ 1 ] L1-N 230 V L2-N 230 V [ ENGLISH ] L3-N 230 V PE-N CURRENT [1] CONTROL-MODE [ 1 ] 123 A [ 3 ] PHASE MEASURING 239 A...
  • Page 41 If not needed they are not displayed. ERROR MEMORY ..PLAIN TEXT..DATE / TIME ..ERROR MEMORY RESET [ NEIN ] Operating diagram (Brief programming) Power Factor Controller BR 7000...
  • Page 42 EXPERT-MODE 1 EXPERT-MODE 2 ===== ===== ===== ===== 1 PASSWORD ???? 1 PASSWORD ???? 0 * * * (6 3 4 3) 0 * * * (6 3 4 3) UNDERVOLTAGE 2 BASIC SETTINGS 10 SWITCH.OPER.WARN 2 DISPLAY / ALARM LIMITING VALUE [ NO ] [ 50 000 ]...
  • Page 43 OSCI-MODE DISPLAY EDITOR INTERFACE C-TEST MODE 1 U/I-1 1 DISPLAY LINE 1 1 PROTOCOL COM 1 1 C-TEST 1 [ REACTIVE POWER [ MODBUS RTU ] [ YES ] 2 ACTIVE POWER S 3 APPARENT POWER S 2 DISPLAY LINE 2 2 BAUDRATE COM 1 2 MMI- TYP 1 REACTIVE POWER...
  • Page 44 Accessories Multi Measuring Devices MMI6000 and MMI7000 Data-Logger ”DataLog SD” for BR6000 and BR7000 Recording of all grid- and system parameters on a SD memory card USB to RS485 converter to connect the PF controllers or other devices with Interface RS485 to a PC with USB-interface.
